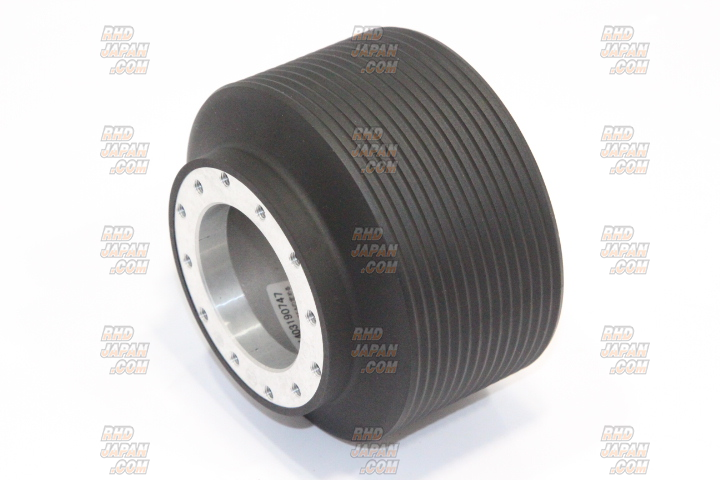

This Boss Kit/Hub adapter allows for adaptation of aftermarket steering wheel. Whether on or off the circuit the steering wheel is one of the first modifications to improve driving enjoyment and feel. Manufactured by boss kit specialist with superior materials and processing for extreme durability and reliability for any driving application.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: Works Bell
Product: Standard Boss Kit
Part Num: 909
FEATURES:
- The Boss Kit can exchange steering wheel to a car with genuine airbag.
- Works bell put the driver safety before everything else, The Boss Kit didn't have processed welding, adding, and heat processing at all in manufacture process of Universal Hub Kit.
- Universal Hub Kit has 12 holes and adopt to an attachment of momo pitch or NARDI pitch steering wheel.

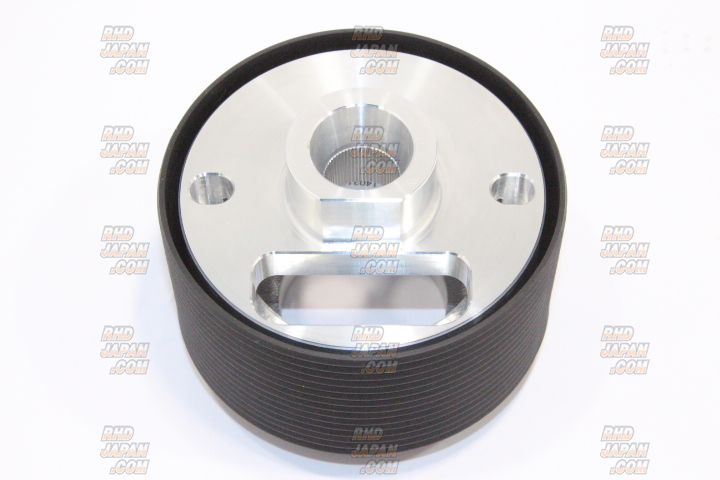

- The Boss Kit is manufactured in a aluminum die-casing process (or aluminum shaving) from the original model product for each car.
PRODUCT NOTES:

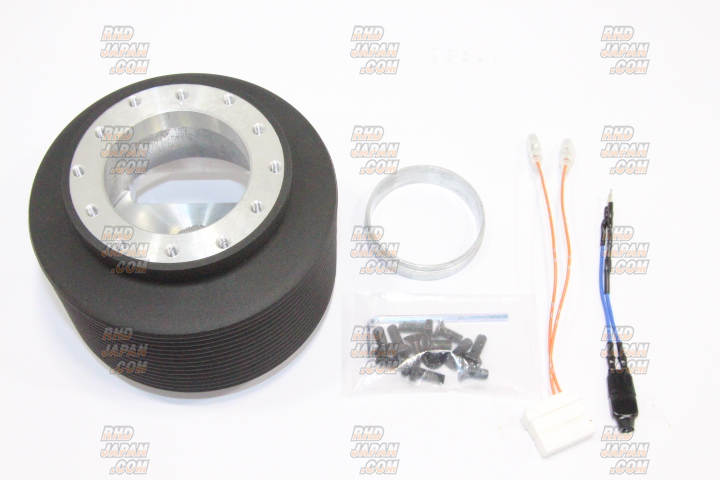

- All Hardware for Installation Included
COMPATIBILITY NOTES:
-any switches other than the horn button from the original wheel will be disabled
-only compatible with vehicles equipped with SRS
INSTALLATION NOTE:
INSTALLATION NOTE:
These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.

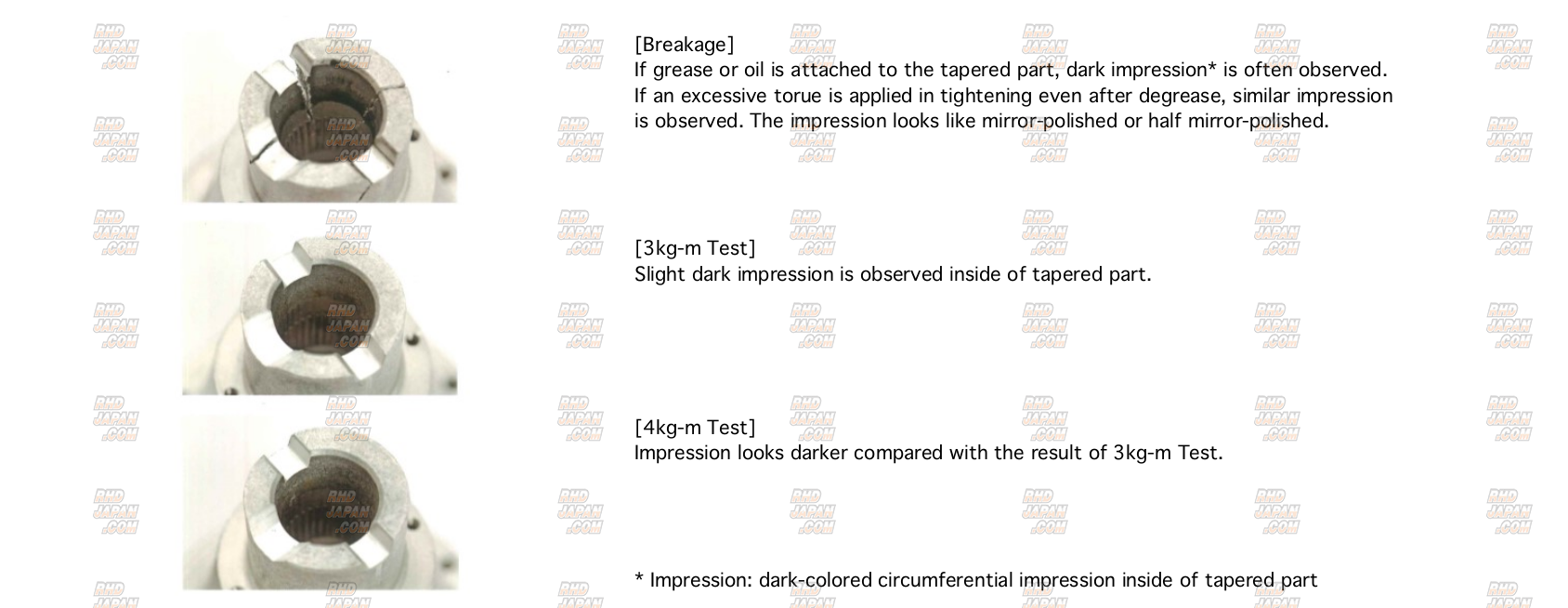

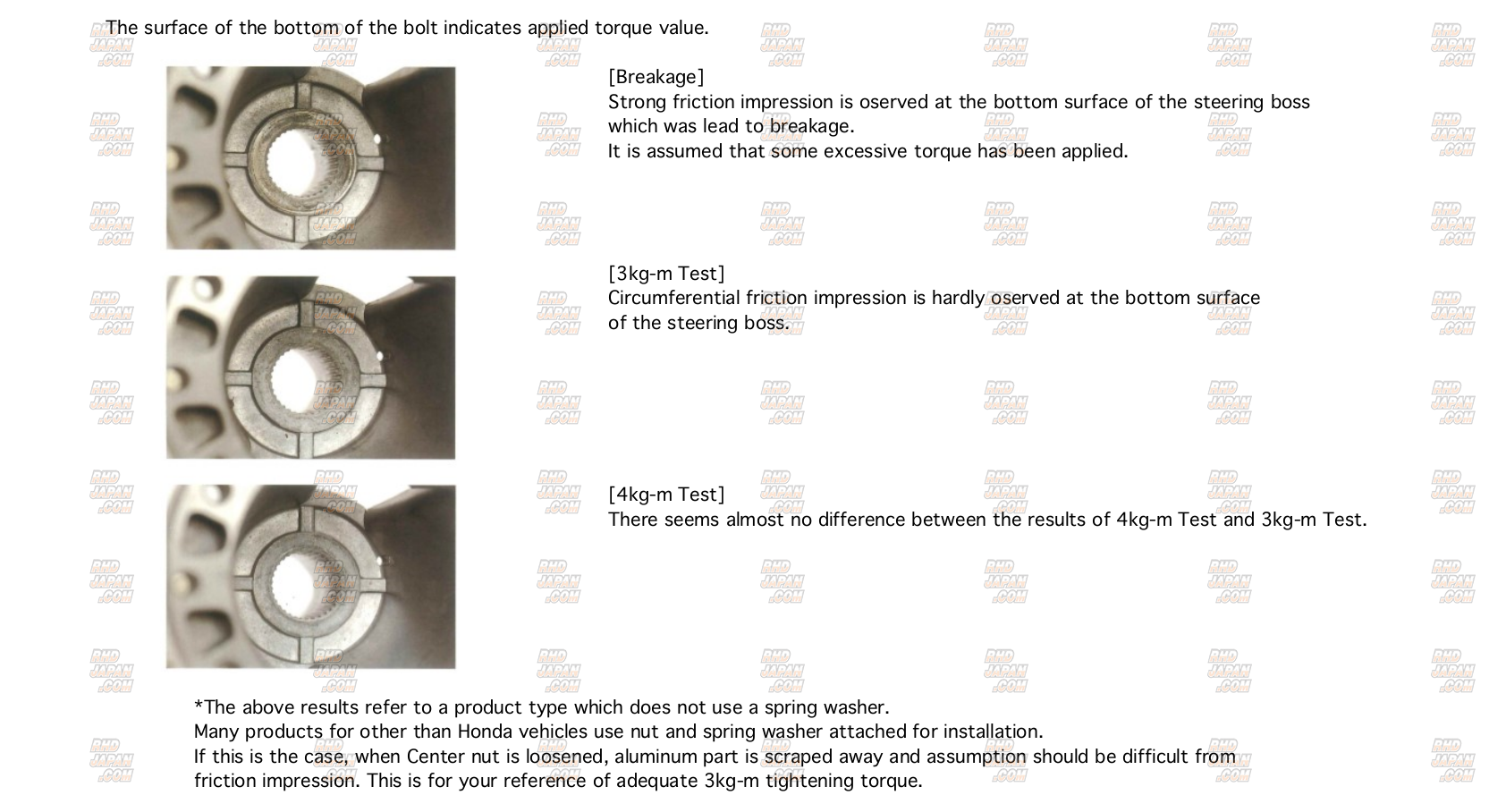

Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

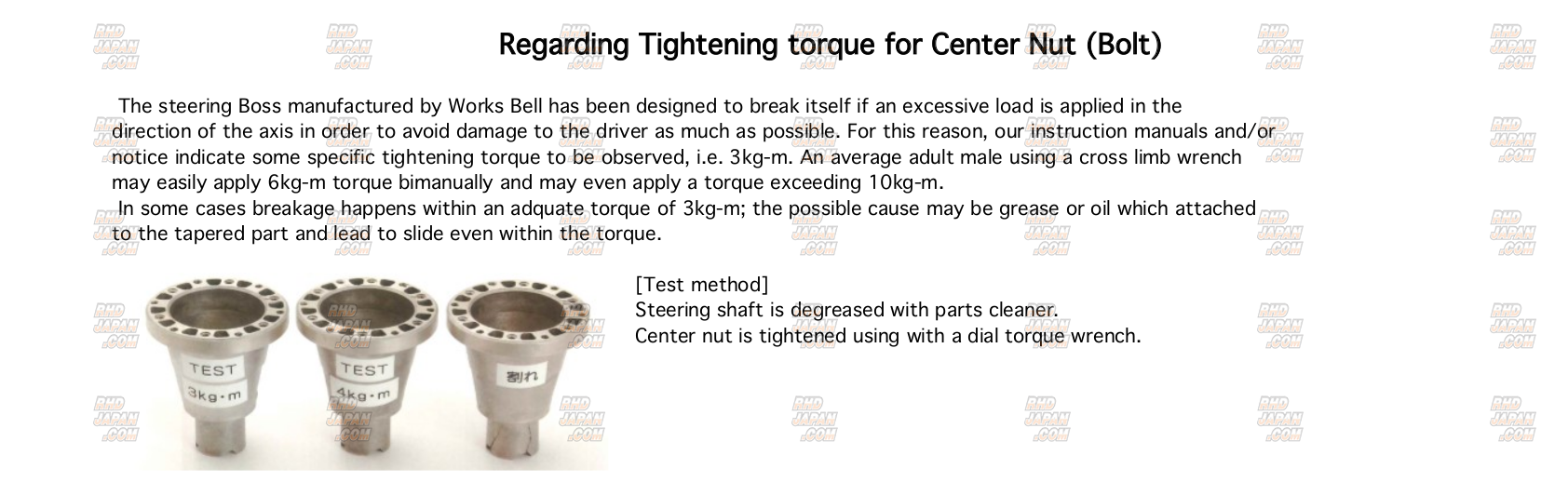

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Product: Standard Boss Kit
Part Num: 909
FEATURES:
- The Boss Kit can exchange steering wheel to a car with genuine airbag.
- Works bell put the driver safety before everything else, The Boss Kit didn't have processed welding, adding, and heat processing at all in manufacture process of Universal Hub Kit.
- Universal Hub Kit has 12 holes and adopt to an attachment of momo pitch or NARDI pitch steering wheel.
- The Boss Kit is manufactured in a aluminum die-casing process (or aluminum shaving) from the original model product for each car.
PRODUCT NOTES:
- All Hardware for Installation Included
COMPATIBILITY NOTES:
-any switches other than the horn button from the original wheel will be disabled
-only compatible with vehicles equipped with SRS
INSTALLATION NOTE:
INSTALLATION NOTE:
These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.
Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.
- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mazda Bongo Friendee SGL3 WL-T (05/1995-07/2000)
Mazda Bongo Friendee SGL5 WL-T (05/1995-07/2000)
Mazda Bongo Friendee SGLR WL-T (05/1995-07/2000)
Mazda Bongo Friendee SGLW WL-T (05/1995-07/2000)
Mazda Capella GC F-MA (09/1982-04/1987)
Mazda Cosmo JC3S 13B-REW (03/1994-09/1995)
Mazda Cosmo JC3SE 13B-REW (02/1990-02/1994)
Mazda Cosmo JCES 20B-REW (03/1994-09/1995)
Mazda Cosmo JCESE 20B-REW (02/1990-02/1994)
Mazda Demio DW3W B3-ME (08/1996-09/1998)
Mazda Demio DW3W B3-ME (09/1998-11/2000)
Mazda Demio DW3W B3-ME (12/2000-07/2002)
Mazda Demio DW5W B5-ME (08/1996-09/1998)
Mazda Demio DW5W B5-ME (09/1998-11/2000)
Mazda Demio DW5W B5-ME (12/2000-07/2002)
Mazda Familia BHA3P B3-ME (08/1996-04/1998)
Mazda Familia BHA3S B3-ME (08/1996-04/1998)
Mazda Familia BHA5P B5-ZE (03/1994-06/1995)
Mazda Familia BHA6R B6-DE (08/1996-04/1998)
Mazda Familia BHA7P 4EE1-T (08/1996-04/1998)
Mazda Familia BHA7R 4EE1-T (08/1996-04/1998)
Mazda Familia BHA8P BP-ZE (03/1994-06/1995)
Mazda Familia BHA8P BP-ZE (06/1995-08/1996)
Mazda Familia BHA8P BP-ZE (08/1996-04/1998)
Mazda Familia BHA8S BP-ZE (08/1996-04/1998)
Mazda Familia BHALP Z5-DE (03/1994-06/1995)
Mazda Familia BHALP Z5-DE (06/1995-08/1996)
Mazda Familia BHALP Z5-DE (08/1996-04/1998)
Mazda Lantis CBA8P BP-ZE (08/1993-06/1995)
Mazda Lantis CBA8P BP-ZE (07/1995-07/1996)
Mazda Lantis CBA8P BP-ZE (08/1996-09/1997)
Mazda Lantis CBAEP KF-ZE (08/1993-06/1995)
Mazda Lantis CBAEP KF-ZE (07/1995-07/1996)
Mazda Lantis CBAEP KF-ZE (08/1996-09/1997)
Mazda Roadster NA8C BP (09/1993-07/1995)
Mazda Roadster NA8C BP (08/1995-12/1997)
Mazda RX-7 FD3S Type I 13B-REW (12/1991-09/1994)
Mazda RX-7 FD3S Type II 13B-REW (09/1994-03/1995)
Mazda RX-7 FD3S Type III 13B-REW (09/1994-01/1996)
Mazda RX-7 FD3S Type IV 13B-REW (01/1996-12/1998)
Mazda RX-7 FD3S Type V 13B-REW (01/1999-09/2000)
Mazda RX-7 FD3S Type VI 13B-REW (10/2000-08/2002)
Mazda Bongo Friendee SGL3 WL-T (05/1995-07/2000)
Mazda Bongo Friendee SGL5 WL-T (05/1995-07/2000)
Mazda Bongo Friendee SGLR WL-T (05/1995-07/2000)
Mazda Bongo Friendee SGLW WL-T (05/1995-07/2000)
Mazda Capella GC F-MA (09/1982-04/1987)
Mazda Cosmo JC3S 13B-REW (03/1994-09/1995)
Mazda Cosmo JC3SE 13B-REW (02/1990-02/1994)
Mazda Cosmo JCES 20B-REW (03/1994-09/1995)
Mazda Cosmo JCESE 20B-REW (02/1990-02/1994)
Mazda Demio DW3W B3-ME (08/1996-09/1998)
Mazda Demio DW3W B3-ME (09/1998-11/2000)
Mazda Demio DW3W B3-ME (12/2000-07/2002)
Mazda Demio DW5W B5-ME (08/1996-09/1998)
Mazda Demio DW5W B5-ME (09/1998-11/2000)
Mazda Demio DW5W B5-ME (12/2000-07/2002)
Mazda Familia BHA3P B3-ME (08/1996-04/1998)
Mazda Familia BHA3S B3-ME (08/1996-04/1998)
Mazda Familia BHA5P B5-ZE (03/1994-06/1995)
Mazda Familia BHA6R B6-DE (08/1996-04/1998)
Mazda Familia BHA7P 4EE1-T (08/1996-04/1998)
Mazda Familia BHA7R 4EE1-T (08/1996-04/1998)
Mazda Familia BHA8P BP-ZE (03/1994-06/1995)
Mazda Familia BHA8P BP-ZE (06/1995-08/1996)
Mazda Familia BHA8P BP-ZE (08/1996-04/1998)
Mazda Familia BHA8S BP-ZE (08/1996-04/1998)
Mazda Familia BHALP Z5-DE (03/1994-06/1995)
Mazda Familia BHALP Z5-DE (06/1995-08/1996)
Mazda Familia BHALP Z5-DE (08/1996-04/1998)
Mazda Lantis CBA8P BP-ZE (08/1993-06/1995)
Mazda Lantis CBA8P BP-ZE (07/1995-07/1996)
Mazda Lantis CBA8P BP-ZE (08/1996-09/1997)
Mazda Lantis CBAEP KF-ZE (08/1993-06/1995)
Mazda Lantis CBAEP KF-ZE (07/1995-07/1996)
Mazda Lantis CBAEP KF-ZE (08/1996-09/1997)
Mazda Roadster NA8C BP (09/1993-07/1995)
Mazda Roadster NA8C BP (08/1995-12/1997)
Mazda RX-7 FD3S Type I 13B-REW (12/1991-09/1994)
Mazda RX-7 FD3S Type II 13B-REW (09/1994-03/1995)
Mazda RX-7 FD3S Type III 13B-REW (09/1994-01/1996)
Mazda RX-7 FD3S Type IV 13B-REW (01/1996-12/1998)
Mazda RX-7 FD3S Type V 13B-REW (01/1999-09/2000)
Mazda RX-7 FD3S Type VI 13B-REW (10/2000-08/2002)
