ATS & Across Silent Carbon Twin Clutch Kit Spec 2 - Z33 Kouki Z34 V36
335739
JPY
ATS & ACROSS
SKU: 169581

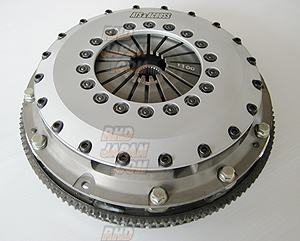

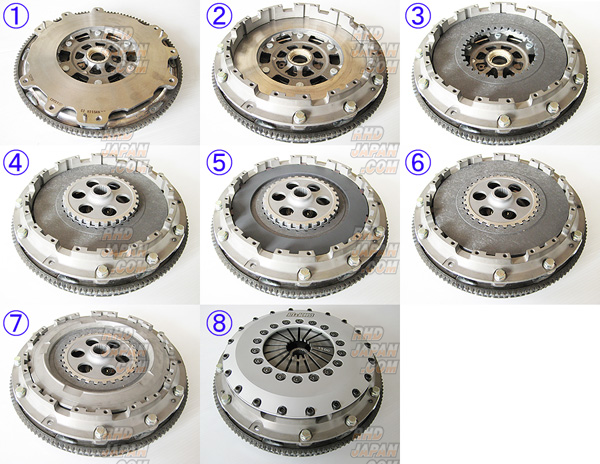

PN: SCN23H2180-14SThis clutch kit is designed to provide the ultimate combination of high power capability while maintaining silent operation. First in the industry, this innovative setup adapts high capacity carbon discs to the factory flywheel. The low weight and high power capacity of the carbon discs matched with the silent properties of the dual mass flywheel rid the cockpit of the annoying continual whine of the clutch system from idle to high RPM applications. Get this and all your JDM at RHDJapan!!
Brand: ATS & Across
Product: Silent Carbon Twin Clutch Kit Spec 2 - Z33 Kouki Z34 V36
Part Num: SCN23H2180-14S
SPECIFICATIONS:
Clutch Cover Clamping Force (Kg): 1350
Disc Material: Carbon Fiber
Hub System: Center
Number of Discs: Twin
PRODUCT NOTES:
- Flywheel must have no more than 0.3mm of wear from highest to lowest point of surface area.
Required Parts:
- Clutch Bearing (one of the following):
--KOYO: RCT4067L1
--NSK: TK40-1B2
--NTN: SF0823
- Nissan OEM:
--Bearing Sleeve:30501-01J60
--Clutch Fork: 30531-01J00
--Pivot: 30537-40P01
--Front Cover: 32110-CD000
--Gasket: 32112-CD000
--Banjo Bolt: 46356-0E00A
--Clutch Hose: 30855-CD00A
--Bolt: 31377-12U0B X 3pcs
--Sleeve Bearing: 30514-01T0A
--Fork Spring: 30534-01T01
--Release Cylinder: Nissan 30620-12U0A or NISMO 30620-RSR40
PRODUCT NOTES:
Recommended to upgrade to ATS Clutch Line: 30534-01T01
COMPATIBILITY NOTES:
Differences in transmission parts in Z33HR/CV36 may require different parts, please send vehicle information via Help Desk for cross reference prior to placing the order.
Product: Silent Carbon Twin Clutch Kit Spec 2 - Z33 Kouki Z34 V36
Part Num: SCN23H2180-14S
SPECIFICATIONS:
Clutch Cover Clamping Force (Kg): 1350
Disc Material: Carbon Fiber
Hub System: Center
Number of Discs: Twin
PRODUCT NOTES:
- Flywheel must have no more than 0.3mm of wear from highest to lowest point of surface area.
Required Parts:
- Clutch Bearing (one of the following):
--KOYO: RCT4067L1
--NSK: TK40-1B2
--NTN: SF0823
- Nissan OEM:
--Bearing Sleeve:30501-01J60
--Clutch Fork: 30531-01J00
--Pivot: 30537-40P01
--Front Cover: 32110-CD000
--Gasket: 32112-CD000
--Banjo Bolt: 46356-0E00A
--Clutch Hose: 30855-CD00A
--Bolt: 31377-12U0B X 3pcs
--Sleeve Bearing: 30514-01T0A
--Fork Spring: 30534-01T01
--Release Cylinder: Nissan 30620-12U0A or NISMO 30620-RSR40
PRODUCT NOTES:
Recommended to upgrade to ATS Clutch Line: 30534-01T01
COMPATIBILITY NOTES:
Differences in transmission parts in Z33HR/CV36 may require different parts, please send vehicle information via Help Desk for cross reference prior to placing the order.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Nissan Fairlady Z HZ33 VQ35HR (01/2007-12/2008)
Nissan Fairlady Z Z33 VQ35HR (01/2007-12/2008)
Nissan Fairlady Z Z34 VQ37VHR (12/2008-07/2012)
Nissan Fairlady Z Z34 VQ37VHR (07/2012-05/2020)
Nissan Skyline Coupe CKV36 VQ37VHR (11/2007-11/2008)
Nissan Skyline Coupe CKV36 VQ37VHR (12/2008-04/2014)
Nissan Skyline Sedan KV36 VQ37VHR (11/2007-11/2008)
Nissan Skyline Sedan KV36 VQ37VHR (12/2008-02/2014)
Nissan Skyline Sedan PV36 VQ35HR (11/2006-10/2007)
Nissan Skyline Sedan PV36 VQ35HR (11/2007-11/2008)
Nissan Skyline Sedan PV36 VQ35HR (12/2008-03/2014)
Nissan Fairlady Z HZ33 VQ35HR (01/2007-12/2008)
Nissan Fairlady Z Z33 VQ35HR (01/2007-12/2008)
Nissan Fairlady Z Z34 VQ37VHR (12/2008-07/2012)
Nissan Fairlady Z Z34 VQ37VHR (07/2012-05/2020)
Nissan Skyline Coupe CKV36 VQ37VHR (11/2007-11/2008)
Nissan Skyline Coupe CKV36 VQ37VHR (12/2008-04/2014)
Nissan Skyline Sedan KV36 VQ37VHR (11/2007-11/2008)
Nissan Skyline Sedan KV36 VQ37VHR (12/2008-02/2014)
Nissan Skyline Sedan PV36 VQ35HR (11/2006-10/2007)
Nissan Skyline Sedan PV36 VQ35HR (11/2007-11/2008)
Nissan Skyline Sedan PV36 VQ35HR (12/2008-03/2014)
