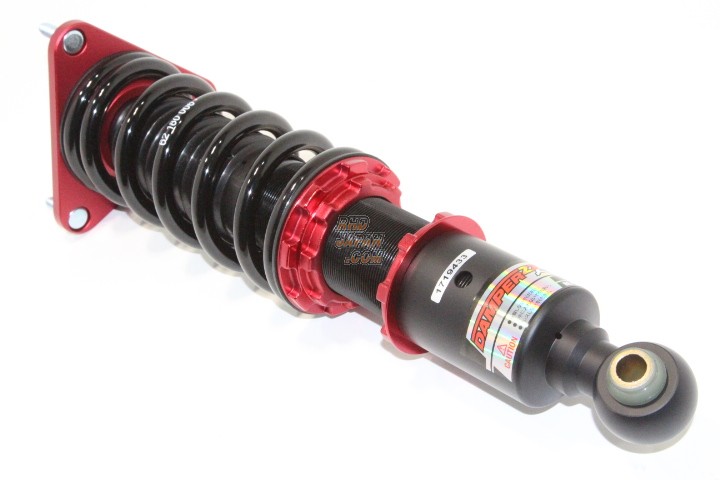

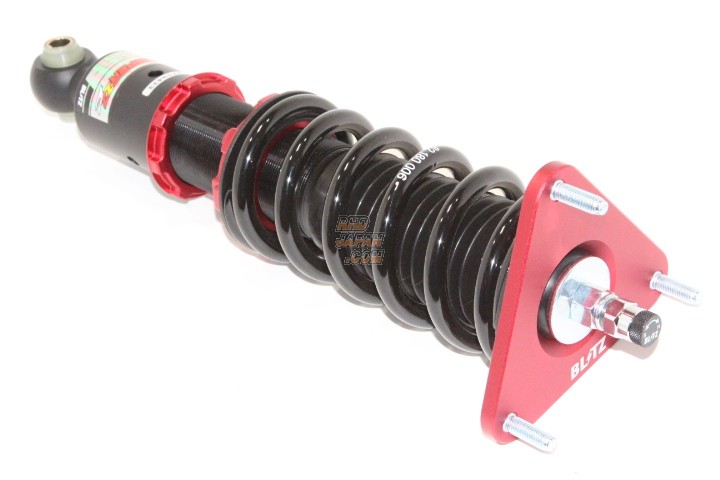

Blitz Damper ZZ-R Coilover Suspension - Odyssey RB1 RB2 RB3 RB4

Brand: Blitz
Product: Damper ZZ-R Coilover Suspension - RB1 RB2 RB3 RB4
Part Num: 92783

SPECIFICATIONS:
Materials:
- Springs: Special high-tension Steel (SAE9245)
- Cylinder Case: High-strength Steel (STKM13C)
Upper Mount Configuration:
- Front: Strengthened Rubber
- Rear: Strengthened Rubber
Spring Spec.:
- Spring Rate (kgf.mm):
-- Front: 12.0
-- Rear: 12.0
- Free Length (mm):
-- Front: 200
-- Rear: 200
Height adjustment range:
RB1 RB2
- Front: -80 ~ -20
- Rear: -70 ~ -25

RB3 RB4
- Front: -80 ~ -20
- Rear: -65 ~ -10

FEATURES:
- Single Cylinder Type
- 32 stage adjustment method
- Practical use for street circuit and wide range of events
- Designed with large diameter piston at 44mm (some vehicles)
- Forged aluminum upper mount
- Forged aluminum sheet for reduced weight and increased durability and strength
- Rigid bracket coated with special pain to achieve durability
- Aluminum bracket coated in black anodized paint to improve corrosion resistance
- Included height adjustment wrench

COMPATIBILITY NOTES:
- RB1 RB2: Compatible with vehicles equipped with AFS.
- For rear damping force adjustment, removing should be needed for the vehicle interior .
