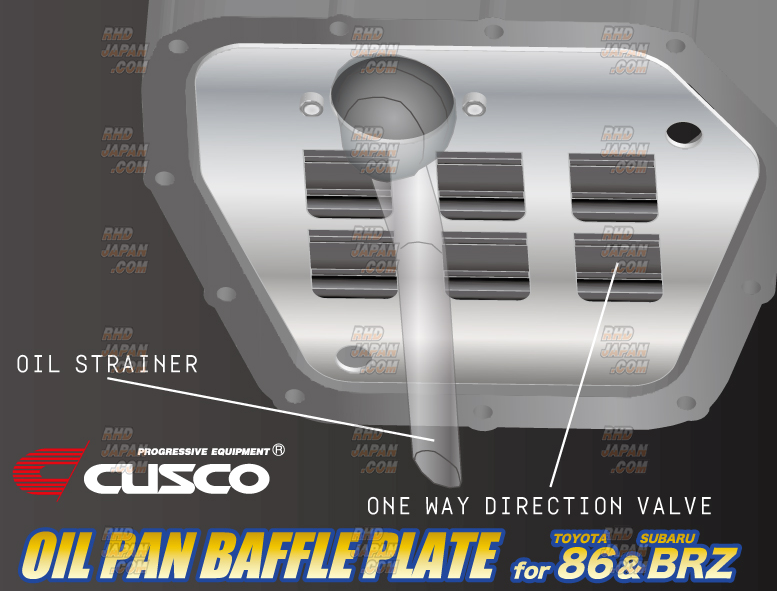

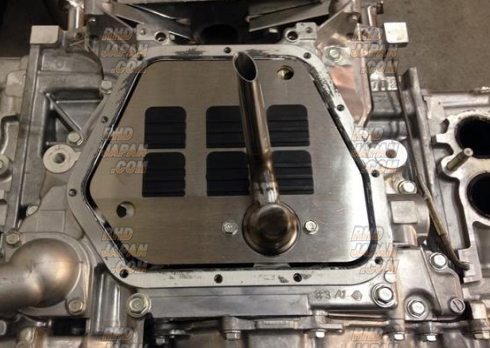

Inertial forces will affect the oil flow during acceleration and deceleration from cornering G forces. This happens during extreme performance and sports conditions, which affects the engine oils behavior in the sump. A constant steady supply of oil is achieved with the use of this Baffle Plate kit. Once customized to match the applications oil pans (sump) design. When the oil moves away from the pickup and air gets sucked in. In an instant, the oil film is cut and there is metal contact which will see the temperatures soar. This can lead to terminal engine failure. The one way rubber valve keeps the strainer always submerged in oil. The pictured example installation is different from the actual kit, as the one pictured was a customized installation. Get this and all your JDM at RHDJapan!!
Brand: CUSCO

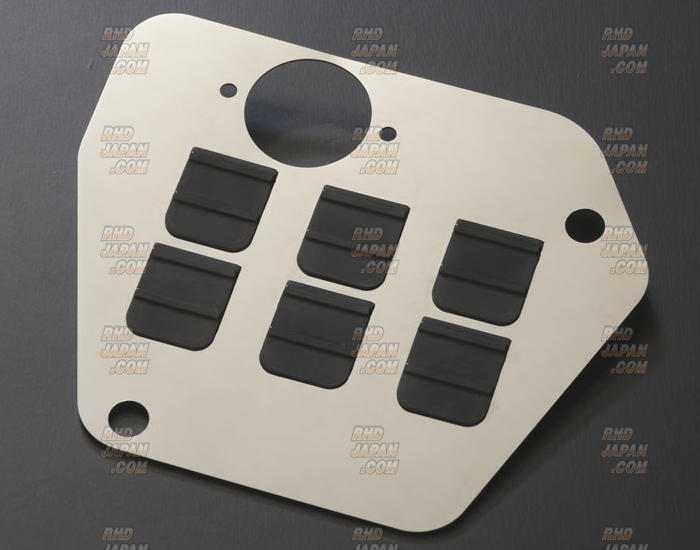

Product: Oil Pan Baffle Plate - ZC6 ZN6
Part Num: 965 737 A
SPECIFICATIONS:
Material:
-Plate: Stainless Steel
-Valve Flaps: Rubber
Thickness (mm): 1
Valve Type: One-Way Rubber Flap X 6
Product: Oil Pan Baffle Plate - ZC6 ZN6
Part Num: 965 737 A
SPECIFICATIONS:
Material:
-Plate: Stainless Steel
-Valve Flaps: Rubber
Thickness (mm): 1
Valve Type: One-Way Rubber Flap X 6
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)
