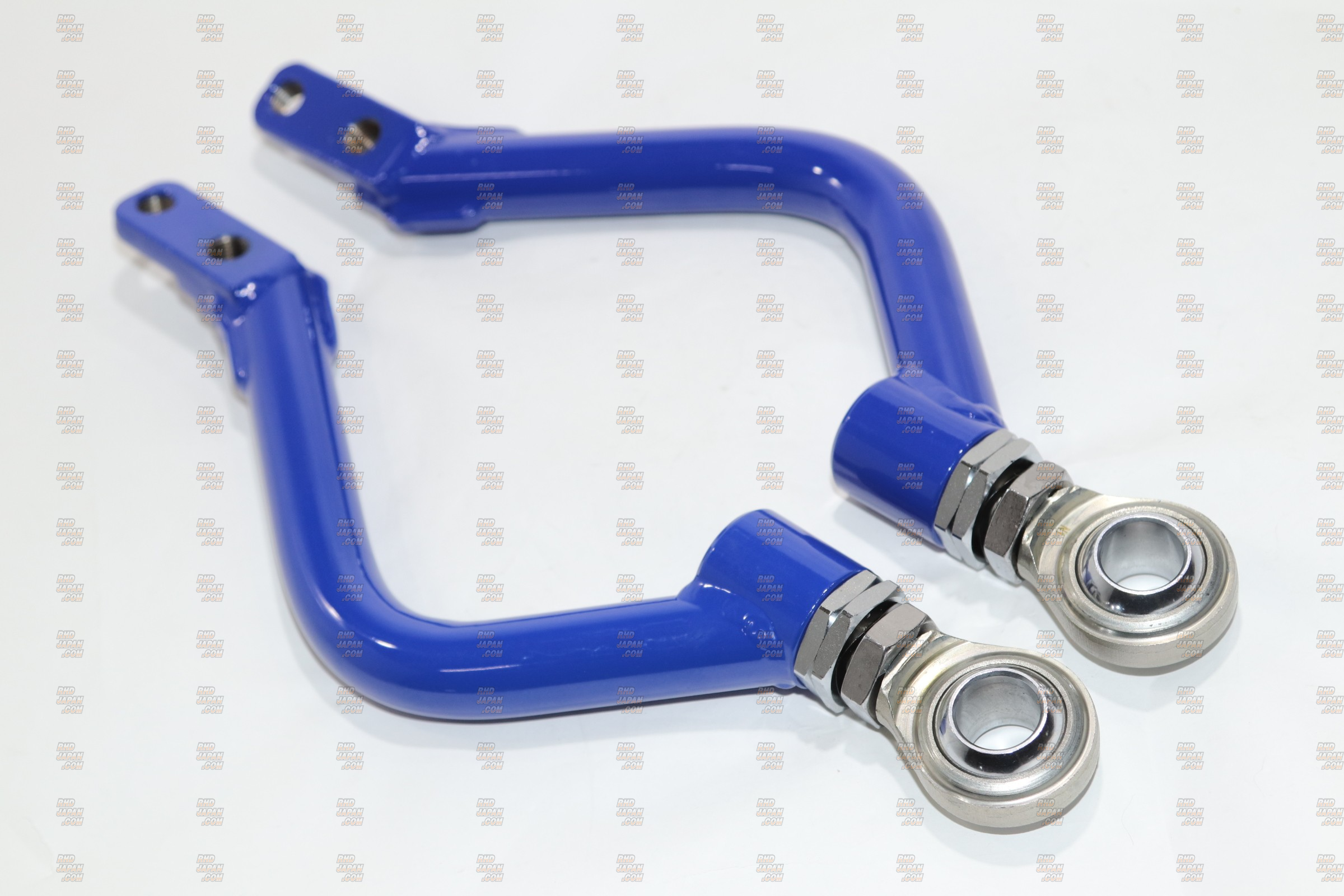

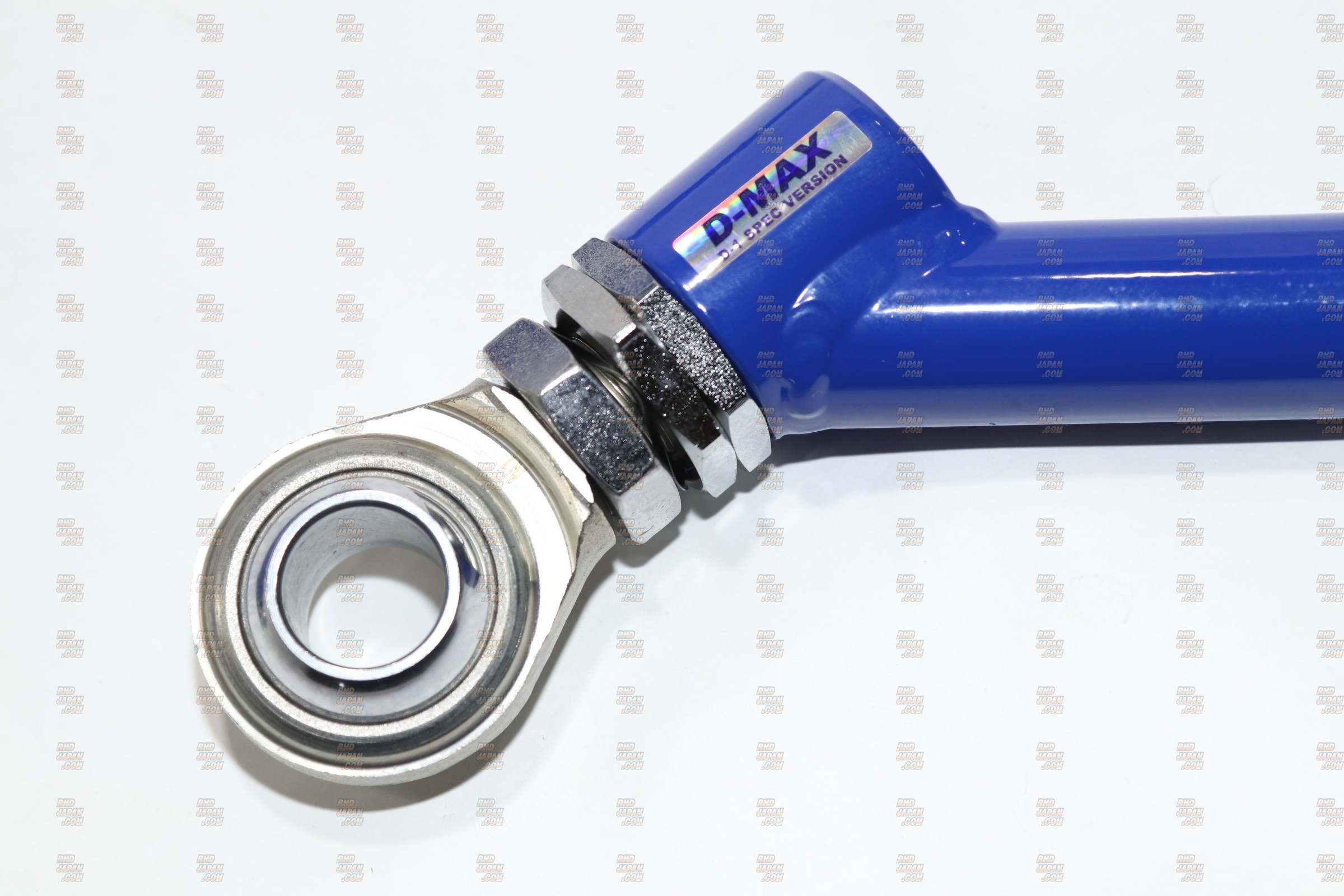

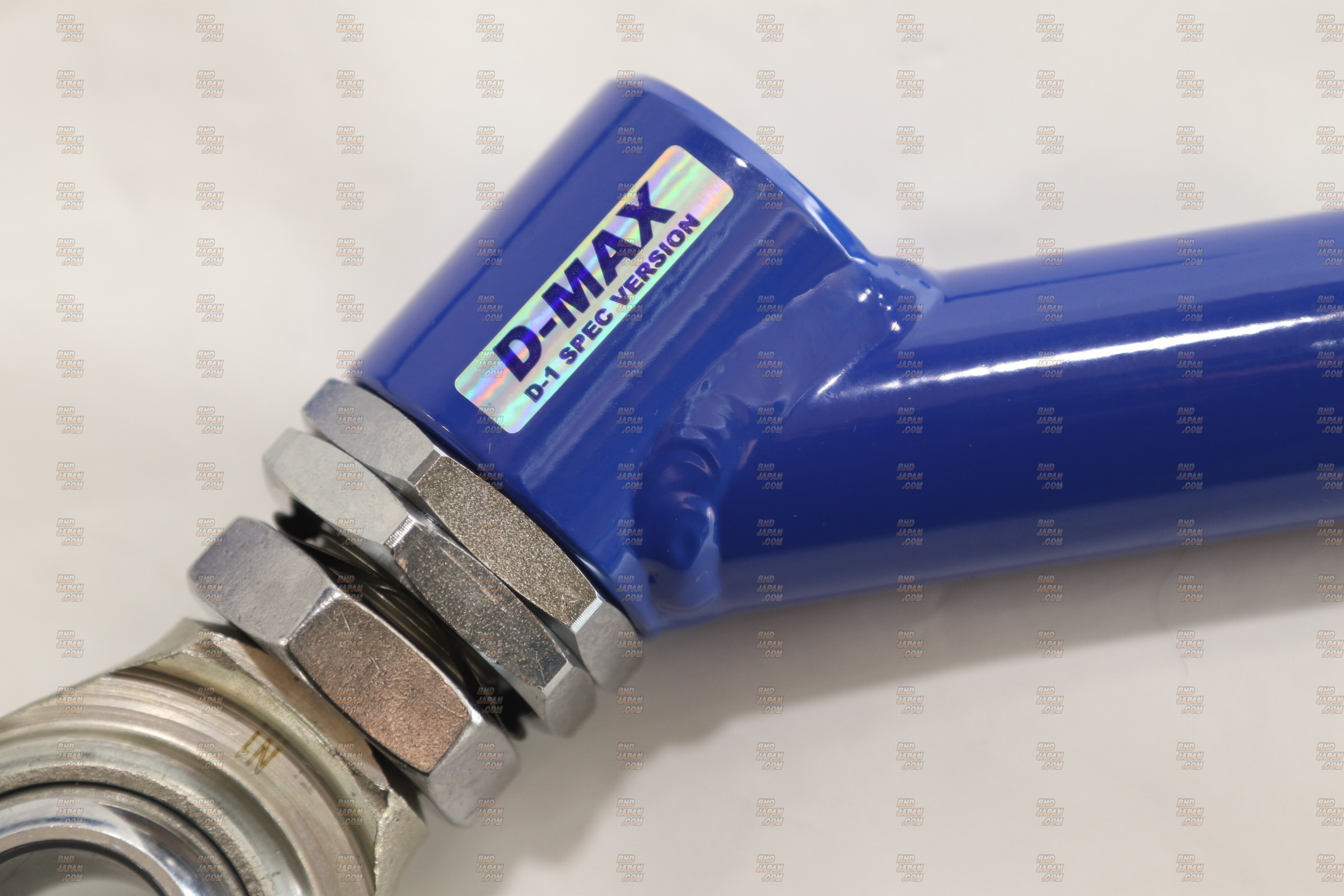

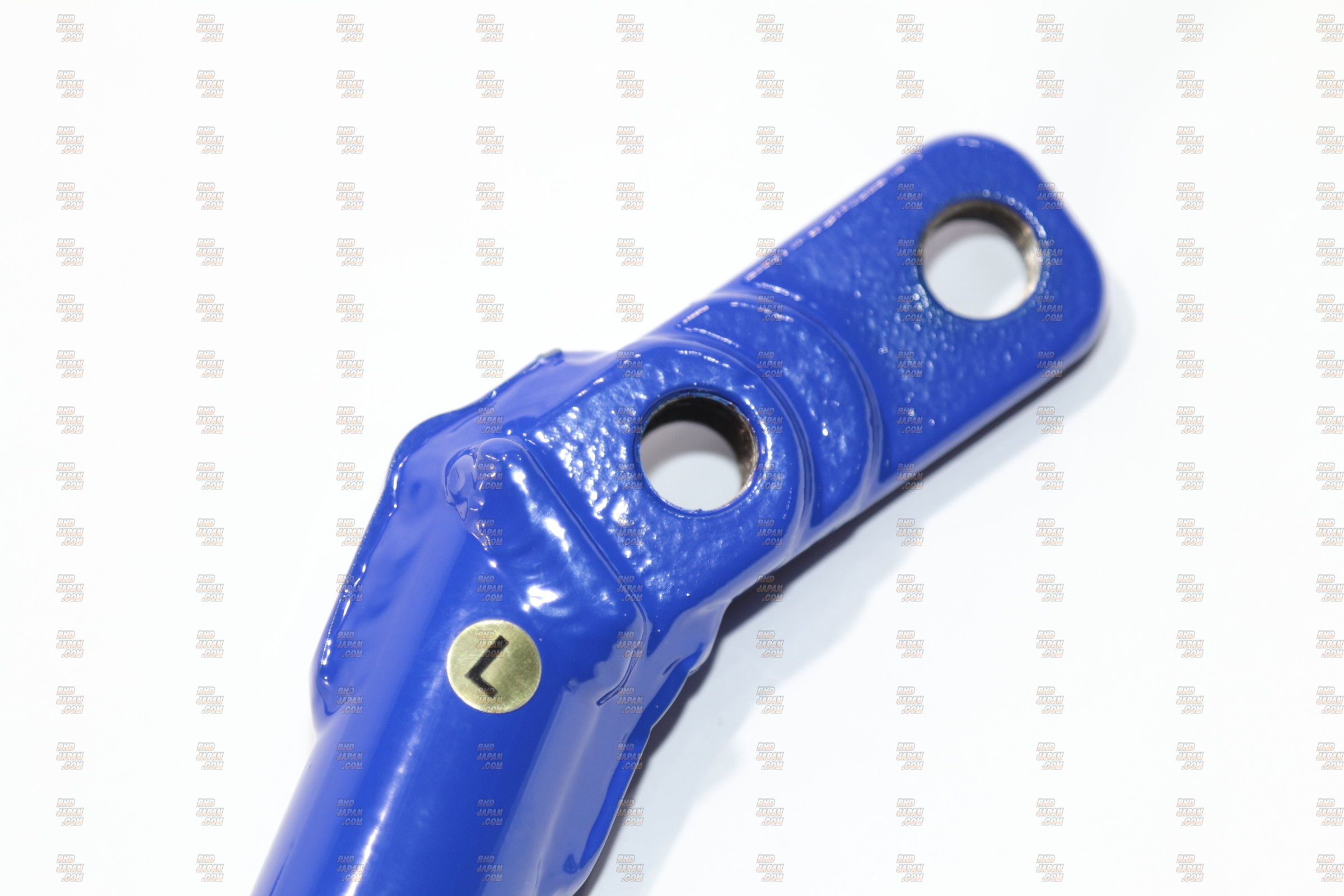

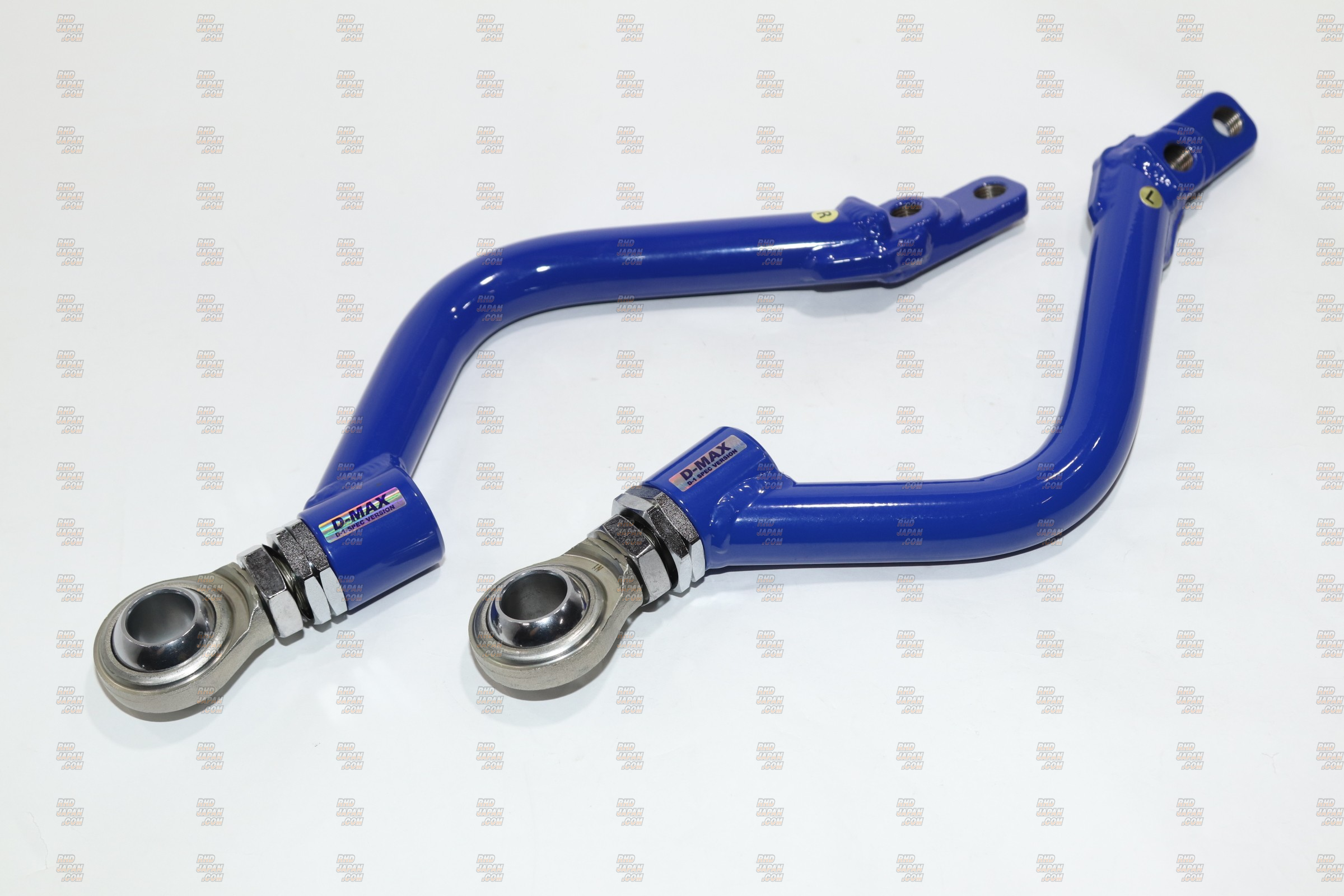

D-Max D1 Spec Front Pillow Tension Rod Set - GX90 JZX90 GX100 JZX100 JZX110 SXE10
37539
JPY
D-MAX
SKU: 270692
PN: DMSU026AT5These items are a direct replacement for the factory tension rods. Manufactured with superior bushings, and materials while also allowing for adjustable lengths. Based off of the JZX110 OEM version with an additional 27mm of clearance allowing for enhanced steering angle. The durable construction and pillow ball bushing improve stability, steering response and predictability under hard braking, cornering and all handling situations by reducing movement and flexing. Adjustability allows the user to dial in and fine tune toe settings. Get this and all your JDM at RHDJapan!!
Brand: D-Max
Product: D1 Spec Front Pillow Tension Rod Set - GX90 JZX90 GX100 JZX100 JZX110 SXE10
Part Num.: DMSU026AT5
SPECIFICATIONS
Rod Diameter (mm): 29
Pillow Outer Diameter (mm): 51
Pillow Inner Diameter (mm): 22
Adjustability Range (mm): 30
Arm Composition Material: S45C Steel
Pillow Ball Bearing Composition Material: SUJ2 Steel
PRODUCT NOTES:
Installation on JZX90 uses black bolts, installation on other compatible vehicles uses silver bolts
Product: D1 Spec Front Pillow Tension Rod Set - GX90 JZX90 GX100 JZX100 JZX110 SXE10
Part Num.: DMSU026AT5
SPECIFICATIONS
Rod Diameter (mm): 29
Pillow Outer Diameter (mm): 51
Pillow Inner Diameter (mm): 22
Adjustability Range (mm): 30
Arm Composition Material: S45C Steel
Pillow Ball Bearing Composition Material: SUJ2 Steel
PRODUCT NOTES:
Installation on JZX90 uses black bolts, installation on other compatible vehicles uses silver bolts
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Altezza SXE10 3S-GE (10/1998-04/2001)
Toyota Altezza SXE10 3S-GE (05/2001-03/2005)
Toyota Mark II JZX110 1JZ-FSE (10/2000-09/2002)
Toyota Mark II JZX110 1JZ-FSE (10/2002-10/2004)
Toyota Mark II JZX110 1JZ-GTE (10/2000-09/2002)
Toyota Mark II JZX110 1JZ-GTE (10/2002-10/2004)
Toyota Mark II/Chaser/Cresta GX100 1G-FE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta GX100 1G-FE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta GX90 1G-FE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta GX90 1G-FE (09/1994-08/1996)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GE (09/1994-08/1996)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (09/1994-08/1996)
Toyota Verossa JZX110 1JZ-FSE (07/2001-11/2004)
Toyota Verossa JZX110 1JZ-GTE (07/2001-11/2004)
Toyota Altezza SXE10 3S-GE (10/1998-04/2001)
Toyota Altezza SXE10 3S-GE (05/2001-03/2005)
Toyota Mark II JZX110 1JZ-FSE (10/2000-09/2002)
Toyota Mark II JZX110 1JZ-FSE (10/2002-10/2004)
Toyota Mark II JZX110 1JZ-GTE (10/2000-09/2002)
Toyota Mark II JZX110 1JZ-GTE (10/2002-10/2004)
Toyota Mark II/Chaser/Cresta GX100 1G-FE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta GX100 1G-FE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta GX90 1G-FE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta GX90 1G-FE (09/1994-08/1996)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GE (09/1994-08/1996)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (09/1994-08/1996)
Toyota Verossa JZX110 1JZ-FSE (07/2001-11/2004)
Toyota Verossa JZX110 1JZ-GTE (07/2001-11/2004)
