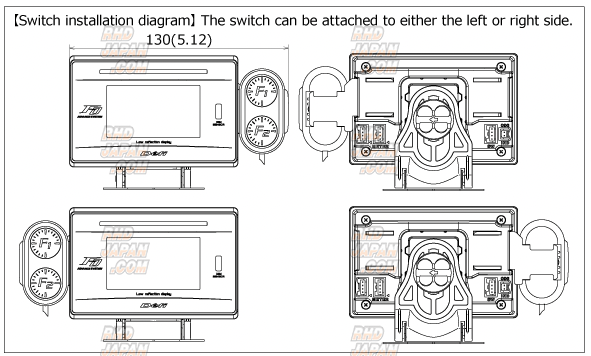

This item is the successor to the popular Advance ZD series which had been discontinued in early 2021. The newest version of this compact multi-meter has been upgraded to 2.5-inch full-color TFT display along with low reflection glass allowing for flexible mounting location with improved display and visibility of a wide range of select vehicle data. Automatic display brightness can be set when used in conjunction with Advance system. Newly implemented Seamless sequential indicator along with new bar or digital readout for turbo boost and/or intake manifold provides further functionality along with clean display style. Switch can be installed to the left or right hand side of display allowing for quick & easy access even in full seat-belt harness race application. Get this and all your JDM at RHDJapan!!
Brand: Defi
Product: Link Meter Advance FD
Part Number: DF17801
SPECIFICATIONS:
Series: Advance FD

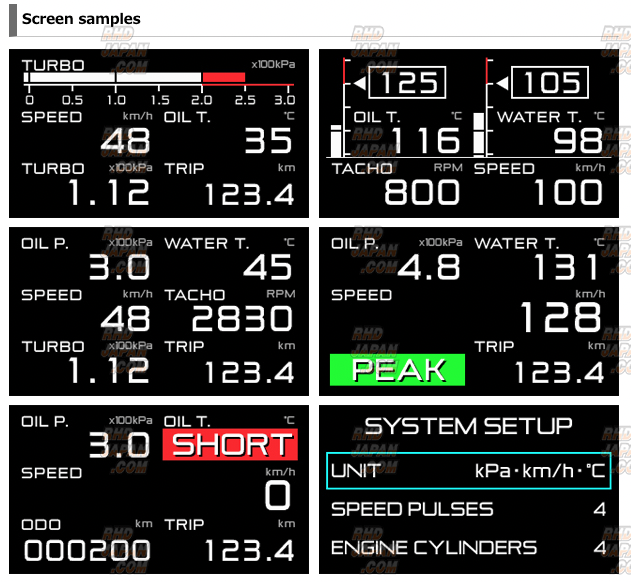

Display Options:
・Boost and intake manifold pressure (kPa/PSI)
・Oil pressure (kPa/PSI)
・Fuel pressure (kPa/PSI)
・Oil temperature (degree C/F)
・Water temperature (degree C/F)
・Exhaust temperature (degree C/F)
・Tachometer (RPM)
・Speed (km/h /MPH)
・Odometer (km/mile)
・Trip meter (km/mile)
・Voltage (V)
PRODUCT NOTES:
-The Defi-Link Advance Control Unit Indicator(sold separately) necessary for operation.
COMPATIBILITY NOTES
- Applicable only for 12V vehicles
Product: Link Meter Advance FD
Part Number: DF17801
SPECIFICATIONS:
Series: Advance FD
Display Options:
・Boost and intake manifold pressure (kPa/PSI)
・Oil pressure (kPa/PSI)
・Fuel pressure (kPa/PSI)
・Oil temperature (degree C/F)
・Water temperature (degree C/F)
・Exhaust temperature (degree C/F)
・Tachometer (RPM)
・Speed (km/h /MPH)
・Odometer (km/mile)
・Trip meter (km/mile)
・Voltage (V)
PRODUCT NOTES:
-The Defi-Link Advance Control Unit Indicator(sold separately) necessary for operation.
COMPATIBILITY NOTES
- Applicable only for 12V vehicles
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Universal
Universal
