Fujitsubo Legalis R Muffler Exhaust System - JZX100 Turbo
90859
JPY
FUJITSUBO
SKU: 86415
PN: 790-24052This series was developed to provide great exhaust flow improving torque throughout the low and mid RPM range and increased maximum power. The high quality construction and enhanced diameter allows for sporty yet subtle exhaust note. Clean basic design for original classic stainless look. A great cost-performance option with tuning diversity from normal to tuned engines. Get this and all your JDM at RHDJapan!!
Brand: Fujitsubo
Product: Legalis R Muffler Exhaust System - JZX100 Turbo
Part Num: 790-24052
SPECIFICATIONS:
Included:
- Legalis R Muffler Exhaust System

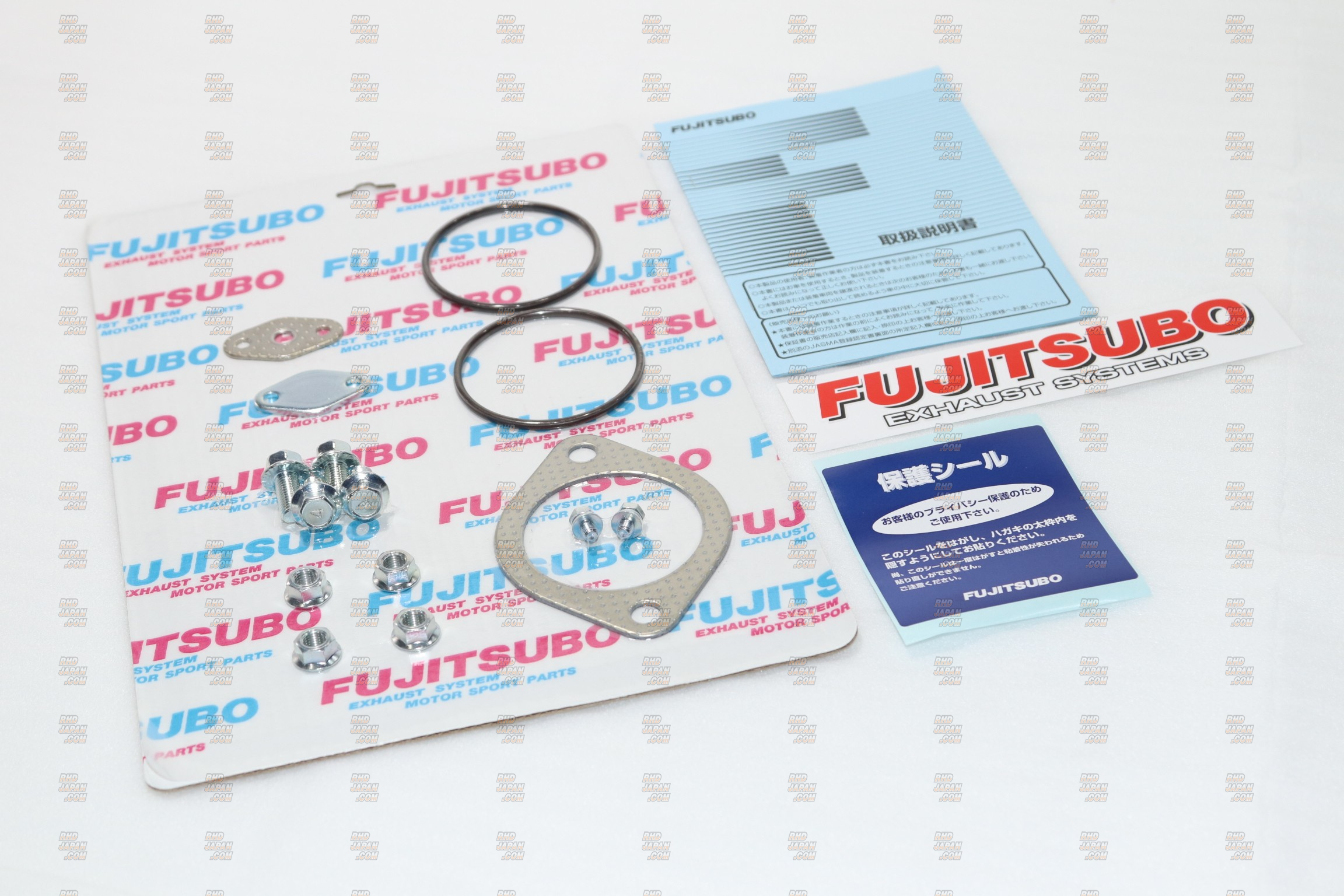

- Gaskets and hardware
Tip Type: Slash
Tip Diameter: 101.6mm

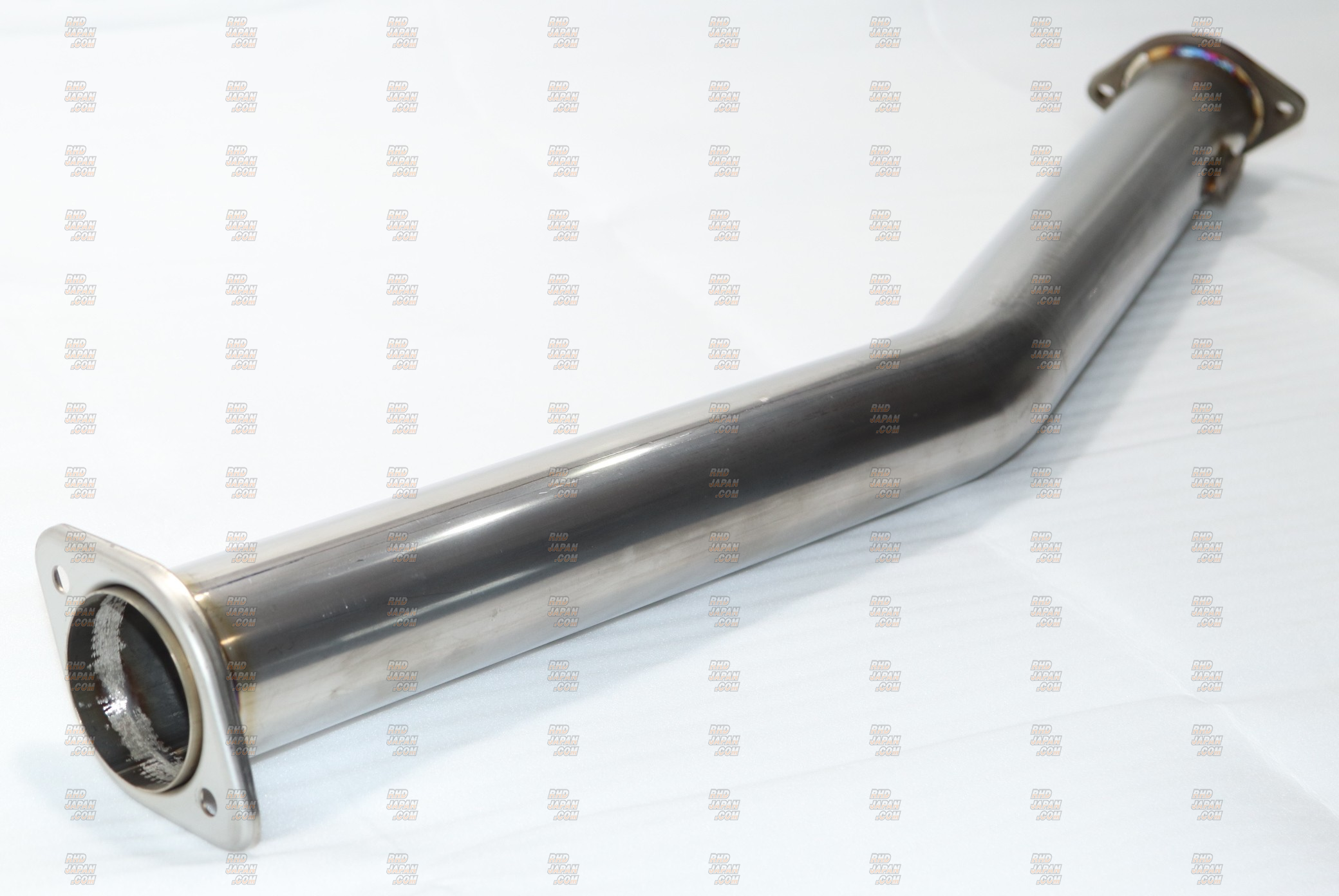

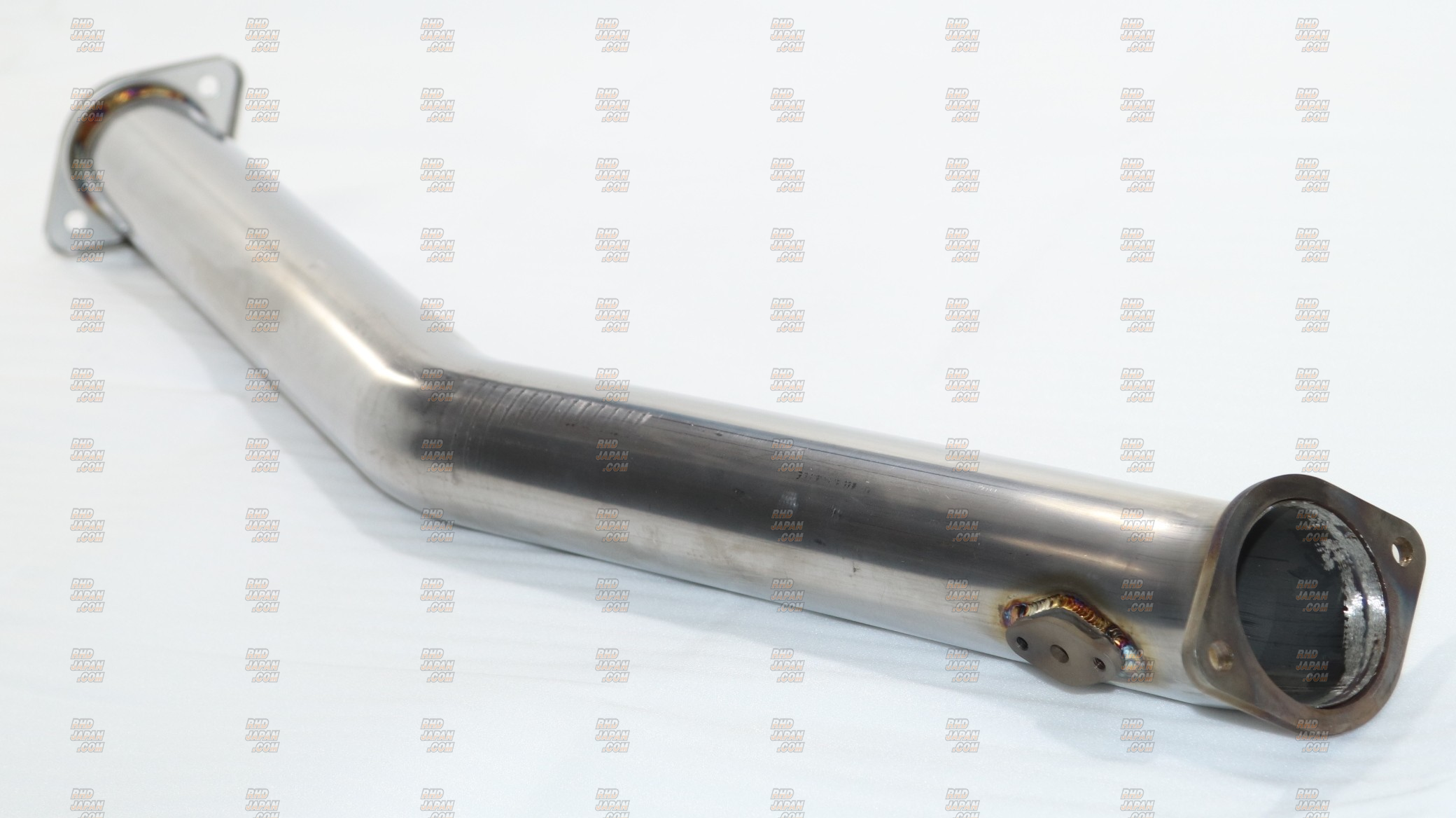

Pipe Diameter: 76.3mm
Manifold Weight:
- OEM: 21.6kg
- Fujitsubo: 20.8kg
Maximum output
- OEM: 192.5kw (261.8ps) / 6300rpm
- Fujitsubo: 198.9kw (270.5ps) / 5800rpm
Maximum Torque
- OEM: 341N/m (34.8Kg/m) / 4930rpm
- Fujitsubo: 361.6N/m (36.9Kg/m) / 4500rpm
Noise Levels (dB):
OEM:
- Idling Sound: 64
- Noise Near exhaust (4650rpm): 82
Fujitsubo:
- Idling Sound: 65
- Noise Near exhaust (4650rpm): 84
PRODUCT NOTES:
- Performance and noise level specs are based on Chaser
COMPATIBILITY NOTES:
Common with after and before M/C
Common with cars with OEM rear bumper spoiler
Product: Legalis R Muffler Exhaust System - JZX100 Turbo
Part Num: 790-24052
SPECIFICATIONS:
Included:
- Legalis R Muffler Exhaust System
- Gaskets and hardware
Tip Type: Slash
Tip Diameter: 101.6mm
Pipe Diameter: 76.3mm
Manifold Weight:
- OEM: 21.6kg
- Fujitsubo: 20.8kg
Maximum output
- OEM: 192.5kw (261.8ps) / 6300rpm
- Fujitsubo: 198.9kw (270.5ps) / 5800rpm
Maximum Torque
- OEM: 341N/m (34.8Kg/m) / 4930rpm
- Fujitsubo: 361.6N/m (36.9Kg/m) / 4500rpm
Noise Levels (dB):
OEM:
- Idling Sound: 64
- Noise Near exhaust (4650rpm): 82
Fujitsubo:
- Idling Sound: 65
- Noise Near exhaust (4650rpm): 84
PRODUCT NOTES:
- Performance and noise level specs are based on Chaser
COMPATIBILITY NOTES:
Common with after and before M/C
Common with cars with OEM rear bumper spoiler
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (08/1998-09/2000)
