HKS Bolt On Turbo Pro Kit GTIII-RS with Catalyzer - ZC6 ZN6
466129
JPY
HKS
SKU: 148935
PN: 11001-AT005This kit is designed as the the high power version of the flagship bolt-on turbo kit from HKS. Developed for big power tuning and circuit application with target power between 330 and 450ps. This turbine has been developed with some breakthrough technology providing several significant advantages over the long line of the predecessor series of turbines. Collaboration with MHI for superior CHRA along with new housings developed, designed and manufactured in house provide superior reliability, durability with the best combination of response and power. In addition, center cartridge for overhaul can now be purchased individually unlike predecessors which could only be overhauled at HKS factory in Japan. Extensive know how with technology have come together to provide extremely high performing setup while also being versatile throughout tuning stages along with minimizing the possibility of turbo surging. Further enhancements include fuel efficiency and emissions have also been realized. Available with or without Metal Sports Catalyzer for pure circuit use to circuit/street application. Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Bolt On Turbo Pro Kit GTIII-RS with Catalyzer - ZC6 ZN6
Part Number: 11001-AT005
SPECIFICATIONS:
Included:
- Turbo: GTIII-RS (actuator type)
- Exhaust Manifold
- Extension Pipe (wit catalyzer)
- Intercooler
- Aluminum intercooler Piping

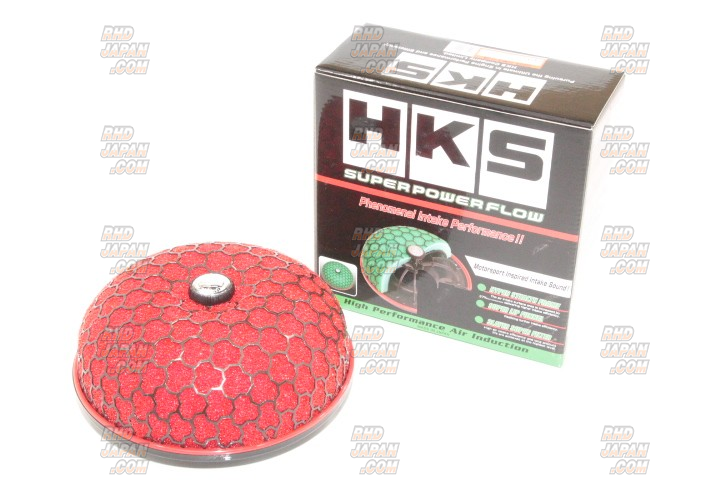

- Power Flow Intake filter & Suction Pipe
- Heat Shields and Sheets

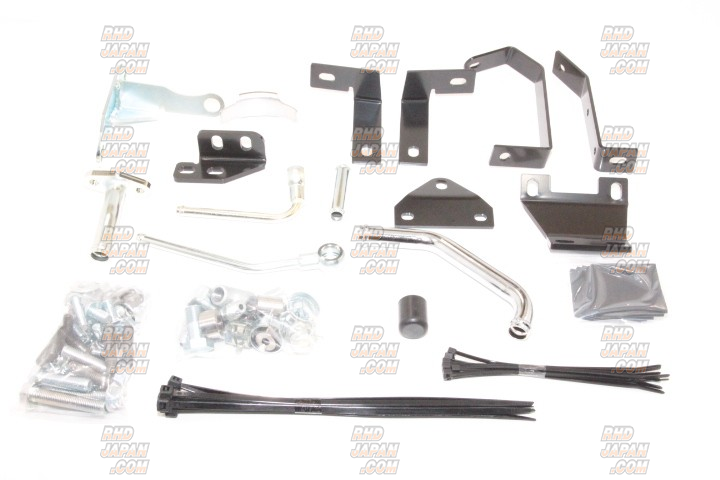

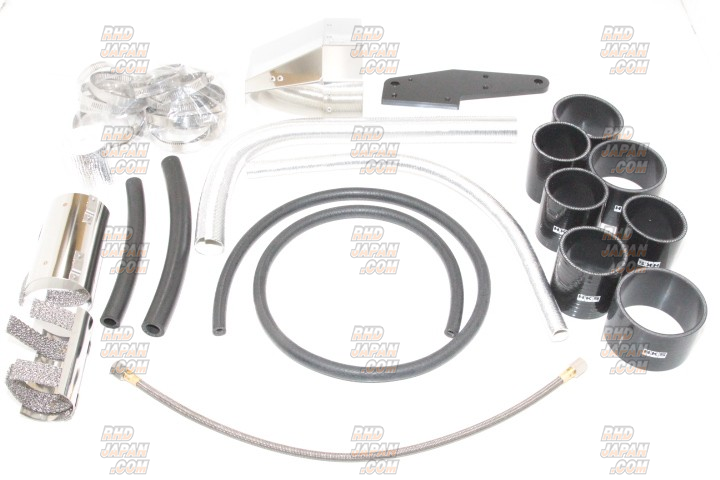

- Short parts (bolts, gaskets, hoses and grommets) for installation

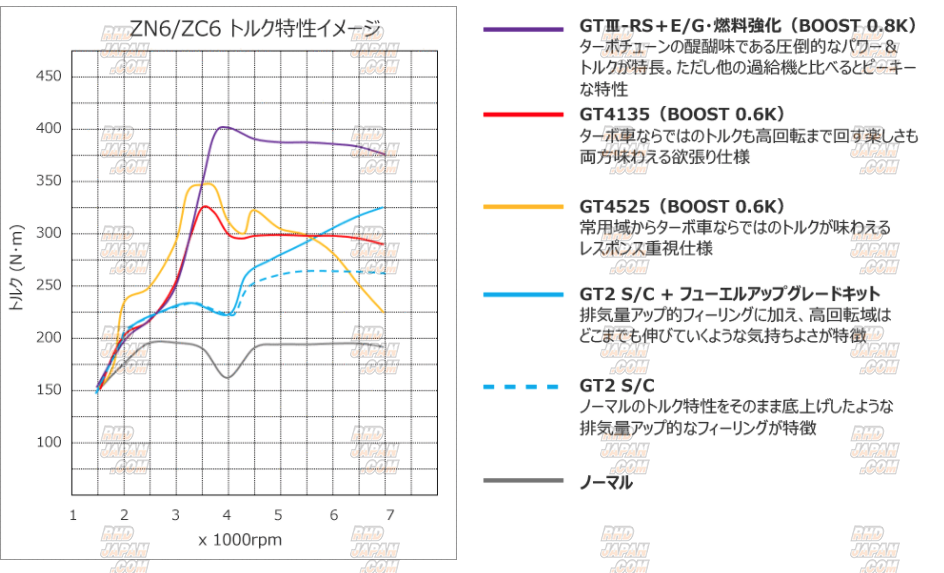

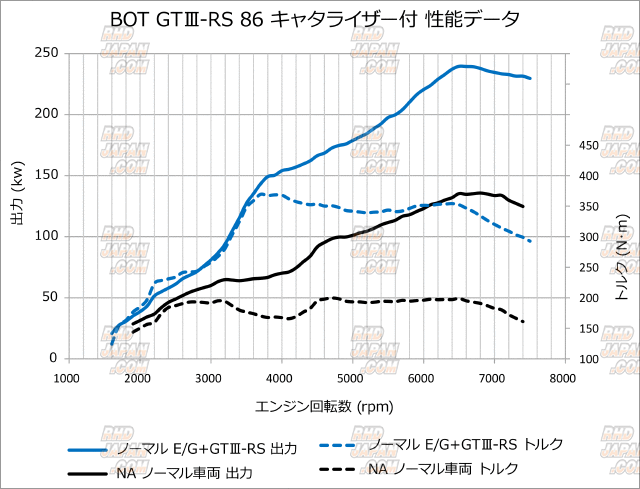

Performance Specs:
-Normal Engine + GTIII RS (Legamax Sports Muffler, Flash Editor, EVC 6 IR, 440cc INJ, LA Clutch):
--Power: 240kw (326ps)/6500rpm
--Torque: 369Nm (37kgfm)/3700rpm

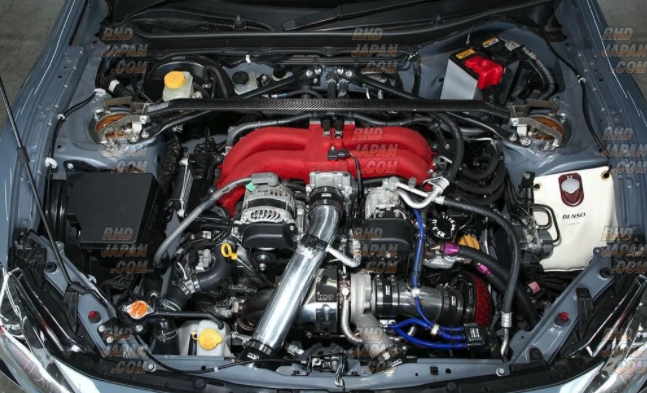

-HKS Technical Factory Democar:
--Power: 428ps @7200rpm
--Max Torque: 49.8kgfm
--Torque 2500~6000RPM): Over 45kgfm
-Normal Engine:
--Power: 136kw (185ps)/6800rpm
--Torque: 199Nm (20kgfm)/4100rpm
PRODUCT NOTES:
- Fuel System must be upgraded according to tune
- ECU settings required
- Pressure sensor sold separately
-Can be used in conjunction with S-Type Oil Cooler Kit
COMPATIBILITY NOTES:
Only compatible with Manual Transmission
Product: Bolt On Turbo Pro Kit GTIII-RS with Catalyzer - ZC6 ZN6
Part Number: 11001-AT005
SPECIFICATIONS:
Included:
- Turbo: GTIII-RS (actuator type)
- Exhaust Manifold
- Extension Pipe (wit catalyzer)
- Intercooler
- Aluminum intercooler Piping
- Power Flow Intake filter & Suction Pipe
- Heat Shields and Sheets
- Short parts (bolts, gaskets, hoses and grommets) for installation
Performance Specs:
-Normal Engine + GTIII RS (Legamax Sports Muffler, Flash Editor, EVC 6 IR, 440cc INJ, LA Clutch):
--Power: 240kw (326ps)/6500rpm
--Torque: 369Nm (37kgfm)/3700rpm
-HKS Technical Factory Democar:
--Power: 428ps @7200rpm
--Max Torque: 49.8kgfm
--Torque 2500~6000RPM): Over 45kgfm
-Normal Engine:
--Power: 136kw (185ps)/6800rpm
--Torque: 199Nm (20kgfm)/4100rpm
PRODUCT NOTES:
- Fuel System must be upgraded according to tune
- ECU settings required
- Pressure sensor sold separately
-Can be used in conjunction with S-Type Oil Cooler Kit
COMPATIBILITY NOTES:
Only compatible with Manual Transmission
Compatibility is from maker for JDM cars only.
We don't guarantee fitment.
Always do your own research before purchase.
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
