HKS Capacity Upgrade Kit 2.8L Step 1 86.5mm Full Kit - BNR32 BCNR33 BNR34
654319
JPY
HKS
SKU: 65013

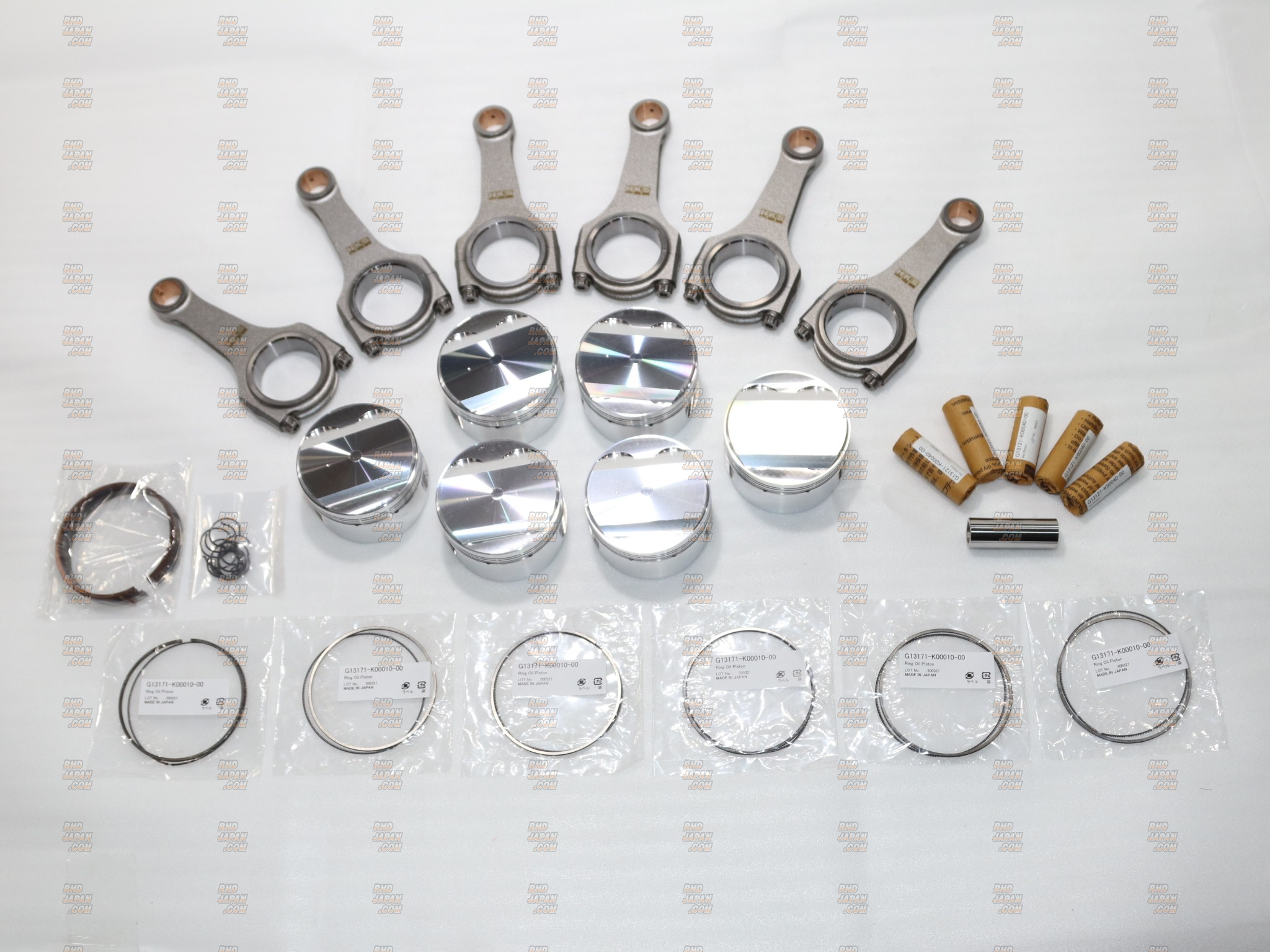

PN: 21004-AN013This is the Step 1 86.5mm Piston version of the 2.8L Capacity Upgrade Stroker Kit. Developed to provide a solid base for engine tuning over the capacity of the factory turbochargers and engine bottom end. Ideal for engines being tuned up to the 600ps mark with max 8500RPM, ideally matched with the GT III-SS or GT III 2530 turbocharger. Available in two different piston bore for extra choice on total capacity and engine block machining/building options. Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Capacity Upgrade Kit 2.8L Step 1 86.5 Full Kit - BNR32 BCNR33 BNR34
Part Num: 21004-AN013
SPECIFICATIONS:

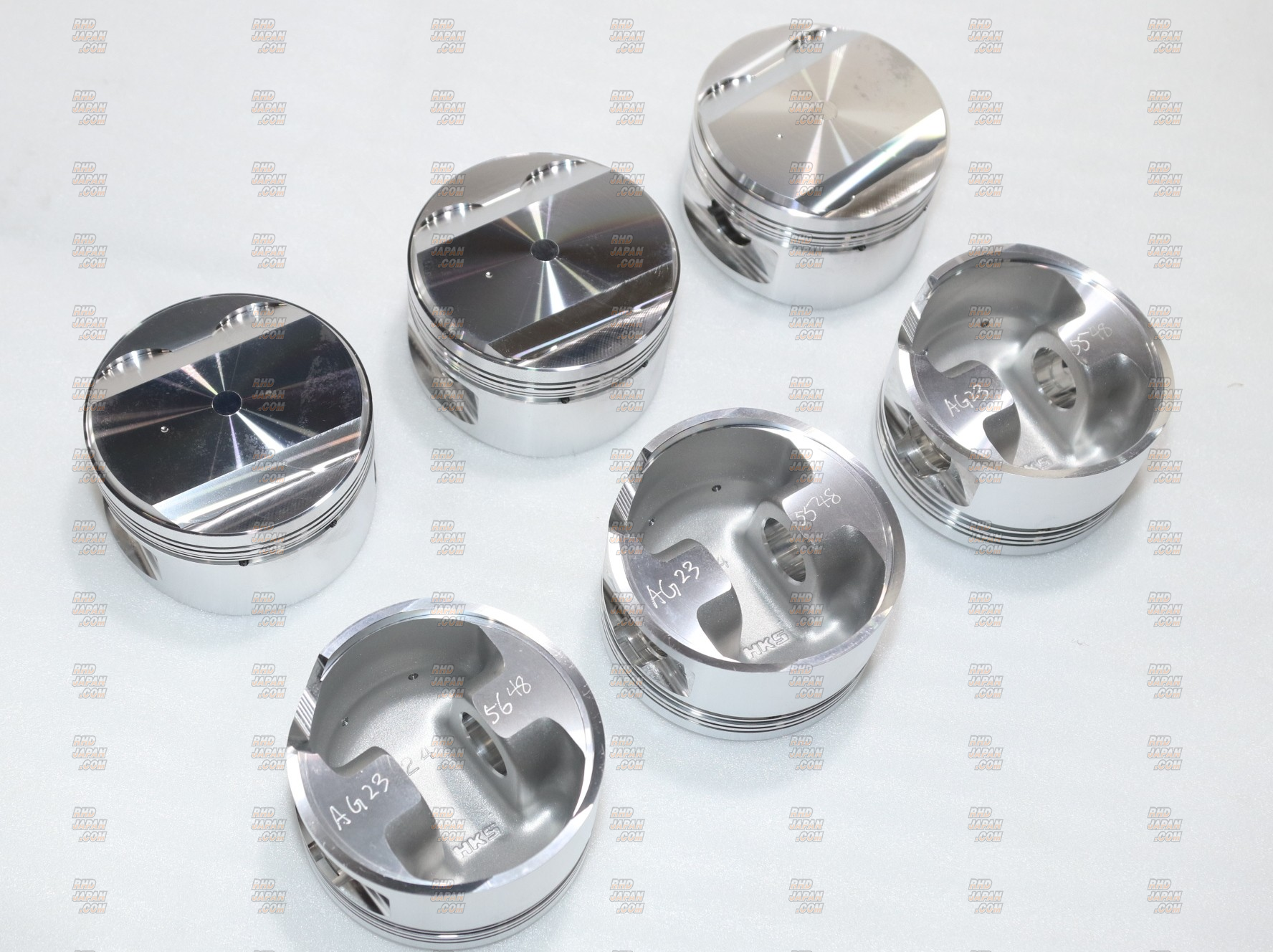

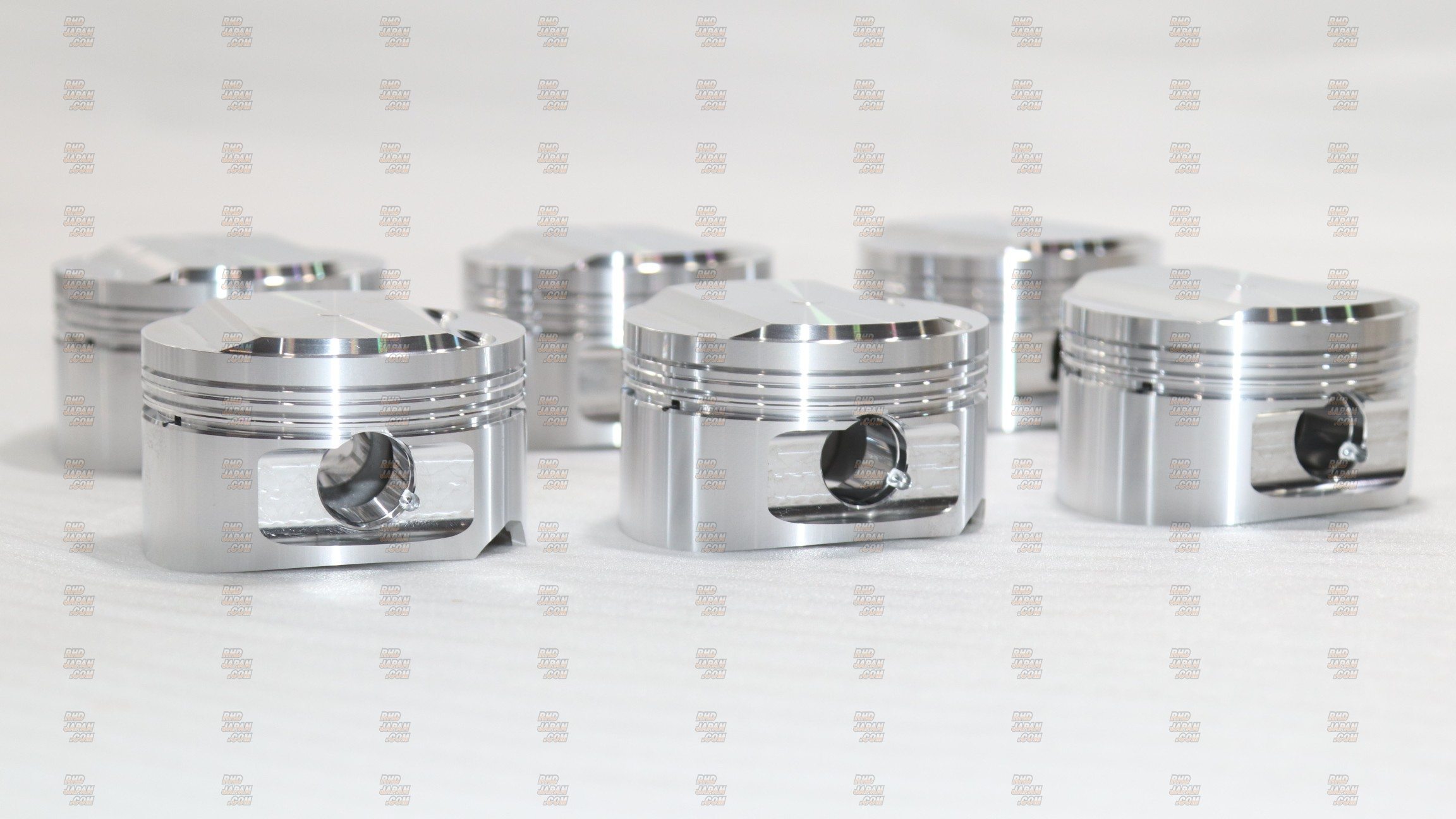

Pistons:
-Manufacturing Process: Forged
-Piston Bore (mm): 86.5
-Pin Bore (mm): 21.0
-Piston Weight (g): 401 (per piston)
Piston Pin:
-Diameter (mm): 21
-Weight (g): 105.2 (per pin)

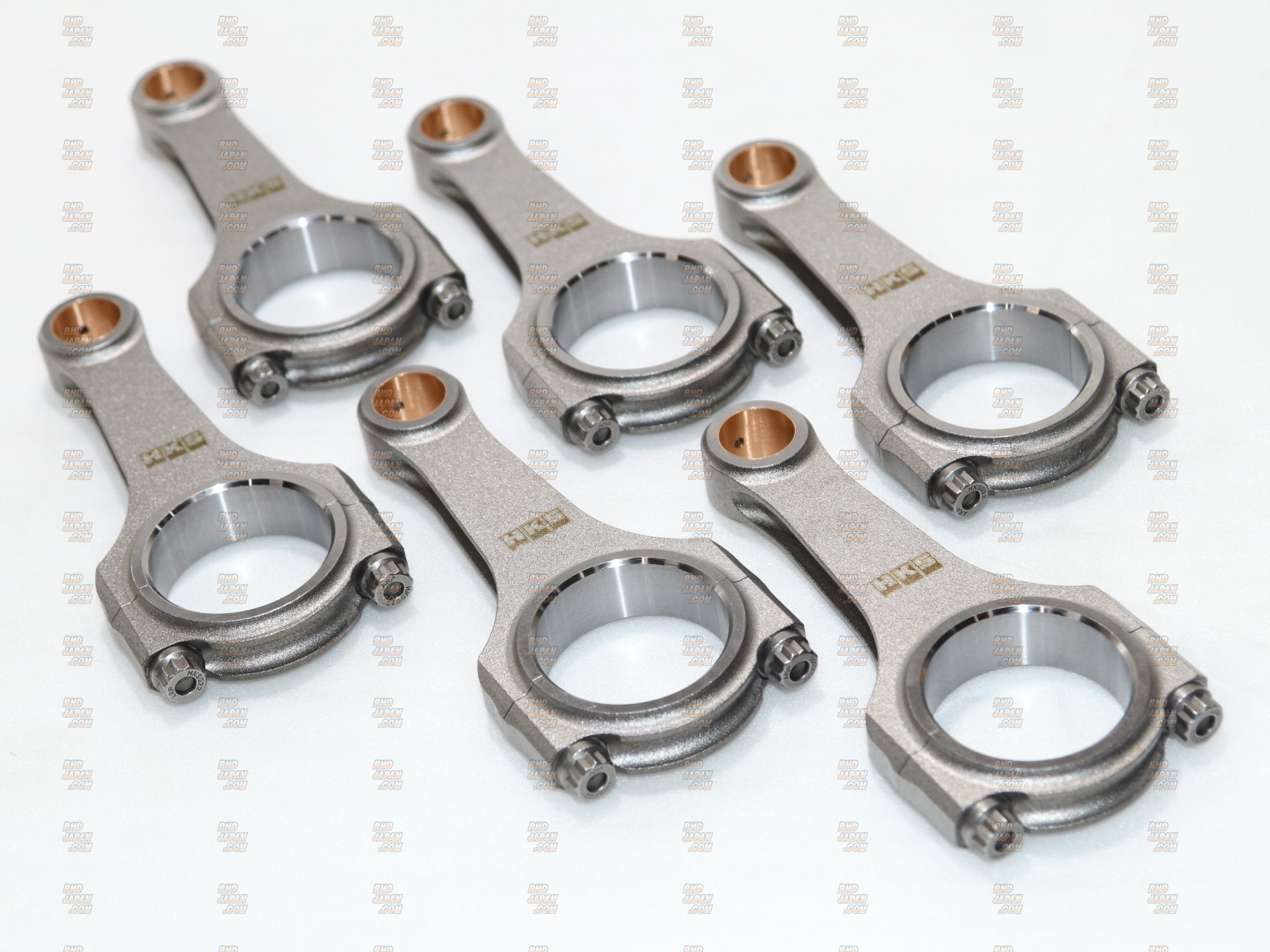

Connecting Rods:
-Material: SCM
-Shape: H-Beam

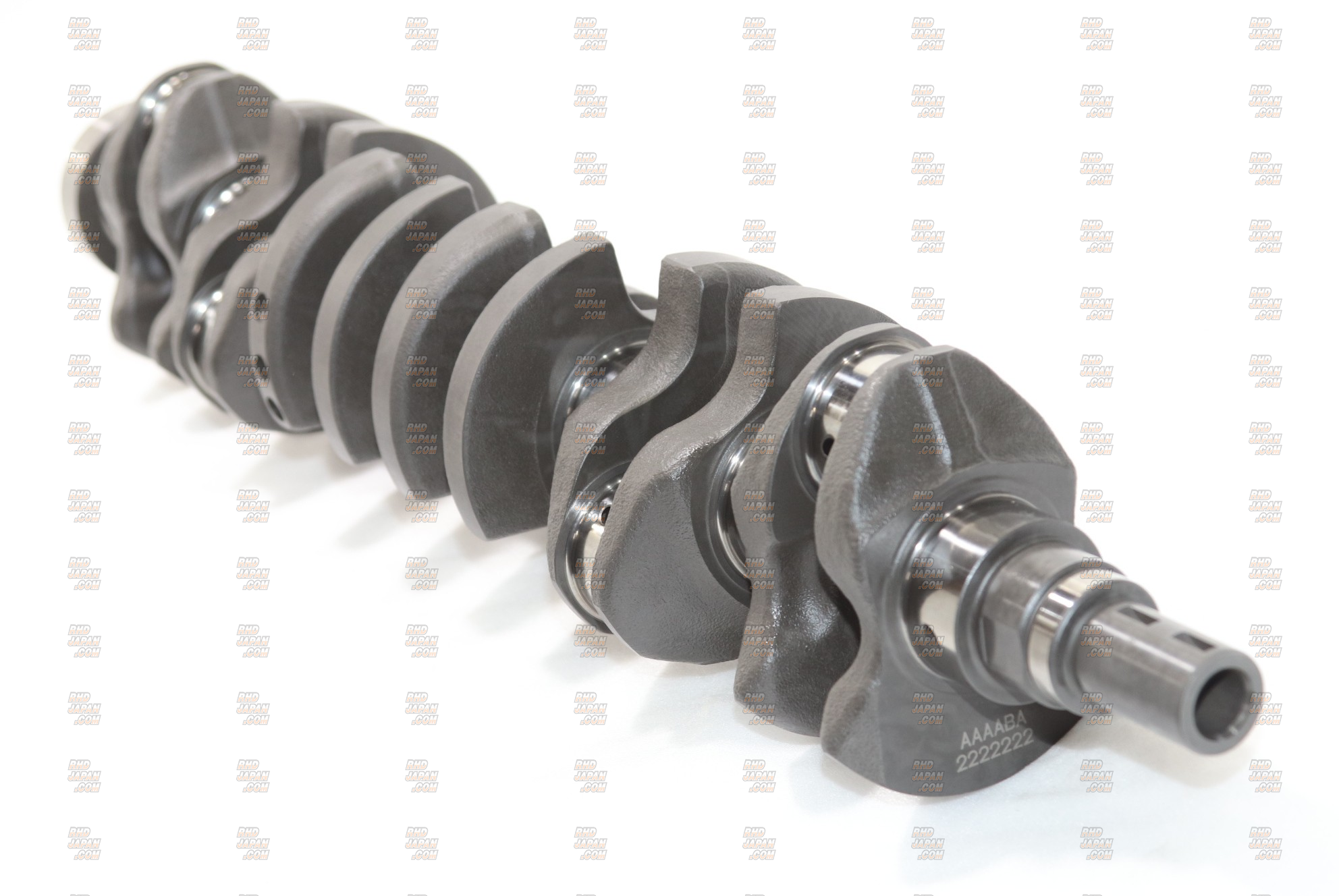

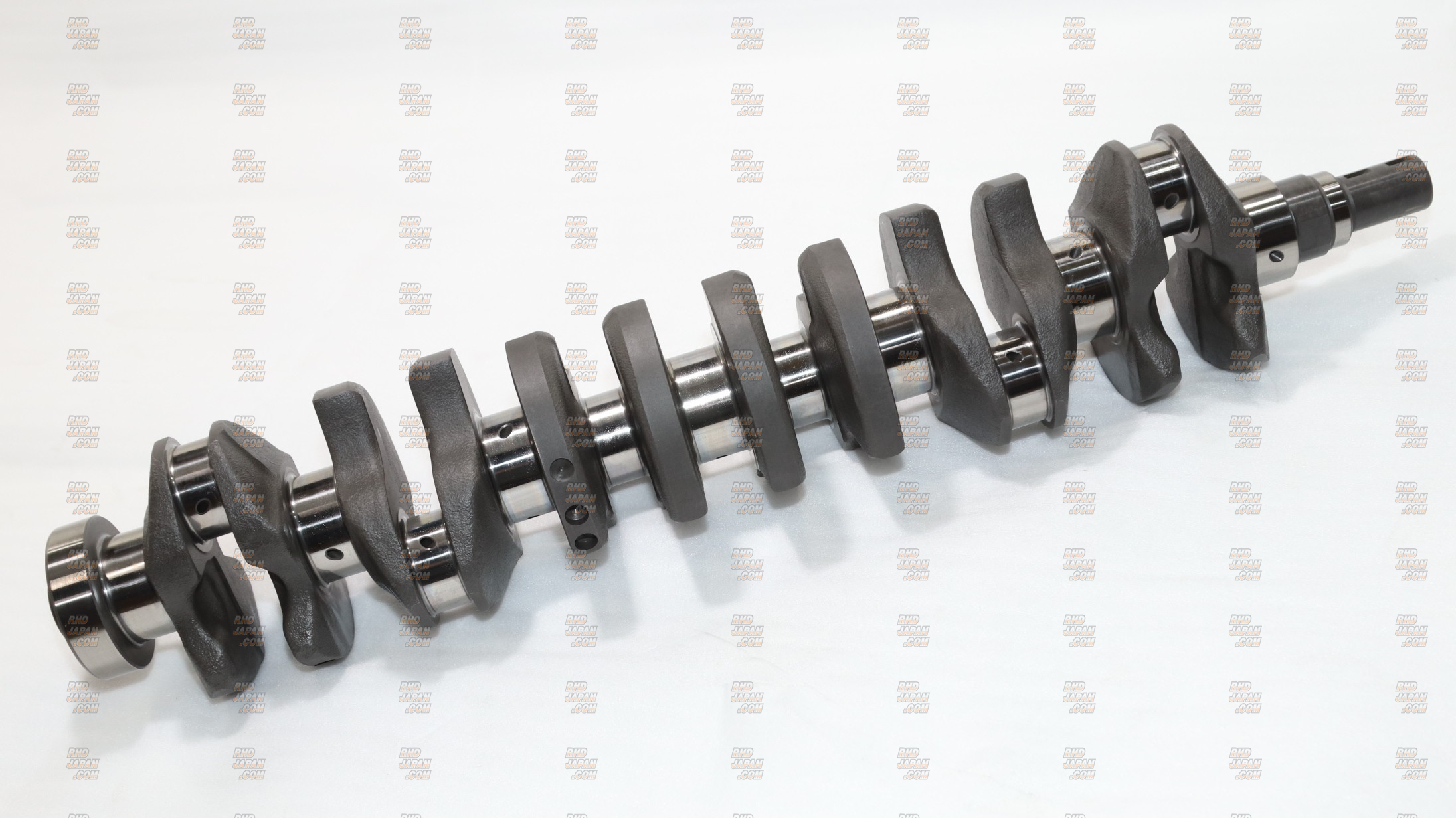

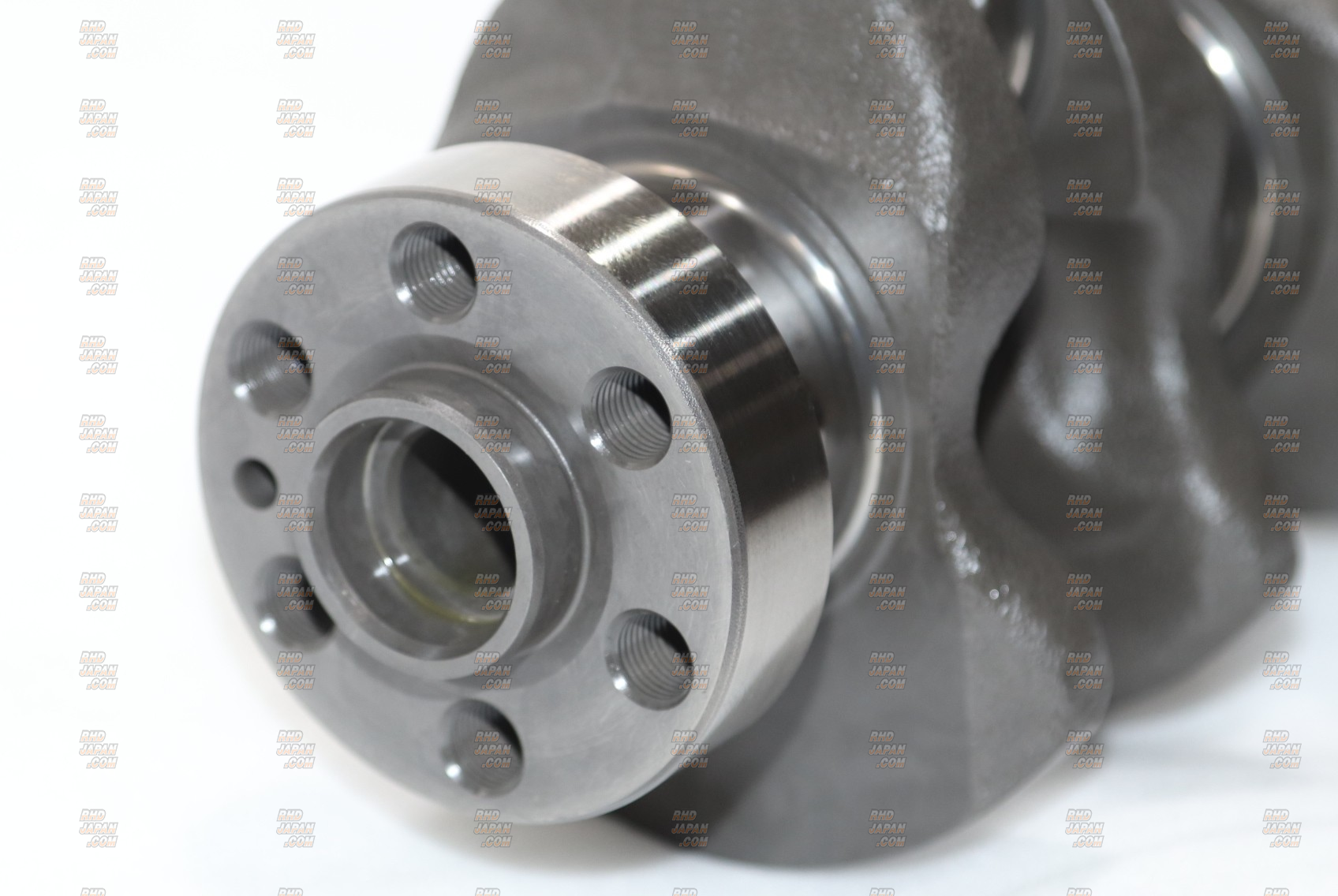

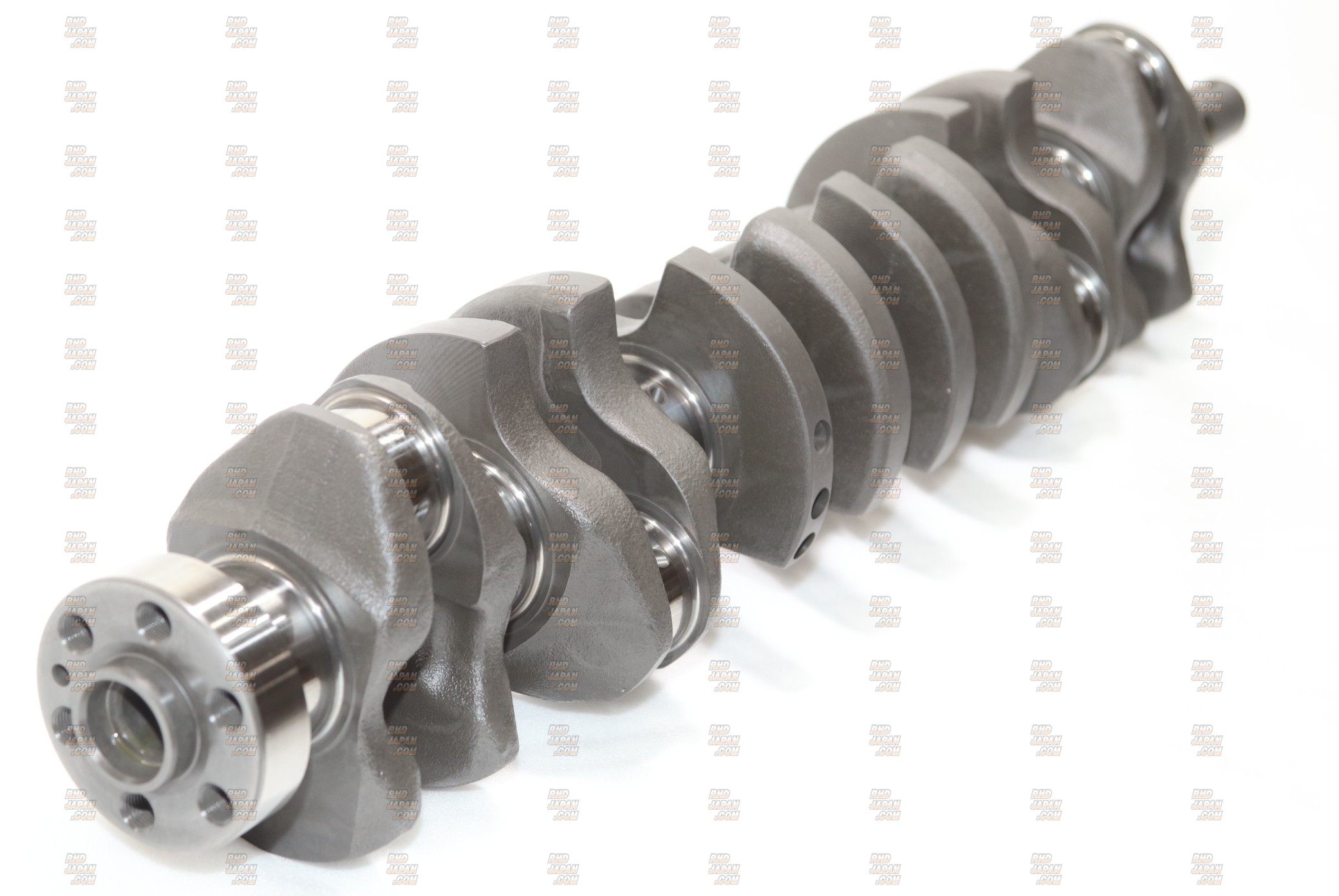

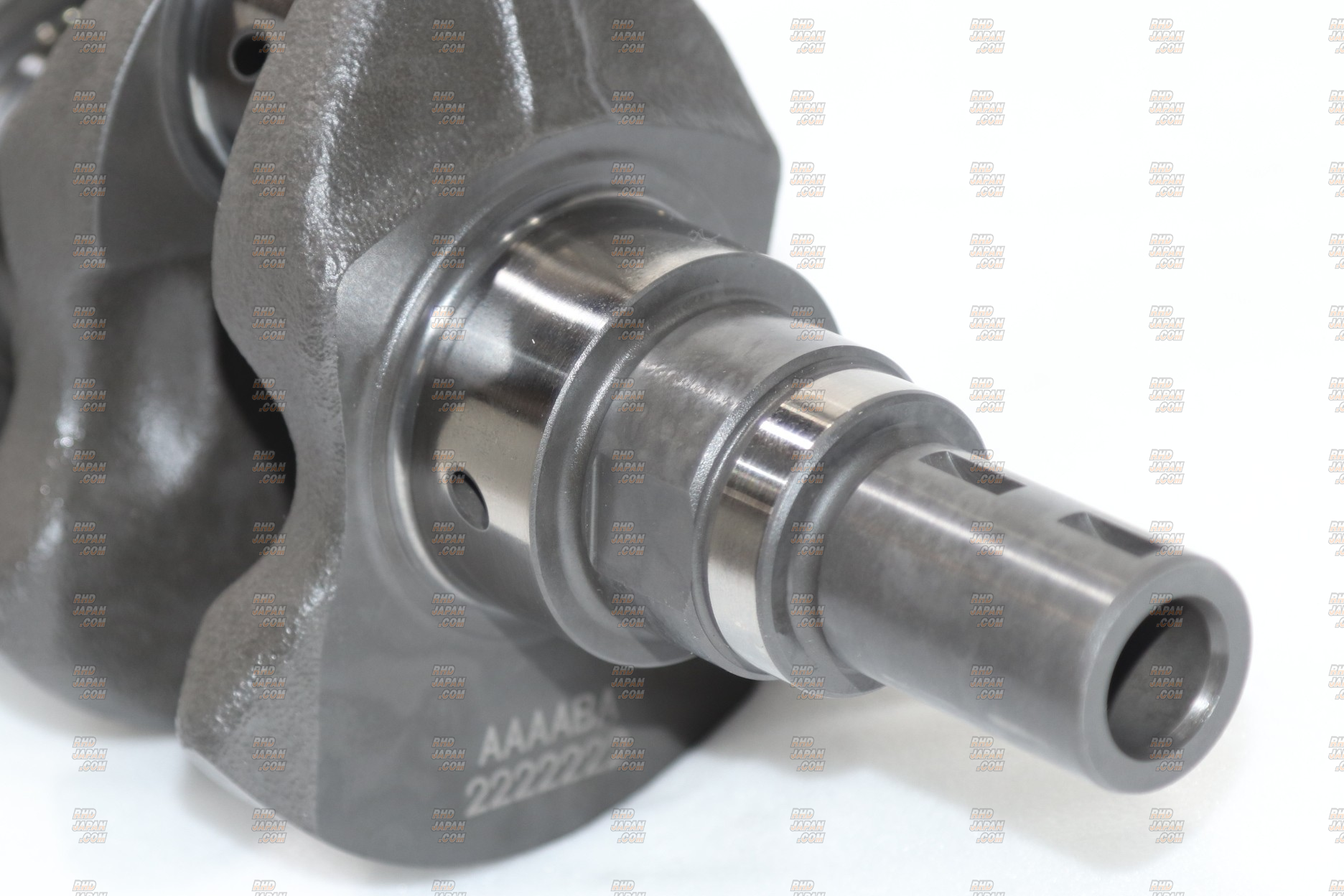

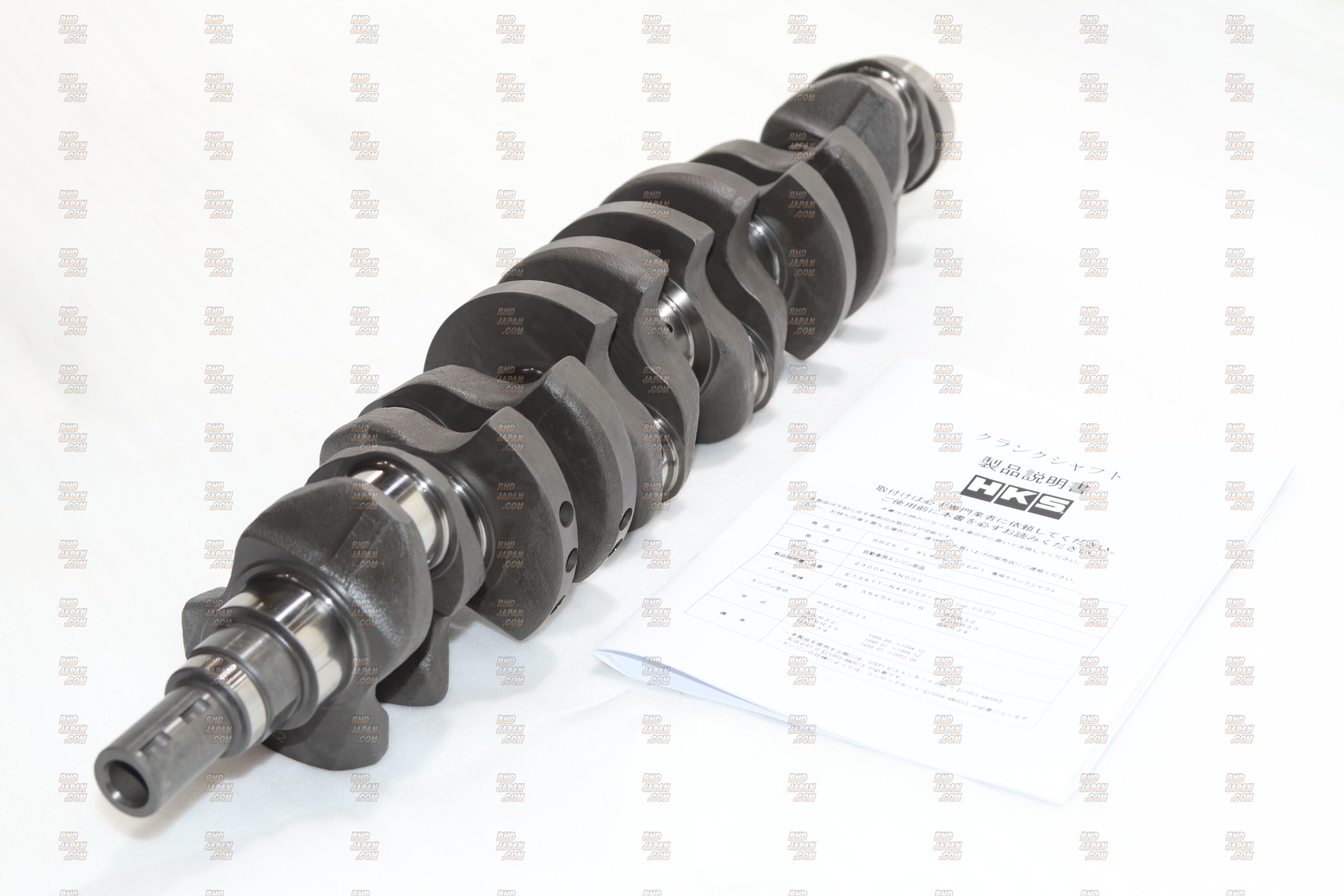

Crankshaft:
-Material: Forged Full Counter
-Weight (kg): 24.4
-Stroke (mm) 77.7
PRODUCT NOTES:
HKS RECOMMENDATIONS:
- Target Max RPM: 8500
- Matching Turbine: GT III-SS/GT III 2530
- Target Max Power (ps): 600
Product: Capacity Upgrade Kit 2.8L Step 1 86.5 Full Kit - BNR32 BCNR33 BNR34
Part Num: 21004-AN013
SPECIFICATIONS:
Pistons:
-Manufacturing Process: Forged
-Piston Bore (mm): 86.5
-Pin Bore (mm): 21.0
-Piston Weight (g): 401 (per piston)
Piston Pin:
-Diameter (mm): 21
-Weight (g): 105.2 (per pin)
Connecting Rods:
-Material: SCM
-Shape: H-Beam
Crankshaft:
-Material: Forged Full Counter
-Weight (kg): 24.4
-Stroke (mm) 77.7
PRODUCT NOTES:
HKS RECOMMENDATIONS:
- Target Max RPM: 8500
- Matching Turbine: GT III-SS/GT III 2530
- Target Max Power (ps): 600
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Nissan Skyline GT-R BCNR33 RB26DETT (01/1995-01/1996)
Nissan Skyline GT-R BCNR33 RB26DETT (01/1996-02/1997)
Nissan Skyline GT-R BCNR33 RB26DETT (02/1997-05/1998)
Nissan Skyline GT-R BNR32 RB26DETT (08/1989-08/1991)
Nissan Skyline GT-R BNR32 RB26DETT (08/1991-02/1993)
Nissan Skyline GT-R BNR32 RB26DETT (02/1993-12/1994)
Nissan Skyline GT-R BNR34 RB26DETT (01/1999-08/2000)
Nissan Skyline GT-R BNR34 RB26DETT (08/2000-10/2000)
Nissan Skyline GT-R BNR34 RB26DETT (10/2000-08/2002)
Nissan Stagea WGNC34 RB26DETT (11/1997-07/1998)
Nissan Stagea WGNC34 RB26DETT (08/1998-09/2001)
Nissan Skyline GT-R BCNR33 RB26DETT (01/1995-01/1996)
Nissan Skyline GT-R BCNR33 RB26DETT (01/1996-02/1997)
Nissan Skyline GT-R BCNR33 RB26DETT (02/1997-05/1998)
Nissan Skyline GT-R BNR32 RB26DETT (08/1989-08/1991)
Nissan Skyline GT-R BNR32 RB26DETT (08/1991-02/1993)
Nissan Skyline GT-R BNR32 RB26DETT (02/1993-12/1994)
Nissan Skyline GT-R BNR34 RB26DETT (01/1999-08/2000)
Nissan Skyline GT-R BNR34 RB26DETT (08/2000-10/2000)
Nissan Skyline GT-R BNR34 RB26DETT (10/2000-08/2002)
Nissan Stagea WGNC34 RB26DETT (11/1997-07/1998)
Nissan Stagea WGNC34 RB26DETT (08/1998-09/2001)
