HKS Capacity Upgrade Kit 3.4L Full Kit - JZA80 JZS147 JZS161
1034179
JPY
HKS
SKU: 28396
PN: 21004-AT001The HKS Capacity Upgrade Kit 2JZ-GTE 3.4L - Full Kit will grant a great amount of torque gained during acceleration as well as more power at the top end. Many cars in motorsports competition across Japan trust and use the HKS Capacity Upgrade Kit due to its high horsepower reliability. This is because parts that make up this kit are strengthened way beyond OEM standards, lighter in weight, and are ready for high power. Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Capacity Upgrade Kit 3.4L Full Kit - JZA80 JZS147 JZS161
Part Number: 21004-AT001
SPECIFICATIONS:

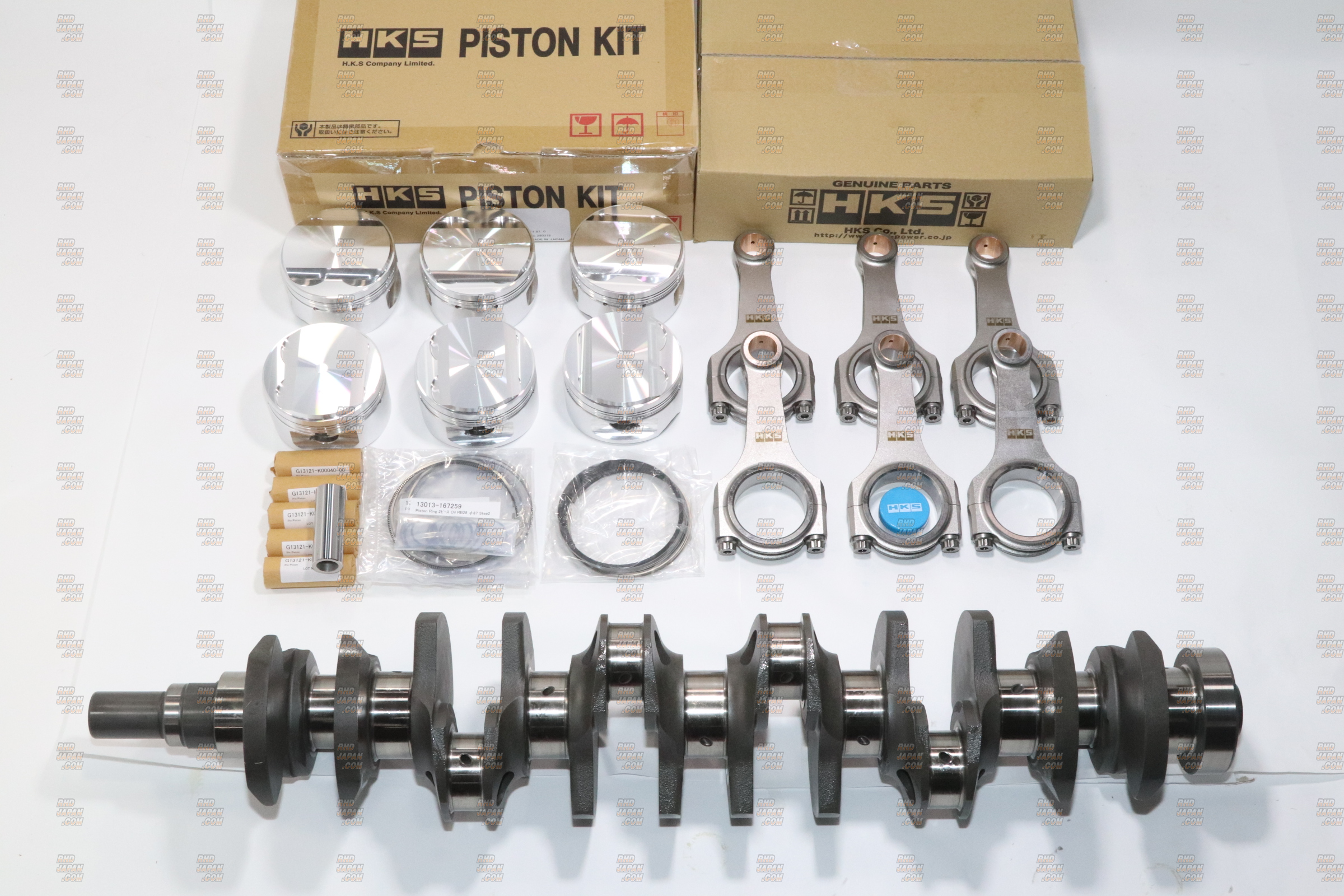

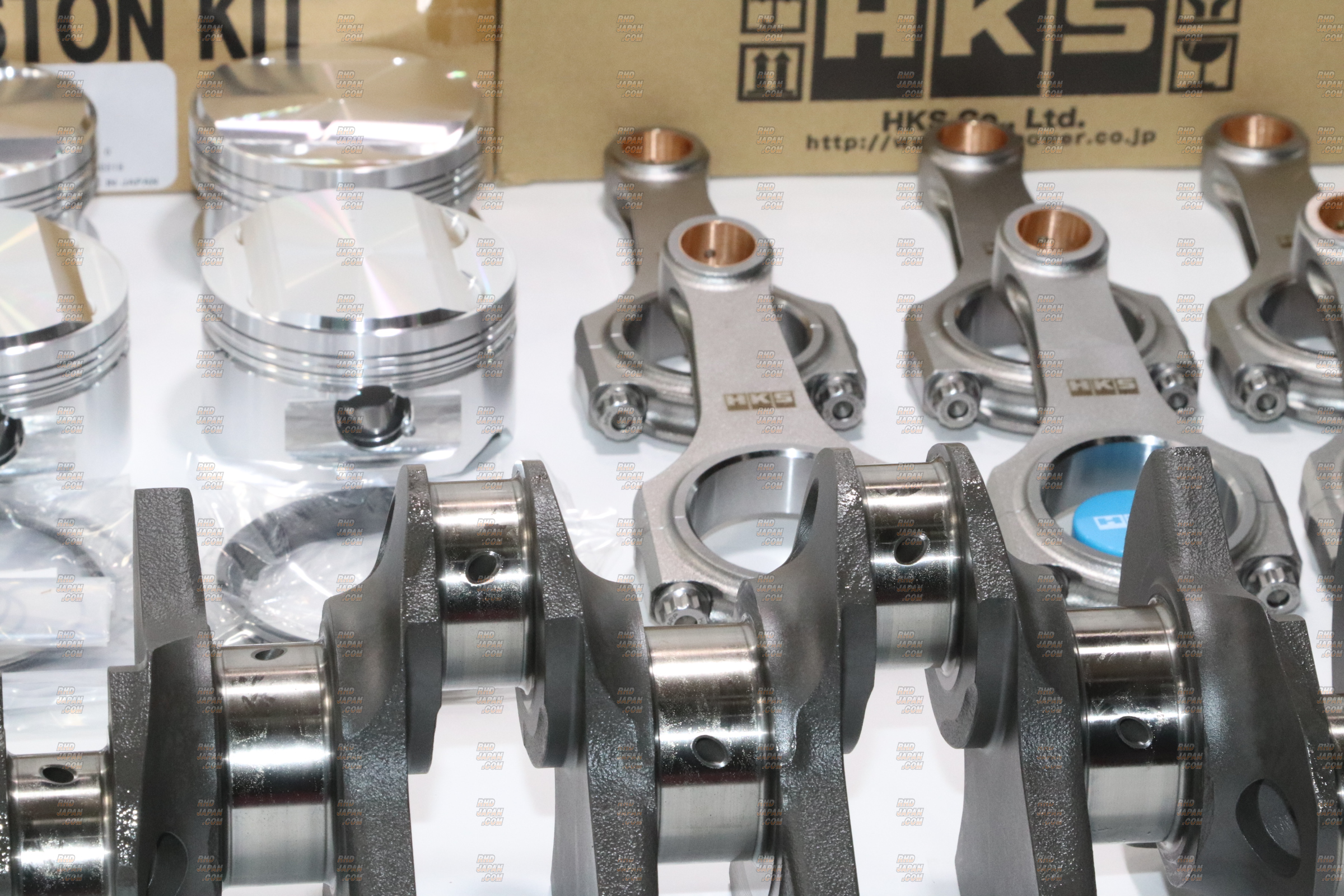

Included:
- HKS Forged Pistons Kit
- HKS Billet Crankshaft
- HKS H-Beam Connecting Rods Kit
Piston Top Coating: Nickel Plating
Piston Skirt Coating: Ober Coating
Piston Bore (mm): 87.0
Pin Bore (mm): 22.0
Displacement (cc): 3352.8
Stroke (mm): 94
Compression Ratio (e):
- With 1.2mm Gasket: 8.8
- With 1.6mm Gasket: 8.6
- With 2.0mm Gasket: 8.3
PRODUCT NOTES:
- RPM limit 7500rpm
- Boring, Honing machining: Required
- Full flow modification: Not Required
Product: Capacity Upgrade Kit 3.4L Full Kit - JZA80 JZS147 JZS161
Part Number: 21004-AT001
SPECIFICATIONS:
Included:
- HKS Forged Pistons Kit
- HKS Billet Crankshaft
- HKS H-Beam Connecting Rods Kit
Piston Top Coating: Nickel Plating
Piston Skirt Coating: Ober Coating
Piston Bore (mm): 87.0
Pin Bore (mm): 22.0
Displacement (cc): 3352.8
Stroke (mm): 94
Compression Ratio (e):
- With 1.2mm Gasket: 8.8
- With 1.6mm Gasket: 8.6
- With 2.0mm Gasket: 8.3
PRODUCT NOTES:
- RPM limit 7500rpm
- Boring, Honing machining: Required
- Full flow modification: Not Required
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Aristo JZS147 2JZ-GTE (10/1991-07/1994)
Toyota Aristo JZS147 2JZ-GTE (08/1994-08/1997)
Toyota Aristo JZS161 2JZ-GTE (08/1997-07/2000)
Toyota Aristo JZS161 2JZ-GTE (07/2000-12/2004)
Toyota Supra JZA80 2JZ-GTE (05/1993-07/1994)
Toyota Supra JZA80 2JZ-GTE (08/1994-03/1996)
Toyota Supra JZA80 2JZ-GTE (04/1996-07/1997)
Toyota Supra JZA80 2JZ-GTE (08/1997-08/2002)
Toyota Aristo JZS147 2JZ-GTE (10/1991-07/1994)
Toyota Aristo JZS147 2JZ-GTE (08/1994-08/1997)
Toyota Aristo JZS161 2JZ-GTE (08/1997-07/2000)
Toyota Aristo JZS161 2JZ-GTE (07/2000-12/2004)
Toyota Supra JZA80 2JZ-GTE (05/1993-07/1994)
Toyota Supra JZA80 2JZ-GTE (08/1994-03/1996)
Toyota Supra JZA80 2JZ-GTE (04/1996-07/1997)
Toyota Supra JZA80 2JZ-GTE (08/1997-08/2002)
Customers who bought this product also purchased

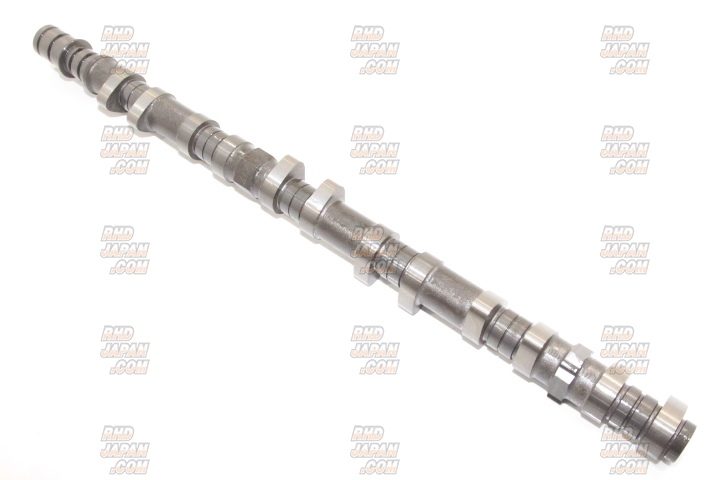

HKS Camshaft Intake 264 VVT-i - JZA80 JZS161
List Price: ¥63,800
Sale Price: ¥58,189
You Save: ¥5,611
HKS Camshaft Exhaust 272 - JZA80 JZS147 JZS161
List Price: ¥52,800
Sale Price: ¥48,159
You Save: ¥4,641

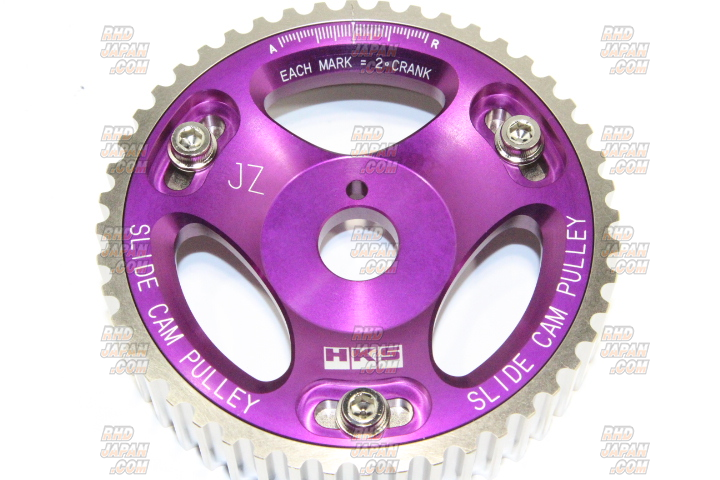

HKS Adjustable Cam Pulley Slide Pulley - 1JZ-G(T)E 2JZ-G(T)E
