HKS Capacity Upgrade Kit FA20 2.2L Low Compression Step 1 - BRZ ZC6 86 ZN6
407709
JPY
HKS
SKU: 297209

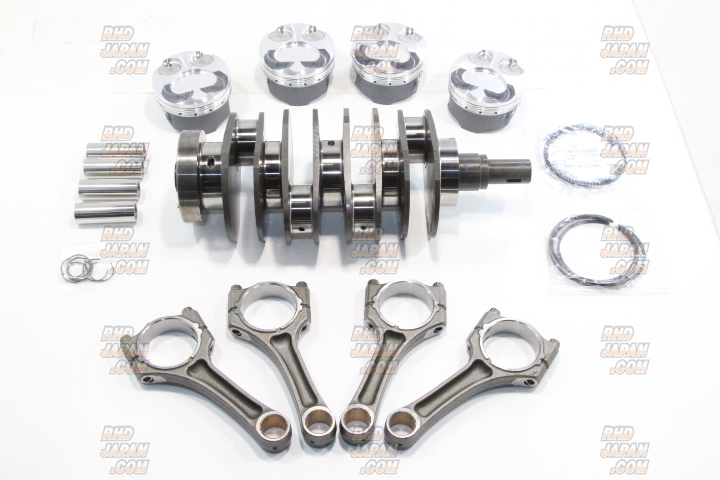

PN: 21004-AT005This kit has been developed as a result of the knowledge and experience gained from extensive testing in the D1 Drift machines and Tsukuba Circuit time attack machines. As the kit uses the same bore pistons no additional machining work such as boring or honing are required for installation. Once installed hp and torque output will be increased all throughout the power band and internals will be reinforced to reliably handle up to 550ps or 50kgf/m!!
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Capacity Upgrade Kit FA20 2.2L Low Compression - BRZ ZC6 86 ZN6
Part Num: 21004-AT005
SPECIFICATIONS:
Version: Step 1

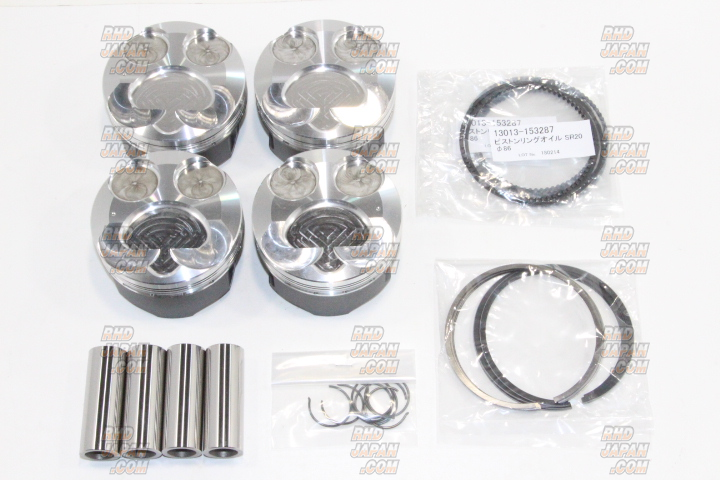

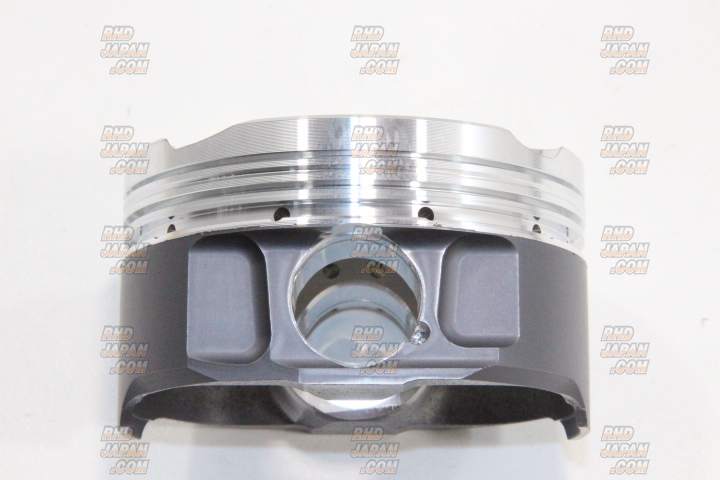

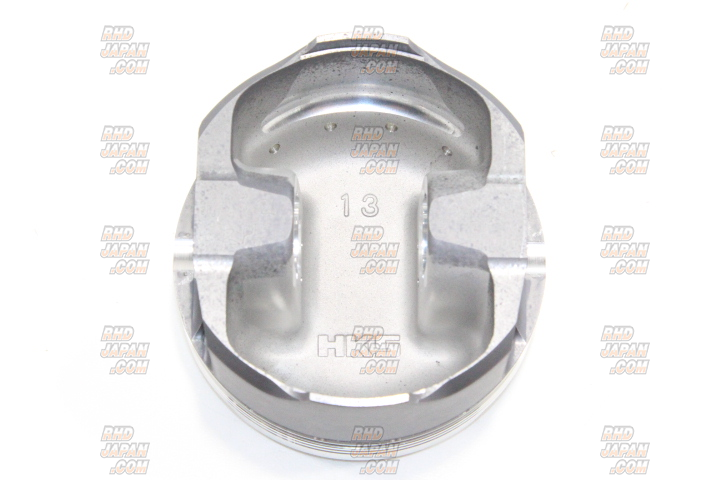

Piston Kit (Part Number: 21003-AT004)
- Forged (mm) : 86.5
- Displacement(cc): 2116

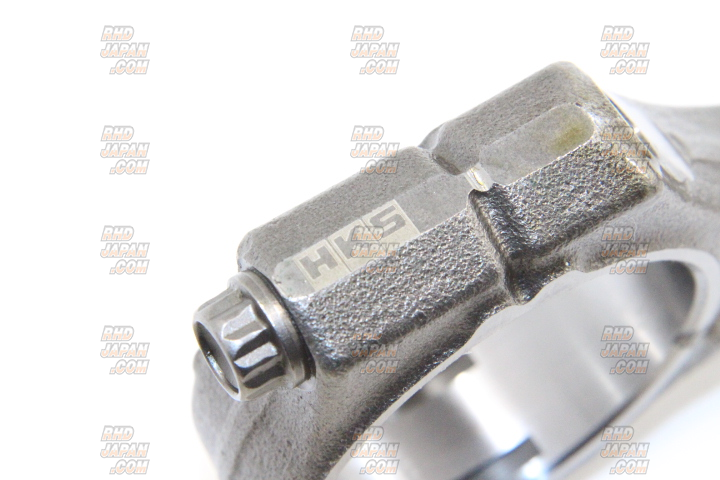

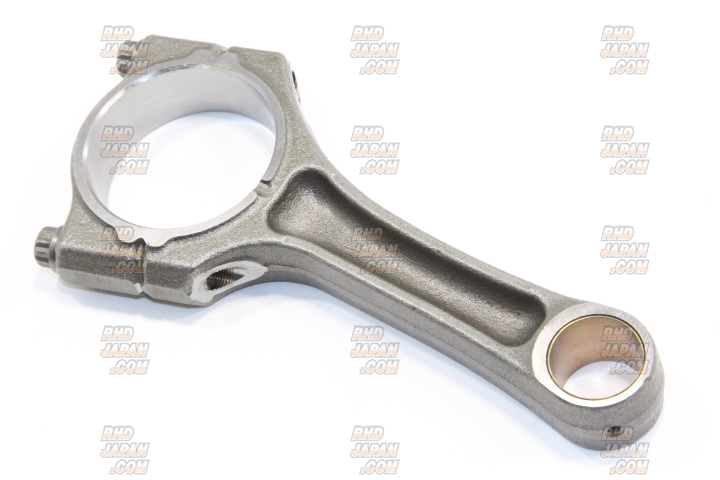

ConRods: (Part Number: 23004-AT001)
Split I-Beam
-Bolt Size: M8
-Big End Diameter: 51 (same bearings as used for SR/RB applications

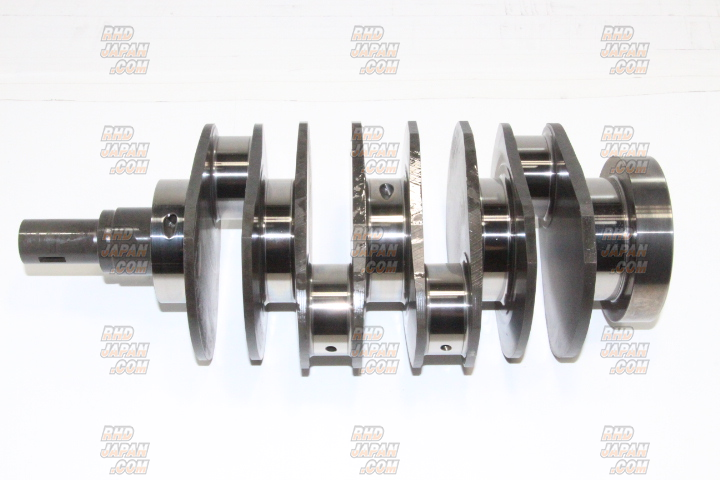

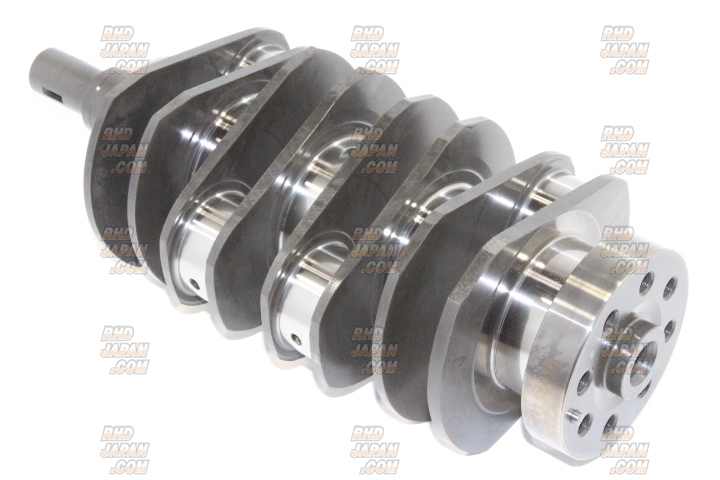

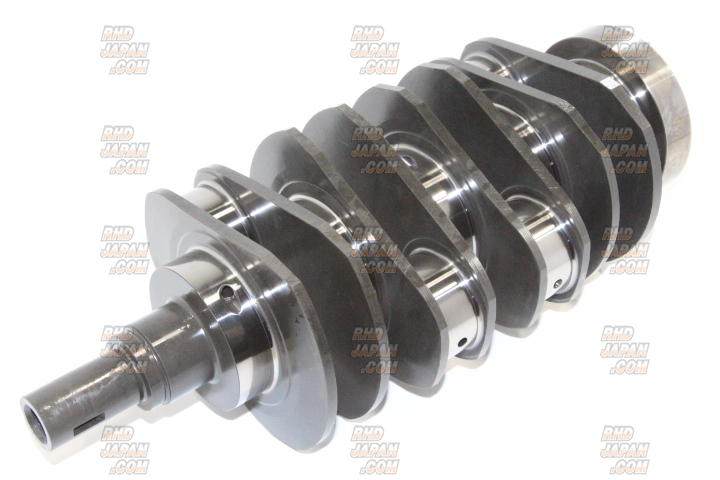

Crankshaft: (Part Number: 23006-AT002)
-Processing: Forged
-Pin journal diameter: 48
-Main journal diameter: 68
-Stroke(mm): 90
Product: Capacity Upgrade Kit FA20 2.2L Low Compression - BRZ ZC6 86 ZN6
Part Num: 21004-AT005
SPECIFICATIONS:
Version: Step 1
Piston Kit (Part Number: 21003-AT004)
- Forged (mm) : 86.5
- Displacement(cc): 2116
ConRods: (Part Number: 23004-AT001)
Split I-Beam
-Bolt Size: M8
-Big End Diameter: 51 (same bearings as used for SR/RB applications
Crankshaft: (Part Number: 23006-AT002)
-Processing: Forged
-Pin journal diameter: 48
-Main journal diameter: 68
-Stroke(mm): 90
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)
