This full coilover suspension setup provides a premium upgrade in handling performance. This flagship lineup covers the widest array of vehicles designed to be the almighty setup for all around driving applications. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high level performance on circuit as well. With over 15 years of development on the Hipermax series the lineup has undergone a continual evolution of superior design in combination with high quality materials. With massive adjustability in ride height and damper settings these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance. Get this and all your JDM at RHDJapan!!
Brand: HKS

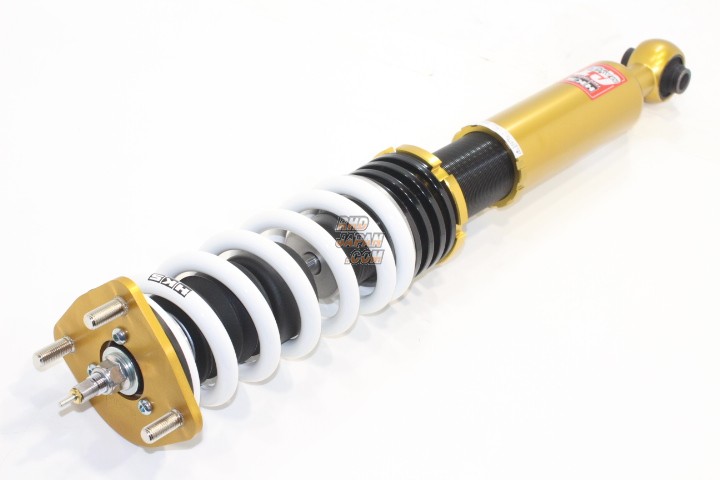

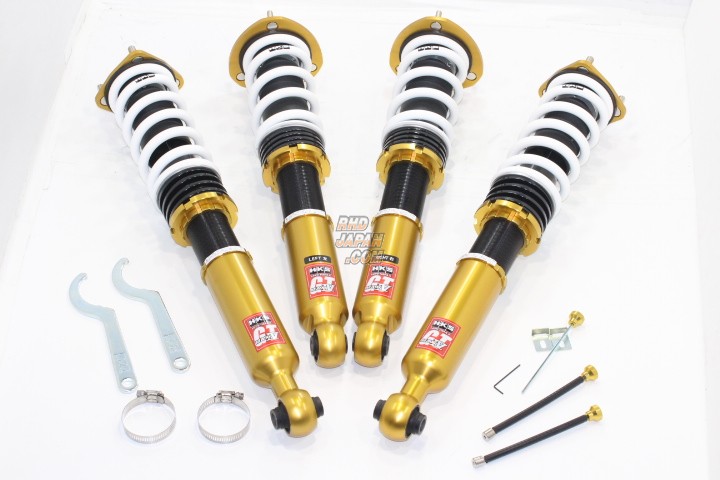

Product: Coilover Suspension Full Kit Hipermax IV GT - BM2FS BM5FS
Part Num: 80230-AZ005
SPECIFICATIONS:
Series: Hipermax IV GT
Spring Rate N/mm (kgf/mm):
- Front: 39(4)
- Rear: 29(3)
Free Height (mm):
- Front: 250(Barrel)
- Rear: 250(Barrel)
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: ±20 ( 2 )
- Rear: ±20 ( 2 )
Damper Force (Rebound/Damping):
- Front: 481/226
- Rear: 250/152
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Separate
Damping force adjustable with Wire:
- Front: N/A
- Rear: Yes
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: 0 ~ -85
-- Rear: -10 ~ -83
-Drivable Range High - Low (mm):
-- Front: 0 ~ -85
-- Rear: -10 ~ -83
Product: Coilover Suspension Full Kit Hipermax IV GT - BM2FS BM5FS
Part Num: 80230-AZ005
SPECIFICATIONS:
Series: Hipermax IV GT
Spring Rate N/mm (kgf/mm):
- Front: 39(4)
- Rear: 29(3)
Free Height (mm):
- Front: 250(Barrel)
- Rear: 250(Barrel)
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: ±20 ( 2 )
- Rear: ±20 ( 2 )
Damper Force (Rebound/Damping):
- Front: 481/226
- Rear: 250/152
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Separate
Damping force adjustable with Wire:
- Front: N/A
- Rear: Yes
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: 0 ~ -85
-- Rear: -10 ~ -83
-Drivable Range High - Low (mm):
-- Front: 0 ~ -85
-- Rear: -10 ~ -83
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mazda Axela Sport BM2FS SH-VPTR (11/2013-06/2016)
Mazda Axela Sport BM2FS SH-VPTR (07/2016-05/2019)
Mazda Axela Sport BM5FS P5-VPS (11/2013-06/2016)
Mazda Axela Sport BM5FS P5-VPS (07/2016-05/2019)
Mazda Axela Sport BM2FS SH-VPTR (11/2013-06/2016)
Mazda Axela Sport BM2FS SH-VPTR (07/2016-05/2019)
Mazda Axela Sport BM5FS P5-VPS (11/2013-06/2016)
Mazda Axela Sport BM5FS P5-VPS (07/2016-05/2019)
