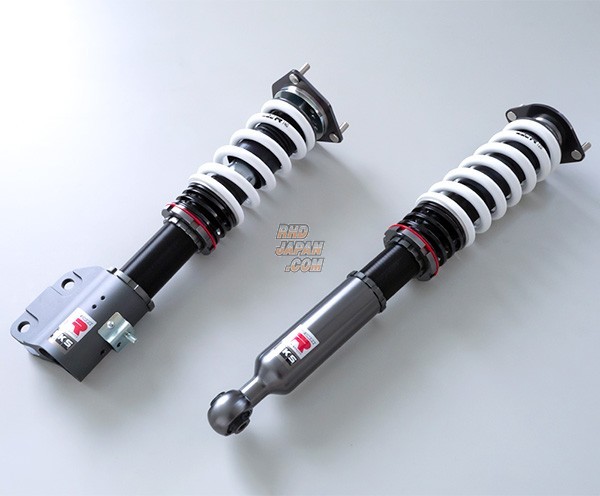

HKS Coilover Suspension Full Kit Hipermax R - Lancer Evolution X CZ4A
275649
JPY
HKS
SKU: 291971

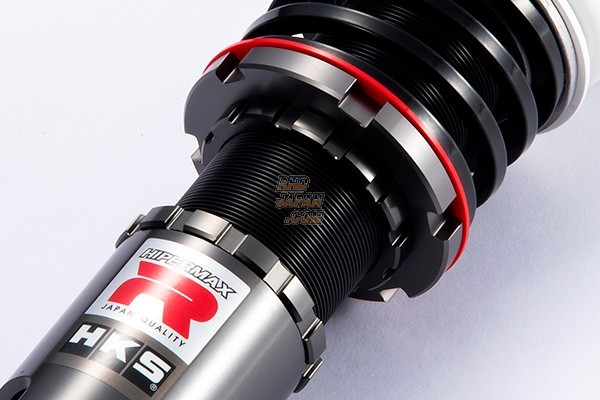

PN: 80310-AM001This set of suspension is designed to replace the factory suspension related shock absorber / dampers and springs. Building upon the 3 decades of suspension development and 9 years since the last version of Hipermax IV SP release this series has unified the many different street based Hipermax merits and further improved this new flagship series as the Ultimate All-Rounder. Many aspects similar to the Hipermax S Series yet developed for more serious motorsport application. Exclusive SRF (Super Response Fluid), LVS (Low Vibration Spring) and Spring Retainer along with increased spring rates, revised spring changes, wider implementation of helper springs and full Pillow Ball upper mounts sets these apart from the Hipermax S Series. Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Coilover Suspension Full Kit Hipermax R - Lancer Evolution X CZ4A
Part Number: 80310-AM001
SPECIFICATIONS:
Series: Hipermax R
Spring Rate N/mm (kgf/mm):
- Front: 137(14)
- Rear: 118(12)
Free Height (mm):
- Front: 170
- Rear: 200
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: -20 ( 2 )
- Rear: -20 ( 2 )

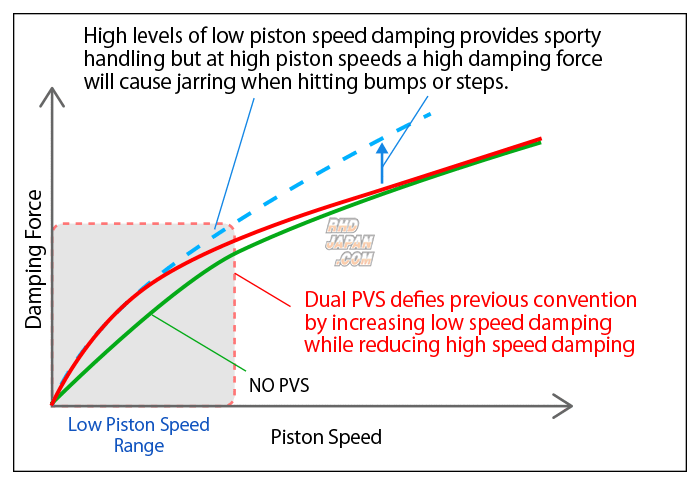

Damper Force (Rebound/Damping):
- Front: 927/623
- Rear: 785/525
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes

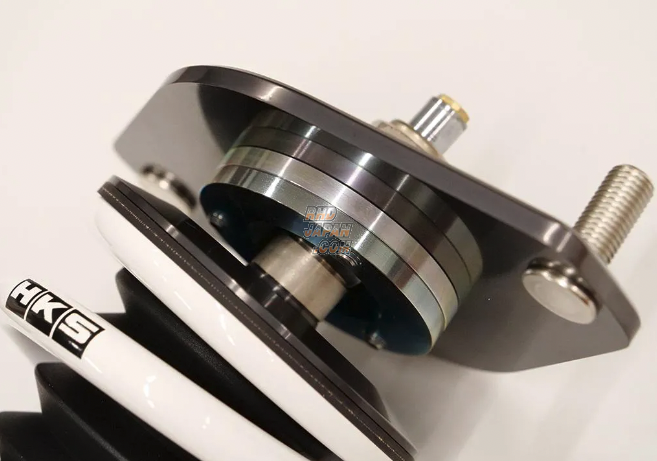

Upper Mount:
- Front: Pillow Ball Upper Mount
- Rear: Pillow Ball Upper Mount
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Coilover
Damping force adjustable with Wire:
- Front: N/A
- Rear: N/A
Helper Spring (Spring Rate N/mm):
- Front: 19.8
- Rear: 19.8

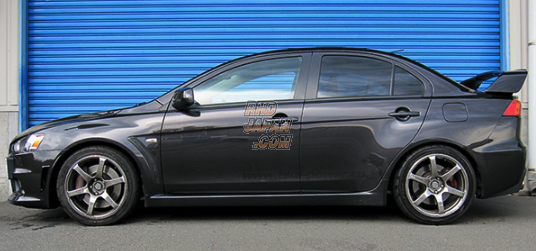

Ride Height Specification -
-Default Ride Height Change (mm):
-- Front: -30
-- Rear: -18
-Ride Height Adjustability Range (mm):
-- Front: -8 - -73
-- Rear: 0 - -67
PRODUCT NOTES:
2 Year or 40K km Manufacturer Warranty
Installation Manual PDF: https://www.hks-power.co.jp/product_search/product/download/5003/ja_en/80310-AM001.pdf
- Rear damping force adjustment cable included
COMPATIBILITY NOTES:
- Only for turbo vehicles 10/07~09/15
Product: Coilover Suspension Full Kit Hipermax R - Lancer Evolution X CZ4A
Part Number: 80310-AM001
SPECIFICATIONS:
Series: Hipermax R
Spring Rate N/mm (kgf/mm):
- Front: 137(14)
- Rear: 118(12)
Free Height (mm):
- Front: 170
- Rear: 200
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: -20 ( 2 )
- Rear: -20 ( 2 )
Damper Force (Rebound/Damping):
- Front: 927/623
- Rear: 785/525
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: Pillow Ball Upper Mount
- Rear: Pillow Ball Upper Mount
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Coilover
Damping force adjustable with Wire:
- Front: N/A
- Rear: N/A
Helper Spring (Spring Rate N/mm):
- Front: 19.8
- Rear: 19.8
Ride Height Specification -
-Default Ride Height Change (mm):
-- Front: -30
-- Rear: -18
-Ride Height Adjustability Range (mm):
-- Front: -8 - -73
-- Rear: 0 - -67
PRODUCT NOTES:
2 Year or 40K km Manufacturer Warranty
Installation Manual PDF: https://www.hks-power.co.jp/product_search/product/download/5003/ja_en/80310-AM001.pdf
- Rear damping force adjustment cable included
COMPATIBILITY NOTES:
- Only for turbo vehicles 10/07~09/15
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
