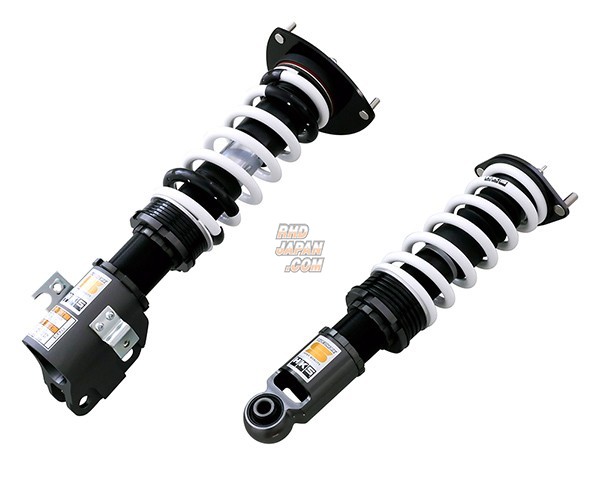

HKS Coilover Suspension Full Kit Hipermax S - BL5 BL9 BLE BP5 BP9 BPE
202739
JPY
HKS
SKU: 267808
PN: 80300-AF005This set of suspension is designed to replace the factory suspension related shock absorber / dampers and springs.
Building upon the 3 decades of suspension development and 9 years since the last version of Hipermax IV GT release this series has unified the many different street based Hipermax merits and further improved this new flagship series for the ultimate combination of driving performance and comfort performance, Driving Comfort. With exception of the circuit specific HIpermax IV SP series all other series will be replaced with this all-mighty spec. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high level performance on circuit as well. With massive adjustability in ride height and damper settings these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance. Get this and all your JDM at RHDJapan!!
Building upon the 3 decades of suspension development and 9 years since the last version of Hipermax IV GT release this series has unified the many different street based Hipermax merits and further improved this new flagship series for the ultimate combination of driving performance and comfort performance, Driving Comfort. With exception of the circuit specific HIpermax IV SP series all other series will be replaced with this all-mighty spec. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high level performance on circuit as well. With massive adjustability in ride height and damper settings these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance. Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Coilover Suspension Full Kit Hipermax S - BL5 BL9 BLE BP5 BP9 BPE
Part Num: 80300-AF005
SPECIFICATIONS:
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 59(6)
- Rear: 69(7)
Free Height (mm):
- Front: 220(Barrel)
- Rear: 200
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: ±20 ( 2 )
- Rear: ±20 ( 2 )
Damper Force (Rebound/Damping):
- Front: 647/206
- Rear: 951/167
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes

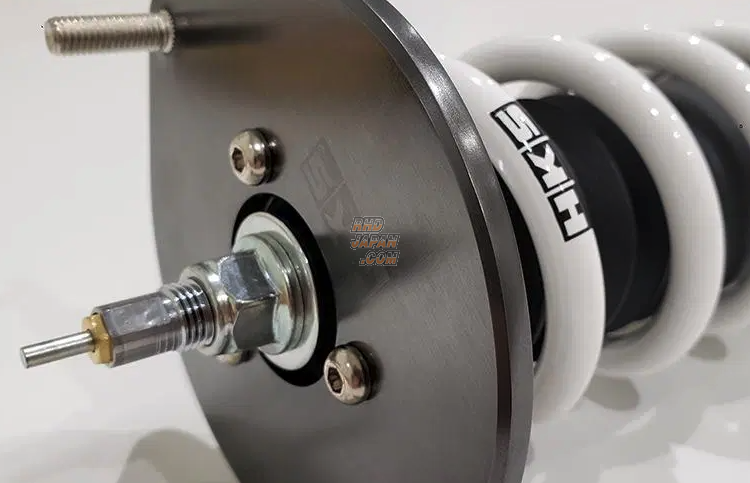

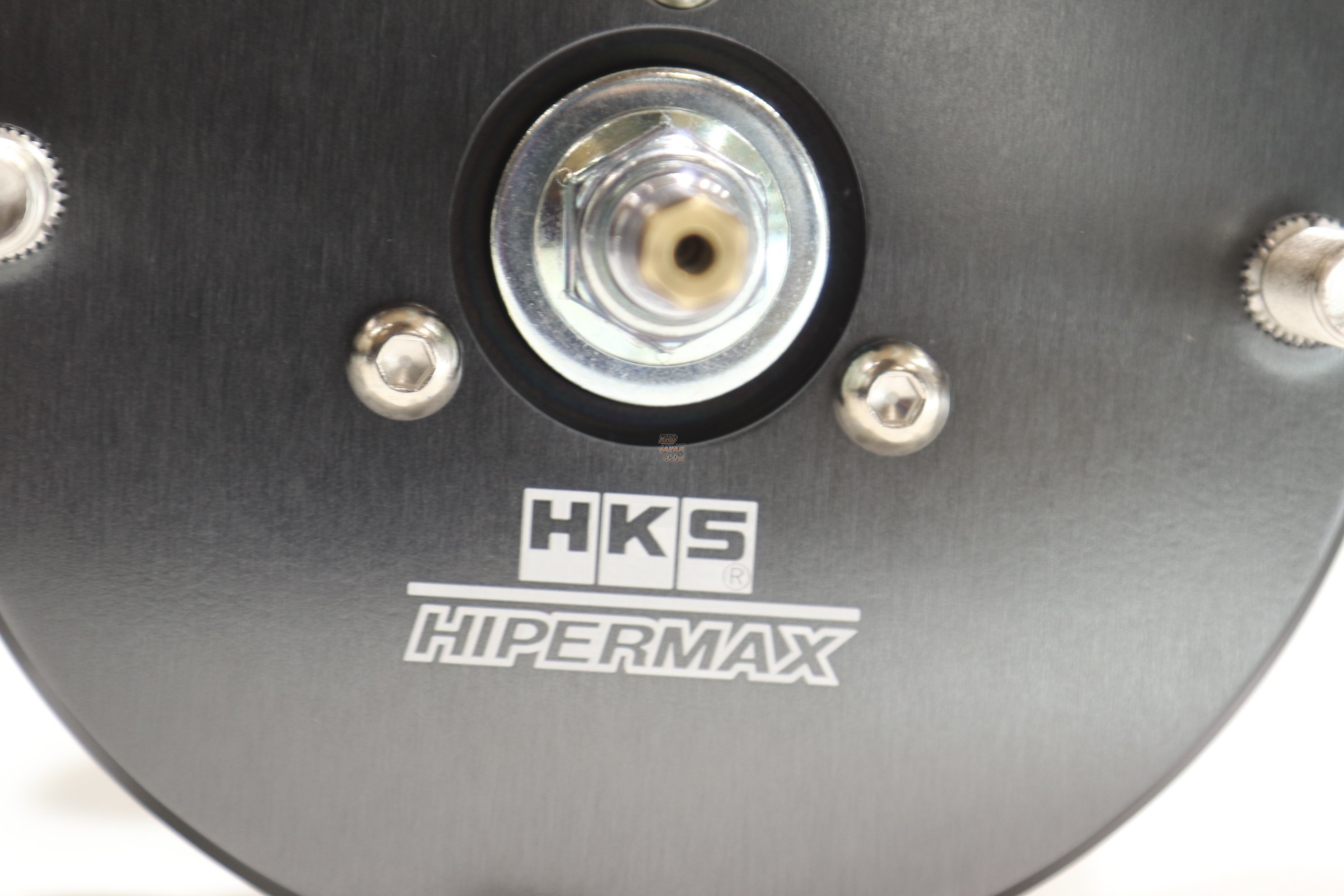

Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Coilover
Damping force adjustable with Wire:
- Front: N/A
- Rear: Yes
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: 0 ~ -64
-- Rear: 0 ~ -86
-Drivable Range High - Low (mm):
-- Front: -12 ~ -46
-- Rear: 0 ~ -41
Product: Coilover Suspension Full Kit Hipermax S - BL5 BL9 BLE BP5 BP9 BPE
Part Num: 80300-AF005
SPECIFICATIONS:
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 59(6)
- Rear: 69(7)
Free Height (mm):
- Front: 220(Barrel)
- Rear: 200
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: ±20 ( 2 )
- Rear: ±20 ( 2 )
Damper Force (Rebound/Damping):
- Front: 647/206
- Rear: 951/167
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Coilover
Damping force adjustable with Wire:
- Front: N/A
- Rear: Yes
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: 0 ~ -64
-- Rear: 0 ~ -86
-Drivable Range High - Low (mm):
-- Front: -12 ~ -46
-- Rear: 0 ~ -41
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Subaru Legacy B4 BL5 Applied A EJ20Y (04/2003-04/2004)
Subaru Legacy B4 BL5 Applied B EJ20Y (05/2004-04/2005)
Subaru Legacy B4 BL5 Applied C EJ20Y (05/2005-04/2006)
Subaru Legacy B4 BL5 Applied D EJ20Y (05/2006-04/2007)
Subaru Legacy B4 BL5 Applied E EJ20Y (05/2007-04/2008)
Subaru Legacy B4 BL5 Applied F EJ20Y (05/2008-04/2009)
Subaru Legacy B4 BL9 Applied A EJ25 (04/2003-04/2004)
Subaru Legacy B4 BL9 Applied B EJ25 (05/2004-04/2005)
Subaru Legacy B4 BL9 Applied C EJ25 (05/2005-04/2006)
Subaru Legacy B4 BL9 Applied D EJ25 (05/2006-04/2007)
Subaru Legacy B4 BL9 Applied E EJ25 (05/2007-04/2008)
Subaru Legacy B4 BL9 Applied F EJ25 (05/2008-04/2009)
Subaru Legacy B4 BLE Applied A EZ30 (09/2003-04/2004)
Subaru Legacy B4 BLE Applied B EZ30 (05/2004-04/2005)
Subaru Legacy B4 BLE Applied C EZ30 (05/2005-04/2006)
Subaru Legacy B4 BLE Applied D EZ30 (05/2006-04/2007)
Subaru Legacy B4 BLE Applied E EZ30 (05/2007-04/2008)
Subaru Legacy B4 BLE Applied F EZ30 (05/2008-04/2009)
Subaru Legacy Touring Wagon BP5 Applied A EJ20Y (04/2003-04/2004)
Subaru Legacy Touring Wagon BP5 Applied B EJ20Y (05/2004-04/2005)
Subaru Legacy Touring Wagon BP5 Applied C EJ20Y (05/2005-04/2006)
Subaru Legacy Touring Wagon BP5 Applied D EJ20Y (05/2006-04/2007)
Subaru Legacy Touring Wagon BP5 Applied E EJ20Y (05/2007-04/2008)
Subaru Legacy Touring Wagon BP5 Applied F EJ20Y (05/2008-04/2009)
Subaru Legacy Touring Wagon BP9 Applied A EJ25 (04/2003-04/2004)
Subaru Legacy Touring Wagon BP9 Applied B EJ25 (05/2004-04/2005)
Subaru Legacy Touring Wagon BP9 Applied C EJ25 (05/2005-04/2006)
Subaru Legacy Touring Wagon BP9 Applied D EJ25 (05/2006-04/2007)
Subaru Legacy Touring Wagon BP9 Applied E EJ25 (05/2007-04/2008)
Subaru Legacy Touring Wagon BP9 Applied F EJ25 (05/2008-04/2009)
Subaru Legacy Touring Wagon BPE Applied A EZ30 (09/2003-04/2004)
Subaru Legacy Touring Wagon BPE Applied B EZ30 (05/2004-04/2005)
Subaru Legacy Touring Wagon BPE Applied C EZ30 (05/2005-04/2006)
Subaru Legacy Touring Wagon BPE Applied D EZ30 (05/2006-04/2007)
Subaru Legacy Touring Wagon BPE Applied E EZ30 (05/2007-04/2008)
Subaru Legacy Touring Wagon BPE Applied F EZ30 (05/2008-04/2009)
Subaru Legacy B4 BL5 Applied A EJ20Y (04/2003-04/2004)
Subaru Legacy B4 BL5 Applied B EJ20Y (05/2004-04/2005)
Subaru Legacy B4 BL5 Applied C EJ20Y (05/2005-04/2006)
Subaru Legacy B4 BL5 Applied D EJ20Y (05/2006-04/2007)
Subaru Legacy B4 BL5 Applied E EJ20Y (05/2007-04/2008)
Subaru Legacy B4 BL5 Applied F EJ20Y (05/2008-04/2009)
Subaru Legacy B4 BL9 Applied A EJ25 (04/2003-04/2004)
Subaru Legacy B4 BL9 Applied B EJ25 (05/2004-04/2005)
Subaru Legacy B4 BL9 Applied C EJ25 (05/2005-04/2006)
Subaru Legacy B4 BL9 Applied D EJ25 (05/2006-04/2007)
Subaru Legacy B4 BL9 Applied E EJ25 (05/2007-04/2008)
Subaru Legacy B4 BL9 Applied F EJ25 (05/2008-04/2009)
Subaru Legacy B4 BLE Applied A EZ30 (09/2003-04/2004)
Subaru Legacy B4 BLE Applied B EZ30 (05/2004-04/2005)
Subaru Legacy B4 BLE Applied C EZ30 (05/2005-04/2006)
Subaru Legacy B4 BLE Applied D EZ30 (05/2006-04/2007)
Subaru Legacy B4 BLE Applied E EZ30 (05/2007-04/2008)
Subaru Legacy B4 BLE Applied F EZ30 (05/2008-04/2009)
Subaru Legacy Touring Wagon BP5 Applied A EJ20Y (04/2003-04/2004)
Subaru Legacy Touring Wagon BP5 Applied B EJ20Y (05/2004-04/2005)
Subaru Legacy Touring Wagon BP5 Applied C EJ20Y (05/2005-04/2006)
Subaru Legacy Touring Wagon BP5 Applied D EJ20Y (05/2006-04/2007)
Subaru Legacy Touring Wagon BP5 Applied E EJ20Y (05/2007-04/2008)
Subaru Legacy Touring Wagon BP5 Applied F EJ20Y (05/2008-04/2009)
Subaru Legacy Touring Wagon BP9 Applied A EJ25 (04/2003-04/2004)
Subaru Legacy Touring Wagon BP9 Applied B EJ25 (05/2004-04/2005)
Subaru Legacy Touring Wagon BP9 Applied C EJ25 (05/2005-04/2006)
Subaru Legacy Touring Wagon BP9 Applied D EJ25 (05/2006-04/2007)
Subaru Legacy Touring Wagon BP9 Applied E EJ25 (05/2007-04/2008)
Subaru Legacy Touring Wagon BP9 Applied F EJ25 (05/2008-04/2009)
Subaru Legacy Touring Wagon BPE Applied A EZ30 (09/2003-04/2004)
Subaru Legacy Touring Wagon BPE Applied B EZ30 (05/2004-04/2005)
Subaru Legacy Touring Wagon BPE Applied C EZ30 (05/2005-04/2006)
Subaru Legacy Touring Wagon BPE Applied D EZ30 (05/2006-04/2007)
Subaru Legacy Touring Wagon BPE Applied E EZ30 (05/2007-04/2008)
Subaru Legacy Touring Wagon BPE Applied F EZ30 (05/2008-04/2009)
