This set of suspension is designed to replace the factory suspension related shock absorber / dampers and springs.
Building upon the 3 decades of suspension development and 9 years since the last version of Hipermax IV GT release this series has unified the many different street based Hipermax merits and further improved this new flagship series for the ultimate combination of driving performance and comfort performance, Driving Comfort. With exception of the circuit specific HIpermax IV SP series all other series will be replaced with this all-mighty spec. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high level performance on circuit as well. With massive adjustability in ride height and damper settings these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance. Get this and all your JDM at RHDJapan!!
Building upon the 3 decades of suspension development and 9 years since the last version of Hipermax IV GT release this series has unified the many different street based Hipermax merits and further improved this new flagship series for the ultimate combination of driving performance and comfort performance, Driving Comfort. With exception of the circuit specific HIpermax IV SP series all other series will be replaced with this all-mighty spec. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high level performance on circuit as well. With massive adjustability in ride height and damper settings these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance. Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Coilover Suspension Full Kit Hipermax S - GR86 ZN8
Part Num: 80300-AT027
SPECIFICATIONS:
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 49(5)
- Rear: 64(6.5)
Free Height (mm):
- Front: 170 (Barrel)
- Rear: 170 (Barrel)
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: ±10 ( 1 )
- Rear: ±10 ( 1 )

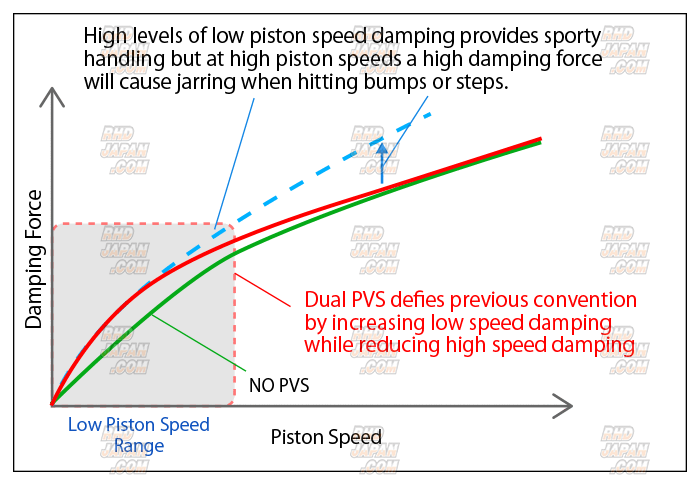

Damper Force (Rebound/Damping):
- Front: 392/387
- Rear: 432/495
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: OEM
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Separate
Damping force adjustable with Wire:
- Front: N/A
- Rear: N/A
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: 19.8
Ride Height Specification -
Default Ride Height Settings (mm):
-- Front:-26
-- Rear: -28
-Maximum Adjustable Range High - Low (mm):
-- Front: 0 - -56
-- Rear: 0 - -61
PRODUCT NOTES:
Installation Guide PDF: https://www.hks-power.co.jp/product_search/product/download/4823/ja_en/80300-AT027.pdf
COMPATIBILITY NOTES:
-
Product: Coilover Suspension Full Kit Hipermax S - GR86 ZN8
Part Num: 80300-AT027
SPECIFICATIONS:
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 49(5)
- Rear: 64(6.5)
Free Height (mm):
- Front: 170 (Barrel)
- Rear: 170 (Barrel)
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: ±10 ( 1 )
- Rear: ±10 ( 1 )
Damper Force (Rebound/Damping):
- Front: 392/387
- Rear: 432/495
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: OEM
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Separate
Damping force adjustable with Wire:
- Front: N/A
- Rear: N/A
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: 19.8
Ride Height Specification -
Default Ride Height Settings (mm):
-- Front:-26
-- Rear: -28
-Maximum Adjustable Range High - Low (mm):
-- Front: 0 - -56
-- Rear: 0 - -61
PRODUCT NOTES:
Installation Guide PDF: https://www.hks-power.co.jp/product_search/product/download/4823/ja_en/80300-AT027.pdf
COMPATIBILITY NOTES:
-
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota GR86 ZN8 FA24 (10/2021~)
Toyota GR86 ZN8 FA24 (10/2021~)
