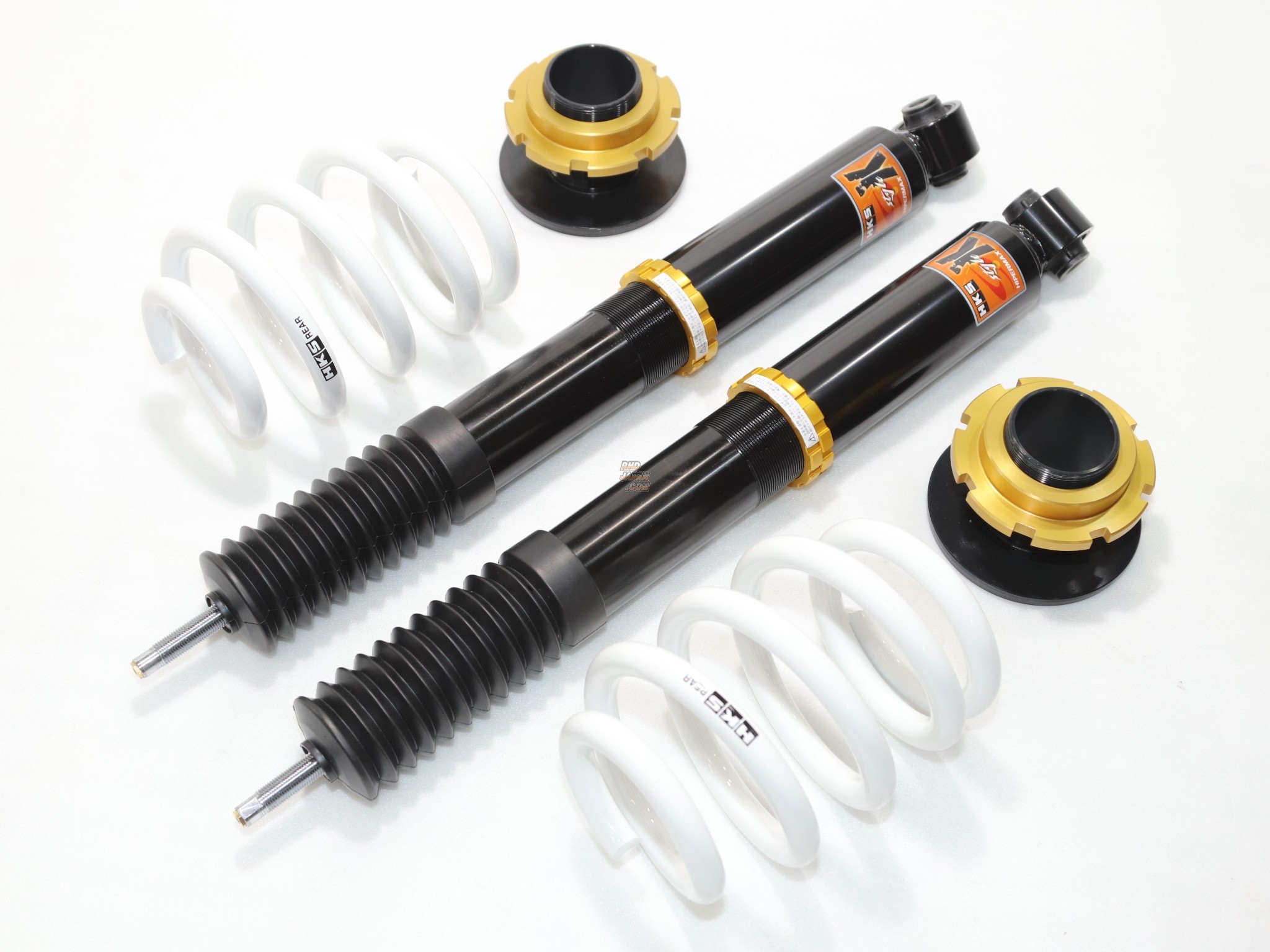

HKS Hipermax Coilover Suspension S-Style X - GGH20W ANH20W
178119
JPY
HKS
SKU: 117723

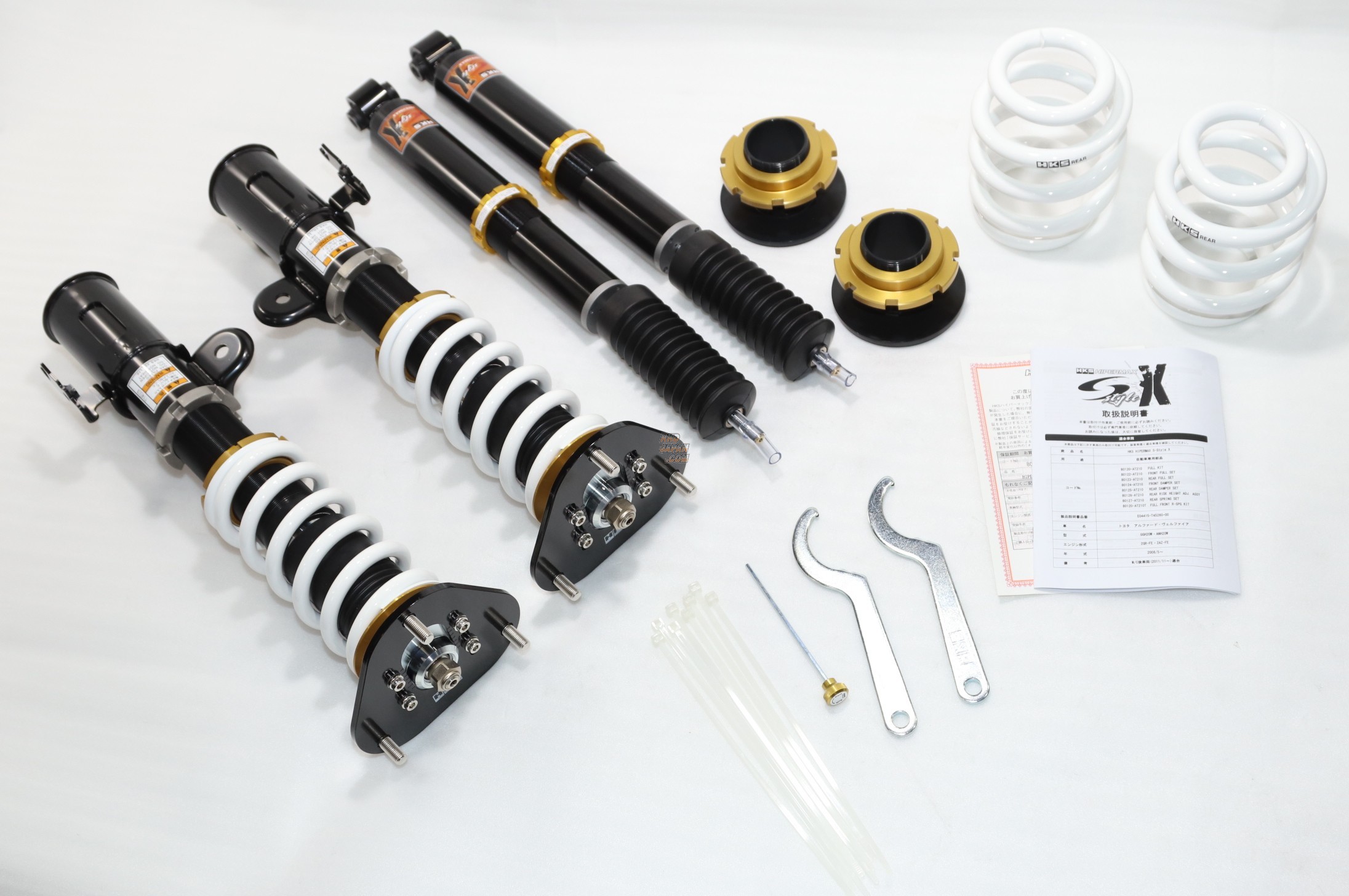

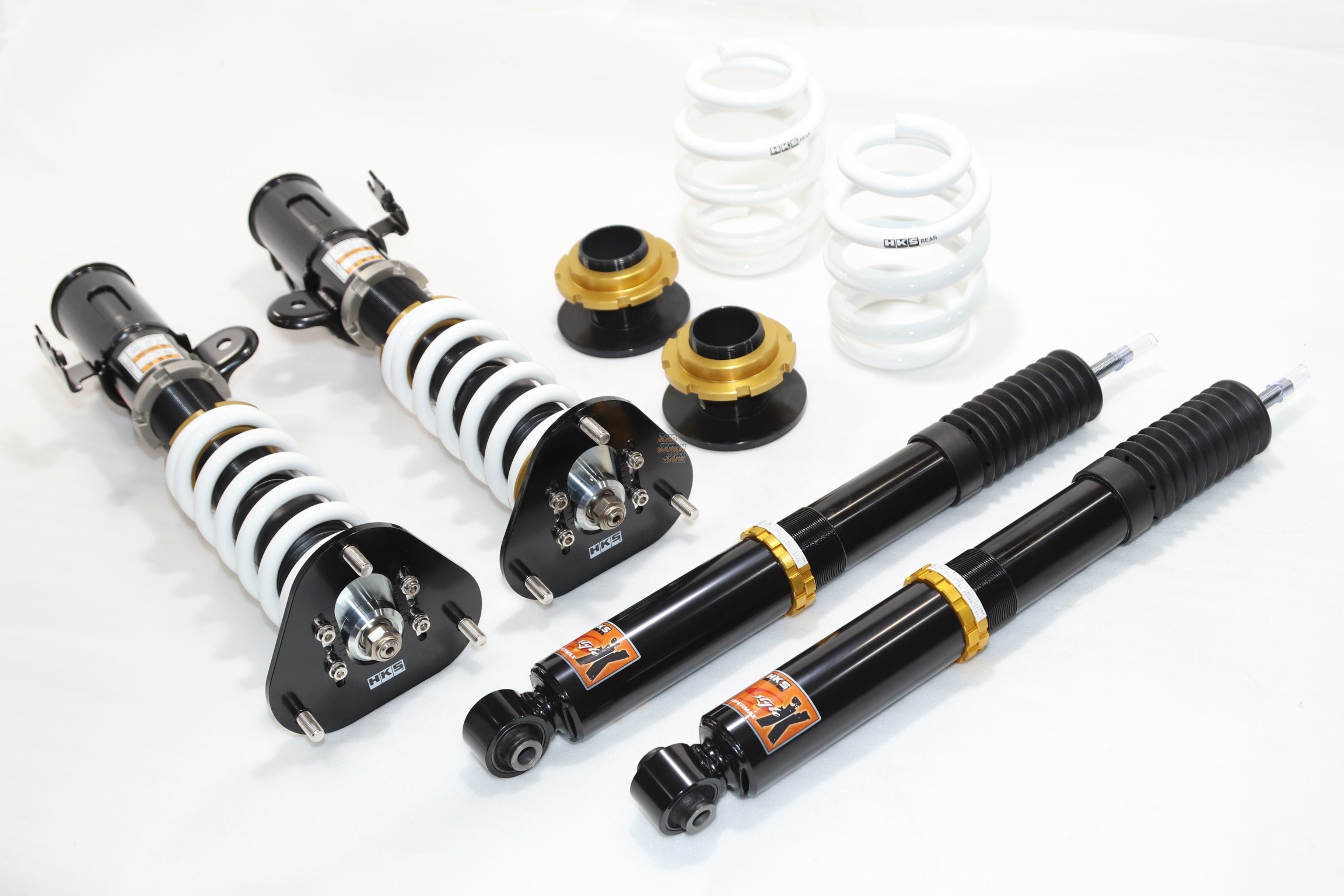

PN: 80120-AT210These are the premium version of the S-Style series suspension allowing for the most in ride height adjustability and high performance handling. Extreme low form can be achieved with increased adjustability range utilizing ultra short height coil springs with high sports spring rates. High performance handling characteristics are also attributed to high flow linear piston, adjustable camber mounts and wide range of damper settings.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Hipermax S-Style X Coilover Suspension - GGH20W ANH20W
Part Num: 80120-AT210
SPECIFICATIONS:
Series: S-Style X
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps

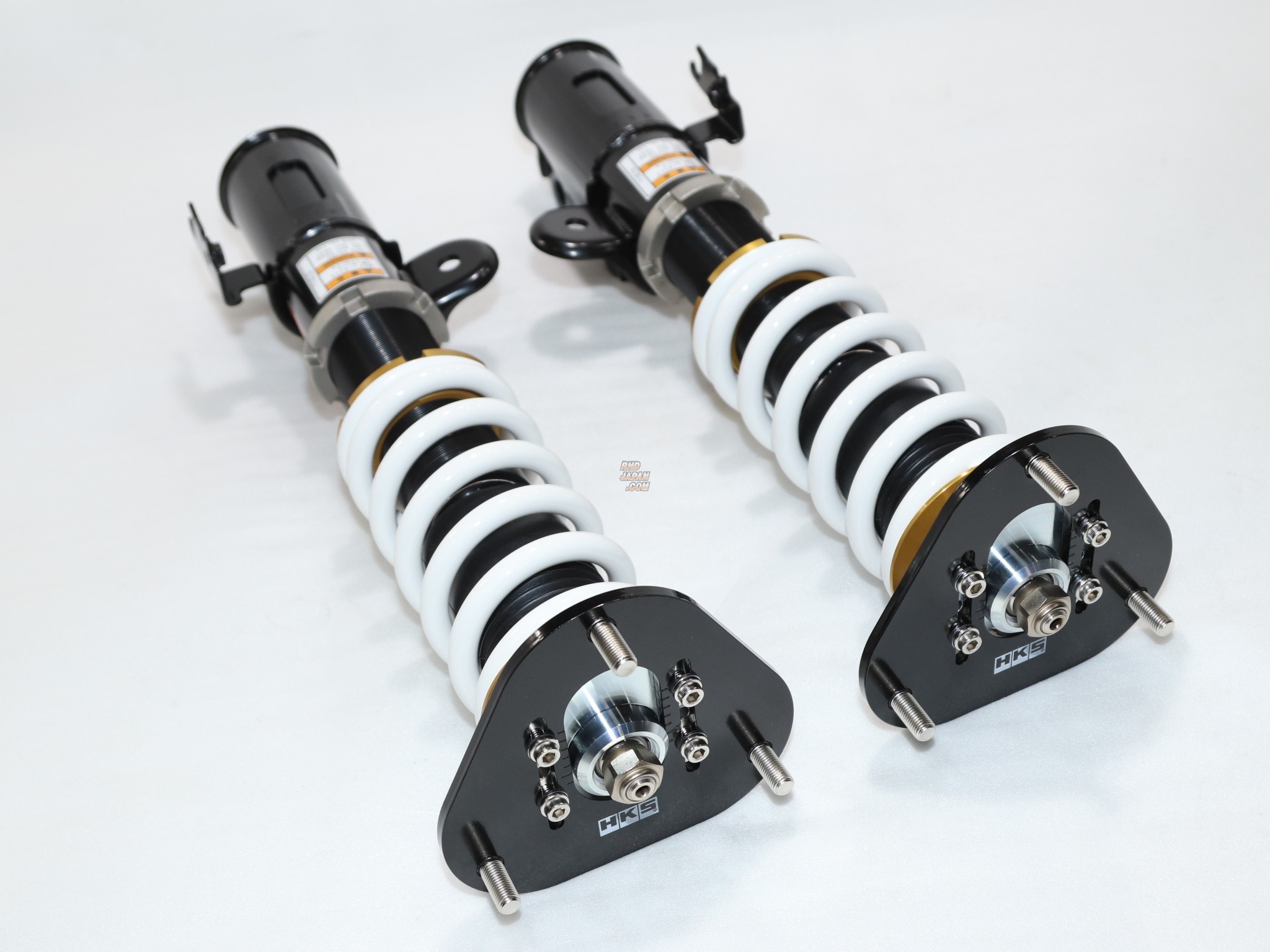

Upper Mount:
- Front: Pillow Ball
- Rear: OEM
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Maximum Adjustability (mm):
- Front: 701 ~ 589
- Rear: 689 ~ 634
Maximum Adjustability (Drivable) (mm):
- Front: 701 ~ 638
- Rear: 689 ~ 643
Spring Rate N/mm (kgf/mm):
- Front: 79 ( 8 )
- Rear: 100 ( 10.2 )
Free Height (mm):
- Front: 200
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 1163 / 472
- Rear: 1150 / 340
Default position of Dial:
- Front: 20
- Rear: 20
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 45 / 42
- Rear: 62 / 44
PRODUCT NOTES:
- Fit to 11/11MC Model
- Height data is based on GGH20W(3.5L)
COMPATIBILITY NOTES:
- Only vehicles 5/08 - 1/15
Product: Hipermax S-Style X Coilover Suspension - GGH20W ANH20W
Part Num: 80120-AT210
SPECIFICATIONS:
Series: S-Style X
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Upper Mount:
- Front: Pillow Ball
- Rear: OEM
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Maximum Adjustability (mm):
- Front: 701 ~ 589
- Rear: 689 ~ 634
Maximum Adjustability (Drivable) (mm):
- Front: 701 ~ 638
- Rear: 689 ~ 643
Spring Rate N/mm (kgf/mm):
- Front: 79 ( 8 )
- Rear: 100 ( 10.2 )
Free Height (mm):
- Front: 200
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 1163 / 472
- Rear: 1150 / 340
Default position of Dial:
- Front: 20
- Rear: 20
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 45 / 42
- Rear: 62 / 44
PRODUCT NOTES:
- Fit to 11/11MC Model
- Height data is based on GGH20W(3.5L)
COMPATIBILITY NOTES:
- Only vehicles 5/08 - 1/15
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Alphard ANH20W 2AZ-FE (05/2008-12/2014)
Toyota Alphard GGH20W 2GR-FE (05/2008-12/2014)
Toyota Vellfire ANH20W 2AZ-FE (05/2008-12/2014)
Toyota Vellfire GGH20W 2GR-FE (05/2008-12/2014)
Toyota Alphard ANH20W 2AZ-FE (05/2008-12/2014)
Toyota Alphard GGH20W 2GR-FE (05/2008-12/2014)
Toyota Vellfire ANH20W 2AZ-FE (05/2008-12/2014)
Toyota Vellfire GGH20W 2GR-FE (05/2008-12/2014)
