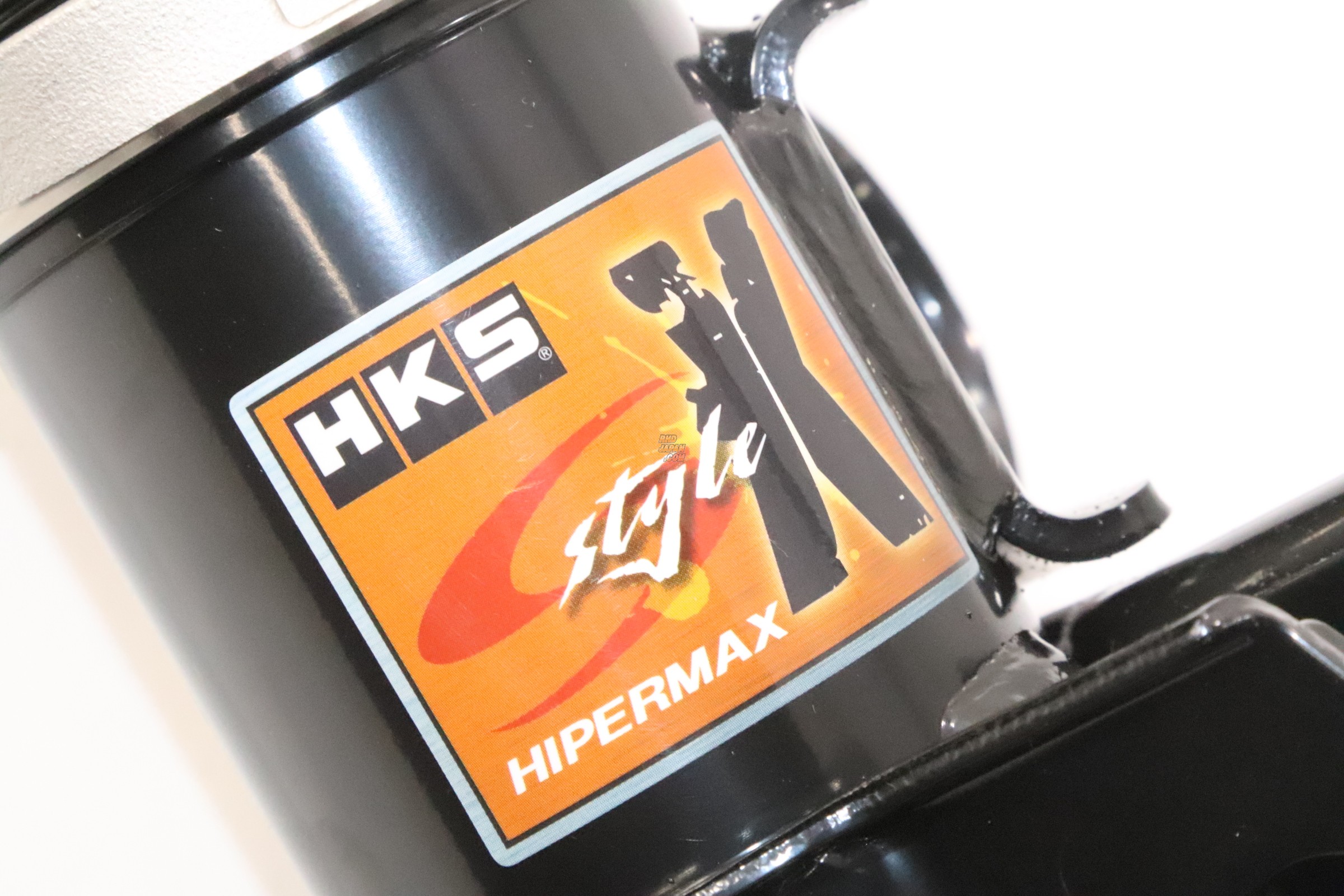

HKS Hipermax Coilover Suspension S-Style X - MCR30W ACR30W
166359
JPY
HKS
SKU: 117726
PN: 80120-AT207These are the premium version of the S-Style series suspension allowing for the most in ride height adjustability and high performance handling. Extreme low form can be achieved with increased adjustability range utilizing ultra short height coil springs with high sports spring rates. High performance handling characteristics are also attributed to high flow linear piston, adjustable camber mounts and wide range of damper settings.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Hipermax S-Style X Coilover Suspension - MCR30W ACR30W
Part Num: 80120-AT207
SPECIFICATIONS:
Series: S-Style X
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Upper Mount:
- Front: Pillow Ball
- Rear: OEM
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Maximum Adjustability (mm):
- Front: 684 ~ 566
- Rear: 635 ~ 585
Maximum Adjustability (Drivable) (mm):
- Front: 684 ~ 614
- Rear: 635 ~ 612
Spring Rate N/mm (kgf/mm):
- Front: 79 ( 8 )
- Rear: 75 ( 7.6 )
Free Height (mm):
- Front: 170
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 657 / 304
- Rear: 520 / 186
Default position of Dial:
- Front: 20
- Rear: 20
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 43 / 44
- Rear: 71 / 35
PRODUCT NOTES:
Height data is based on ACR30W
Product: Hipermax S-Style X Coilover Suspension - MCR30W ACR30W
Part Num: 80120-AT207
SPECIFICATIONS:
Series: S-Style X
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Upper Mount:
- Front: Pillow Ball
- Rear: OEM
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Maximum Adjustability (mm):
- Front: 684 ~ 566
- Rear: 635 ~ 585
Maximum Adjustability (Drivable) (mm):
- Front: 684 ~ 614
- Rear: 635 ~ 612
Spring Rate N/mm (kgf/mm):
- Front: 79 ( 8 )
- Rear: 75 ( 7.6 )
Free Height (mm):
- Front: 170
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 657 / 304
- Rear: 520 / 186
Default position of Dial:
- Front: 20
- Rear: 20
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 43 / 44
- Rear: 71 / 35
PRODUCT NOTES:
Height data is based on ACR30W
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Estima ACR30W 2AZ-FE (01/2000-07/2003)
Toyota Estima ACR30W 2AZ-FE (07/2003-01/2006)
Toyota Estima MCR30W 1MZ-FE (01/2000-07/2003)
Toyota Estima MCR30W 1MZ-FE (07/2003-01/2006)
Toyota Estima ACR30W 2AZ-FE (01/2000-07/2003)
Toyota Estima ACR30W 2AZ-FE (07/2003-01/2006)
Toyota Estima MCR30W 1MZ-FE (01/2000-07/2003)
Toyota Estima MCR30W 1MZ-FE (07/2003-01/2006)
