These are the premium version of the S-Style series suspension allowing for the most in ride height adjustability and high performance handling. Extreme low form can be achieved with increased adjustability range utilizing ultra short height coil springs with high sports spring rates. High performance handling characteristics are also attributed to high flow linear piston, adjustable camber mounts and wide range of damper settings.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: HKS

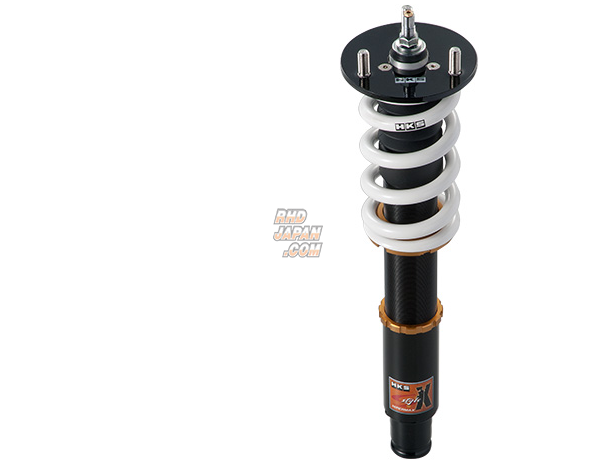

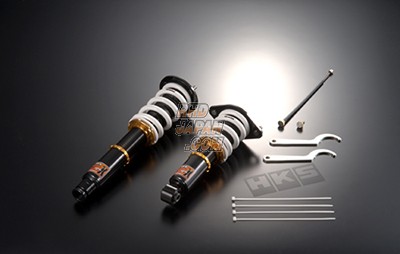

Product: Hipermax S-Style X Coilover Suspension - Prius NHW20
Part Num: 80120-AT215
SPECIFICATIONS:
Series: S-Style X
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Upper Mount:
- Front: Pillow Ball
- Rear: Rubber
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Maximum Adjustability (mm):
- Front: 648 ~ 576
- Rear: 622 ~ 571
Maximum Adjustability (Drivable) (mm):
- Front: 648 ~ 578
- Rear: 622 ~ 598
Spring Rate N/mm (kgf/mm):
- Front: 78 ( 8 )
- Rear: 78 ( 8 )
Free Height (mm):
- Front: 200
- Rear: 1500
Damper Force (Rebound/Damping):
- Front: 1373 / 324
- Rear: 559 / 137
Default position of Dial:
- Front: 20
- Rear: 20
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 43 / 44
- Rear: 31 / 41
Product: Hipermax S-Style X Coilover Suspension - Prius NHW20
Part Num: 80120-AT215
SPECIFICATIONS:
Series: S-Style X
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Upper Mount:
- Front: Pillow Ball
- Rear: Rubber
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Maximum Adjustability (mm):
- Front: 648 ~ 576
- Rear: 622 ~ 571
Maximum Adjustability (Drivable) (mm):
- Front: 648 ~ 578
- Rear: 622 ~ 598
Spring Rate N/mm (kgf/mm):
- Front: 78 ( 8 )
- Rear: 78 ( 8 )
Free Height (mm):
- Front: 200
- Rear: 1500
Damper Force (Rebound/Damping):
- Front: 1373 / 324
- Rear: 559 / 137
Default position of Dial:
- Front: 20
- Rear: 20
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 43 / 44
- Rear: 31 / 41
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Prius NHW20 1NZ-FXE (09/2003-11/2005)
Toyota Prius NHW20 1NZ-FXE (11/2005-05/2009)
Toyota Prius NHW20 1NZ-FXE (09/2003-11/2005)
Toyota Prius NHW20 1NZ-FXE (11/2005-05/2009)
