HKS Hipermax Coilover Suspension S-Style X - Stepwagon RG1 RG3
166359
JPY
HKS
SKU: 117745

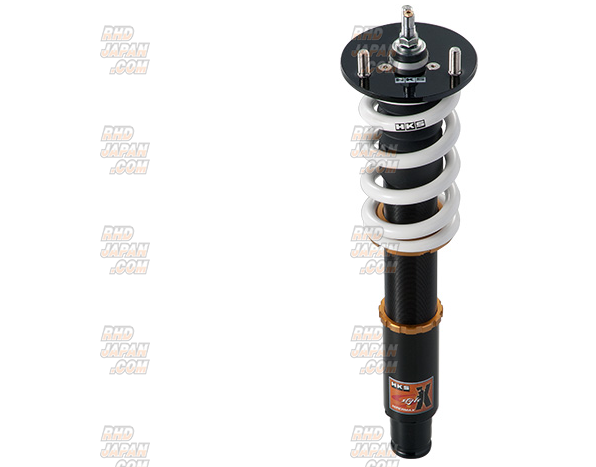

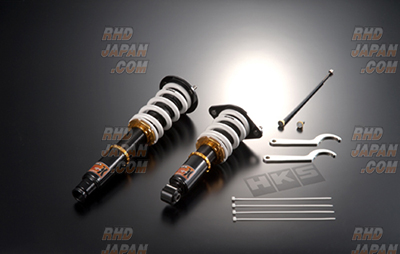

PN: 80120-AH208These are the premium version of the S-Style series suspension allowing for the most in ride height adjustability and high performance handling. Extreme low form can be achieved with increased adjustability range utilizing ultra short height coil springs with high sports spring rates. High performance handling characteristics are also attributed to high flow linear piston, adjustable camber mounts and wide range of damper settings.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Hipermax S-Style X Coilover Suspension - Stepwagon RG1 RG3
Part Num: 80120-AH208
SPECIFICATIONS:
Series: S-Style X
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Upper Mount:
- Front: Pillow Ball
- Rear: OEM
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Maximum Adjustability (mm):
- Front: 707 ~ 600
- Rear: 646 ~ 617
Maximum Adjustability (Drivable) (mm):
- Front: 707 ~ 612
- Rear: 646 ~ 617
Spring Rate N/mm (kgf/mm):
- Front: 78 ( 8 )
- Rear: 78 ( 8 )
Free Height (mm):
- Front: 170
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 696 / 216
- Rear: 588 / 284
Default position of Dial:
- Front: 20
- Rear: 20
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 37 / 50
- Rear: 56 / 43
PRODUCT NOTES:
- Height data is based on RG1
Product: Hipermax S-Style X Coilover Suspension - Stepwagon RG1 RG3
Part Num: 80120-AH208
SPECIFICATIONS:
Series: S-Style X
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Upper Mount:
- Front: Pillow Ball
- Rear: OEM
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Maximum Adjustability (mm):
- Front: 707 ~ 600
- Rear: 646 ~ 617
Maximum Adjustability (Drivable) (mm):
- Front: 707 ~ 612
- Rear: 646 ~ 617
Spring Rate N/mm (kgf/mm):
- Front: 78 ( 8 )
- Rear: 78 ( 8 )
Free Height (mm):
- Front: 170
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 696 / 216
- Rear: 588 / 284
Default position of Dial:
- Front: 20
- Rear: 20
Remaining Damper Stroke (Rebound/Damping) (mm):
- Front: 37 / 50
- Rear: 56 / 43
PRODUCT NOTES:
- Height data is based on RG1
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda Step WGN RG1 K20A (05/2005-04/2006)
Honda Step WGN RG1 K20A (05/2006-01/2007)
Honda Step WGN RG1 K20A (02/2007-09/2009)
Honda Step WGN RG3 K24A (05/2005-04/2006)
Honda Step WGN RG3 K24A (05/2006-01/2007)
Honda Step WGN RG3 K24A (02/2007-09/2009)
Honda Step WGN RG1 K20A (05/2005-04/2006)
Honda Step WGN RG1 K20A (05/2006-01/2007)
Honda Step WGN RG1 K20A (02/2007-09/2009)
Honda Step WGN RG3 K24A (05/2005-04/2006)
Honda Step WGN RG3 K24A (05/2006-01/2007)
Honda Step WGN RG3 K24A (02/2007-09/2009)
