HKS LA Clutch Kit Twin Plate - JZX90 JZX100 JZX110 JZA70 JZZ30

Brand: HKS
Product: LA Clutch Kit Twin Plate - JZX90 JZX100 JZX110 JZA70 JZZ30
Part Num: 26011-AT001

SPECIFICATIONS:

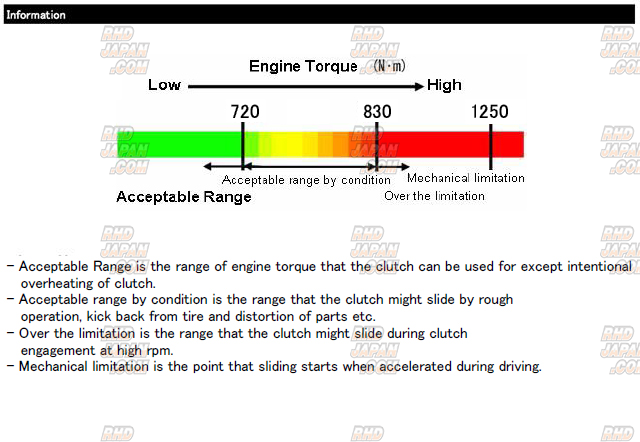

Target horsepower: 700ps
Application (Mission Type): OEM 5 Speeds
Clutch System: Pull
Clutch Type: Twin Discs
Damper: Spring
Flywheel Weight (Kg): 6.9

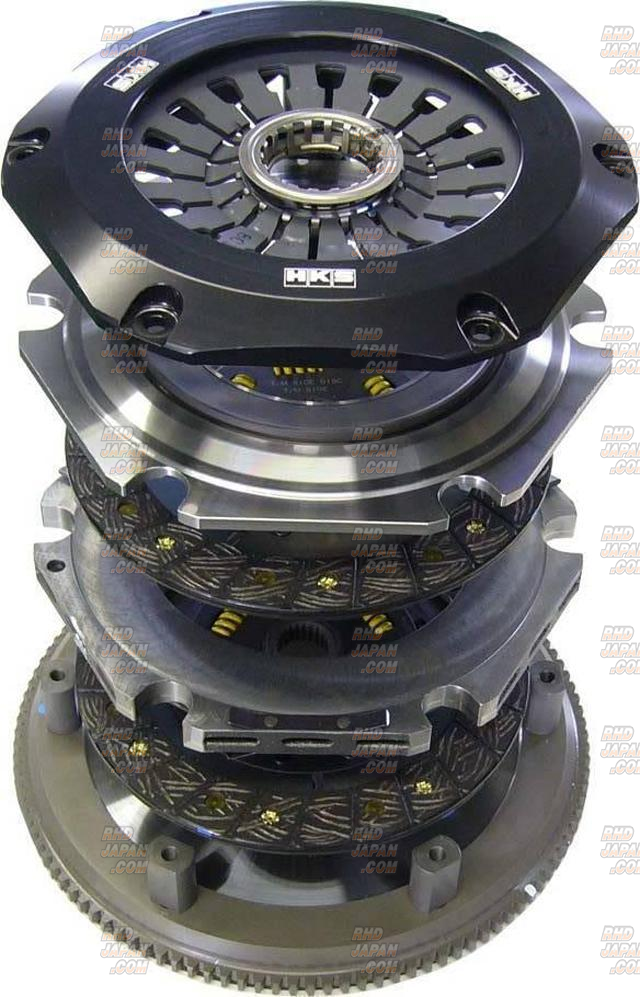

Kit Includes:
- Clutch Cover
- Clutch Discs
- Pressure Plate
- Center Plate
- Flywheel
- Bolts

PRODUCT NOTES:
The following additional OEM parts are required for installation (Sold Separately):
- 8x Flywheel Bolt (Part Num. 90910-02103)
- 1x Clutch Release Hub Snap Ring (Part Num. 96152-00450)
- 1x Clutch Release Bearing Shaft Snap Ring (Part Num. 90520-67001)
- 1x Input Shaft Bearing (Part Num.90363-12002)

COMPATIBILITY NOTES:
- Only for 1JZ-GTE Engine
- JZZ30: Only for Vehicles before 8/96

FEATURES:

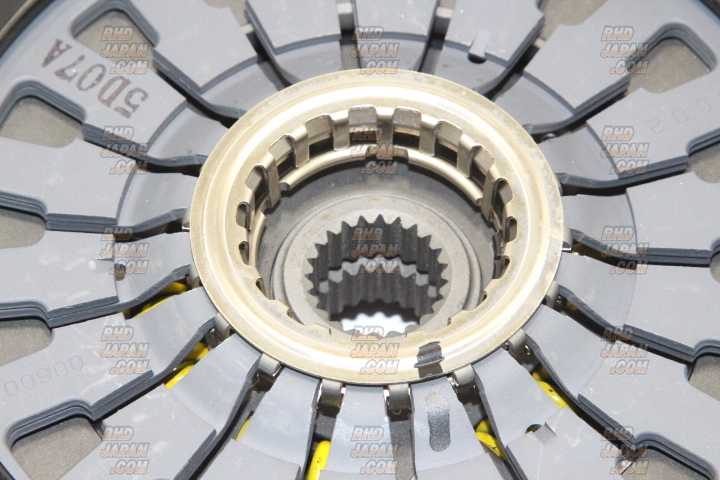

Lightweight cover and diaphragm spring with optimized characteristic:
- Large capacity clutch systems usually require heavy pedal pressure. With the diaphragm spring, which has optimized characteristic, it requires only proper pedal pressure. Although it has stiff pedal feeling, it is incredibly easy and stress less operation from street to circuit during. Cover is made of forged aluminum, which is stiff and low inertia.

Pivot Ring for advanced controllability:
Pivot Ring that is low stiffness spring on pressure plate increases clutch engagement zone. It eases clutch engagement operation and it is as easy as stock clutch.

8.5 inch MG Composite Disc with damper:
In order to increase capacity, new 8.5 inch disc was developed. Damper of the disc eliminates gear noise duringoperation and protects transmission from shock torque. Because of the stable friction coefficient, clutch operationis easy and prevents uncomfortable vibration during clutch engagement. Independent type enables lightweight and stiff structure with smooth shift feeling and precise operation of disengagement.

Lifting Plate for fixing wear balance of disc:
By repellent of lifting plate on both sides of center plate, position of center plate will be always centered during disengagement. It improves life of disc and reduces mechanical noise of multi plate.

Lightweight flywheel for quick response:
Weight of flywheel is properly reduced for each vehicle type for better response and smooth driving as too less weight cause driving difficulty. Round drive boss enables optimized inertia performance. Total weight of clutch kit is also lighter than stock.
