HKS Sports Turbine Kit GTII 7460 KAI - CZ4A - RHDJapan

HKS Sports Turbine Kit GTII 7460 KAI - CZ4A

HKS SKU: 81172 PN: 11004-AM004
Images used may be generic. Actual product may vary.
Discontinued

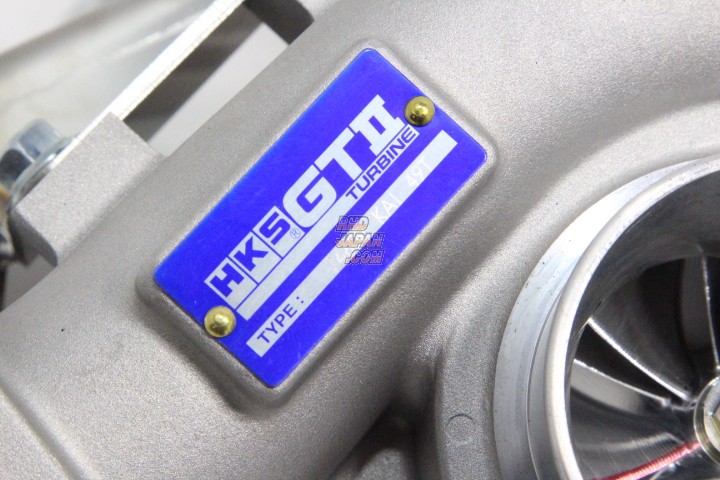

A stock replacement type Sports Turbine Kit for Lancer Evolution X. The turbo assembly is a 100% original HKS design and production ball bearing turbo. The target maximum horsepower is 430ps that is in between stock turbo and Full Turbine Kit. This turbo kit can be used with from stock engine to tuned engine. With large size compressor and exhaust side wheels, it has high flow capacity as well as quick response by ball bearing. It is good matching with vehicles with SST. Twin Scroll design with larger bypass port allows for improved control of exhaust pressure at high speed and reduced load on the engine. The heat durability is enhanced by 4 times of the conventional kit. The product performance is maintained and stabilized. The product durability and reliability are significantly improved by utilizing the heat resistant steel to the turbine wheel and housing. Get this and all your JDM at RHDJapan!!
Brand: HKS
Product: Sports Turbine Kit GTII 7460 KAI - CZ4A
Part Num: 11004-AM004

SPECIFICATIONS:
Turbine Size: GT-STK
Control Device: Actuator
Boost Pressure: 78.5kPa (0.8kgf/cm2)

Compressor Housing:
- Entrance Diameter (mm): for 4B11
- Exit Diameter (mm): for 4B11
- A/R: .82

Compressor Wheel:
- Trim: 49
- In Diameter (mm): 52
- Out Diameter (mm): 74.0

Exhaust Housing:
- Entrance flange: for 4B11
- Exit Flange: for 4B11
- A/R: 0.85

Turbine Wheel:
- Trim: 81
- Outer Diameter (mm): 60
- Outlet Diameter (mm): 54

PRODUCT NOTES:
- Recommended to change spark plugs
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.

Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
