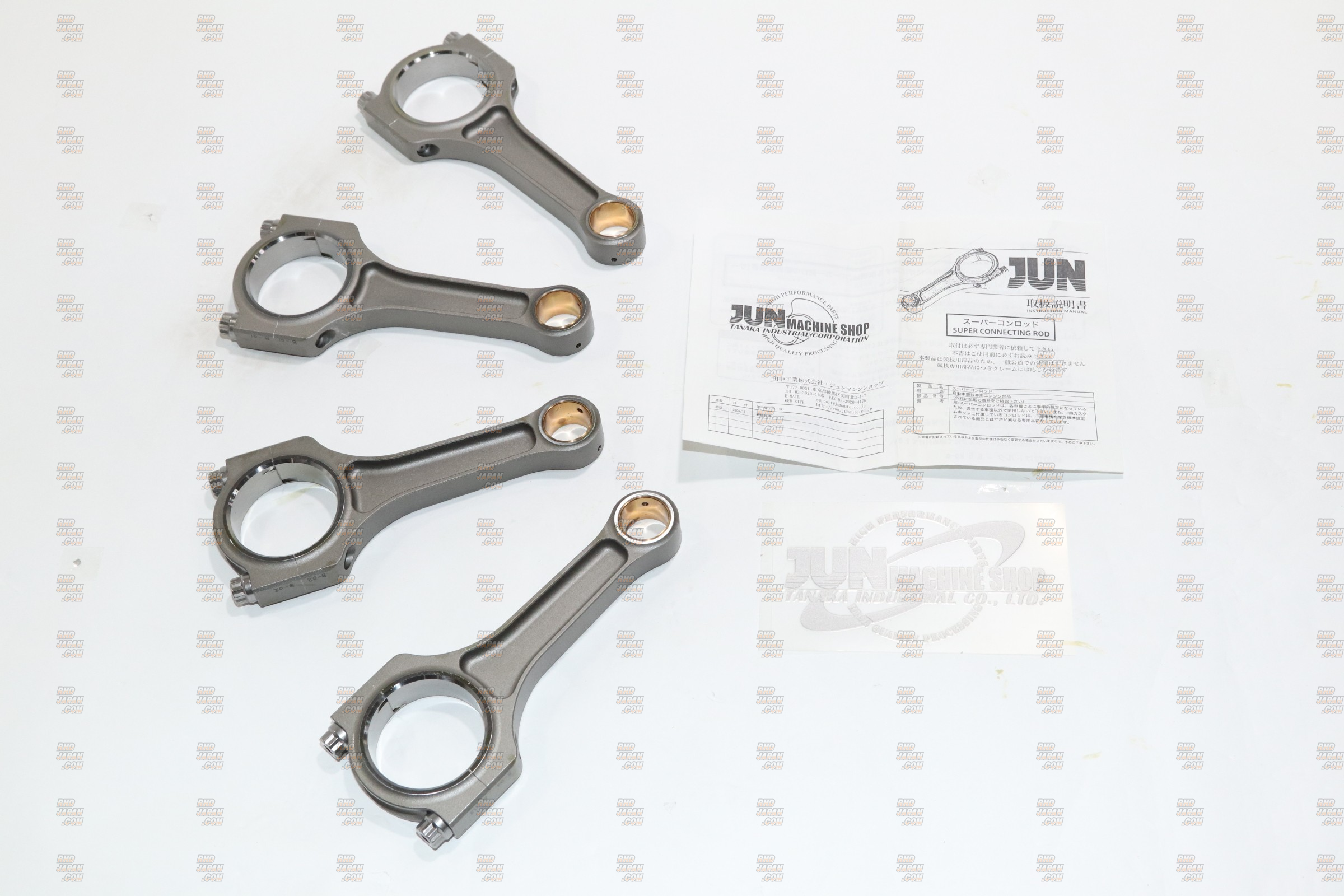

JUN I-Beam Connecting Rod Full Set - Caldina ST215W ST246W Celica GT-Four ST165 ST185 ST205 MR-2 SW20
127459
JPY
JUN AUTO
SKU: 285486

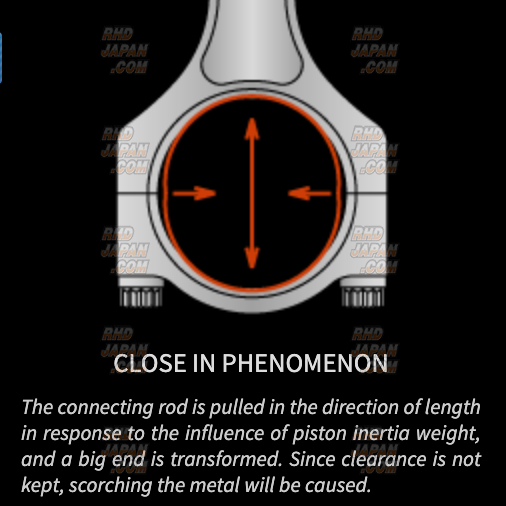

PN: 1002M-T002These items are designed to connect between the crankshaft and pistons. Manufactured to provide the ideal combination of strength, weight and balance for high rev refined tuned engines. Light weight construction allows for increased high response of engine ideal for any tuning level. I-Beam layout with billet construction provides superior durability revised big end and use of ARP cap bolts maintains proper clearance avoiding the close in phenomenon between rod and crankshaft bearing metal. In addition the items are all matched to the closest weight providing perfect balance and optimum performance. Get this and all your JDM at RHDJapan!!
Brand: JUN AUTO
Product: I-Beam Connecting Rod Full Set - Caldina ST215W ST246W Celica GT-Four ST165 ST185 ST205 MR-2 SW20
Part Num: 1002M-T002
SPECIFICATIONS:
Type: I-Beam (Full Flow)
Material: Billet Alloy Steel (SCM440)
Con-Rod Bolts: ARP
PRODUCT NOTES:
-Weight discrepancy is less that 2g for all conrods.
-Lot Number is included, this number can be used to order replacement rods at the same weight
-ARP Ultra-Torque Fastener Assy Lubricant recommended for installation
Product: I-Beam Connecting Rod Full Set - Caldina ST215W ST246W Celica GT-Four ST165 ST185 ST205 MR-2 SW20
Part Num: 1002M-T002
SPECIFICATIONS:
Type: I-Beam (Full Flow)
Material: Billet Alloy Steel (SCM440)
Con-Rod Bolts: ARP
PRODUCT NOTES:
-Weight discrepancy is less that 2g for all conrods.
-Lot Number is included, this number can be used to order replacement rods at the same weight
-ARP Ultra-Torque Fastener Assy Lubricant recommended for installation
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Caldina ST215W 3S-GTE (09/1997-01/2000)
Toyota Caldina ST215W 3S-GTE (01/2000-08/2002)
Toyota Caldina ST246W 3S-GTE (09/2002-12/2004)
Toyota Caldina ST246W 3S-GTE (01/2005-06/2007)
Toyota Celica GT-Four ST165 3S-GTE (01/1986-07/1987)
Toyota Celica GT-Four ST165 3S-GTE (08/1987-08/1989)
Toyota Celica GT-Four ST185 3S-GTE (09/1989-07/1991)
Toyota Celica GT-Four ST185H 3S-GTE (08/1990-07/1991)
Toyota Celica GT-Four ST185H 3S-GTE (08/1991-09/1993)
Toyota Celica GT-Four ST205 3S-GTE (02/1994-11/1997)
Toyota Celica GT-Four ST205 3S-GTE (12/1997-09/1999)
Toyota MR-2 SW20 Type I 3S-GTE (10/1989-11/1991)
Toyota MR-2 SW20 Type II 3S-GTE (11/1991-10/1993)
Toyota MR-2 SW20 Type III 3S-GTE (10/1993-06/1996)
Toyota MR-2 SW20 Type IV 3S-GTE (06/1996-12/1997)
Toyota MR-2 SW20 Type V 3S-GTE (12/1997-10/1999)
Toyota Caldina ST215W 3S-GTE (09/1997-01/2000)
Toyota Caldina ST215W 3S-GTE (01/2000-08/2002)
Toyota Caldina ST246W 3S-GTE (09/2002-12/2004)
Toyota Caldina ST246W 3S-GTE (01/2005-06/2007)
Toyota Celica GT-Four ST165 3S-GTE (01/1986-07/1987)
Toyota Celica GT-Four ST165 3S-GTE (08/1987-08/1989)
Toyota Celica GT-Four ST185 3S-GTE (09/1989-07/1991)
Toyota Celica GT-Four ST185H 3S-GTE (08/1990-07/1991)
Toyota Celica GT-Four ST185H 3S-GTE (08/1991-09/1993)
Toyota Celica GT-Four ST205 3S-GTE (02/1994-11/1997)
Toyota Celica GT-Four ST205 3S-GTE (12/1997-09/1999)
Toyota MR-2 SW20 Type I 3S-GTE (10/1989-11/1991)
Toyota MR-2 SW20 Type II 3S-GTE (11/1991-10/1993)
Toyota MR-2 SW20 Type III 3S-GTE (10/1993-06/1996)
Toyota MR-2 SW20 Type IV 3S-GTE (06/1996-12/1997)
Toyota MR-2 SW20 Type V 3S-GTE (12/1997-10/1999)
