Kinokuni Oil Bypass Adapter Block Kit Engine Side - UNF3/4-16 Center Bolt AN12 Fittings - RHDJapan

Kinokuni Oil Bypass Adapter Block Kit Engine Side - UNF3/4-16 Center Bolt AN12 Fittings

9219 JPY
KINOKUNI SKU: 167037 PN: K300-34-12
Images used may be generic. Actual product may vary.


List Price: ¥9,680

Sale Price: ¥9,219

You Save: ¥461

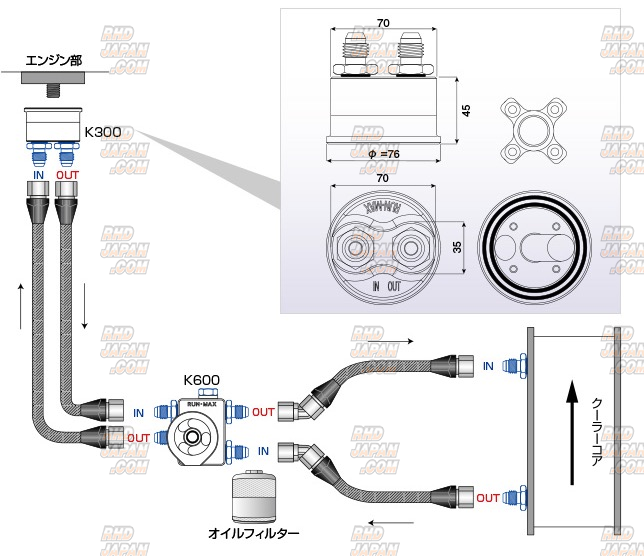

This item is designed to mount direct to the engine block replacing the standard oil filter mount location. Adapting high flow oil cooler lines direct to the engine for secure oil lines in a high performance cooling system. Using this item will allow the relocation of the oil filter which is often the most ideal setup for those upgrading the engine oil cooling system. Available in a variety of different fittings to match high grade fittings throughout the system. Get this and all your JDM at RHDJapan!!
Brand: Kinokuni
Product: Oil Bypass Adapter Block Kit Engine Side - UNF3/4-16 Center Bolt AN12 Fittings
Part Number: K300-34-12

SPECIFICATIONS:
Center Bolt Size: UNF3/4"-16
Fitting Size (AN): 12
O-Ring Size: Double
Included:
-K300 Block X 1pc
-O-Ring Seal X1pc
-AN12 Male Fittings X 2pcs
-Center Collar X 1pc

COMPATIBILITY NOTES:
- When used with K300 series thermostat block oil filter relocation block can be run to compatible sized oil cooler lines for Oil Killer Core.
Includes Small (60.3mm) and Standard Sized (69.9mm) O-Rings. This covers most all oil filter O-Ring Sizes.
Toyota based oil filters using UNF3/4"-16 center bolt

Universal
