Kinokuni Oil Bypass Adapter Block Kit Engine Side - UNF3/4-16 Center Hole AN10 Fittings
9219
JPY
KINOKUNI
SKU: 167034

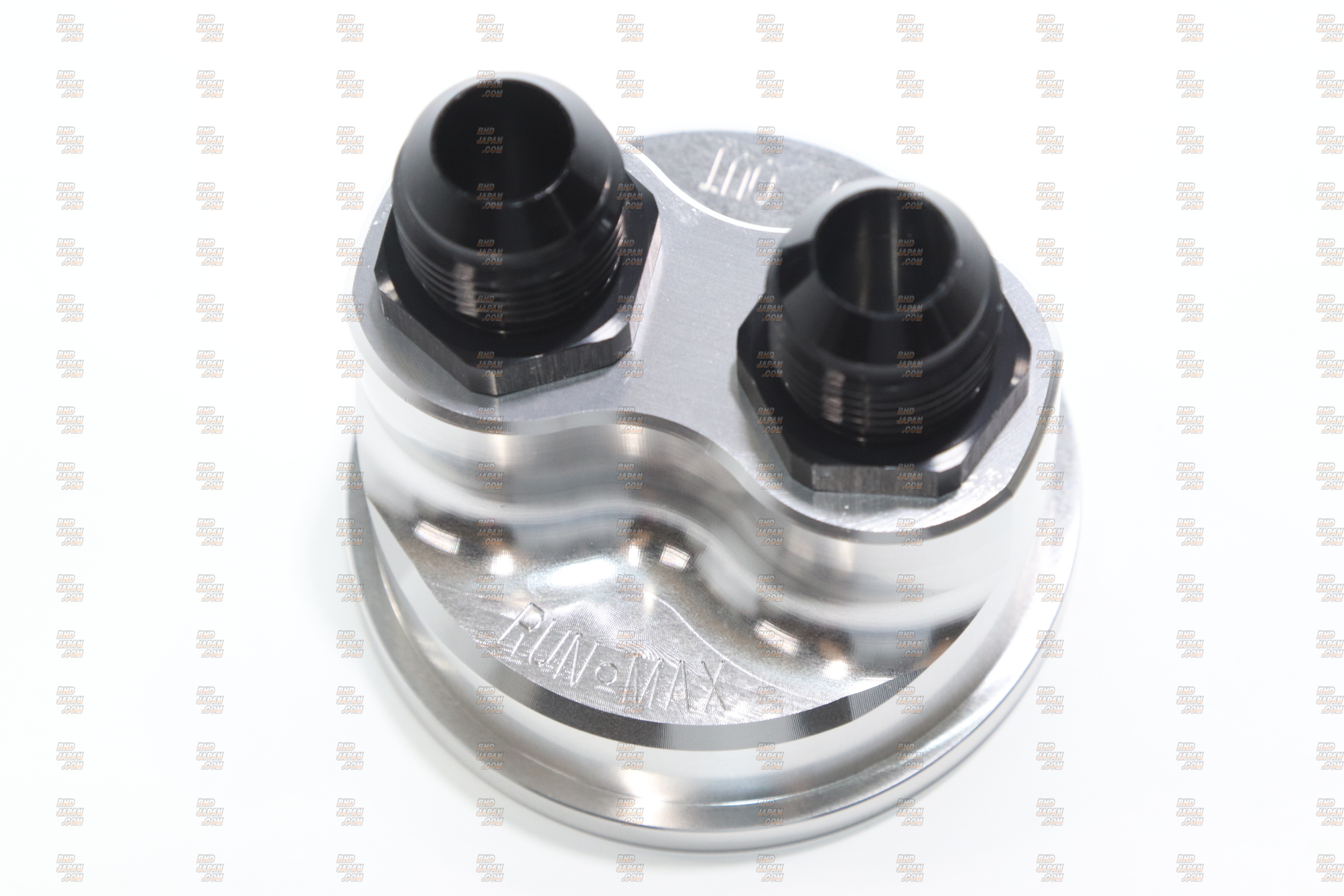

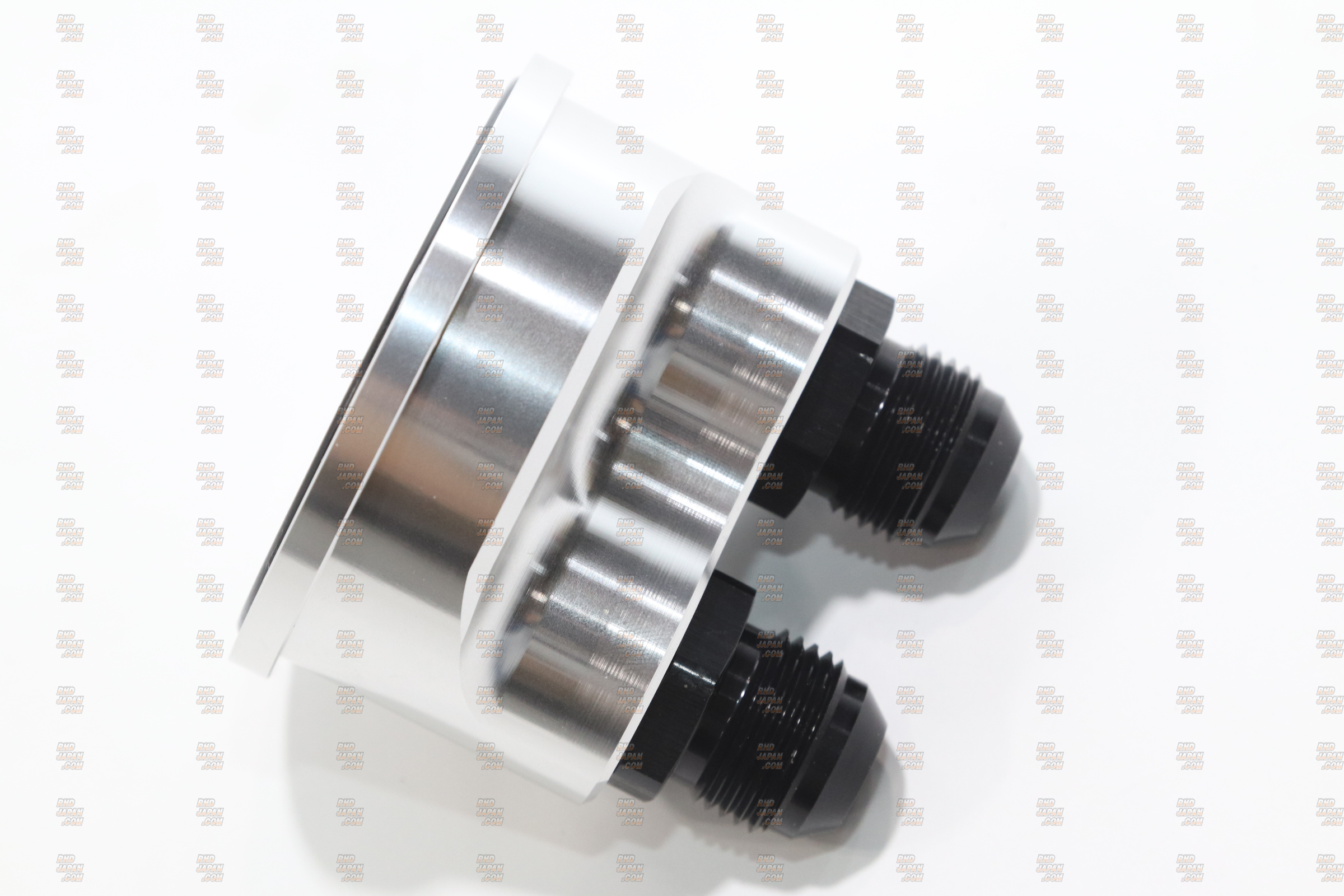

PN: K300-34This item is designed to mount direct to the engine block replacing the standard oil filter mount location. Adapting high flow oil cooler lines direct to the engine for secure oil lines in a high performance cooling system. Using this item will allow the relocation of the oil filter which is often the most ideal setup for those upgrading the engine oil cooling system. Available in a variety of different fittings to match high grade fittings throughout the system. Get this and all your JDM at RHDJapan!!
Brand: Kinokuni
Product: Oil Bypass Adapter Block Kit Engine Side - UNF3/4-16 Center Hole AN10 Fittings
Part Number: K300-34
SPECIFICATIONS:
Center Bolt Size: UNF3/4"-16
Fitting Size (AN): 10
O-Ring Size: Double

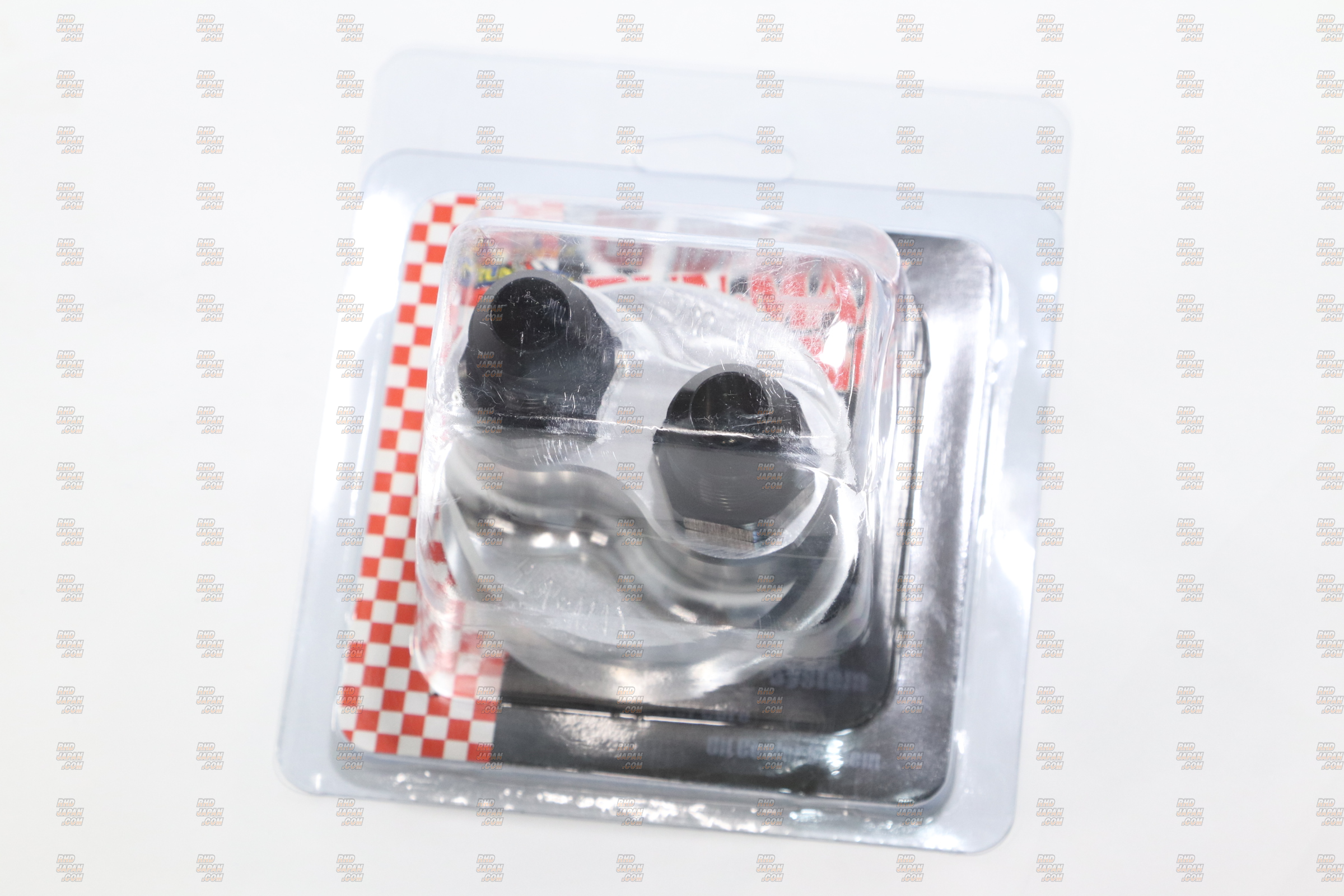

Included:
-K300 Block X 1pc
-O-Ring Seal X1pc
-AN10 Male Fittings X 2pcs
-Thermostat X1pcs
-Center Collar X 1pc
COMPATIBILITY NOTES:

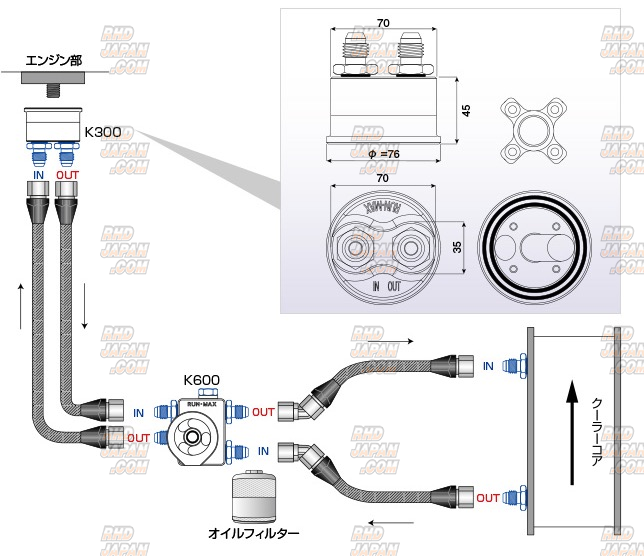

- When used with K600 series thermostat block oil filter relocation block can be run to compatible sized oil cooler lines for Oil Killer Core.
Includes Small (60.3mm) and Standard Sized (69.9mm) O-Rings. This covers most all oil filter O-Ring Sizes.
Toyota based oil filters using UNF3/4"-16 center bolt
Product: Oil Bypass Adapter Block Kit Engine Side - UNF3/4-16 Center Hole AN10 Fittings
Part Number: K300-34
SPECIFICATIONS:
Center Bolt Size: UNF3/4"-16
Fitting Size (AN): 10
O-Ring Size: Double
Included:
-K300 Block X 1pc
-O-Ring Seal X1pc
-AN10 Male Fittings X 2pcs
-Thermostat X1pcs
-Center Collar X 1pc
COMPATIBILITY NOTES:
- When used with K600 series thermostat block oil filter relocation block can be run to compatible sized oil cooler lines for Oil Killer Core.
Includes Small (60.3mm) and Standard Sized (69.9mm) O-Rings. This covers most all oil filter O-Ring Sizes.
Toyota based oil filters using UNF3/4"-16 center bolt
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
