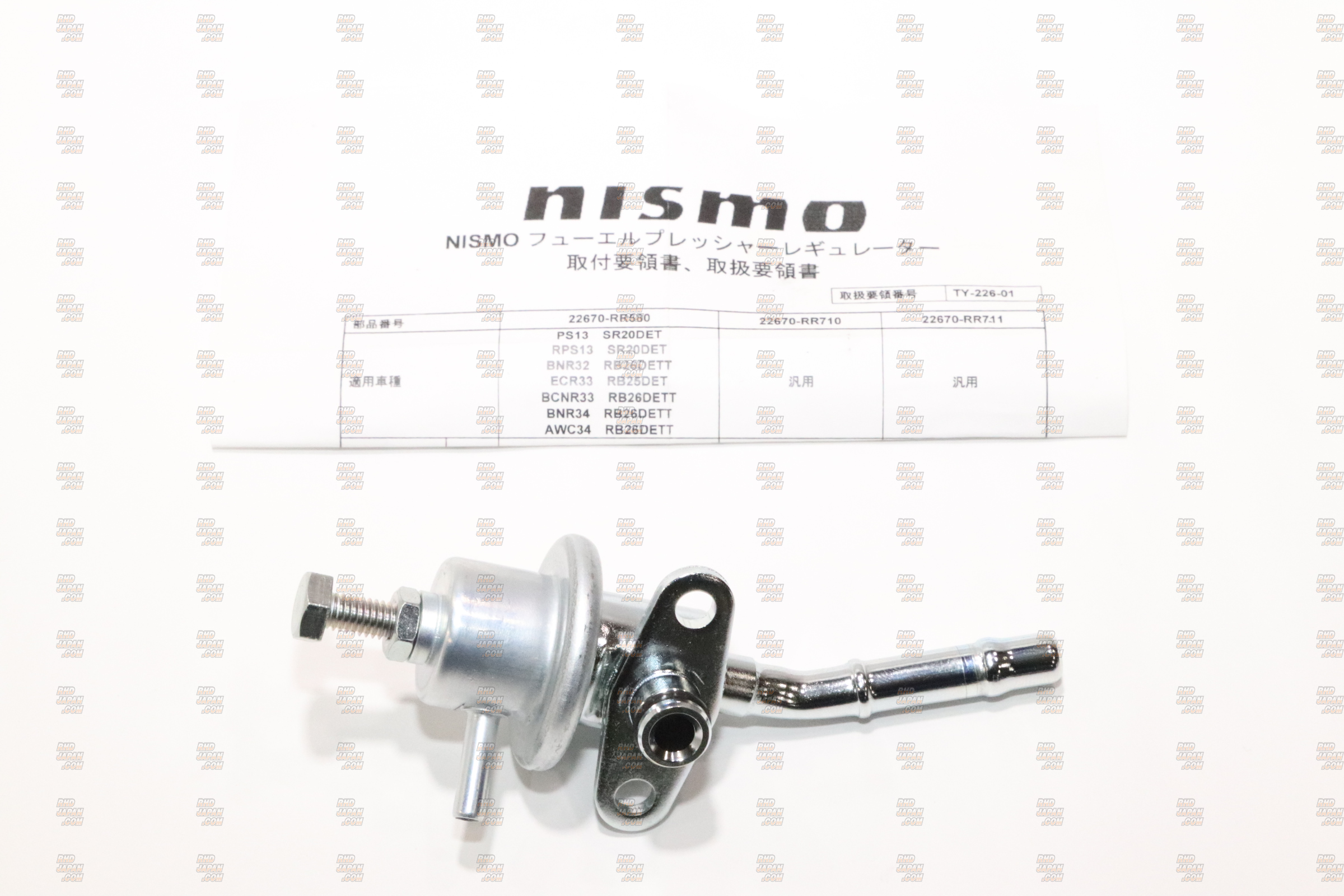

Nismo Adjustable Fuel Pressure Regulator

Brand: Nismo
Product: Adjustable Fuel Pressure Regulator
Part Num: 22670-RR580

SPECIFICATIONS:
- Fuel pressure adjustment range: 196-588kPa (flow volume 40L/h, 2 to 6kgf/cm2)
- Diaphragm diameter: 36.5
- Operating temperatures: -30 to 120 C
- Pressure slope: 157x10kPa/L/h
- Anti-vibration resistance: 250m/sec

Fuel line IN connection:
- Direct connection with fuel line
- O-ring seal

Fuel line OUT connection:
- Rubber hose connection

Connector part no.:
- Not required

Attachment method:
- Direct connection with fuel line
- O-ring seal

PRODUCT NOTES:
- Resetting to match the engine control unit will be required.

FEATURES:
Based on originally equipped light & small regulator , fuel pressure adjustment function is added. Adjustment range and relief ability is equal to that of standard regular sized type. By controlling fuel pressure, the most suitable setting can be made for the injector to deliver the best jetting performance.
