Nismo Competition Parts R3 Turbo Assembly - BNR32 BCNR33 BNR34 WGNC34
197509
JPY
NISMO
SKU: 306730

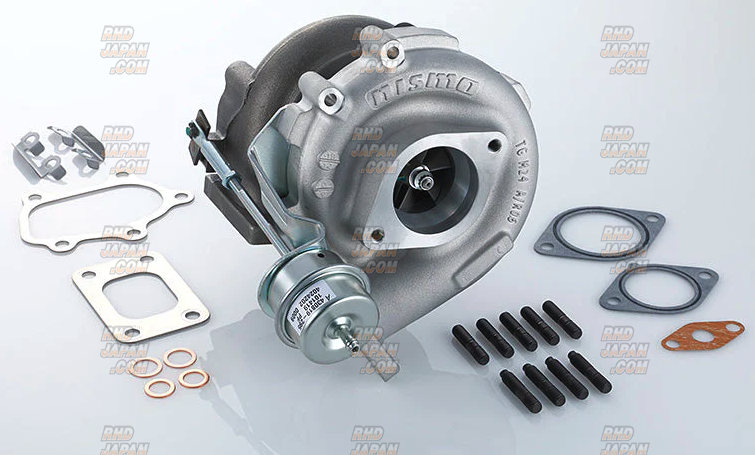

PN: 14411-RSR47This item is the individual turbocharger assembly from the discontinued R3 Twin Turbo setup.

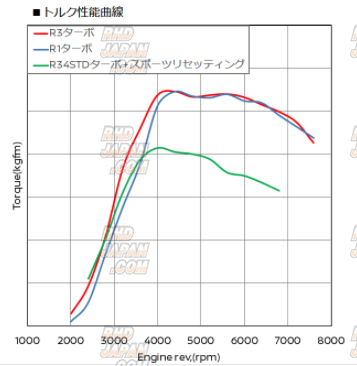

Along with refinement to the compressor side A/R and wheel turbo lag at low RPM's has been significantly improved in comparison to the R1 spec in addition to the R34 Standard Sports Setting Turbochargers. Maximum power is reached quicker and with slight improvements in the power band from 4000RPM. In addition to the great performance enhancements the turbochargers are finally tagged with a cast NISMO logo on the housings.
An ideal setup for well balanced tuning, easy to drive on the street and powerful on the circuit. Get this and all your JDM at RHDJapan!!
Along with refinement to the compressor side A/R and wheel turbo lag at low RPM's has been significantly improved in comparison to the R1 spec in addition to the R34 Standard Sports Setting Turbochargers. Maximum power is reached quicker and with slight improvements in the power band from 4000RPM. In addition to the great performance enhancements the turbochargers are finally tagged with a cast NISMO logo on the housings.
An ideal setup for well balanced tuning, easy to drive on the street and powerful on the circuit. Get this and all your JDM at RHDJapan!!
Brand: Nismo
Product: Competition Parts R3 Turbo Assembly - BNR32 BCNR33 BNR34 WGNC34
Part Num: 14411-RSR47
SPECIFICATIONS:
Series: R3 (Max Power: 450ps/7600rpm、50kgfm/4800rpm)
Compressor:
- Housing: T04B
- A/R: 0.6
- Wheel: C106 (trim 55)
Bearing: Ball bearing
Turbine:
- Housing: T25 (A/R 0.64)
- Wheel : GT25 (trim 62)

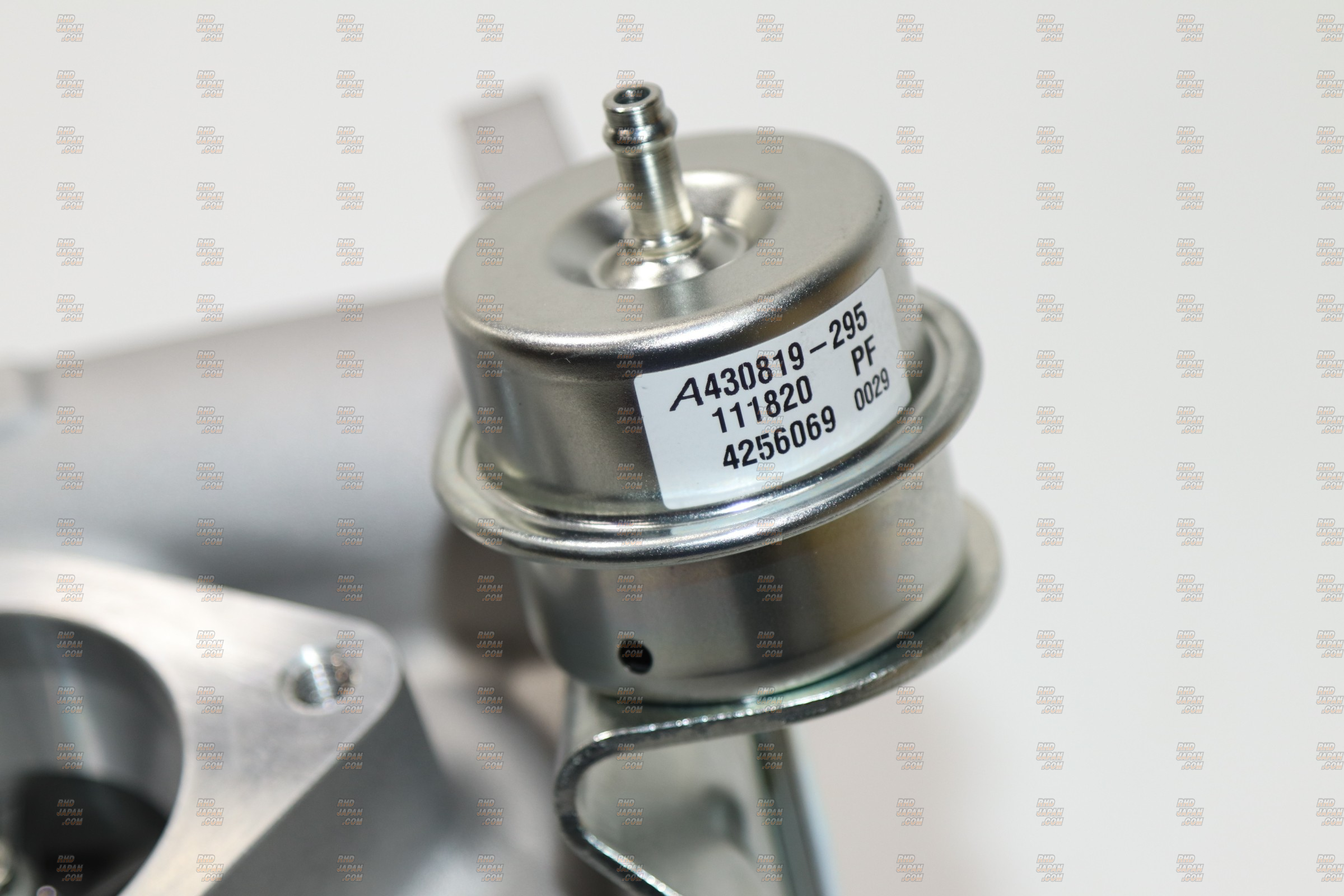

Actuator: Reinforced spring, adjustable rod (Default Settings: 655mmHg/0.38mm、809mmHg/4.00mm)
Designed output: 250PS(2)
PRODUCT NOTES:
Following items recommended for installation:
- NIssan OEM: Gasket Kit 14401-24U26 X 1
- NIssan OEM: Stud Bolt 14064-05U01 X 8
- NIssan OEM: Stud Bolt 14414-17F00 X 10
- NIssan OEM: Water 6 Oil Drain Pipe: 14499-AA400 X 2
- NIssan OEM: Front Oil Return Pipe: 15197-06U00 X 1
Product: Competition Parts R3 Turbo Assembly - BNR32 BCNR33 BNR34 WGNC34
Part Num: 14411-RSR47
SPECIFICATIONS:
Series: R3 (Max Power: 450ps/7600rpm、50kgfm/4800rpm)
Compressor:
- Housing: T04B
- A/R: 0.6
- Wheel: C106 (trim 55)
Bearing: Ball bearing
Turbine:
- Housing: T25 (A/R 0.64)
- Wheel : GT25 (trim 62)
Actuator: Reinforced spring, adjustable rod (Default Settings: 655mmHg/0.38mm、809mmHg/4.00mm)
Designed output: 250PS(2)
PRODUCT NOTES:
Following items recommended for installation:
- NIssan OEM: Gasket Kit 14401-24U26 X 1
- NIssan OEM: Stud Bolt 14064-05U01 X 8
- NIssan OEM: Stud Bolt 14414-17F00 X 10
- NIssan OEM: Water 6 Oil Drain Pipe: 14499-AA400 X 2
- NIssan OEM: Front Oil Return Pipe: 15197-06U00 X 1
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Nissan Skyline GT-R BCNR33 RB26DETT (01/1995-01/1996)
Nissan Skyline GT-R BCNR33 RB26DETT (01/1996-02/1997)
Nissan Skyline GT-R BCNR33 RB26DETT (02/1997-05/1998)
Nissan Skyline GT-R BNR32 RB26DETT (08/1989-08/1991)
Nissan Skyline GT-R BNR32 RB26DETT (08/1991-02/1993)
Nissan Skyline GT-R BNR32 RB26DETT (02/1993-12/1994)
Nissan Skyline GT-R BNR34 RB26DETT (01/1999-08/2000)
Nissan Skyline GT-R BNR34 RB26DETT (08/2000-10/2000)
Nissan Skyline GT-R BNR34 RB26DETT (10/2000-08/2002)
Nissan Stagea WGNC34 RB26DETT (11/1997-07/1998)
Nissan Stagea WGNC34 RB26DETT (08/1998-09/2001)
Nissan Skyline GT-R BCNR33 RB26DETT (01/1995-01/1996)
Nissan Skyline GT-R BCNR33 RB26DETT (01/1996-02/1997)
Nissan Skyline GT-R BCNR33 RB26DETT (02/1997-05/1998)
Nissan Skyline GT-R BNR32 RB26DETT (08/1989-08/1991)
Nissan Skyline GT-R BNR32 RB26DETT (08/1991-02/1993)
Nissan Skyline GT-R BNR32 RB26DETT (02/1993-12/1994)
Nissan Skyline GT-R BNR34 RB26DETT (01/1999-08/2000)
Nissan Skyline GT-R BNR34 RB26DETT (08/2000-10/2000)
Nissan Skyline GT-R BNR34 RB26DETT (10/2000-08/2002)
Nissan Stagea WGNC34 RB26DETT (11/1997-07/1998)
Nissan Stagea WGNC34 RB26DETT (08/1998-09/2001)
