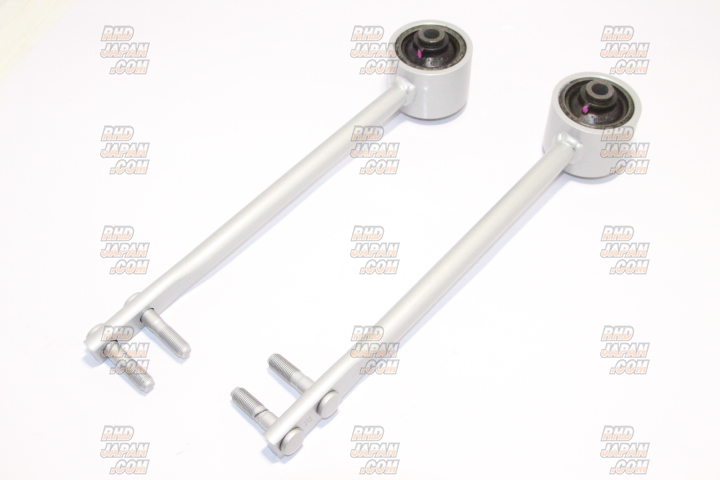

The Nismo Tension Rod Set PRO is the professional circuit Version of the Tension Rod Set for BCNR33 and BNR34. Steering response has been improved by shortening the effective length, resulting in higher caster. Optimized ground camber during cornering is the result of increasing the negative camber during steering. By optimizing the rod shape and bush installation angle, it reduces the decrease in rigidity that can result from twisting of the bush in lowered vehicles.
Nismo is the best for anything Nissan and is the top choice of all major Nissan tuners out there!
Upon purchasing please state the car from the compatibility list that you would like to have the Nismo Tension Rod Set PRO for.
Get this and all your JDM at RHDJapan!!
Nismo is the best for anything Nissan and is the top choice of all major Nissan tuners out there!
Upon purchasing please state the car from the compatibility list that you would like to have the Nismo Tension Rod Set PRO for.
Get this and all your JDM at RHDJapan!!
Brand: Nismo
Product: Tension Rod Set PRO
Part Num: 54460-RRR45
Specifications:
- Effective length shortened by 8mm (compared to genuine part)
- Caster angle: Before installation 430 after installation 630
Product Notes:
- When in the use of the Tension Rod Set Pro, the tire will contact with the fender protector or recirculation valve when the wheel is turned fully, some removal or machining will be required.
- Installation of the Tension Rod Set Pro will result in heavier steering.
- Because of the effective length change resulting from the installation of the Tension Rod Set Pro and the Rear Upper Link Set Pro, clearance of tires, fenders and other areas will change.
- When installing the Circuit Link, always change all left and right link at the same time. Replacing only one area will have a negative effect on suspension balance.
- When making repairs, always exchange all the parts on the same side, as well as the opposite side tension rod and upper link. In the case of an accident, damage to one area is likely to place severe stress on all the link; replacing only one part will negatively effect the balance of the suspension.
Installation Notes:
BCNR33:
- With the Tension Rod Set Pro, the standard brake air guide cannot be installed. When installing, clips (Genuine Nissan part 41184-24U00, four units) are required. Please purchase separately. The Nismo brake cooling air guide (41180-RSR45 discontinued product) also cannot be installed, as it will interfere with the stabilizer.
BNR34:
- Always use the Circuit Link Set and the Tension Rod Set Pro together. For installation, nuts connecting the transverse link and the Tension Rod Set Pro are required (Genuine Nissan part 01223-00281 four unit). Please purchase separately.
- On Nismo Tension Rod Set, standard brake air guide can not be installed, when installing, brake air guide (Nissan Genuine Parts 41182-24U01, 41183-24U01 one for each) are required. Also, Nismo brake cooling airguide (41180-RSR45 discontinued product) can not be installed because it will contact to a stabilizer.
Product: Tension Rod Set PRO
Part Num: 54460-RRR45
Specifications:
- Effective length shortened by 8mm (compared to genuine part)
- Caster angle: Before installation 430 after installation 630
Product Notes:
- When in the use of the Tension Rod Set Pro, the tire will contact with the fender protector or recirculation valve when the wheel is turned fully, some removal or machining will be required.
- Installation of the Tension Rod Set Pro will result in heavier steering.
- Because of the effective length change resulting from the installation of the Tension Rod Set Pro and the Rear Upper Link Set Pro, clearance of tires, fenders and other areas will change.
- When installing the Circuit Link, always change all left and right link at the same time. Replacing only one area will have a negative effect on suspension balance.
- When making repairs, always exchange all the parts on the same side, as well as the opposite side tension rod and upper link. In the case of an accident, damage to one area is likely to place severe stress on all the link; replacing only one part will negatively effect the balance of the suspension.
Installation Notes:
BCNR33:
- With the Tension Rod Set Pro, the standard brake air guide cannot be installed. When installing, clips (Genuine Nissan part 41184-24U00, four units) are required. Please purchase separately. The Nismo brake cooling air guide (41180-RSR45 discontinued product) also cannot be installed, as it will interfere with the stabilizer.
BNR34:
- Always use the Circuit Link Set and the Tension Rod Set Pro together. For installation, nuts connecting the transverse link and the Tension Rod Set Pro are required (Genuine Nissan part 01223-00281 four unit). Please purchase separately.
- On Nismo Tension Rod Set, standard brake air guide can not be installed, when installing, brake air guide (Nissan Genuine Parts 41182-24U01, 41183-24U01 one for each) are required. Also, Nismo brake cooling airguide (41180-RSR45 discontinued product) can not be installed because it will contact to a stabilizer.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Nissan Skyline GT-R BCNR33 RB26DETT (01/1995-01/1996)
Nissan Skyline GT-R BCNR33 RB26DETT (01/1996-02/1997)
Nissan Skyline GT-R BCNR33 RB26DETT (02/1997-05/1998)
Nissan Skyline GT-R BNR34 RB26DETT (01/1999-08/2000)
Nissan Skyline GT-R BNR34 RB26DETT (08/2000-10/2000)
Nissan Skyline GT-R BNR34 RB26DETT (10/2000-08/2002)
Nissan Skyline GT-R BCNR33 RB26DETT (01/1995-01/1996)
Nissan Skyline GT-R BCNR33 RB26DETT (01/1996-02/1997)
Nissan Skyline GT-R BCNR33 RB26DETT (02/1997-05/1998)
Nissan Skyline GT-R BNR34 RB26DETT (01/1999-08/2000)
Nissan Skyline GT-R BNR34 RB26DETT (08/2000-10/2000)
Nissan Skyline GT-R BNR34 RB26DETT (10/2000-08/2002)
