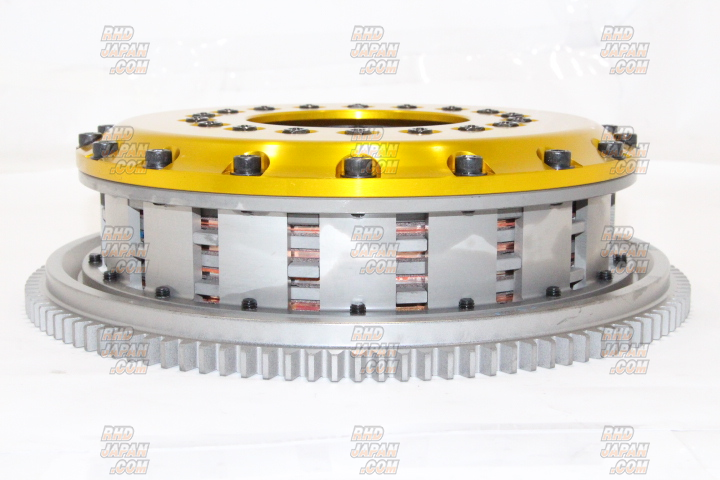

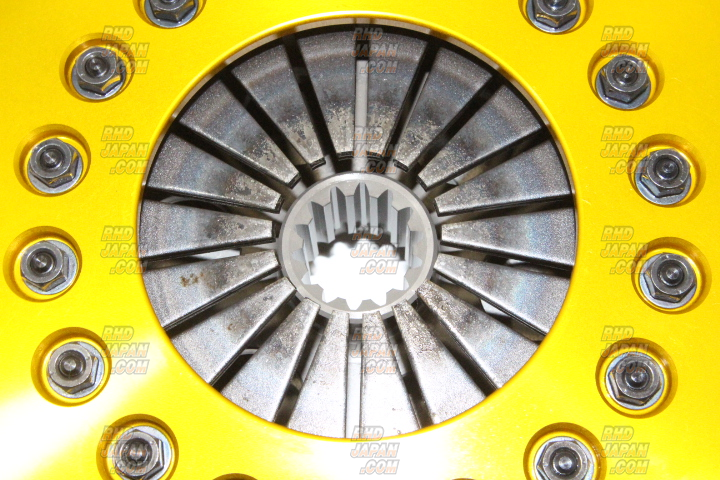

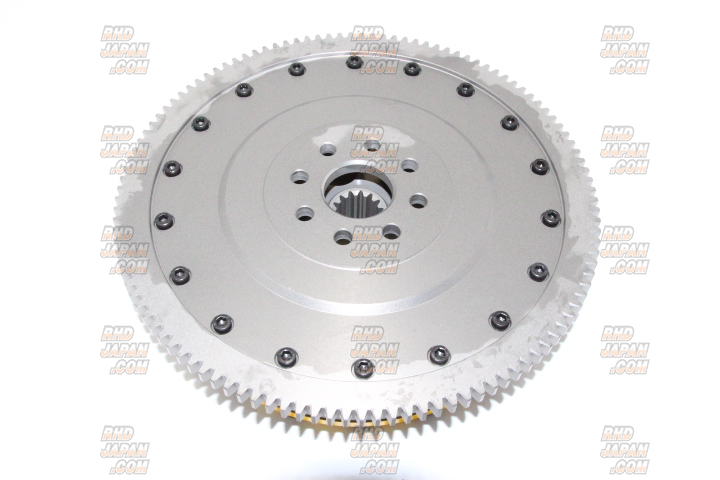

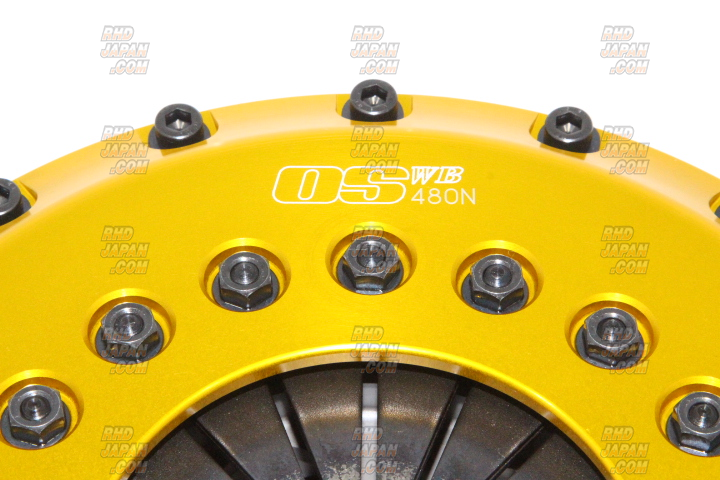

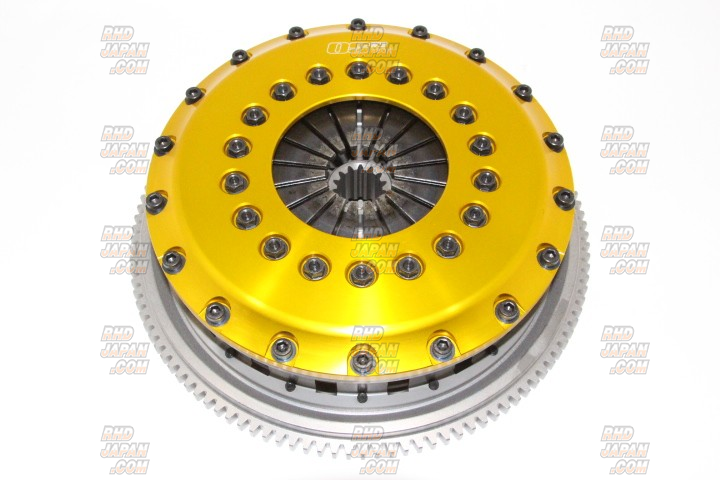

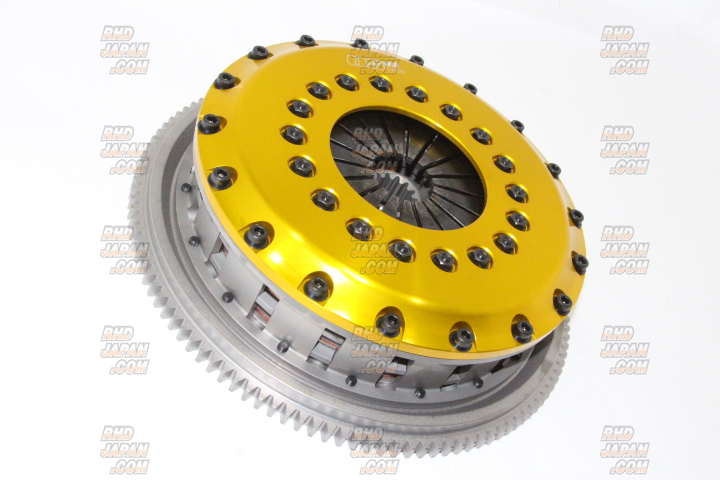

OS Giken R4C Quadruple Plate Clutch Kit - JZA80 6MT
192649
JPY
OS GIKEN
SKU: 23058
PN: R4C-JZA80-6MTThe R Clutch line-up is our highest capacity clutch and was specifically designed for vehicles with a substantial increase in engine power. The unique floating center hub design is built to withstand transmission shock and abuse from high-powered racecars, and matched with our unique billet aluminum clutch cover, variants can easily handle over 1000 hp. Get this and all your JDM from RHDJapan.
Brand: OS Giken
Product: R4C Quadruple Plate Clutch Kit - JZA80 6MT
Part Num.: R4C-JZA80-6MT
SPECIFICATIONS:
System: Push
Damper: None
Type: Aluminum Cover
Number of Discs: Quadruple
Floating Center Hub: With Damper
Disc Outer Diameter: 215mm
Torque response Nm (kgf/m): 10,700 (1,100)
PRODUCT NOTES:
- OS Giken Flywheel bolts needed for installation.
- Movement Kit Not included, needed for installation.
COMPATIBILITY NOTES:
- Only compatible with 6MT engine.
Similar Foreign Market Clutch P/N:
- TY031-DH5
Product: R4C Quadruple Plate Clutch Kit - JZA80 6MT
Part Num.: R4C-JZA80-6MT
SPECIFICATIONS:
System: Push
Damper: None
Type: Aluminum Cover
Number of Discs: Quadruple
Floating Center Hub: With Damper
Disc Outer Diameter: 215mm
Torque response Nm (kgf/m): 10,700 (1,100)
PRODUCT NOTES:
- OS Giken Flywheel bolts needed for installation.
- Movement Kit Not included, needed for installation.
COMPATIBILITY NOTES:
- Only compatible with 6MT engine.
Similar Foreign Market Clutch P/N:
- TY031-DH5
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Supra JZA80 2JZ-GTE (05/1993-07/1994)
Toyota Supra JZA80 2JZ-GTE (08/1994-03/1996)
Toyota Supra JZA80 2JZ-GTE (04/1996-07/1997)
Toyota Supra JZA80 2JZ-GTE (08/1997-08/2002)
Toyota Supra JZA80 2JZ-GTE (05/1993-07/1994)
Toyota Supra JZA80 2JZ-GTE (08/1994-03/1996)
Toyota Supra JZA80 2JZ-GTE (04/1996-07/1997)
Toyota Supra JZA80 2JZ-GTE (08/1997-08/2002)
