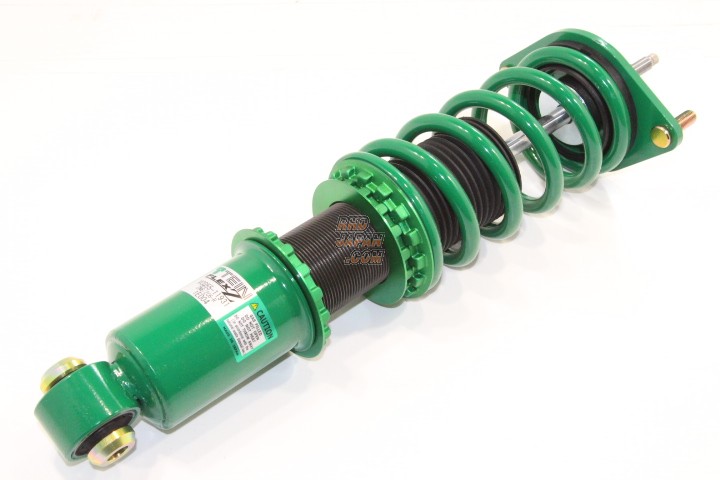

Made in Japan twin tube system with full length ride height and damping force adjustment. The Flex Z is compatible with EDFC and upper mounts which are included in most kits. The shocks are sealed to allow for easy replacement without the need for a full overhaul. Serial and Lot number are required for replacement O/H parts, kit must also be registered to a vehicle in Japan. If kit is not registered to a vehicle in Japan replacement parts cannot be supplied.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: TEIN

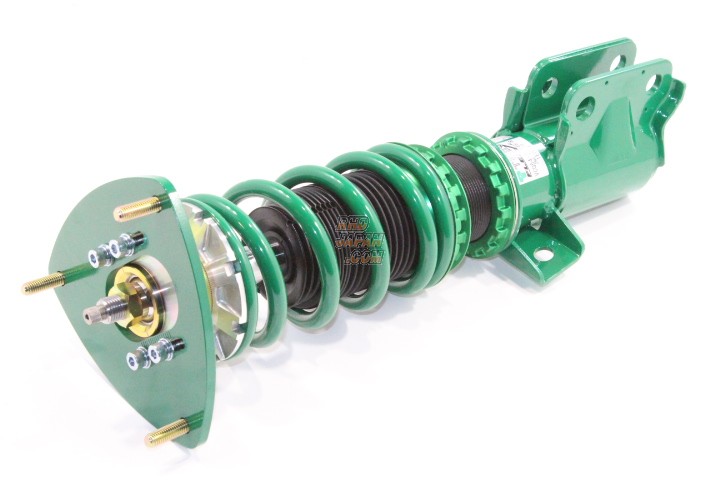

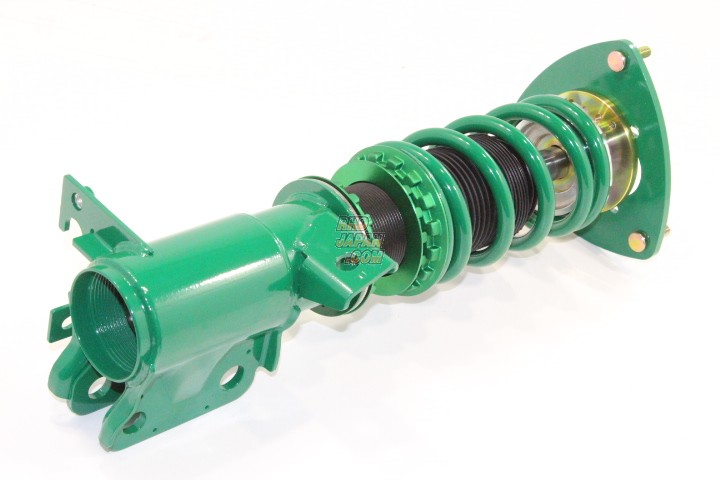

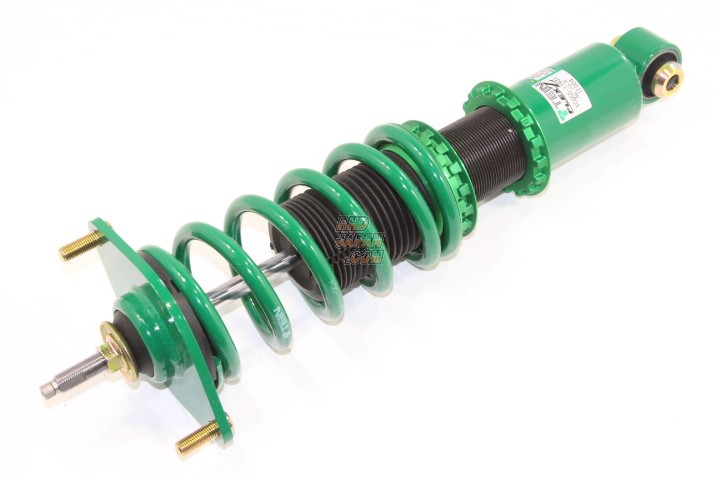

Product: Flex Z Coilover Suspension - BRZ ZD8 GR86 ZN8
Part Num: VSAEA-C1SS4
SPECIFICATIONS:
Series: Flex Z
Springs Specifications:
Spring Rate:
- Front: 6.0K (150mm)
- Rear: 6.0K (175mm)
Stock Height Difference (mm):
- Front: -30
- Rear: -30
Max Adjustability (mm):
- Front: -60 ~ -8
- Rear: -88 ~ +9
Recommended Adjustability (mm):
- Front: -40 ~ -20
- Rear: -40 ~ -20

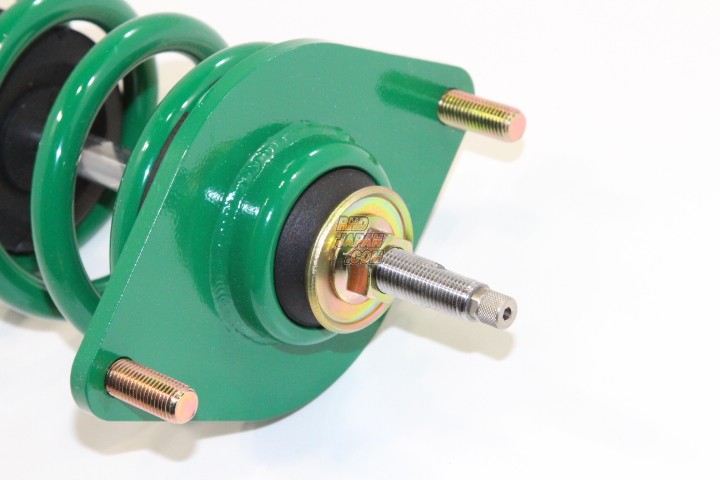

Upper Mounts:

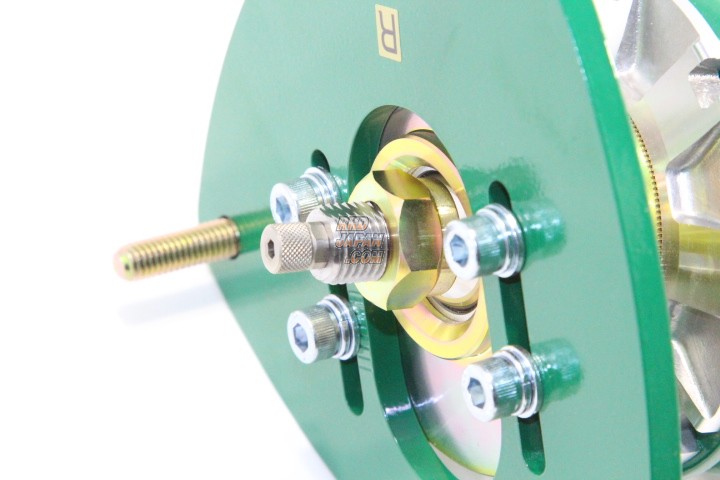

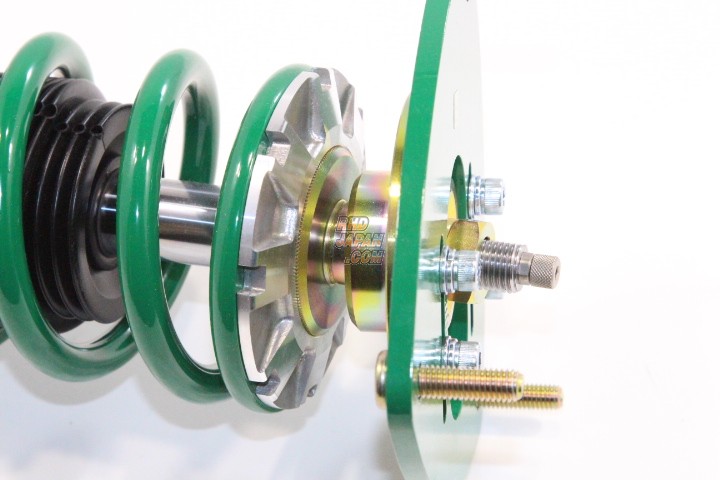

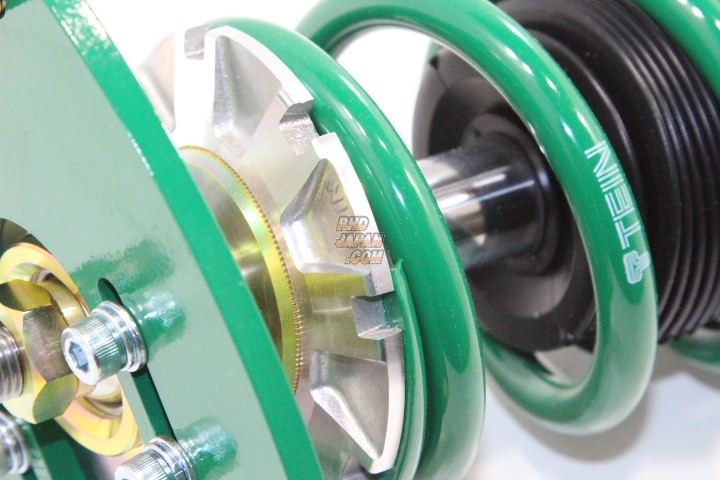

- Front: Camber Adjust (Pillow ball upper mount included)
- Rear: Rubber
FEATURES:
- Full-Length Ride Height Adjustment Feature with Little or No Change in Ride Quality
- Twin-Tube Structure for Low Resiliency & Securing Sufficient Stroke
- Damping Force Adjustment System, 16-level Linear Damping Force Adjustment System
- Complete Kit with Upper Mount Included (Except Some Models)

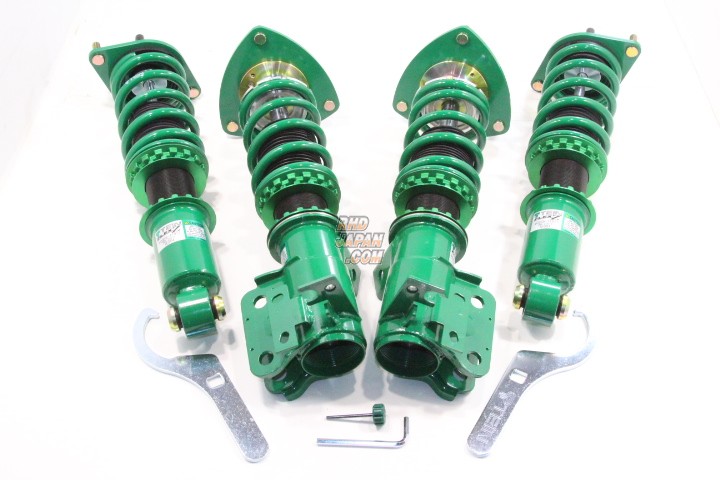

- 1-Full-Car-Kit complete Suspension Kit of 4 Shock Absorbers & 4 Springs
PRODUCT NOTES:
RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE.
COMPATIBILITY NOTES:
GRADE: RZ, SZ
Product: Flex Z Coilover Suspension - BRZ ZD8 GR86 ZN8
Part Num: VSAEA-C1SS4
SPECIFICATIONS:
Series: Flex Z
Springs Specifications:
Spring Rate:
- Front: 6.0K (150mm)
- Rear: 6.0K (175mm)
Stock Height Difference (mm):
- Front: -30
- Rear: -30
Max Adjustability (mm):
- Front: -60 ~ -8
- Rear: -88 ~ +9
Recommended Adjustability (mm):
- Front: -40 ~ -20
- Rear: -40 ~ -20
Upper Mounts:
- Front: Camber Adjust (Pillow ball upper mount included)
- Rear: Rubber
FEATURES:
- Full-Length Ride Height Adjustment Feature with Little or No Change in Ride Quality
- Twin-Tube Structure for Low Resiliency & Securing Sufficient Stroke
- Damping Force Adjustment System, 16-level Linear Damping Force Adjustment System
- Complete Kit with Upper Mount Included (Except Some Models)
- 1-Full-Car-Kit complete Suspension Kit of 4 Shock Absorbers & 4 Springs
PRODUCT NOTES:
RR: INTERIOR NEEDS TO BE CUT OR REMOVED, TO AVOID INTERFERENCE.
COMPATIBILITY NOTES:
GRADE: RZ, SZ
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Subaru BRZ ZD8 FA24 (08/2021~)
Toyota GR86 ZN8 FA24 (10/2021~)
Subaru BRZ ZD8 FA24 (08/2021~)
Toyota GR86 ZN8 FA24 (10/2021~)
