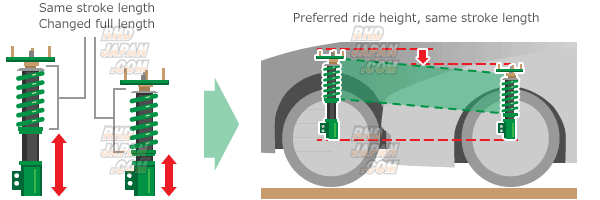

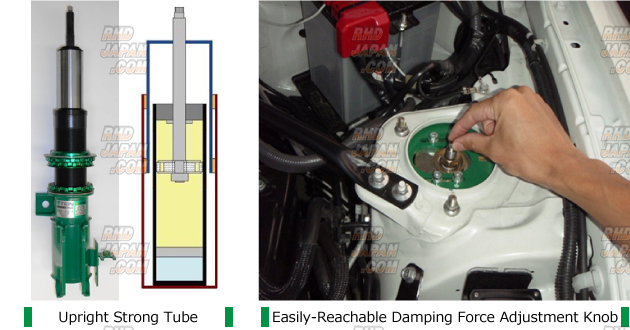

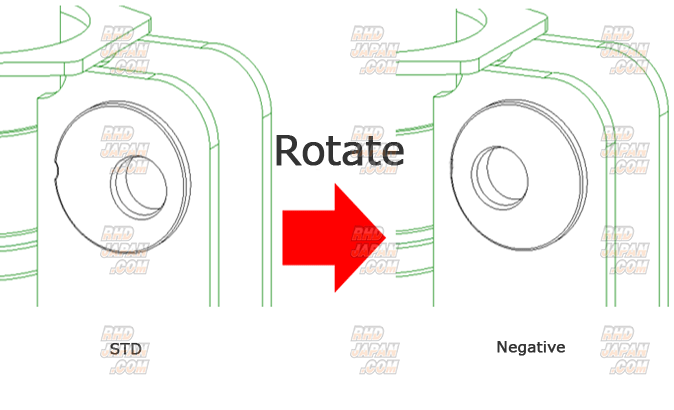

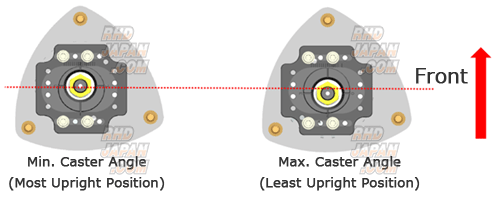

This series of coilovers has been developed based off of the settings from the premium Super Racing Lineup as an evolution of the Mono Sport series. Capable of high level sports/circuit handling performance while maintaining a much more cost effective price range. Included with harder springs and capable of lower form than the Mono Sport lineup. In addition to the several advancements of the Mono Sport series these also have newly introduced advanced features such as caster and camber adjustable upper mounts and optional camber adjust collars for lower bracket allow for further fine tuning settings on most applications. Fully functional adjustable ride height with multiple damper settings and can also be used in conjunction with the EDFC setup. A great option for those who want a high quality cost effective coilover kit capable of serious circuit applications. Get this and all your JDM at RHDJapan!
Brand: Tein

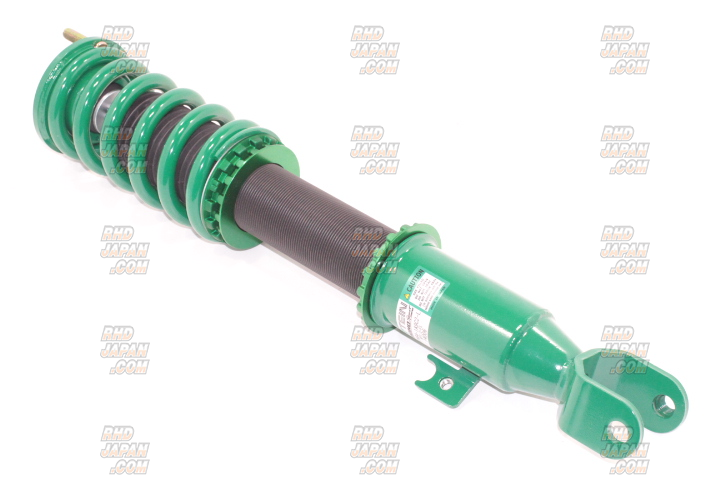

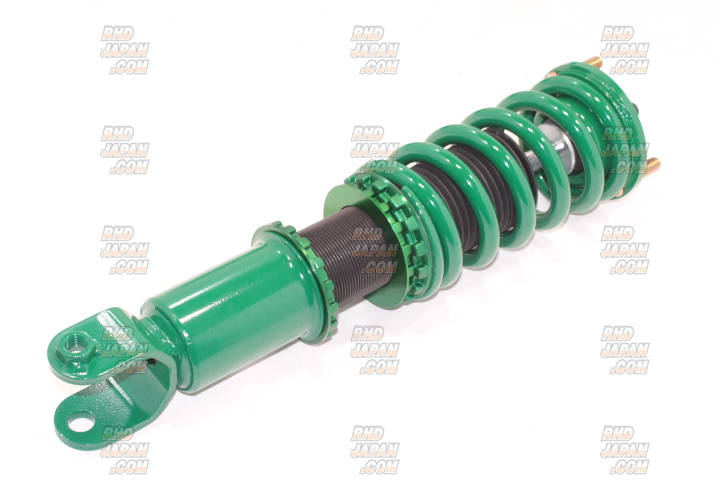

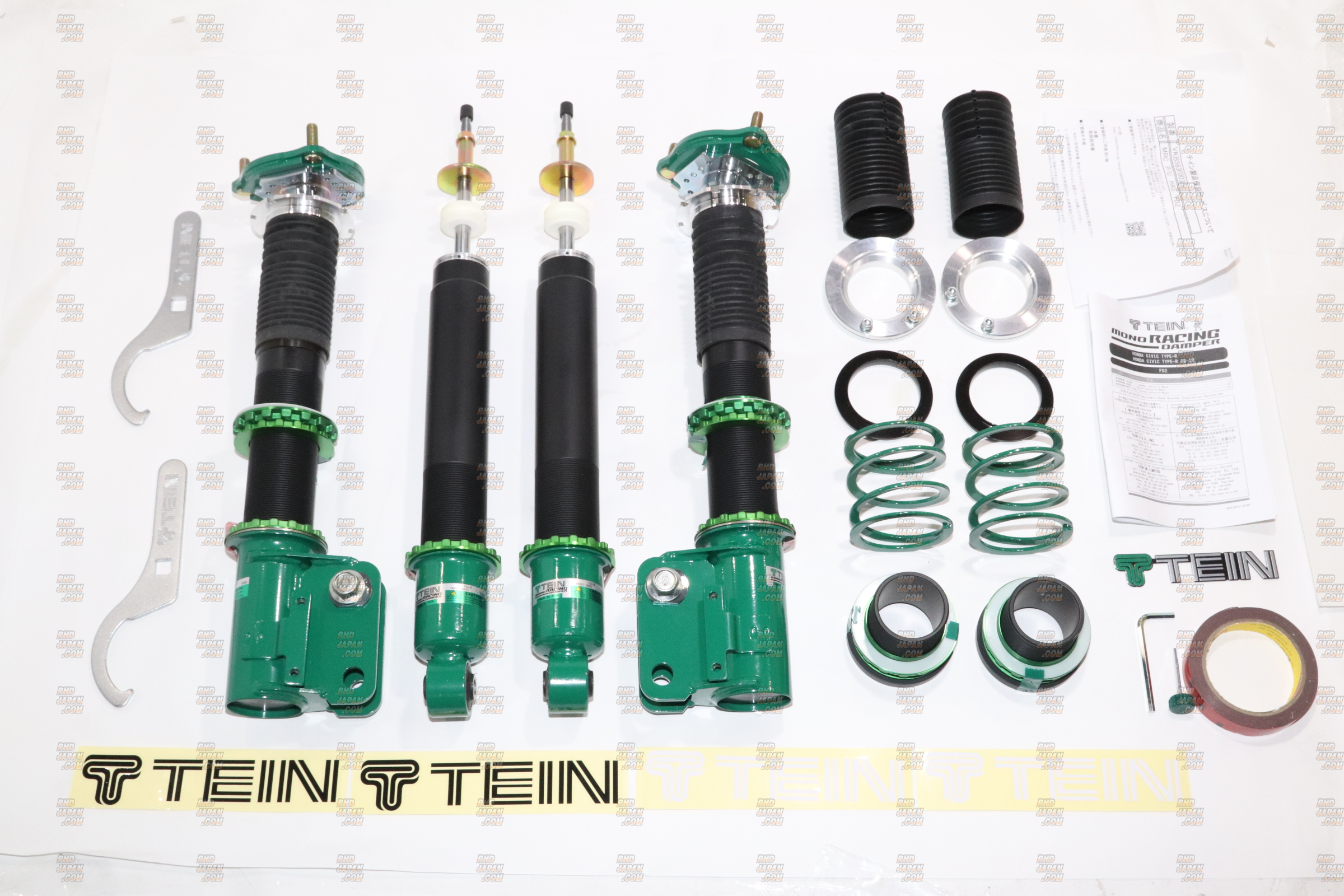

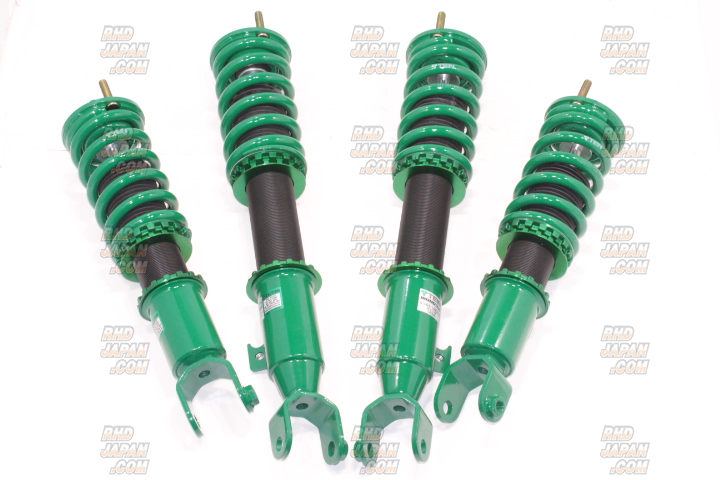

Product: Mono Racing Damper Suspension Kit - RX-8 SE3P
Part Num: VSM56-K1LS3
SPECIFICATIONS:
Series: Mono Racing Damper
Mounts:
- Front: Rubber Upper Mount
- Rear: Rubber Upper Mount

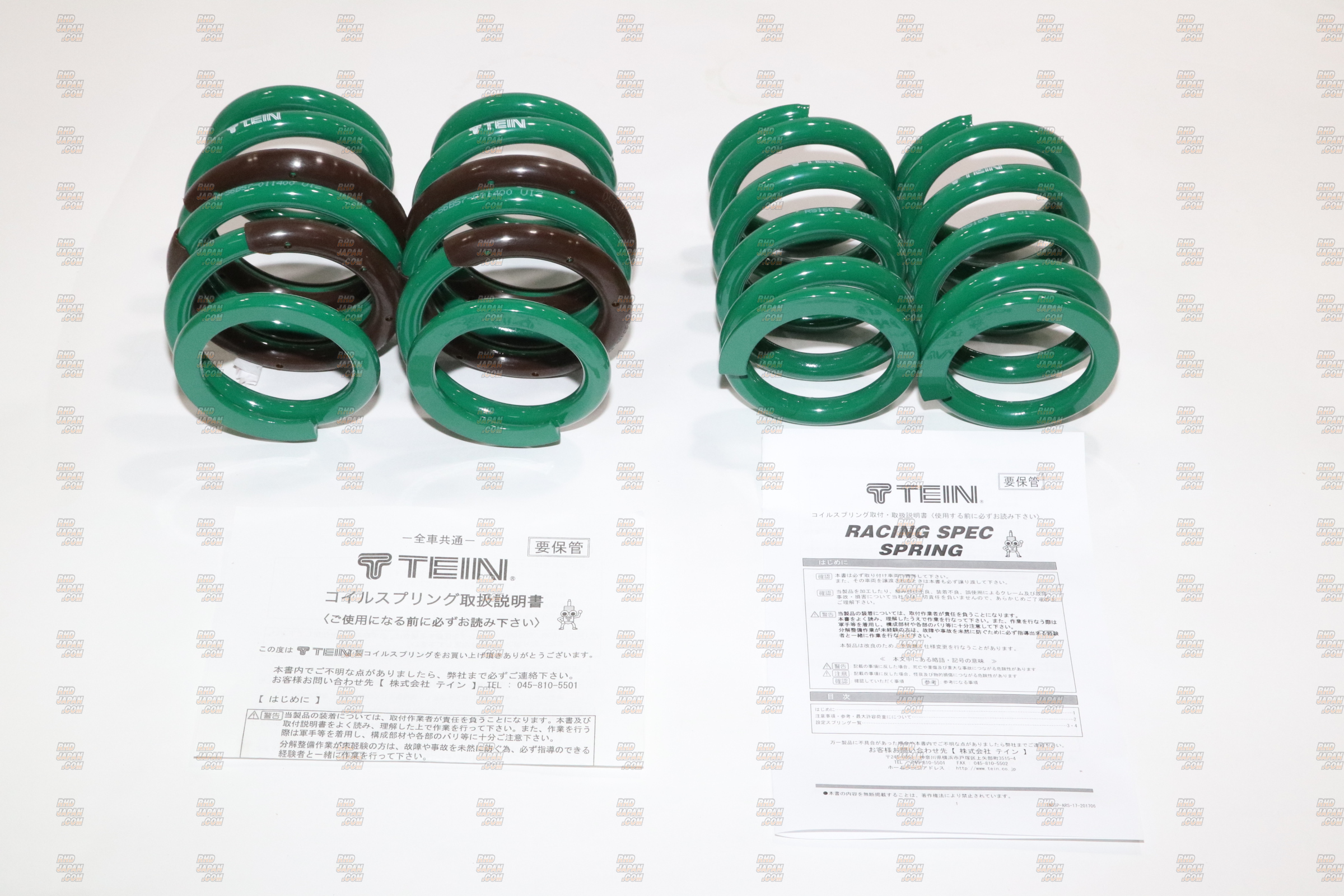

Springs Specifications:
Spring Rate (K):
- Front: 16.0
- Rear: 12.0
Stock Height Difference (mm):
- Front: -35
- Rear: -25
Max Adjustability (mm):
- Front: -92 〜 0
- Rear: -48 〜 -6
Recommended Adjustability (mm):
- Front: -54 〜 -16
- Rear: -35 〜 -16
Product: Mono Racing Damper Suspension Kit - RX-8 SE3P
Part Num: VSM56-K1LS3
SPECIFICATIONS:
Series: Mono Racing Damper
Mounts:
- Front: Rubber Upper Mount
- Rear: Rubber Upper Mount
Springs Specifications:
Spring Rate (K):
- Front: 16.0
- Rear: 12.0
Stock Height Difference (mm):
- Front: -35
- Rear: -25
Max Adjustability (mm):
- Front: -92 〜 0
- Rear: -48 〜 -6
Recommended Adjustability (mm):
- Front: -54 〜 -16
- Rear: -35 〜 -16
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mazda RX-8 SE3P 13B-MSP (02/2003-03/2008)
Mazda RX-8 SE3P 13B-MSP (02/2003-03/2008)
