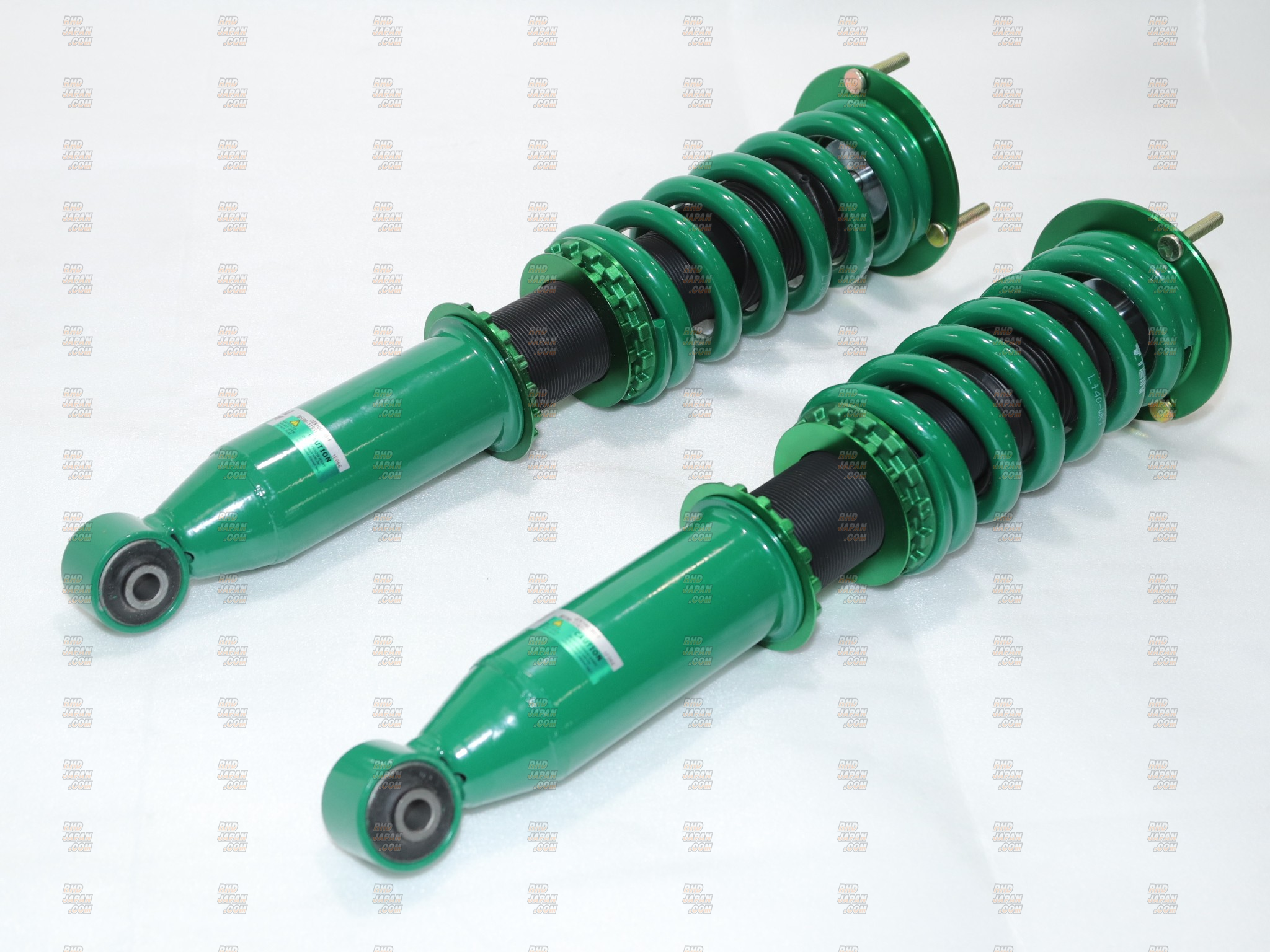

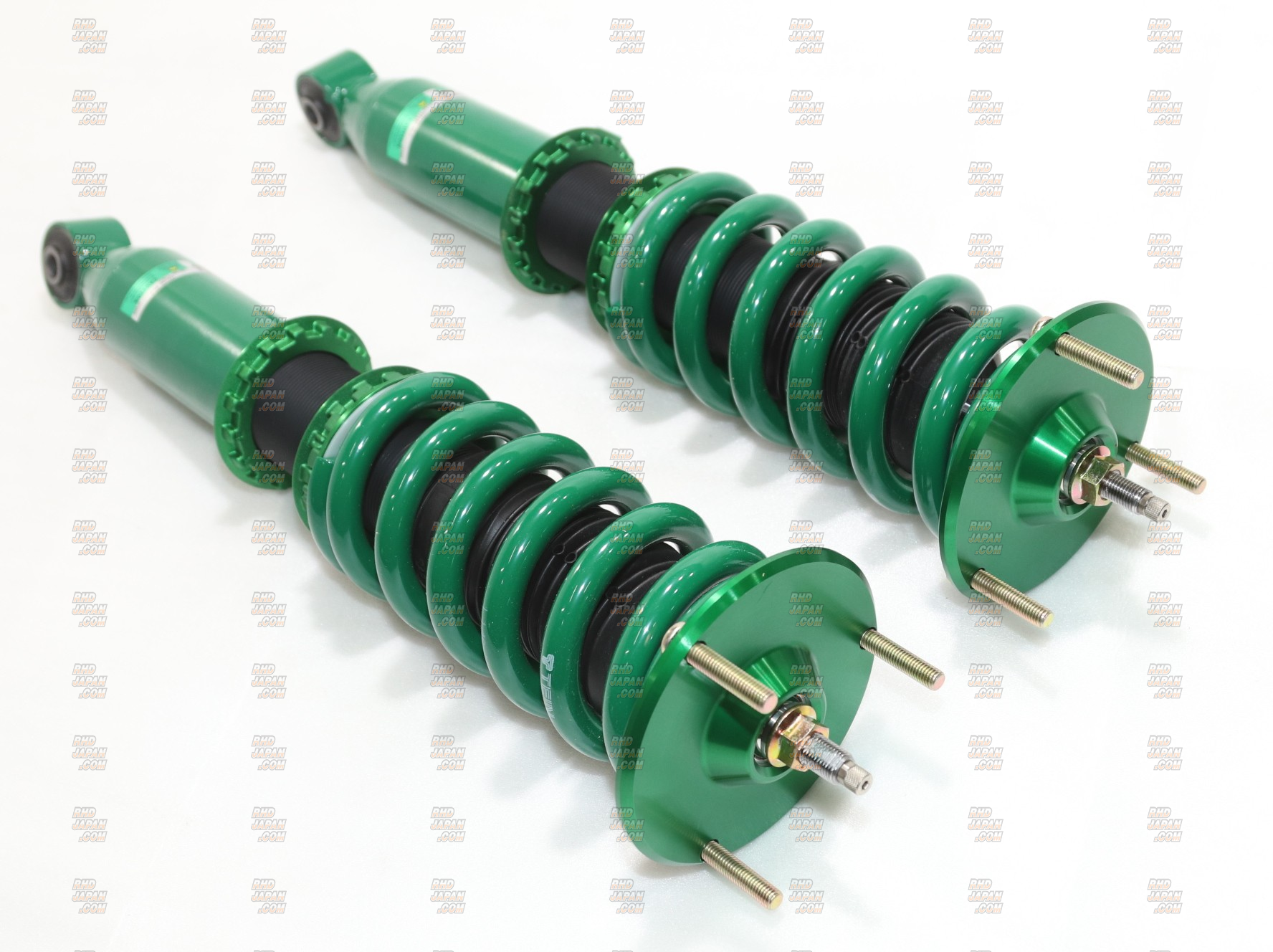

TEIN Super Drift Coilover Suspension - JZX90 JZX100

159389 JPY
TEIN SKU: 88989 PN: GST80-D1SS1
Images used may be generic. Actual product may vary.


List Price: ¥225,500

Sale Price: ¥159,389

You Save: ¥66,111


This was made exclusively for drifting; developed for uncompromising people who would like to swing the car more freely, to enjoy real drifting to the extreme, and/or to lower the ride height. Tein has renewed, revised and reset their Type HE damper to meet the demand of remarkably growing drift market. The TEIN SUPER DRIFT DAMPER is for serious drift drivers, emphasizing more than ever on drift control at high-speed. Get this and all your JDM at RHDJapan!!
Brand: TEIN
Product: Super Drift Coilover Suspension - JZX90 JZX100
Part Num: GST80-D1SS1

SPECIFICATIONS:
Mounts:
-Pillow Upper
Springs Specifications:
Spring Rate:
- Front: 14.0K (200mm)
- Rear: 8.0K (225mm)

Stock Height Difference (mm):
- Front: -50
- Rear: -50

Max Adjustability (mm):
- Front: -90 ~ +0
- Rear: -80 ~ +14

Recommended Adjustability (mm):
- Front: -60 ~ -40
- Rear: -60 ~ -40

COMPATIBILITY NOTES:
- JZX90: NOT tested on vehicles with cruise control

FEATURES:
- Full-length adjustment and height adjustment for separate setting of the height and spring preload
- 16 levels of damping force adjustment (compression and rebound together)
- Teflon coating for rust prevention
- Newly designed spring seat and spring seat lock for easy height adjusting
- Pillow ball upper mounts are included
- Compatible with EDFC
- Available for overhaul
- Upper Mount:

Pillow upper mount is included for controlling the suspension compliance, allowing for more direct driving feel and handling unimaginable with stock mounts.

- Twin-Tube Structure:
Twin-tube shell case is adopted for SUPER DRIFT in consideration of reliability, durability and cost effectiveness, enabling this high performance product to be offered to wide range of users at a reasonable price.

- Full-Length Adjustment Function:
Full-length adjustment system with adjustable lower bracket, enabling the separate adjustment of the ride-height and spring pre-load.

- Damping Force Adjustability:
SUPER DRIFT is equipped with Tein s popular 16-level damping force adjustment function, allowing for optimum performance in different road conditions, such as city streets, winding roads and/or highways. Use of specially shaped needle valve enables linear damping force adjustment at each of the 16 levels points.

- Rust-Proofing:
All threading parts are coated with specially formulated Fluorine, to prevent adherence and rust. Electroless nickel plating combined with clear painting is also applied to lower brackets.

F. Complete Kit:
Pillow upper mount is included in each Tein Super Drift for controlling the compliance, for realization of direct driving feel. Shock absorbers, springs and pillow ball upper mounts come in 'complete kit' to assure correct settings (with springs at standard rates).

- No-Sagging Spring:
Linear springs are made of high tensile steel, with tensile strength of 200kgf/m m2 (1960N/m m2).

- Conical Spring Washer:
On typical full-length adjustable dampers, the stresses and vibrations from hard use can cause the bracket lock to loosen. The TEIN SUPER DRIFT has a 'Conical Spring Washer' inserted between a bracket lock and a lower bracket, to effectively prevent loosening of a bracket lock even when drifting.

- Sideways Setting:
The SUPER DRIFT was developed to specifically enhance drifting performance, and we have succeeded in bringing drift controllability to the extreme by securing a proper bump stroke at a lowered height. The super drift damper can fully exhibit its performance in grip driving, utilizing various features.

- Bigger Wheels & Bigger Tires:
The SUPER DRIFT DAMPER is set up for the optimum performance with widely-used bigger tires / wheels, according to each vehicle models.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.

Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (09/1994-08/1996)
