This item is capable to taking the extra strain of extreme driving and aftermarket Cams. Toda has fixed the weak points of the Oil Pressure Auto Tensioner, preventing damage to valve timing and parts around the valve. The K20A engine uses a camshaft timing chain tensioner that is operated via oil pressure with an internal ratchet system which keeps the correct chain tension, and correct valve timing. This system is accurate for factory engines, but when the valvetrain is subjected to high load situation, as a result of employing high lift camshafts, high rpm operation, rapid down shifting, the standard timing chain tensioner can move. If this movement occurs, engine damage may result due to piston to valve contact or valve to valve contact. Due to K20A engine's VTC feature, it is very important to control valve timing (50 degrees movement).
Toda Racing has developed the timing chain tensioner that allows movement only to what is required. This product was originally designed for the Toda N+ endurance racing engines. Get this and all your JDM at RHDJapan!!
Toda Racing has developed the timing chain tensioner that allows movement only to what is required. This product was originally designed for the Toda N+ endurance racing engines. Get this and all your JDM at RHDJapan!!
Brand: Toda Racing
Product: Heavy Duty Chain Tensioner K20A
Part Num: 14510-K20-000
FEATURES:
A replacement for the STD oil pressure fed chain auto tensioner its weak point being the compensator. Designed to prevent damage to the valve train when an engine brakes in a STD engine. But not designed for high lift cams and or hard run engine's chains can become slack and noise.
COMPATIBILITY NOTES:
- Only for CIVIC TypeR, INTEGRA TypeR, ACCORD EuroR.
Product: Heavy Duty Chain Tensioner K20A
Part Num: 14510-K20-000
FEATURES:
A replacement for the STD oil pressure fed chain auto tensioner its weak point being the compensator. Designed to prevent damage to the valve train when an engine brakes in a STD engine. But not designed for high lift cams and or hard run engine's chains can become slack and noise.
COMPATIBILITY NOTES:
- Only for CIVIC TypeR, INTEGRA TypeR, ACCORD EuroR.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda Accord CL7 K20A (10/2002-11/2005)
Honda Accord CL7 K20A (11/2005-11/2008)
Honda Civic Type-R EP3 K20A (12/2001-09/2003)
Honda Civic Type-R EP3 K20A (09/2003-09/2005)
Honda Civic Type-R FD2 K20A (04/2006-09/2006)
Honda Civic Type-R FD2 K20A (09/2006-09/2008)
Honda Civic Type-R FD2 K20A (09/2008-08/2010)
Honda Civic Type-R FN2 Euro K20A (11/2009-06/2012)
Honda Integra DC5 K20A (07/2001-09/2004)
Honda Integra DC5 K20A (09/2004-07/2006)
Honda Accord CL7 K20A (10/2002-11/2005)
Honda Accord CL7 K20A (11/2005-11/2008)
Honda Civic Type-R EP3 K20A (12/2001-09/2003)
Honda Civic Type-R EP3 K20A (09/2003-09/2005)
Honda Civic Type-R FD2 K20A (04/2006-09/2006)
Honda Civic Type-R FD2 K20A (09/2006-09/2008)
Honda Civic Type-R FD2 K20A (09/2008-08/2010)
Honda Civic Type-R FN2 Euro K20A (11/2009-06/2012)
Honda Integra DC5 K20A (07/2001-09/2004)
Honda Integra DC5 K20A (09/2004-07/2006)
Customers who bought this product also purchased
Toda Racing Adjustable Cam Pulley Exhaust - AE111
List Price: ¥18,700
Sale Price: ¥17,209
You Save: ¥1,491
Toda Racing Exhaust Manifold Header 4-2-1 SUS - FN2
List Price: ¥203,500
Sale Price: ¥197,199
You Save: ¥6,301
Toda Racing Intake VTC Control Cam Sprocket - 40deg K20A
List Price: ¥33,000
Sale Price: ¥30,099
You Save: ¥2,901
Toda Racing High Power Profile IN Camshaft Type C - CL7 EP3 FD2 FN2 DC5
List Price: ¥69,300
Sale Price: ¥63,209
You Save: ¥6,091
Toda Racing High Power Profile EX Camshaft Type C2 - CL7 EP3 FD2 FN2 DC5
List Price: ¥64,900
Sale Price: ¥59,189
You Save: ¥5,711
Product Reviews
“ THE CUSTOMER'S VOICE ”
muhamad
11/18/2019
Price
Value
Quality
RHDJapan
Toda Racing Heavy Duty Chain Tensioner - K20A

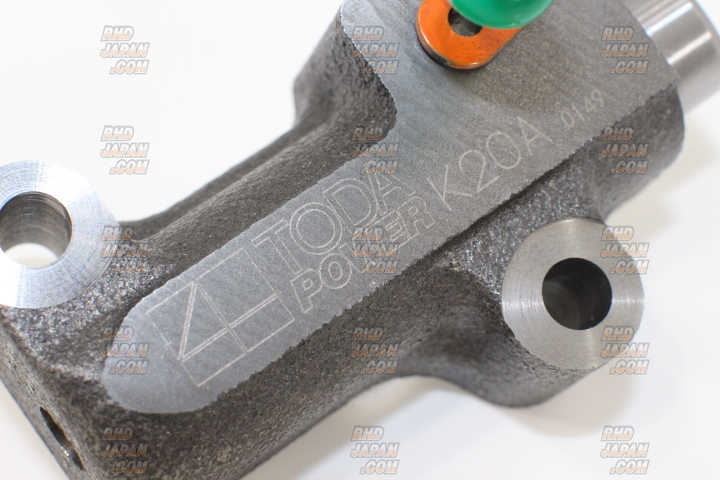

Similar to OEM.. with TODA engraved name on body.
