Toda Racing High Compression Forged Piston Kit 86.50 - K20A
119389
JPY
TODA RACING
SKU: 95483
PN: 13020-K20-001This kit will increase the displacement and compression to allow for more power to be made. All the piston kits include piston rings, piston pins, and circle clips. Get this and all your JDM at RHDJapan!!
Brand: Toda Racing
Product: High Compression Forged Piston Kit 86.50 - K20A
Part Num: 13020-K20-001
SPECIFICATIONS:

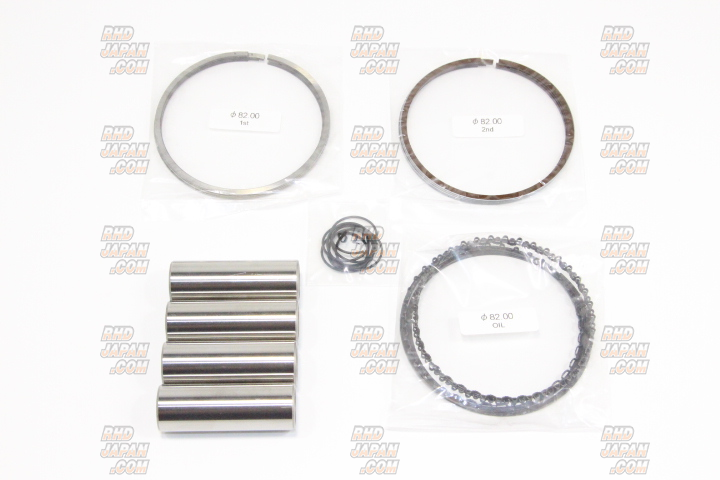

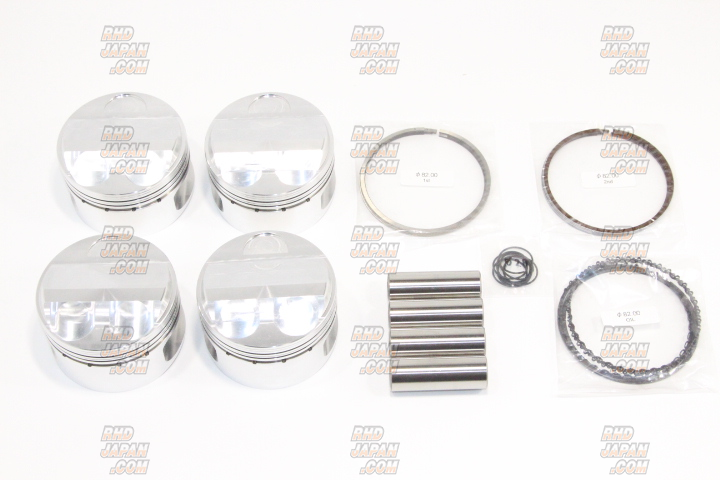

Kit contents:
- 4x Forged Pistons
- Rings
- Pins
- Clips
86.50:
Bore: 86.50mm
Displacement: 2022cc
Crown Volume (*1): 8.9cc/8.9cc
Projection Height (*2): 0.0mm
Reference C/R (*3): OEM head GK 0.6mm12.2:1
PRODUCT NOTES:
- *1: Crown volume is measured from the piston shoulder/from the deck of the block.
- *2: Piston shoulder height is measured from the deck of the block.
- *3: The compression ratio given above are only to be taken as a guide, measurements are required.
COMPATIBILITY NOTES:
- For 86mm OEM stroke.
- Only for CIVIC TypeR, INTEGRA TypeR, ACCORD EuroR
- Optional Head Gasket is required, Toda recommends Toda 87.2mm Head Gasket (Part Num 12251-K20-006).
Product: High Compression Forged Piston Kit 86.50 - K20A
Part Num: 13020-K20-001
SPECIFICATIONS:
Kit contents:
- 4x Forged Pistons
- Rings
- Pins
- Clips
86.50:
Bore: 86.50mm
Displacement: 2022cc
Crown Volume (*1): 8.9cc/8.9cc
Projection Height (*2): 0.0mm
Reference C/R (*3): OEM head GK 0.6mm12.2:1
PRODUCT NOTES:
- *1: Crown volume is measured from the piston shoulder/from the deck of the block.
- *2: Piston shoulder height is measured from the deck of the block.
- *3: The compression ratio given above are only to be taken as a guide, measurements are required.
COMPATIBILITY NOTES:
- For 86mm OEM stroke.
- Only for CIVIC TypeR, INTEGRA TypeR, ACCORD EuroR
- Optional Head Gasket is required, Toda recommends Toda 87.2mm Head Gasket (Part Num 12251-K20-006).
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda Accord CL7 K20A (10/2002-11/2005)
Honda Accord CL7 K20A (11/2005-11/2008)
Honda Civic Type-R EP3 K20A (12/2001-09/2003)
Honda Civic Type-R EP3 K20A (09/2003-09/2005)
Honda Civic Type-R FD2 K20A (04/2006-09/2006)
Honda Civic Type-R FD2 K20A (09/2006-09/2008)
Honda Civic Type-R FD2 K20A (09/2008-08/2010)
Honda Integra DC5 K20A (07/2001-09/2004)
Honda Integra DC5 K20A (09/2004-07/2006)
Honda Accord CL7 K20A (10/2002-11/2005)
Honda Accord CL7 K20A (11/2005-11/2008)
Honda Civic Type-R EP3 K20A (12/2001-09/2003)
Honda Civic Type-R EP3 K20A (09/2003-09/2005)
Honda Civic Type-R FD2 K20A (04/2006-09/2006)
Honda Civic Type-R FD2 K20A (09/2006-09/2008)
Honda Civic Type-R FD2 K20A (09/2008-08/2010)
Honda Integra DC5 K20A (07/2001-09/2004)
Honda Integra DC5 K20A (09/2004-07/2006)
