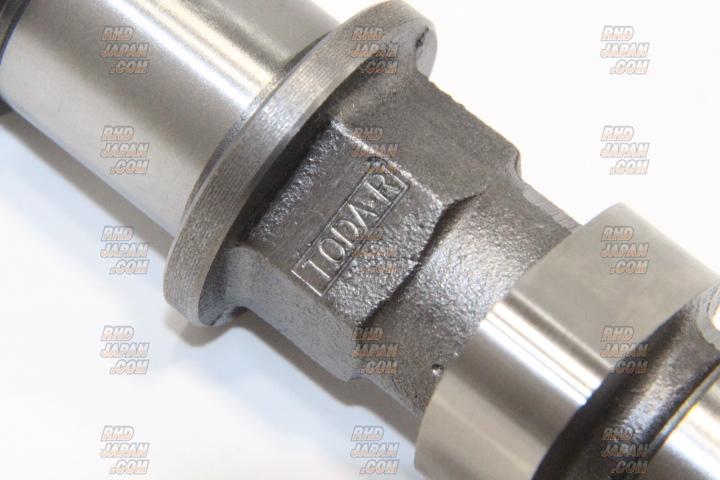

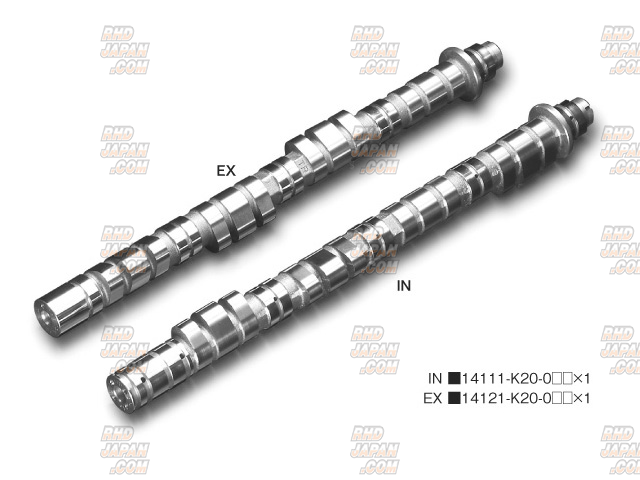

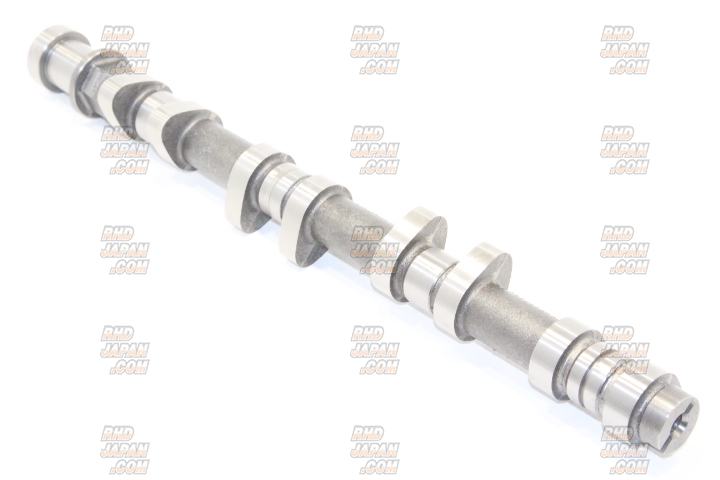

Toda Racing High Power Profile IN Camshaft Type C - CL7 EP3 FD2 FN2 DC5
63209
JPY
TODA RACING
SKU: 51746
PN: 14111-K20-10CAll production is done in house, so a high standard of quality is assured.
Opening Valve Rate Improved - By improving the opening valve rate via the smooth acceleration and the smoothing of the transition from closed to open the period of time that the valve is open for is greatly improved. So by using the principals of quick but smooth actions more air can be drawn through the engine.
Non-symmetrical - The cam profile of both the opening and closing phases of the valve lift are not symmetrical, as the closing phase is extended slightly reducing the impact of the calve when it returns to the seat. Making the valve return quietly to the seat, reduces friction, improves reliability and at the same time reduces valve train noise.
Material Quality - We do not only pursue improvements in power output (via, mechanical design) but we also pursue material quality, in particular the relationship between the contact face of the cam, rocker arms and cam followers, so helping to reduce friction further. We also conduct research into the thermal process on the surface of the cam.
All this data forms the basis for the production of many prototypes where bench tests are carried out alongside actual racing. With everything done in house there is no room for compromise and so you can only benefit from our constant search for improved performance.
Get this and all your JDM from RHDJapan!
Opening Valve Rate Improved - By improving the opening valve rate via the smooth acceleration and the smoothing of the transition from closed to open the period of time that the valve is open for is greatly improved. So by using the principals of quick but smooth actions more air can be drawn through the engine.
Non-symmetrical - The cam profile of both the opening and closing phases of the valve lift are not symmetrical, as the closing phase is extended slightly reducing the impact of the calve when it returns to the seat. Making the valve return quietly to the seat, reduces friction, improves reliability and at the same time reduces valve train noise.
Material Quality - We do not only pursue improvements in power output (via, mechanical design) but we also pursue material quality, in particular the relationship between the contact face of the cam, rocker arms and cam followers, so helping to reduce friction further. We also conduct research into the thermal process on the surface of the cam.
All this data forms the basis for the production of many prototypes where bench tests are carried out alongside actual racing. With everything done in house there is no room for compromise and so you can only benefit from our constant search for improved performance.
Get this and all your JDM from RHDJapan!
Brand: Toda Racing
Product: High Power Profile IN Camshaft Type C - CL7 EP3 FD2 FN2 DC5
Part Num: 14111-K20-10C (OLD: 14111-K20-00C)
SPECIFICATIONS:
Side: Intake
Type: C
Angle (valve lift):
- Primary: 250 (10.5)
- Mid: 300 (13.0)
- Secondary: 250 (10.5)
PRODUCT NOTES:
- The cam angles for Primary, Mid, Secondary are indicated.
- OEM valve spring cannot be used.
- Toda Up Rated Valve Spring required. (Part Number 14750-F20-000)
- On installing confirming that there is enough, valve to piston clearance, valve to valve clearance, cam lob to follower clearance during mid cam & VTC operation.
- Type A3, C: Programmable ECU with tunable VTC required, Customers discretion required on selecting an ECU.
- Popular EX camshaft used in combination: 14121-K20-12C
COMPATIBILITY NOTES:
- CL7: Only Euro R Models.
- EP3 FD2 FN2 DC5: Only Type R Models.
Product: High Power Profile IN Camshaft Type C - CL7 EP3 FD2 FN2 DC5
Part Num: 14111-K20-10C (OLD: 14111-K20-00C)
SPECIFICATIONS:
Side: Intake
Type: C
Angle (valve lift):
- Primary: 250 (10.5)
- Mid: 300 (13.0)
- Secondary: 250 (10.5)
PRODUCT NOTES:
- The cam angles for Primary, Mid, Secondary are indicated.
- OEM valve spring cannot be used.
- Toda Up Rated Valve Spring required. (Part Number 14750-F20-000)
- On installing confirming that there is enough, valve to piston clearance, valve to valve clearance, cam lob to follower clearance during mid cam & VTC operation.
- Type A3, C: Programmable ECU with tunable VTC required, Customers discretion required on selecting an ECU.
- Popular EX camshaft used in combination: 14121-K20-12C
COMPATIBILITY NOTES:
- CL7: Only Euro R Models.
- EP3 FD2 FN2 DC5: Only Type R Models.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda Accord CL7 K20A (10/2002-11/2005)
Honda Accord CL7 K20A (11/2005-11/2008)
Honda Civic Type-R EP3 K20A (12/2001-09/2003)
Honda Civic Type-R EP3 K20A (09/2003-09/2005)
Honda Civic Type-R FD2 K20A (04/2006-09/2006)
Honda Civic Type-R FD2 K20A (09/2006-09/2008)
Honda Civic Type-R FD2 K20A (09/2008-08/2010)
Honda Civic Type-R FN2 Euro K20A (11/2009-06/2012)
Honda Integra DC5 K20A (07/2001-09/2004)
Honda Integra DC5 K20A (09/2004-07/2006)
Honda Accord CL7 K20A (10/2002-11/2005)
Honda Accord CL7 K20A (11/2005-11/2008)
Honda Civic Type-R EP3 K20A (12/2001-09/2003)
Honda Civic Type-R EP3 K20A (09/2003-09/2005)
Honda Civic Type-R FD2 K20A (04/2006-09/2006)
Honda Civic Type-R FD2 K20A (09/2006-09/2008)
Honda Civic Type-R FD2 K20A (09/2008-08/2010)
Honda Civic Type-R FN2 Euro K20A (11/2009-06/2012)
Honda Integra DC5 K20A (07/2001-09/2004)
Honda Integra DC5 K20A (09/2004-07/2006)
