Tomei Camshaft Poncam Set - AE101 AE111 - RHDJapan

Tomei Camshaft Poncam Set - AE101 AE111

63959 JPY
TOMEI SKU: 67164 PN: 143073
Images used may be generic. Actual product may vary.


List Price: ¥74,800

Sale Price: ¥63,959

You Save: ¥10,841


These items are designed to be a direct replacement for the factory camshafts. The PONCAM series is designed to have improved lift and duration, Ideal for applications looking for peak performance while being compatible with the factory head configuration. These are also compatible with the factory ECU settings allowing for a great cost effective option with dialed in lift and duration. Get this and all your JDM at RHDJapan!!
Brand: Tomei
Product: Camshaft Poncam Set - AE101 AE111
Part Num: 143073

SPECIFICATIONS:
Lead Time: Made to Order 6~8 weeks

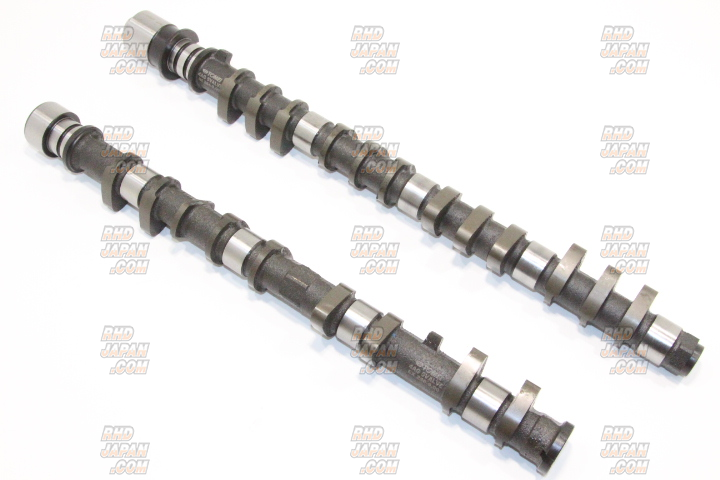

The kit Contains:

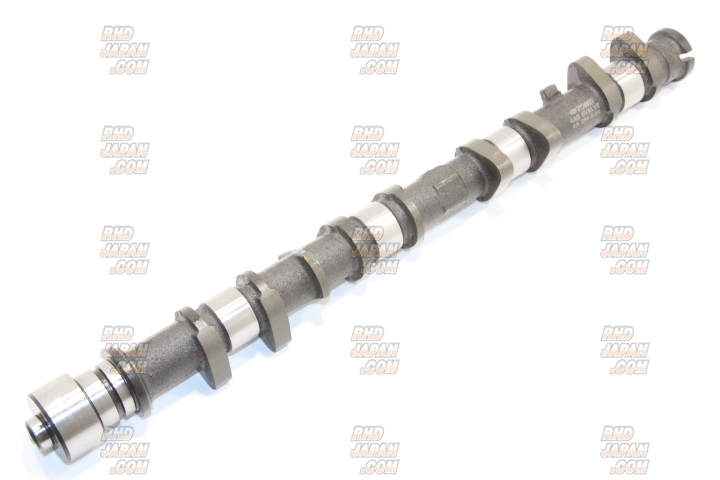

- 1x Intake Camshaft Part Num: 1493264090

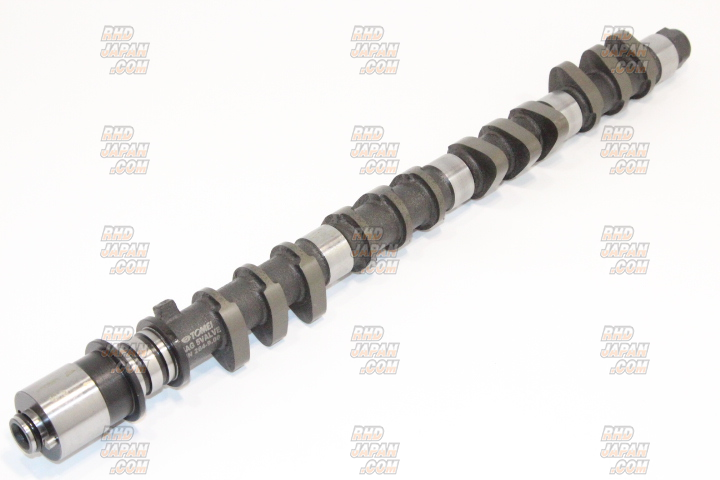

- 1x Exhaust Camshaft Part Num: 1494256090
- Intake Camshaft -
- Duration (degree): 264
- Max Cam Lift (mm): 9.00
- Max Valve lift(mm): 8.76
- Cold Valve clearance (mm)[+/-0.01]: 0.24
- Lobe Center Angle (initial): 120
- Base Circle(mm): 32.0

- Exhaust Camshaft -
- Duration (degree): 256
- Max Cam Lift (mm): 9.00
- Max Valve lift(mm): 8.56
- Cold Valve clearance (mm)[+/-0.01]: 0.44
- Lobe Center Angle (initial): 110
- Base Circle(mm): 32.0

COMPATIBILITY NOTES:
- Only for 20 Valves Engines
- Compatible with VVT

FEATURES:
- Exclusive material is used
- Precision Grinding
- Adjusted valve timing
- Spring does not require valve replacement
- High performance in all range
- Compatible with VVT
- Stable idling
- Best Balance
Toyota Levin/Trueno AE101 4A-GE (06/1991-05/1993)
Toyota Levin/Trueno AE101 4A-GE (06/1993-05/1995)
Toyota Levin/Trueno AE101 4A-GZE (06/1991-05/1993)
Toyota Levin/Trueno AE101 4A-GZE (06/1993-05/1995)
Toyota Levin/Trueno AE111 4A-GE (04/1997-07/2000)
Toyota Levin/Trueno AE111 4A-GE (05/1995-04/1997)
