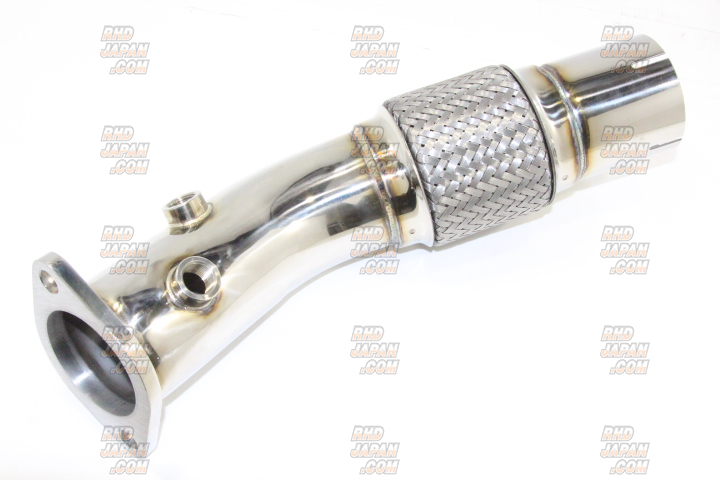

This item is designed as a direct replacement for the factory turbo outlet pipe connecting the turbocharger exhaust housing to the front pipe on the exhaust system. With improved design it allows for increased exhaust gases to smoothly travel throughout the turbocharger. The first step in opening up the exhaust system from the turbocharger allowing for improved operation with quicker response and higher boost levels. Superior materials and construction provide high durability even with increased exhaust temperatures and hard driving applications. Get this and all your JDM at RHDJapan!!
Brand: Tomei
Product: Expreme Turbo Outlet Pipe Component - CZ4A
Part Num: 433001
SPECIFICATIONS:

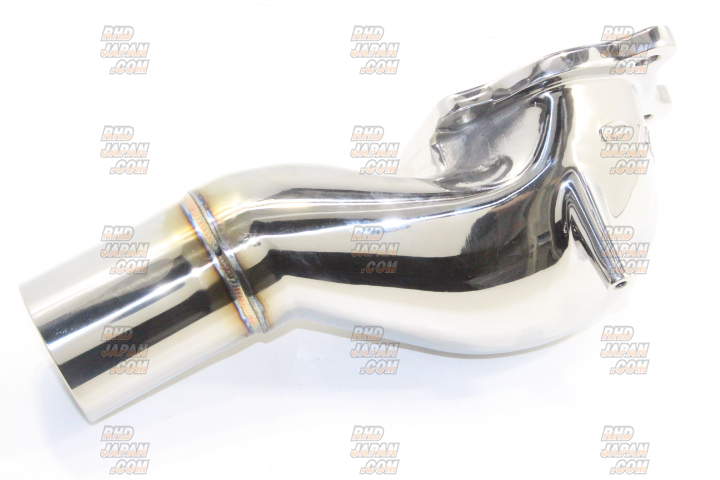

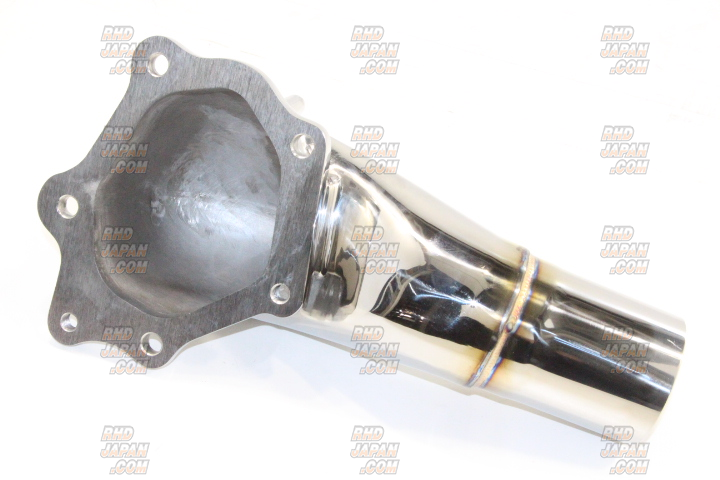

Outlet (Dump Pipe):
- Material:
-- Pipe: SUS304
-- Flange: Steel
- Pipe Diameter(mm): 76.3 (Inner Dia 65)
- Weight (kg): 1.75 (OEM 3.05)

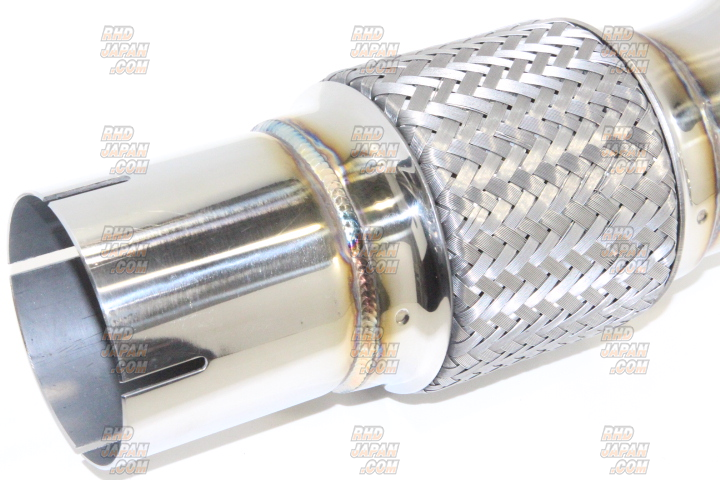

Front Pipe:
- Enlarged Linear pipe
- SUS304 stainless steel
- Outlet (Dump Pipe) with matching inner diameter and straight fitting flange
Kit Contents:
- Outlet (Dump Pipe)
- Front Pipe
- Gasket
- Expreme Thermo Bandage
- Bracket
- Bolts for Installation
- Bolt Smooth Paste
- Sticker
- Installation Manual
PRODUCT NOTES:
The Expreme 4G63 Outlet (Dump Pipe) with Front Pipe can only be used with the factory fitting.
---- Example ----
- Genuine Outlet (Dump Pipe)+Expreme Front Pipe - Non Compatible
- Expreme Outlet (Dump Pipe)+Genuine Front Pipe - Non Compatible
The Expreme Outlet which shows the performance upgrad with the use of the Dump Pipe combined.
FEATURES:
It is commonly believed that performance efficiency can be improved by reducing the secondary exhaust pressure from the turbine. The torque will be affected when the pipes diameter is too wide.Tomei had invested over a year in researching all possible aspects and combinations for the best performance gain throughout the entire area. The end result was a decrease in exhaust resistance in all areas and best results is achieved with our Outlet ( dump pipe ) and front pipe as a combined set. Outlet (Dump Pipe):
- 70 specification (65 inner diameter)
- Manufactured by Lost Wax method
- Turbine bracket
- SUS304 stainless steel
- The pilot by-pass has been maximized
COMPATIBILITY NOTES:
- For 4B11T Evolution X vehicles.
Product: Expreme Turbo Outlet Pipe Component - CZ4A
Part Num: 433001
SPECIFICATIONS:
Outlet (Dump Pipe):
- Material:
-- Pipe: SUS304
-- Flange: Steel
- Pipe Diameter(mm): 76.3 (Inner Dia 65)
- Weight (kg): 1.75 (OEM 3.05)
Front Pipe:
- Enlarged Linear pipe
- SUS304 stainless steel
- Outlet (Dump Pipe) with matching inner diameter and straight fitting flange
Kit Contents:
- Outlet (Dump Pipe)
- Front Pipe
- Gasket
- Expreme Thermo Bandage
- Bracket
- Bolts for Installation
- Bolt Smooth Paste
- Sticker
- Installation Manual
PRODUCT NOTES:
The Expreme 4G63 Outlet (Dump Pipe) with Front Pipe can only be used with the factory fitting.
---- Example ----
- Genuine Outlet (Dump Pipe)+Expreme Front Pipe - Non Compatible
- Expreme Outlet (Dump Pipe)+Genuine Front Pipe - Non Compatible
The Expreme Outlet which shows the performance upgrad with the use of the Dump Pipe combined.
FEATURES:
It is commonly believed that performance efficiency can be improved by reducing the secondary exhaust pressure from the turbine. The torque will be affected when the pipes diameter is too wide.Tomei had invested over a year in researching all possible aspects and combinations for the best performance gain throughout the entire area. The end result was a decrease in exhaust resistance in all areas and best results is achieved with our Outlet ( dump pipe ) and front pipe as a combined set. Outlet (Dump Pipe):
- 70 specification (65 inner diameter)
- Manufactured by Lost Wax method
- Turbine bracket
- SUS304 stainless steel
- The pilot by-pass has been maximized
COMPATIBILITY NOTES:
- For 4B11T Evolution X vehicles.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2007-09/2008)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2008-09/2009)
Mitsubishi Lancer Evolution X CZ4A 4B11 (10/2009-09/2015)
