An essential item for those looking to upgrade the fuel system. This item dials in for precise setting of fuel pressure for optimum performance. Available in a wide variety of different colors, fittings and adapters to adapt to any standard or custom fuel system and engine bay style. Get this and all your JDM at RHDJapan!!
Brand: Tomei
Product: Fuel Pressure Regulator and Fittings Set - Type S
Part Num: 185001
SPECIFICATIONS:
Included:
- 1x Tomei Type S Fuel Pressure Regulator
- 2x AN6 1/8NPT Fitting
- 2x #8 Straight / 1/8NPT Fitting
Type: S
Regulator Body: Aluminum
Surface Finish: Hard Anodized
Weight with bracket: 155g
Diaphragm Diameter: 33mm
Vacuum Hose Nipple: 4.5mm
Pressure Adjustabilility: 200 ~ 800kpa range

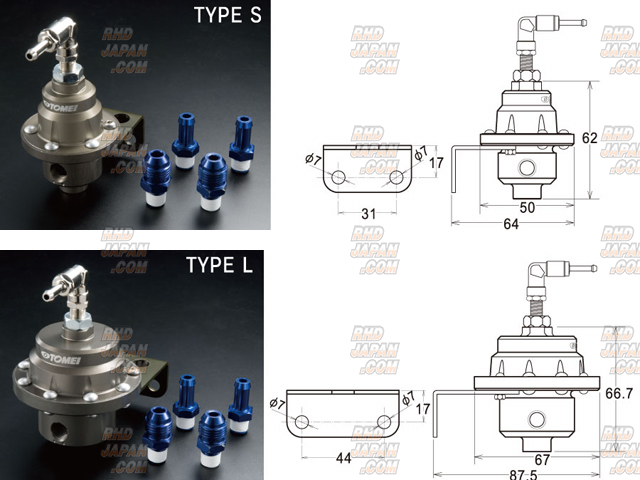

Size: 62mm X 64mm
COMPATIBILITY NOTES:
Fuel Rail Adapters are available for the following engines:
- Type 1 (Sku: 64140) -
NISSAN
BNR3234/BCNR33: RB26DETT
R32: RB20DET
R33/R34: RB25DET
(R)PS13/S14/S15: SR20DET
Z32: VG30DETT
SUBARU
GC8/GF8: EJ20G/EJ20K/EJ205/EJ207
GDB/GDA: EJ205/EJ207
BC5/BF5: EJ20G
BD5/BG5: EJ20H/EJ20R
BE5/BH5: EJ206/EJ208
SF5/SG9: EJ20G/EJ205/EJ255
TOYOTA
EP82/EP91: 4E/FET
JZS147: 2JZ-GTE
JZA80 (Excluding ~'97 Aug VVT-i): 2JZ-GTE
AE86: 4A-GE
SXE10: 3S-GE
- Type 2 (Sku: 64140) -
TOYOTA
JZX90: 1JZ-GTE
JZX100: 1JZ-GTE
JZX110: 1JZ-GTE
ST205: 3S-GE
SW20: 3S-GE
- Type 3 (Sku: 64140) -
MITSUBISHI
EC5W: 6A13
CD9A/CN9A: 4G63
CP9A/CT9A: 4G63
Z16A: 6G72
- Type 4 (Sku: 64140) -
HONDA
EF3/EF9: B16A
EG6/EG9: B16A
EK4/EK9: B16B
EG2/EF8: B16A
DC2: B18C
DC5: K20A
AP1: F20C
NA1: C30A
NA2: C32B
Product: Fuel Pressure Regulator and Fittings Set - Type S
Part Num: 185001
SPECIFICATIONS:
Included:
- 1x Tomei Type S Fuel Pressure Regulator
- 2x AN6 1/8NPT Fitting
- 2x #8 Straight / 1/8NPT Fitting
Type: S
Regulator Body: Aluminum
Surface Finish: Hard Anodized
Weight with bracket: 155g
Diaphragm Diameter: 33mm
Vacuum Hose Nipple: 4.5mm
Pressure Adjustabilility: 200 ~ 800kpa range
Size: 62mm X 64mm
COMPATIBILITY NOTES:
Fuel Rail Adapters are available for the following engines:
- Type 1 (Sku: 64140) -
NISSAN
BNR3234/BCNR33: RB26DETT
R32: RB20DET
R33/R34: RB25DET
(R)PS13/S14/S15: SR20DET
Z32: VG30DETT
SUBARU
GC8/GF8: EJ20G/EJ20K/EJ205/EJ207
GDB/GDA: EJ205/EJ207
BC5/BF5: EJ20G
BD5/BG5: EJ20H/EJ20R
BE5/BH5: EJ206/EJ208
SF5/SG9: EJ20G/EJ205/EJ255
TOYOTA
EP82/EP91: 4E/FET
JZS147: 2JZ-GTE
JZA80 (Excluding ~'97 Aug VVT-i): 2JZ-GTE
AE86: 4A-GE
SXE10: 3S-GE
- Type 2 (Sku: 64140) -
TOYOTA
JZX90: 1JZ-GTE
JZX100: 1JZ-GTE
JZX110: 1JZ-GTE
ST205: 3S-GE
SW20: 3S-GE
- Type 3 (Sku: 64140) -
MITSUBISHI
EC5W: 6A13
CD9A/CN9A: 4G63
CP9A/CT9A: 4G63
Z16A: 6G72
- Type 4 (Sku: 64140) -
HONDA
EF3/EF9: B16A
EG6/EG9: B16A
EK4/EK9: B16B
EG2/EF8: B16A
DC2: B18C
DC5: K20A
AP1: F20C
NA1: C30A
NA2: C32B
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
