Tomei Metal Gasket Combination Set 87.0 1.2mm - BNR32 BCNR33 BNR34 WGNC34 - RHDJapan

Tomei Metal Gasket Combination Set 87.0 1.2mm - BNR32 BCNR33 BNR34 WGNC34

31977 JPY
TOMEI SKU: 13436
Images used may be generic. Actual product may vary.

List Price: ¥37,400

Sale Price: ¥31,977

You Save: ¥5,423


All the products in this kit are performance parts that can be used from overhaul to the tuning for the drag racing. Get this and all your JDM at RHDJapan!!
Brand: Tomei
Product: Metal Gasket Combination Set RB26DETT - 87.0 1.2mm
Part Num: 133013

SPECIFICATIONS:
Kit Includes:
- Metal Head gasket
- Metal Throttle Gasket
- Metal Intake Manifold Gasket
- Metal exhaust Manifold Gasket
- Oil gallery orifice

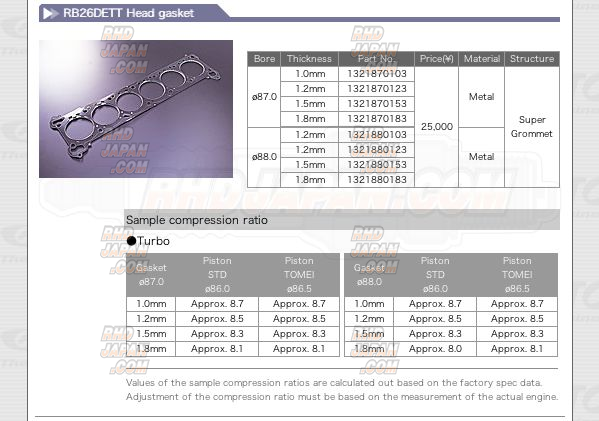

Available Sizes (Head Gasket):
- Bore: 87, Thickness: 1.2mm

Metal Head Gasket:
- Material: Metal
- Structure: Super Grommet

Throttle Gasket:
- Material: Steel with Fluorine coating
- Structure: Bead Type
Intake Manifold Gasket:
- Material: Steel
- Thickness: 0.38
- Structure: Bead Type
Exhaust Manifold Gasket:
- Material: Steel
- Thickness: 1.3
- Structure: Bead Type

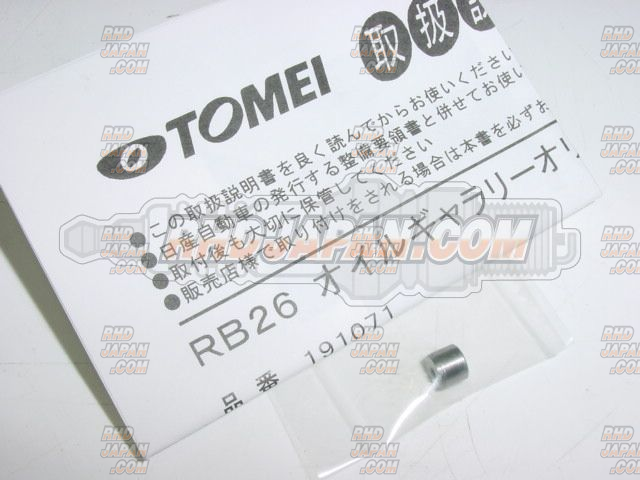

Oil gallery orifice:
- Diameter: 1.5

FEATURES:
- Head Gasket Structure (Bead Type, Grommet type, Super Grommet Type):
There are several different metal head gasket designs available which vary in sealing, durability and costs.

- Compression Adjustment:
Since the cylinder capacity can fluctuate with the thickness of gasket used, the compression ratio can be adjusted with the thickness of the gasket. The gasket thickness will help with the final adjustments to get your setting closest to the target compression ratio.

- Heat Conductivity of Stainless Steel:
Stainless steel was chosen to be the material of choice to make the Metal Gaskets with because of the heat conductivity efficiency of the stainless steel material to evenly distribute the heat and aid with cooling. This will greatly improve reliability and reduce the chances of problems.

- The Strength of Stainless Steel:
The natural high tensile qualities of Stainless Steel greatly helps with increasing the joint ridged of the cylinder head with the cylinder block. This helps minimize the engine from warping when under severe stress loads that performance engines go through when running high power applications. The result is improved durability and added power gains.

- Maximum Seal:
With the increase in combustion pressure from performance engines in recent years, an enormous burden is placed on the head gasket. To maintain the highest precision possible in a high performance assembled engine strict measurements and maximum sealing Is required with the right torque values on each head studs and bolts are required to keep everything together to gain the most out of your engine.
When bolts are screwed into place, regardless of the bolt type and strength qualities of that bolt, the pressure is always on the first 3 threads of the screw which takes the most stress. If the cylinder block is badly distorted then the screw threads can be damaged as well. Stud bolts with dynamic designs allows the screw bolt to take on equal stress on all threads which will greatly secure maximum sealing pressure for race and airplane engines.

This kit includes RB26 Metal Head gasket and other manifold gaskets required. Also, attachment of oil gallery orifice at the time of replacing head gasket allows controlling the amount of oil to flow. Replacement of manifold gasket can gain strength and sealing characteristics. Tomei set the price of this kit as low as the price of one metal head gasket, and even including manifold gasket kit and oil gallery orifice. All the products in this kit are performance parts that can be used from overhaul to the tuning for the drag racing.

COMPATIBILITY NOTES:
- For RB26DETT engines.
Nissan Skyline GT-R BCNR33 RB26DETT (01/1995-01/1996)
Nissan Skyline GT-R BCNR33 RB26DETT (01/1996-02/1997)
Nissan Skyline GT-R BCNR33 RB26DETT (02/1997-05/1998)
Nissan Skyline GT-R BNR32 RB26DETT (02/1993-12/1994)
Nissan Skyline GT-R BNR32 RB26DETT (08/1989-08/1991)
Nissan Skyline GT-R BNR32 RB26DETT (08/1991-02/1993)
Nissan Skyline GT-R BNR34 RB26DETT (01/1999-08/2000)
Nissan Skyline GT-R BNR34 RB26DETT (08/2000-10/2000)
Nissan Skyline GT-R BNR34 RB26DETT (10/2000-08/2002)
Nissan Stagea WGNC34 RB26DETT (08/1998-09/2001)
Nissan Stagea WGNC34 RB26DETT (11/1997-07/1998)
