Protects the engine under the strong G-force on track!
During hard acceleration, deceleration and cornering, the sudden change in inertial forces will cause the oil to jump and move around too much. When this happens, the oil can move away from the oil pickup, which then in turn cuts oil supply to the engine. Keeps the oil from sloshing away from the oil pickup during hard cornering.

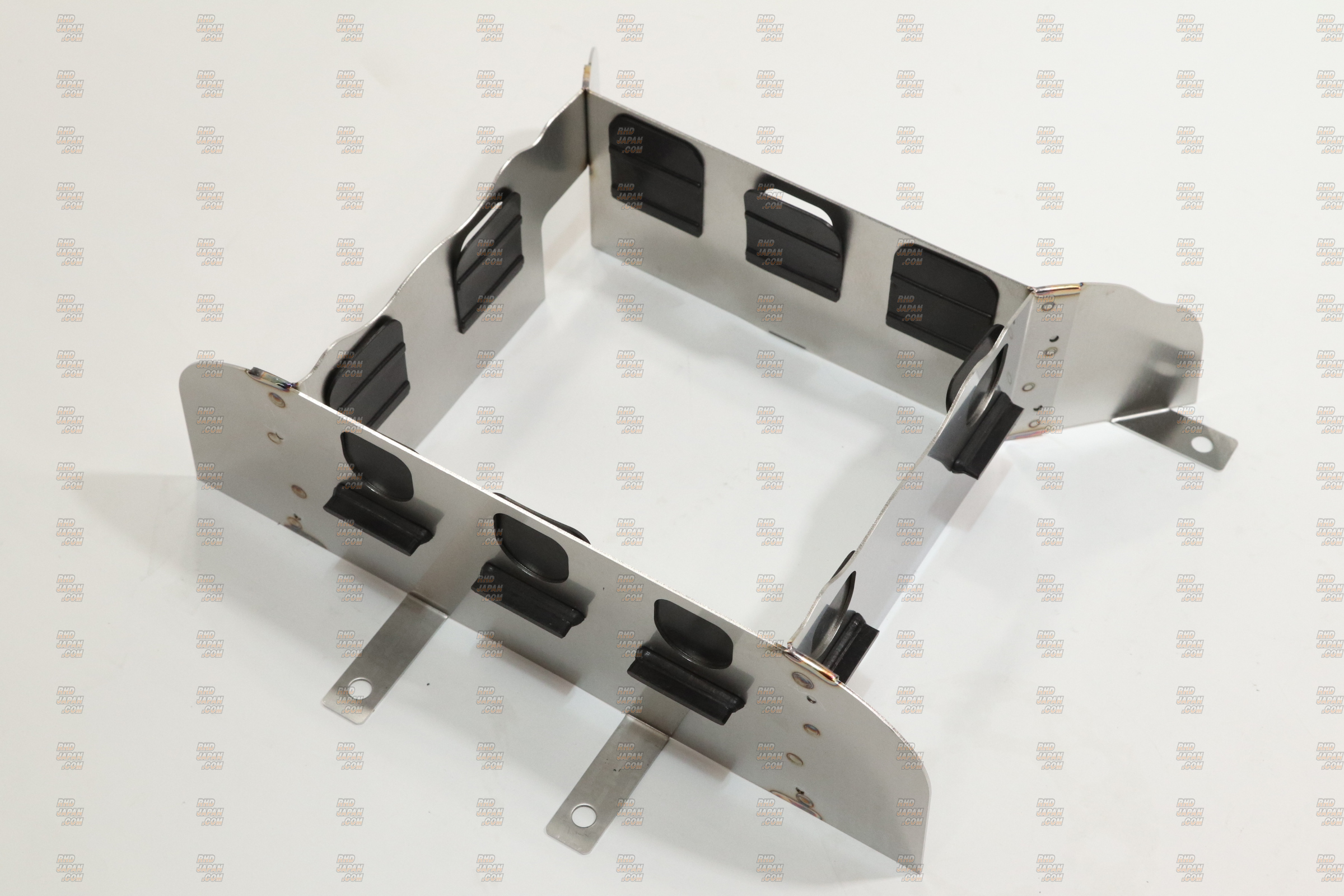

It allows the one way movement of oil and can keep it where the oil pickup is at all times by preventing oil deviation with the use of swing plates on hinges.
Designed based on the knowledge and experience acquired in Formula Drift series. It’s proven in real competition to increase reliability of the whole engine by helping to properly lubricate the engine at all times.
Get this and all your JDM at RHDJapan!!
During hard acceleration, deceleration and cornering, the sudden change in inertial forces will cause the oil to jump and move around too much. When this happens, the oil can move away from the oil pickup, which then in turn cuts oil supply to the engine. Keeps the oil from sloshing away from the oil pickup during hard cornering.
It allows the one way movement of oil and can keep it where the oil pickup is at all times by preventing oil deviation with the use of swing plates on hinges.
Designed based on the knowledge and experience acquired in Formula Drift series. It’s proven in real competition to increase reliability of the whole engine by helping to properly lubricate the engine at all times.
Get this and all your JDM at RHDJapan!!
Brand: Tomei
Product: Oil Pan Baffle Plate - JZS147 JZX100 JZX90
Part Num: 194008
SPECIFICATIONS:
Type: F2
Material: SUS304

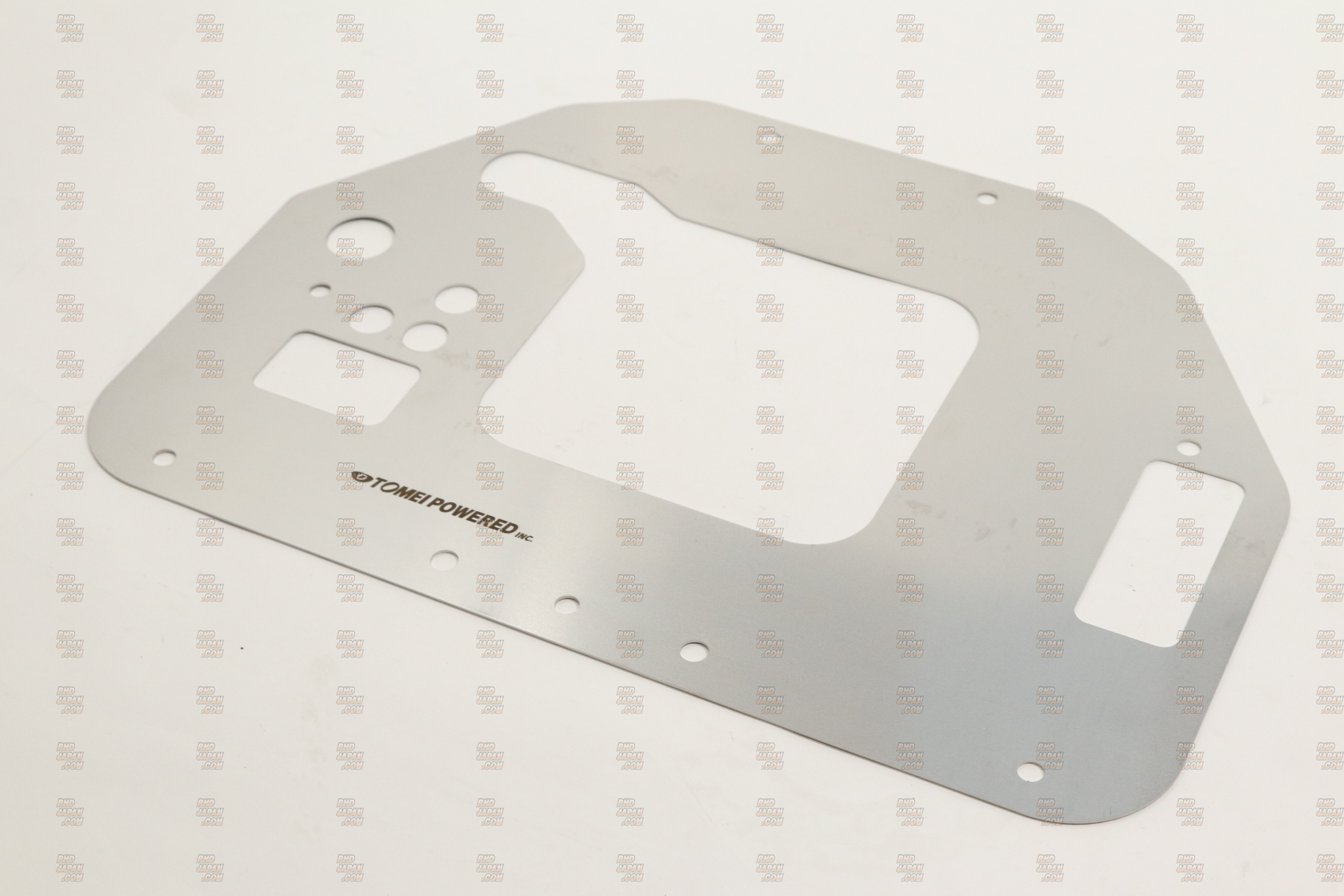

Upper Baffle Thickness: 1.2mm
Lower Baffle Thickness: 1.2mm
Weight:
- Upper: 490g
- Lower: 600g (Including rubber valve)
COMPATIBILITY NOTES:

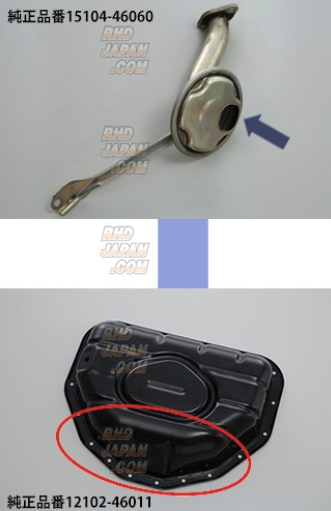

- This product has been designed to fit Toyota
P/N:12102-46011 (OIL PAN NO.2) and P/N: 15104-46060
(STRAINER ASSY) only.
（※This product only fits front sump models.）
Product: Oil Pan Baffle Plate - JZS147 JZX100 JZX90
Part Num: 194008
SPECIFICATIONS:
Type: F2
Material: SUS304
Upper Baffle Thickness: 1.2mm
Lower Baffle Thickness: 1.2mm
Weight:
- Upper: 490g
- Lower: 600g (Including rubber valve)
COMPATIBILITY NOTES:
- This product has been designed to fit Toyota
P/N:12102-46011 (OIL PAN NO.2) and P/N: 15104-46060
(STRAINER ASSY) only.
（※This product only fits front sump models.）
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota Aristo JZS147 2JZ-GE (10/1991-07/1994)
Toyota Aristo JZS147 2JZ-GE (08/1994-08/1997)
Toyota Aristo JZS147 2JZ-GTE (10/1991-07/1994)
Toyota Aristo JZS147 2JZ-GTE (08/1994-08/1997)
Toyota Crown Majesta JZS147 2JZ-GE (10/1991-08/1993)
Toyota Crown Majesta JZS147 2JZ-GE (08/1993-08/1995)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GE (09/1994-08/1996)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (09/1994-08/1996)
Toyota Aristo JZS147 2JZ-GE (10/1991-07/1994)
Toyota Aristo JZS147 2JZ-GE (08/1994-08/1997)
Toyota Aristo JZS147 2JZ-GTE (10/1991-07/1994)
Toyota Aristo JZS147 2JZ-GTE (08/1994-08/1997)
Toyota Crown Majesta JZS147 2JZ-GE (10/1991-08/1993)
Toyota Crown Majesta JZS147 2JZ-GE (08/1993-08/1995)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GE (09/1994-08/1996)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (09/1994-08/1996)
