Tomei Technical Trax Advance 2 Way LSD Type AXA with LSD Oil - R32 R33 S13 S14 S13 S14 A31 C33 C34
125089
JPY
TOMEI
SKU: 97606

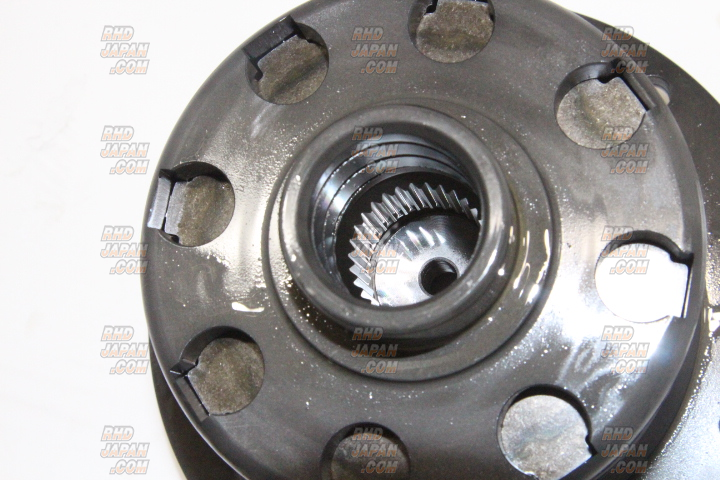

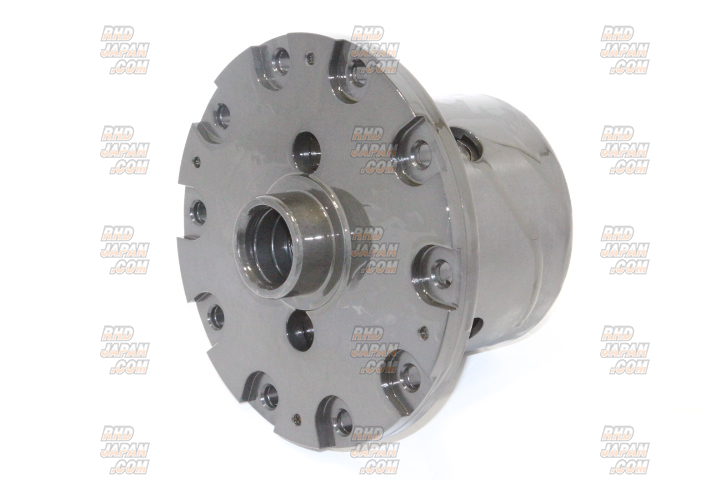

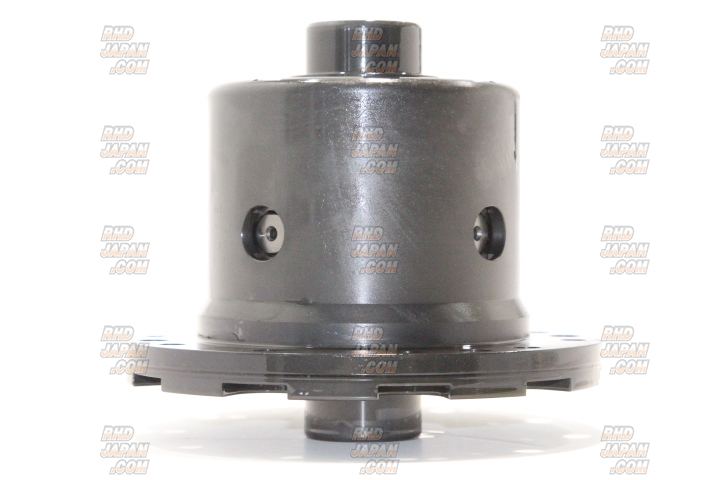

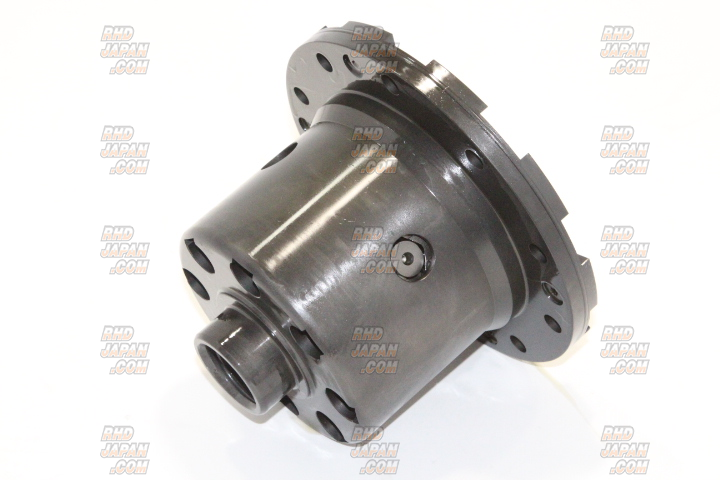

PN: 562016_2397204This is the most effective LSD unit available and has the best overall advantage in comparison with the other aftermarket products available today. Amazing penetrating angles at the time of Drift, with such persistence in the accuracy of line taking and all aspects of cornering, the T-TRAX ADVANCE shows amazing efficiency with the aggressive cam angles which is optimum for drifting. The friction clutch discs also have a larger surface area and, with the use of the coil spring discs and the high setting of initial torque, it is raised higher than any other brands in the market today.
Get this and all your JDM at RHDJapan!!
Get this and all your JDM at RHDJapan!!
Brand: Tomei
Product: Technical Trax Advance 2 Way LSD Type AXA with LSD Oil - R32 R33 S13 S14 S13 S14 A31 C33 C34
Part Number: 562016_2397204
SPECIFICATIONS:
Type: AXA
Included:
- T-Trax Advance 2 way LSD

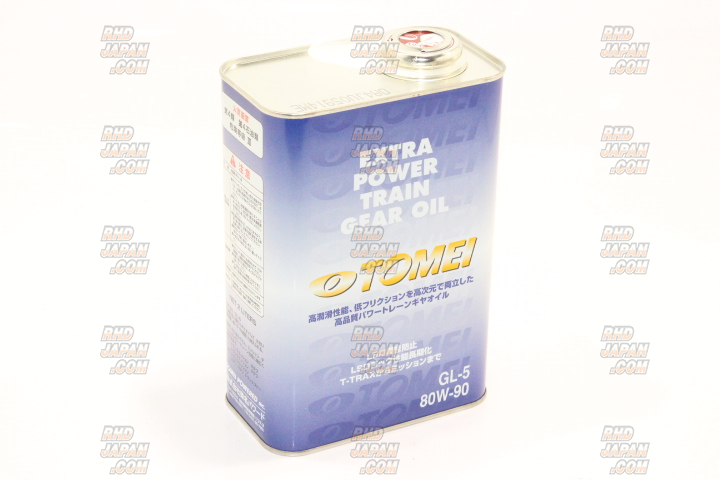

- 1L Low Friction High Grade Oil
- 1x Carrier Cover Gaskets
- 2x Bearings
- 2x Oil Seals
SPECIFICATIONS:
- PCD: 150
- Disc:
-- Ext Dia.: 106
-- No. (In Dia.): 8
-- No. (Ex Dia.): 8
-- Thickness: 1.7
- Spring:
-- No. Ex Teeth: OPT
-- No. In Teeth: OPT
-- No. Teeth N/A: 2
-- No. Teeth N/A Strengthening: N/A
- Size & No. of Ring Gear Bolts: 10-12
- No. of Serration Teeth: 29T
- Flange In Dia.: 32.0
- Initial Torque Pre Setting (kg.m): 16.5~18.5
- Super High Initial:
- Pressure Ring Cam Angle: 6060
COMPATIBILITY NOTES:
Only for The Following Vehicles mounting OEM Viscous type LSD:
- Skyline HR32, ER32
- Skyline HR33, ER33 before 12/96
- Silvia S13, PS13
- Silvia S14 NA before 12/96
- Silvia S14 Turbo AT before 12/96
- 180SX RS13 with Viscous type LSD
- 180SX RPS13 before 12/96
- Cefiro A31 2WD (EA31, ECA31 Only AT Vehicles)
- Laurel H(C)C33, Not compatible with HC33 mounting RB20E engine
- Laurel HC34, GC34Normally Aspirated AT before 12/96
- Laurel SC34 before 12/96
Product: Technical Trax Advance 2 Way LSD Type AXA with LSD Oil - R32 R33 S13 S14 S13 S14 A31 C33 C34
Part Number: 562016_2397204
SPECIFICATIONS:
Type: AXA
Included:
- T-Trax Advance 2 way LSD
- 1L Low Friction High Grade Oil
- 1x Carrier Cover Gaskets
- 2x Bearings
- 2x Oil Seals
SPECIFICATIONS:
- PCD: 150
- Disc:
-- Ext Dia.: 106
-- No. (In Dia.): 8
-- No. (Ex Dia.): 8
-- Thickness: 1.7
- Spring:
-- No. Ex Teeth: OPT
-- No. In Teeth: OPT
-- No. Teeth N/A: 2
-- No. Teeth N/A Strengthening: N/A
- Size & No. of Ring Gear Bolts: 10-12
- No. of Serration Teeth: 29T
- Flange In Dia.: 32.0
- Initial Torque Pre Setting (kg.m): 16.5~18.5
- Super High Initial:
- Pressure Ring Cam Angle: 6060
COMPATIBILITY NOTES:
Only for The Following Vehicles mounting OEM Viscous type LSD:
- Skyline HR32, ER32
- Skyline HR33, ER33 before 12/96
- Silvia S13, PS13
- Silvia S14 NA before 12/96
- Silvia S14 Turbo AT before 12/96
- 180SX RS13 with Viscous type LSD
- 180SX RPS13 before 12/96
- Cefiro A31 2WD (EA31, ECA31 Only AT Vehicles)
- Laurel H(C)C33, Not compatible with HC33 mounting RB20E engine
- Laurel HC34, GC34Normally Aspirated AT before 12/96
- Laurel SC34 before 12/96
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
