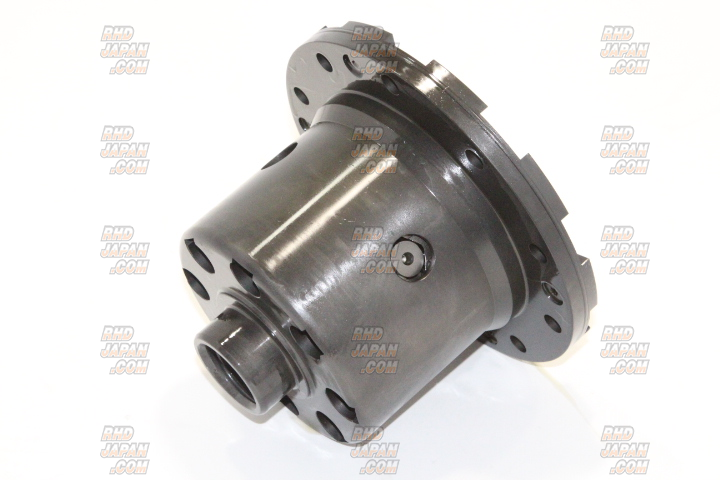

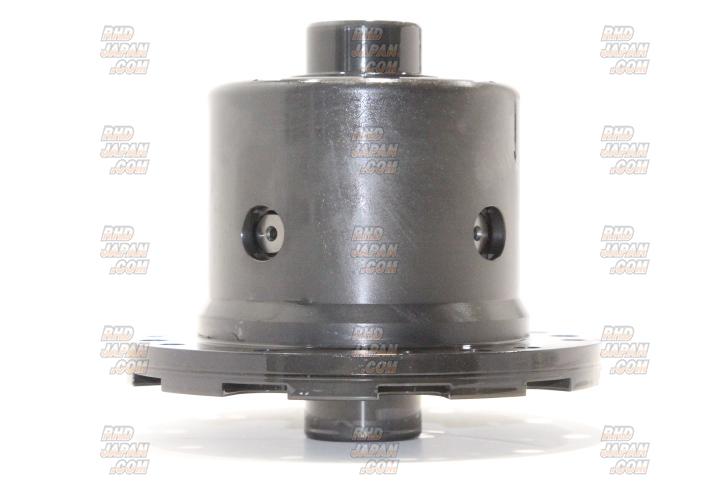

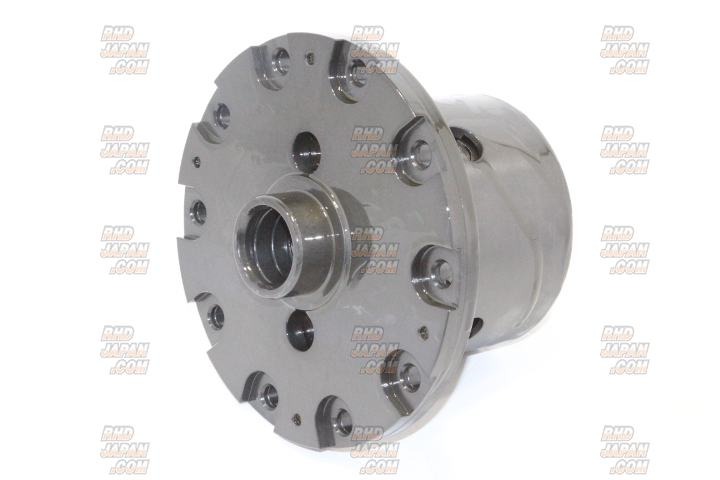

Tomei Technical Trax Advance 2 Way LSD Type CXA with LSD Oil - HCR32 ENR33 ECR33 S14 Z32 Y32 NA31 GC34 GNC34

Brand: Tomei
Product: Technical Trax Advance 2 Way LSD Type CXA with LSD Oil - HCR32 ENR33 ECR33 S14 Z32 Y32 NA31 GC34 GNC34
Part Number: 562017_2397207

SPECIFICATIONS:
Type: CXA
Included:
- T-Trax Advance 2 way LSD

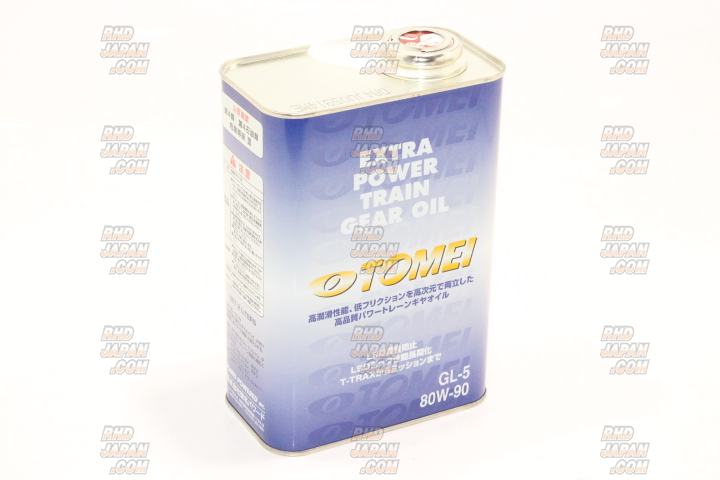

- 1L Low Friction High Grade Oil
- 1x Carrier Cover Gaskets
- 2x Bearings
- 2x Oil Seals

SPECIFICATIONS:
Model CXA:
- PCD: 150
- Disc:
-- Ext Dia.: 106
-- No. (In Dia.): 10
-- No. (Ex Dia.): 10
-- Thickness: 1.7
- Spring:
-- No. Ex Teeth: OPT
-- No. In Teeth: OPT
-- No. Teeth N/A: 2
-- No. Teeth N/A Strengthening: N/A
- Size & No. of Ring Gear Bolts: 10-13
- No. of Serration Teeth: 29T
- Flange In Dia.: 32.0
- Initial Torque Pre Setting (kg.m): 16.5~18.5
- Super High Initial:
- Pressure Ring Cam Angle: 6060

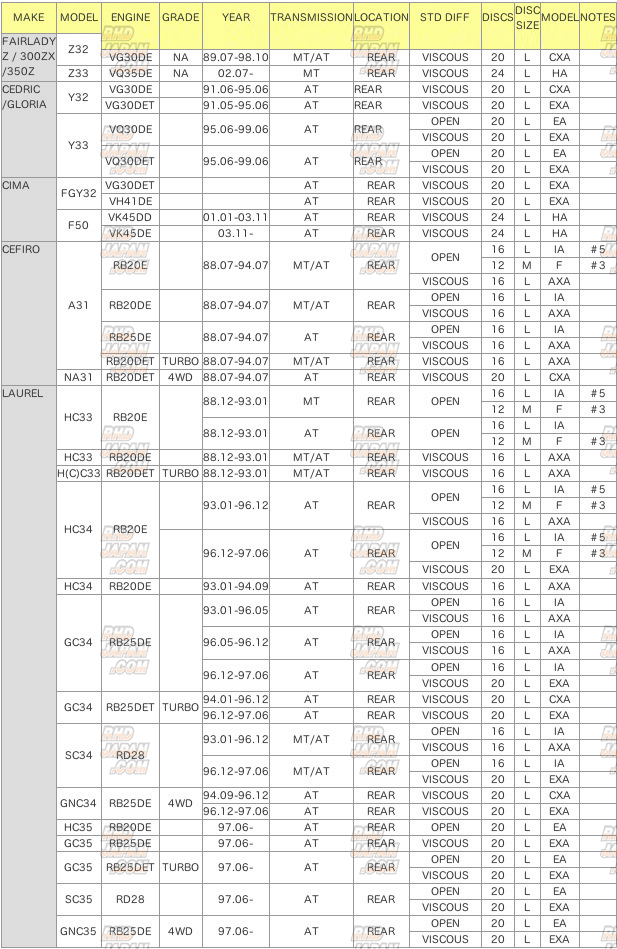

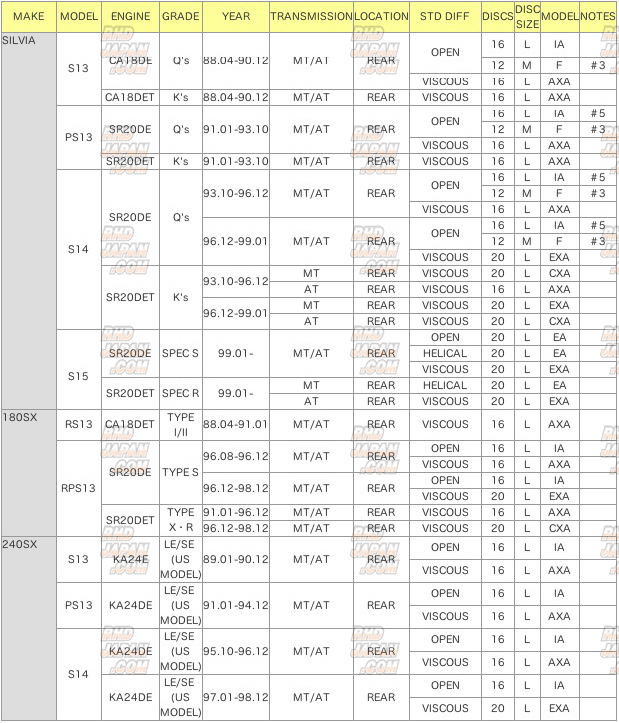

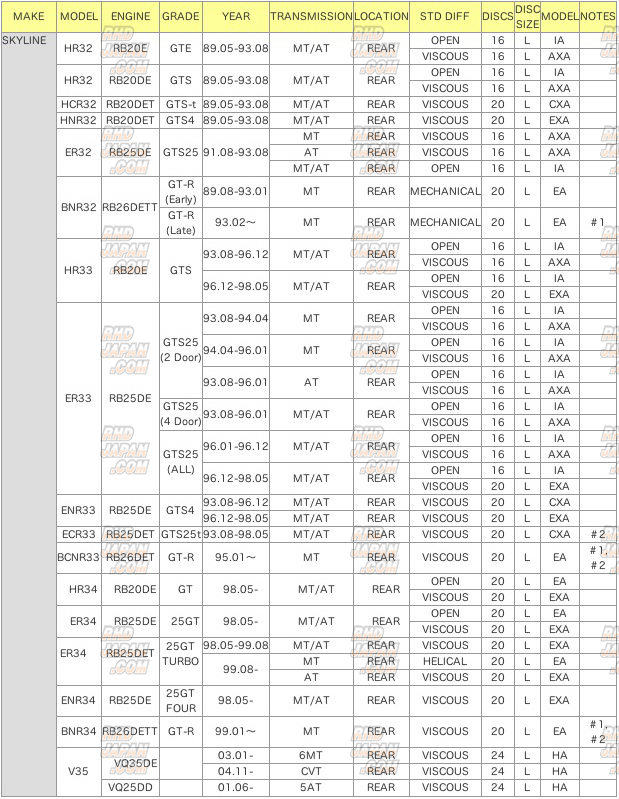

COMPATIBILITY NOTES:
Only for The Following Vehicles mounting OEM Viscous type LSD:
- Skyline HCR32
- Skyline ENR33 before 12/96
- Skyline ECR33 (except active LSD models).
- Silvia S14 Turbo MT before 12/96
- Silvia S14 Turbo AT after 12/96
- 180SX RPS13 Turbo after 12/96
- Fairlady Z Z32 NA
- Cedric/Gloria Y32 Only AT models with VG30DE engine
- Cefiro LNA31 Only 4WD AT models.
- Laurel GC34 Turbo before 12/96, Only AT models.
- Laurel GNC34 before 12/96, Only 4WD AT models.
