Tomei Technical Trax Advance 2 Way LSD Type HA Pro Kit - Z33 V35 Viscous

197509 JPY

TOMEI SKU: 97808 PN: 564001

This is the most effective LSD unit available and has the best overall advantage in comparison with the other aftermarket products available today. Amazing penetrating angles at the time of Drift, with such persistence in the accuracy of line taking and all aspects of cornering, the T-TRAX ADVANCE shows amazing efficiency with the aggressive cam angles which is optimum for drifting. The friction clutch discs also have a larger surface area and, with the use of the coil spring discs and the high setting of initial torque, it is raised higher than any other brands in the market today.
Get this and all your JDM at RHDJapan!!

Brand: Tomei
Product: Technical Trax Advance 2 Way LSD Type HA Pro Kit - Z33 V35
Part Number: 564001_2397462

SPECIFICATIONS:
Included:

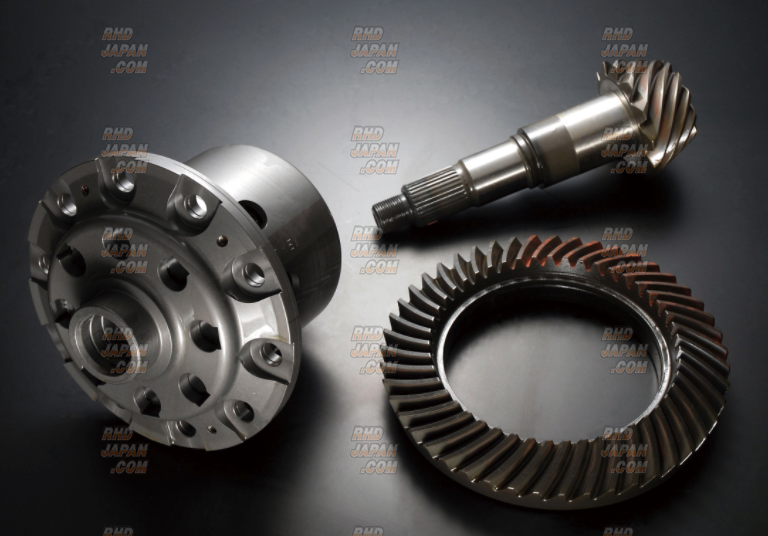

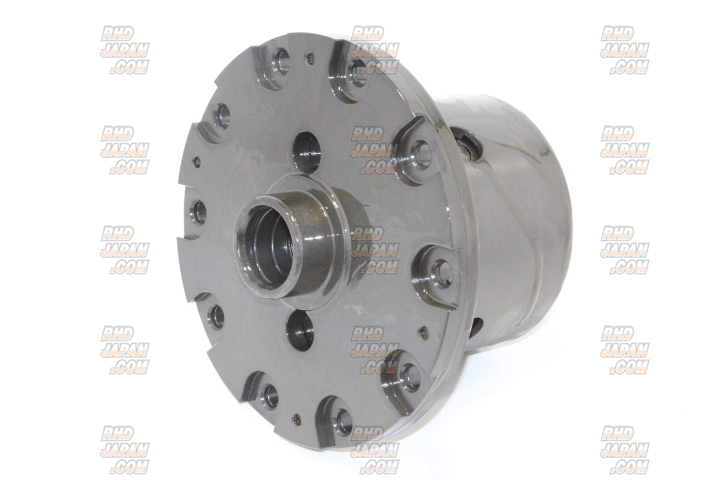

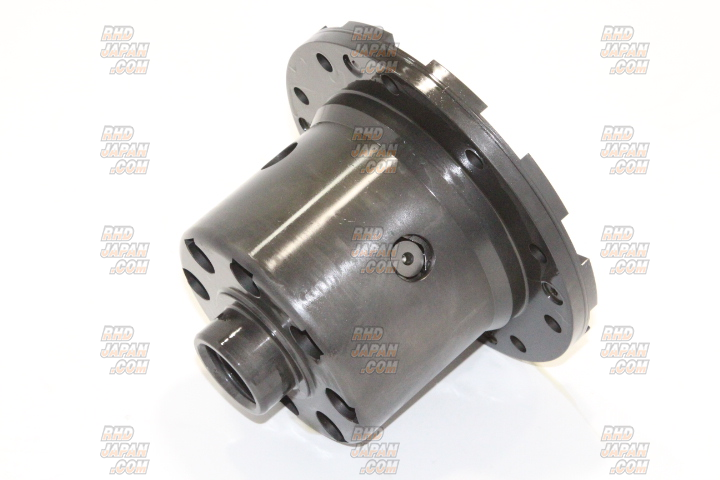

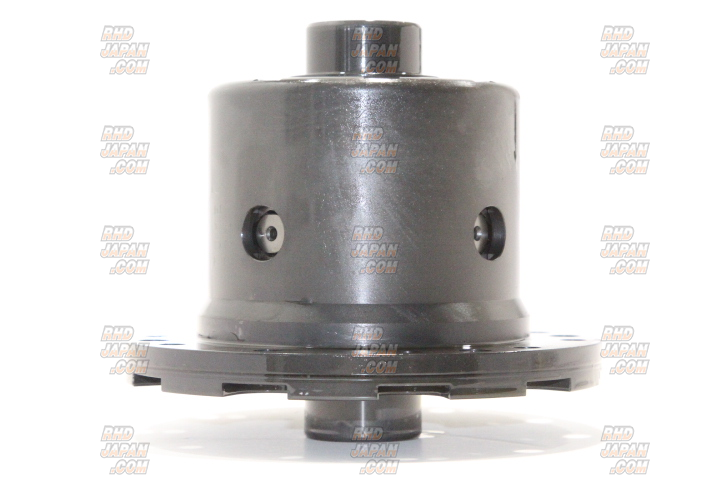

- 1x T-Trax Advance 2 way LSD

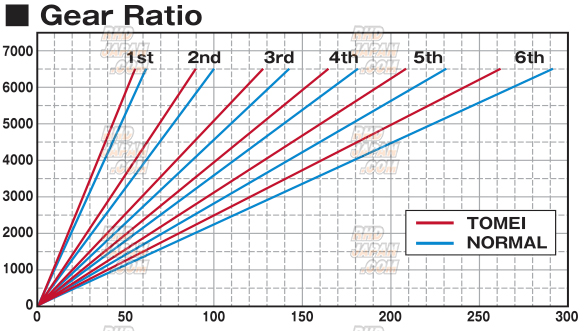

- 1x 3.9:1 Final Gear
- 2x Collapsible Spacer

SPECIFICATIONS:
- PCD: 150
- Disc:
-- Ext Dia.: 106
-- No. (In Dia.): 12
-- No. (Ex Dia.): 12
-- Thickness: 1.7
- Spring:
-- No. Ex Teeth: OPT
-- No. In Teeth: OPT
-- No. Teeth N/A: 2
-- No. Teeth N/A Strengthening: N/A
- Size & No. of Ring Gear Bolts: 10-13

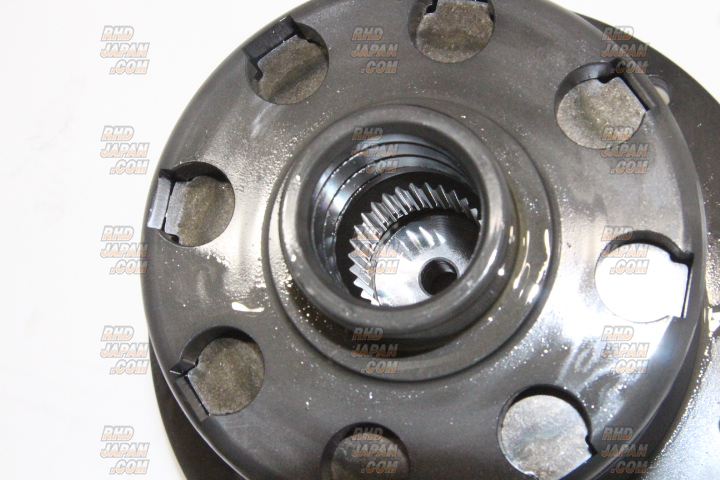

- No. of Serration Teeth: 31T
- Flange In Dia.: 33.0
- Initial Torque Pre Setting (kg.m): 16.5~18.5
- Super High Initial:
- Pressure Ring Cam Angle: 6060

COMPATIBILITY NOTES:
Only for The Following Vehicles mounting OEM Viscous type LSD:
- Skyline V35 with VQ35DE Engine.
- Fairlady Z Z33 with VQ35DE Engine.

Compatibility

Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.

Nissan Fairlady Z Z33 VQ35DE (07/2002-08/2004)
Nissan Fairlady Z Z33 VQ35DE (09/2004-08/2005)
Nissan Fairlady Z Z33 VQ35DE (09/2005-01/2007)
Nissan Skyline Coupe CPV35 VQ35DE (01/2003-10/2004)
Nissan Skyline Coupe CPV35 VQ35DE (11/2004-09/2007)
Nissan Skyline Sedan PV35 VQ35DE (06/2001-12/2002)
Nissan Skyline Sedan PV35 VQ35DE (01/2003-10/2004)
Nissan Skyline Sedan PV35 VQ35DE (11/2004-08/2007)
