Tomei Technical Trax Advance 2 Way LSD with LSD Oil Type TAA - GA70 MA70 JZA70 GX71 GX81 JZX90 JZX10# JZX110 GRX12# MZ2# GZ20 - RHDJapan

Tomei Technical Trax Advance 2 Way LSD with LSD Oil Type TAA - GA70 MA70 JZA70 GX71 GX81 JZX90 JZX10# JZX110 GRX12# MZ2# GZ20

135439 JPY
TOMEI SKU: 146274 PN: 562041
Images used may be generic. Actual product may vary.


List Price: ¥158,400

Sale Price: ¥135,439

You Save: ¥22,961


This is the most effective LSD unit available and has the best overall advantage in comparison with the other aftermarket products available today. Amazing penetrating angles at the time of Drift, with such persistence in the accuracy of line taking and all aspects of cornering, the T-TRAX ADVANCE shows amazing efficiency with the aggressive cam angles which is optimum for drifting. The friction clutch discs also have a larger surface area and, with the use of the coil spring discs and the high setting of initial torque, it is raised higher than any other brands in the market today.
Get this and all your JDM at RHDJapan!!
Brand: Tomei
Product: Technical Trax Advance 2 Way LSD with LSD Oil - GA70 MA70 JZA70 GX71 GX81 JZX90 JZX10# JZX110 GRX12# MZ2# GZ20
Part Num: 562041

SPECIFICATIONS:

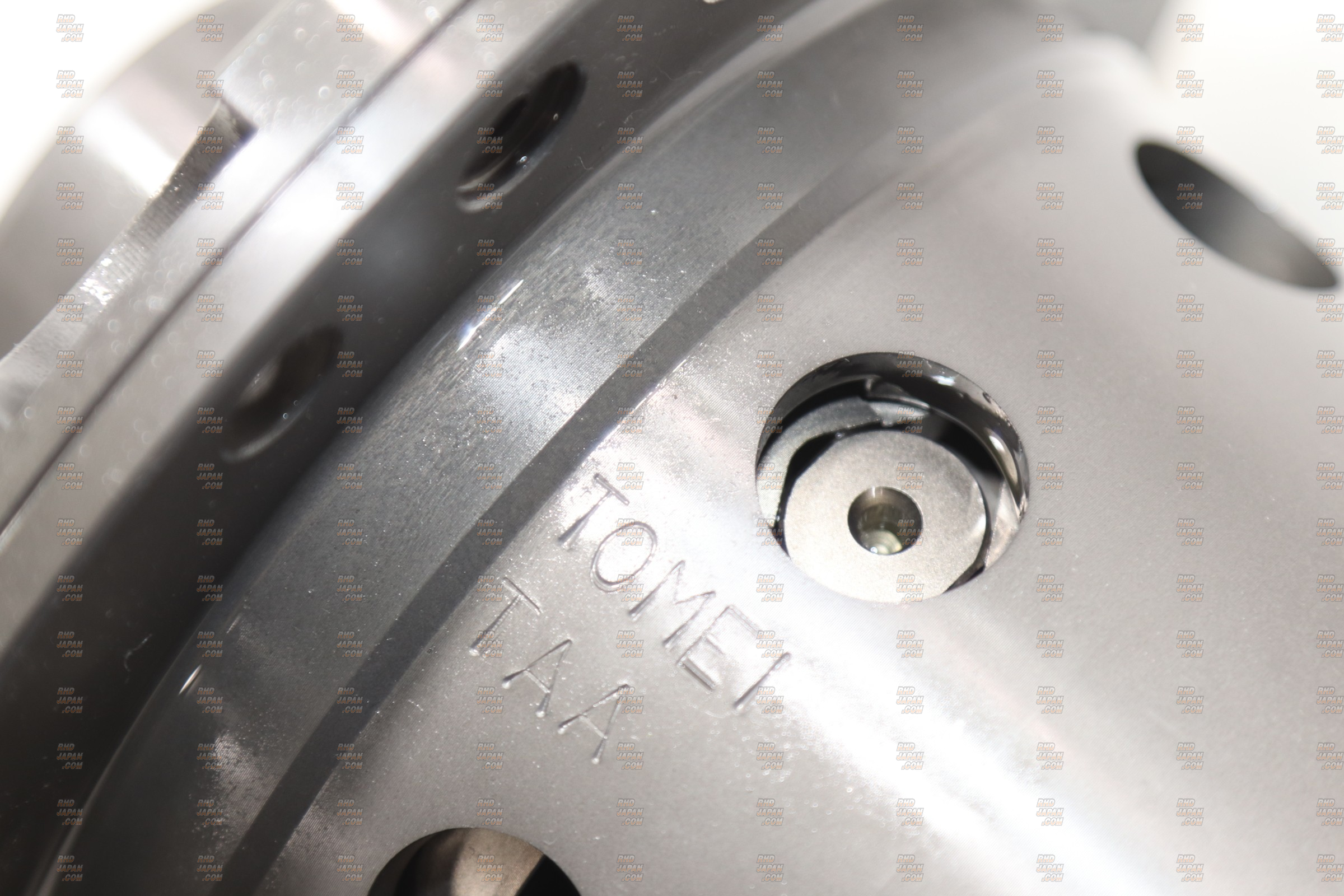

Type: TAA

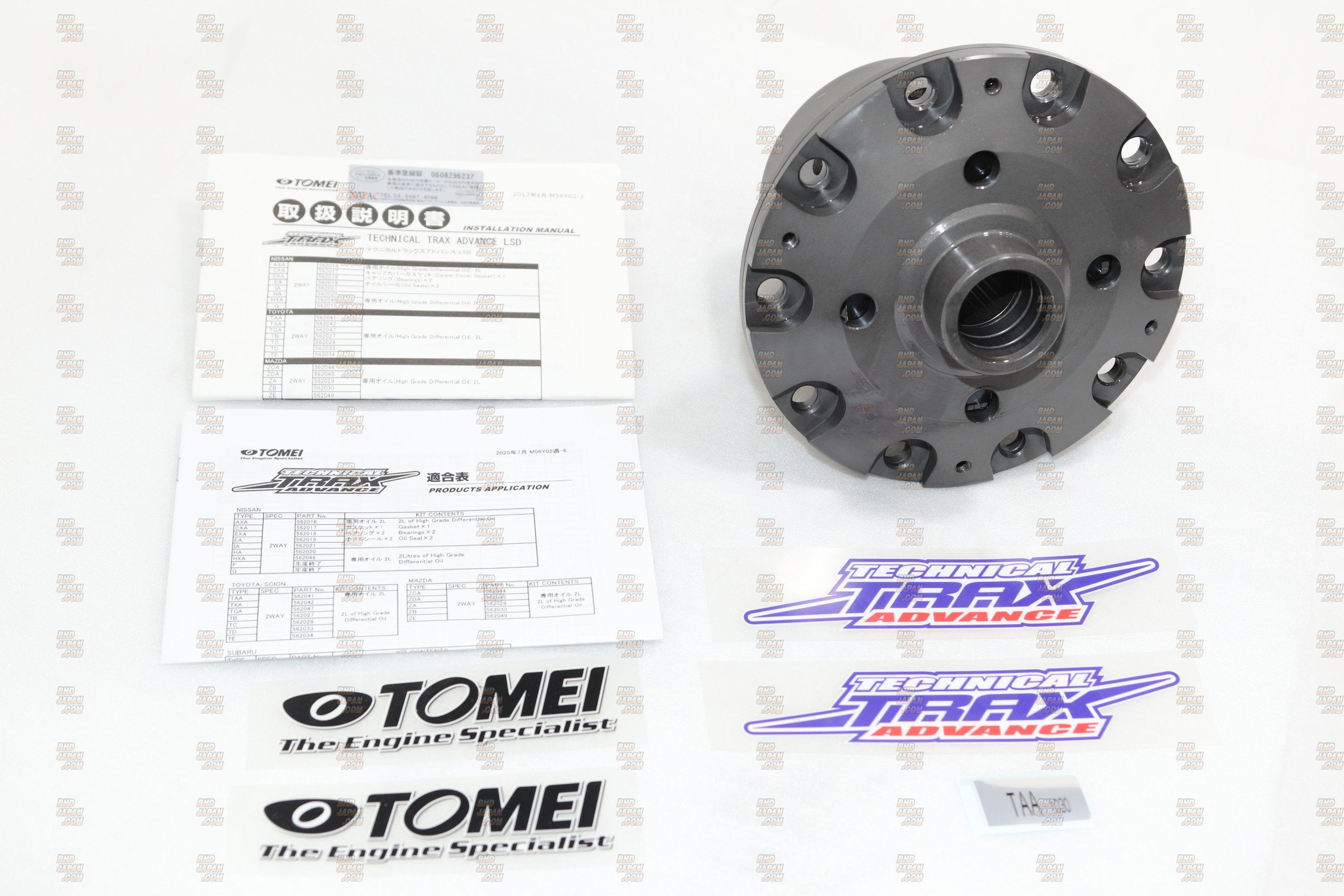

The kit Contains:

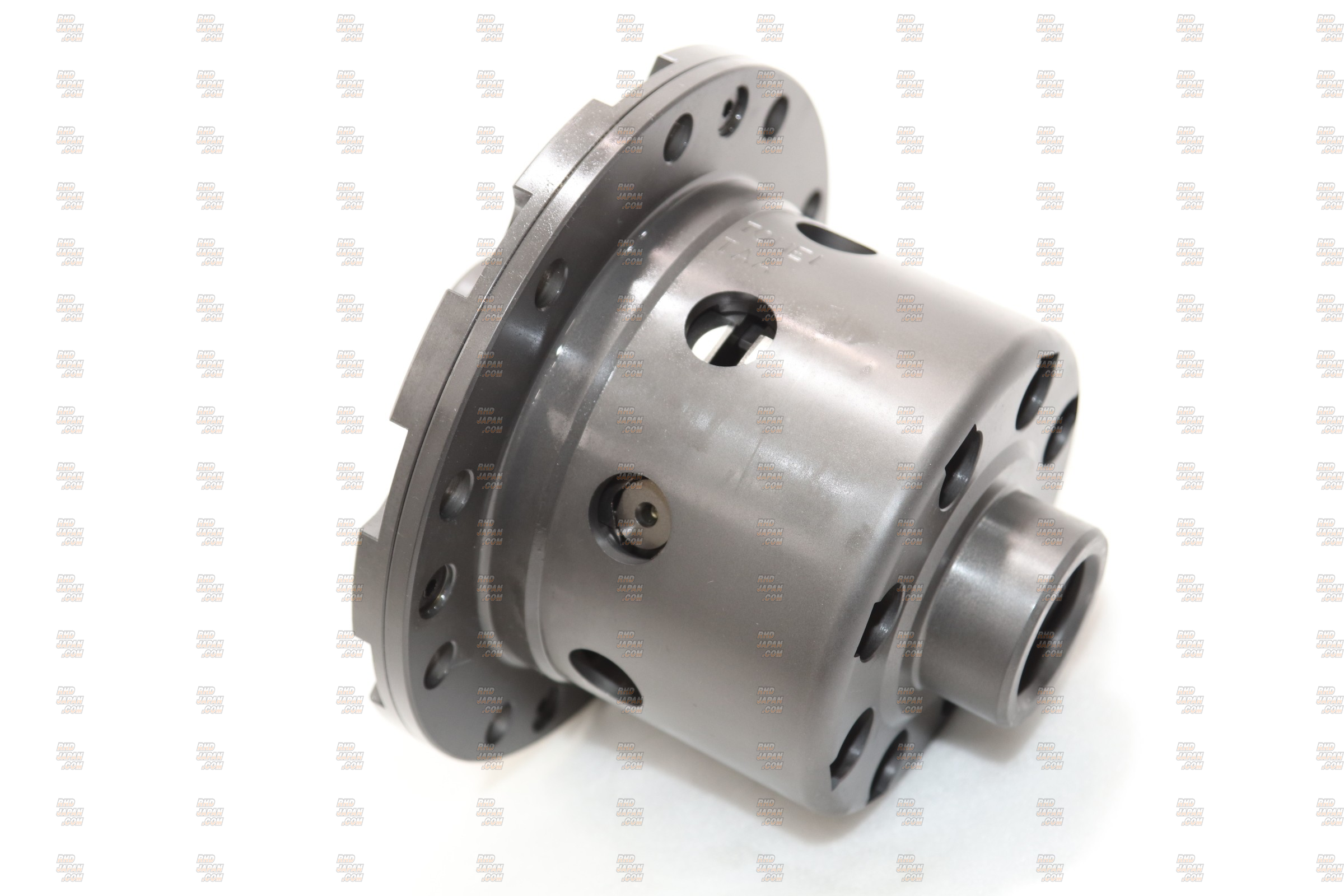

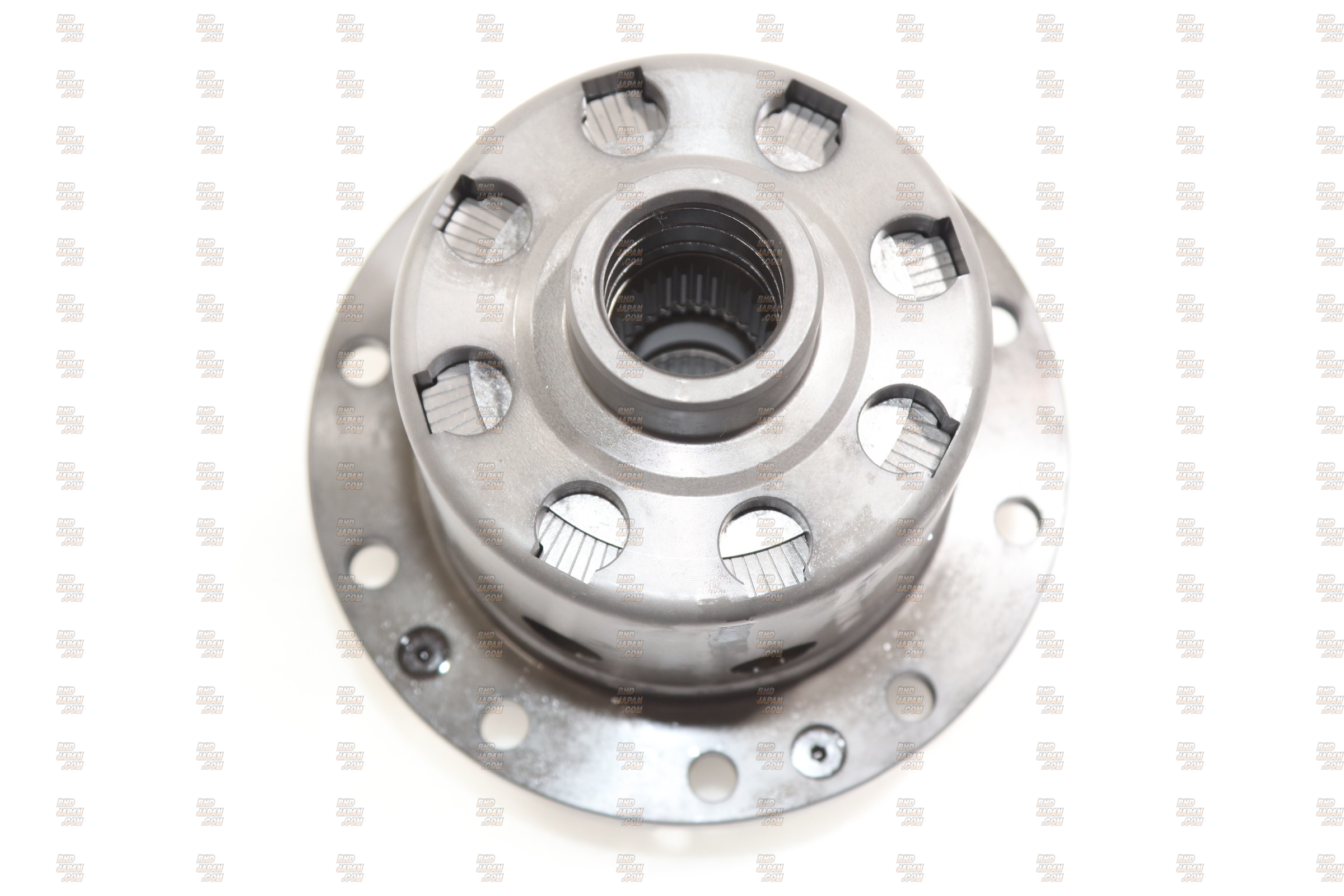

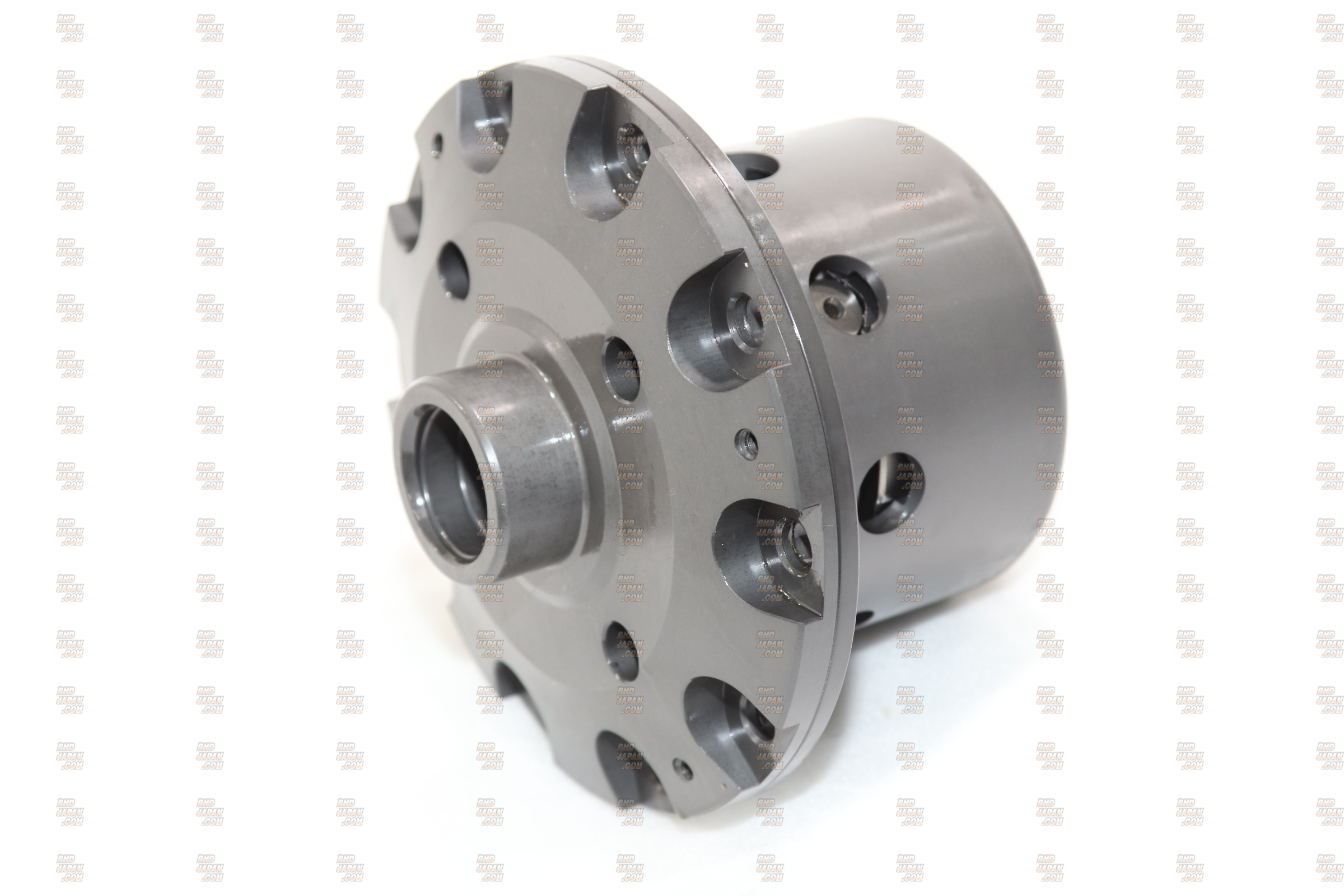

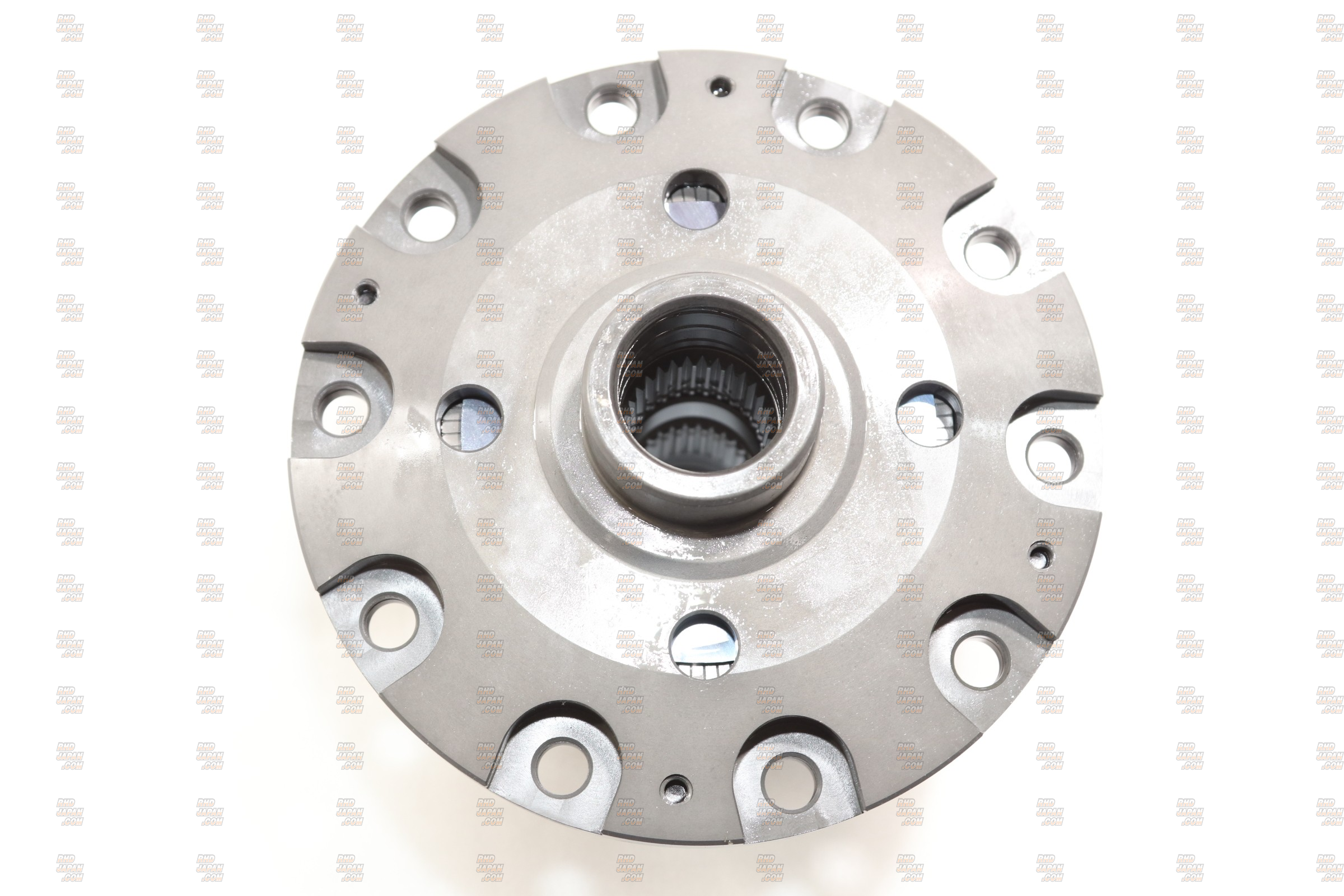

- T-Trax Advance 2 way LSD

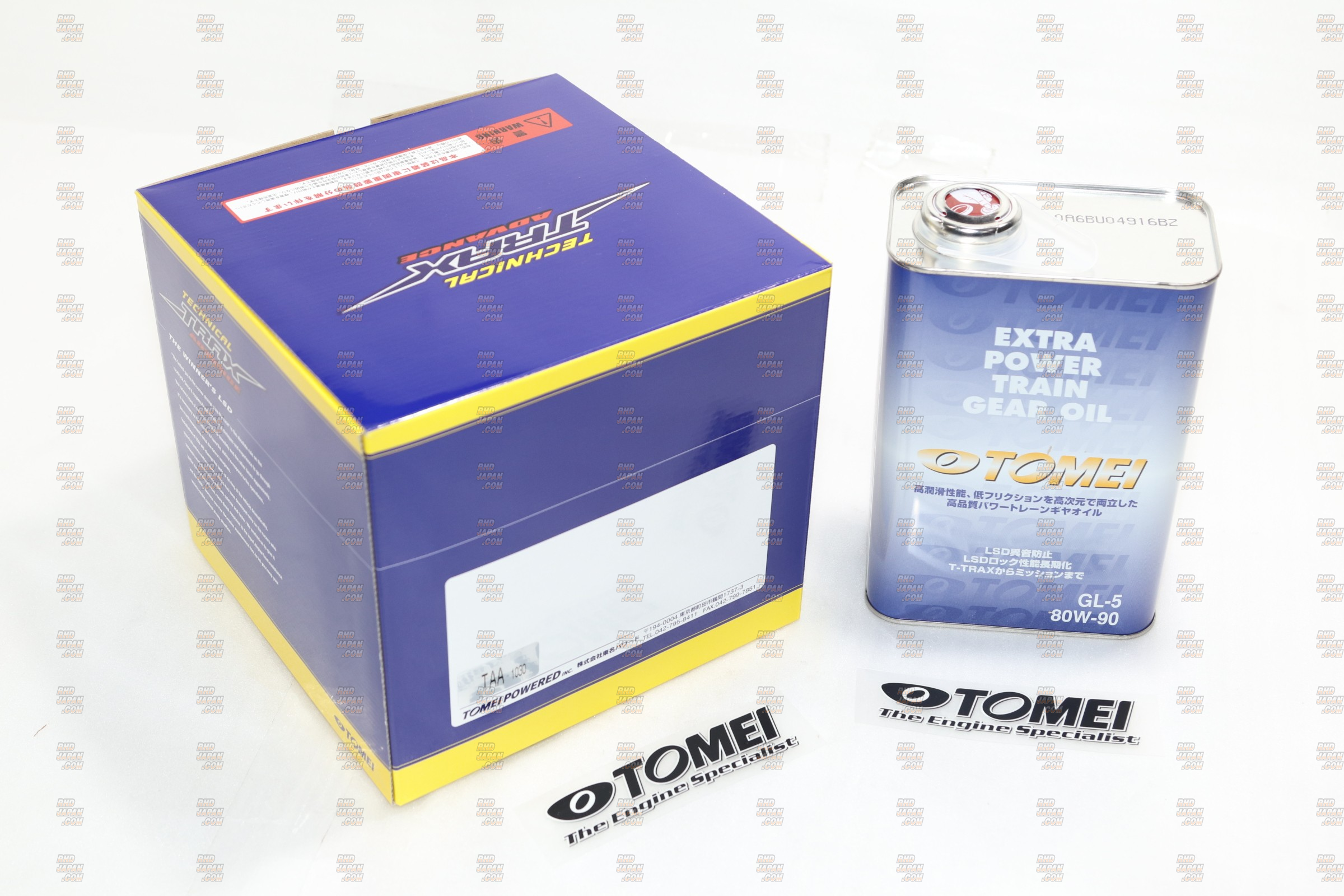

- 2L Low Friction High Grade Oil
PCD: 160
Disc:
- Ext Dia.: 106
- No. (In Dia.): 8
- No. (Ex Dia.): 8
- Thickness: 1.7
Spring:
- No. Ex Teeth: OPT
- No. In Teeth: OPT
- No. Teeth N/A: 2
- No. Teeth N/A Strengthening: N/A
Size & No. of Ring Gear Bolts: 10-11
No. of Serration Teeth: 30T
Flange In Dia.: 35.0
Initial Torque Pre Setting (kg.m): 16.5~18.5
Super High Initial:
Pressure Ring Cam Angle: 6060

COMPATIBILITY NOTES:
- Supra GA70 after 8/90 with Open type LSD. Only vehicles with 1G-GE and 1G-GTE Engines.
- Supra MA70, JZA70 with Open type LSD.
- Mark II/Chaser/Cresta GX71 with Open type LSD. Only vehicles with 1G-GTE Engine.
- Mark II/Chaser/Cresta GX81 with LSD type LSD. Only vehicles with 1G-GTE Engine.
- Mark II/Chaser/Cresta JZX81 with Open type LSD. Only vehicles with 1G-GTE Engine.
- Mark II/Chaser/Cresta JZX90 with Open type LSD. Only vehicles with 1G-GTE Engine.
- Mark II/Chaser/Cresta JZX100 (1JZ-GE) AT after 8/97 with Open type LSD. Only Tourer S Grade
- Mark II/Chaser/Cresta JZX100 (1JZ-GTE) with Open type LSD. Only Tourer V Grade
- Mark II/Chaser/Cresta JZX101 AT after 8/97 with Open type LSD.
- Mark II JZX110 iR-V with Open type LSD. Only vehicles with 1JZ-GTE Engine.
- Mark II JZX110 G-tb with Open type LSD. Only vehicles with 1JZ-GTE Engine.
- Mark X GRX120, GRX121 with Open type LSD. Only AT vehicles.
- Soarer MZ20, MZ21 with Open type LSD.
- Soarer GZ20 before 7/88 with Open type LSD. Only vehicles with 1G-GTE Engine.
- Soarer GZ20 after 7/88 with LSD type LSD. Only MT vehicles with 1G-GTE Engine.
- Soarer GZ20 after 7/88 with Open type LSD. Only AT vehicles with 1G-GTE Engine.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.

Toyota Mark II JZX110 1JZ-GTE (10/2000-09/2002)
Toyota Mark II JZX110 1JZ-GTE (10/2002-10/2004)
Toyota Mark II/Chaser/Cresta GX71 1G-GTEU (10/1985-07/1986)
Toyota Mark II/Chaser/Cresta GX71 1G-GTEU (08/1986-08/1988)
Toyota Mark II/Chaser/Cresta GX81 1G-GTE (08/1988-07/1990)
Toyota Mark II/Chaser/Cresta GX81 1G-GZE (08/1988-07/1990)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX100 1JZ-GTE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX101 2JZ-GE (09/1996-07/1998)
Toyota Mark II/Chaser/Cresta JZX101 2JZ-GE (08/1998-09/2000)
Toyota Mark II/Chaser/Cresta JZX81 1JZ-GTE (08/1990-09/1992)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (10/1992-08/1994)
Toyota Mark II/Chaser/Cresta JZX90 1JZ-GTE (09/1994-08/1996)
Toyota Mark X GRX120 4GR-FSE (11/2004-09/2006)
Toyota Mark X GRX120 4GR-FSE (10/2006-10/2009)
Toyota Mark X GRX121 3GR-FSE (11/2004-09/2006)
Toyota Mark X GRX121 3GR-FSE (10/2006-10/2009)
Toyota Mark X GRX125 4GR-FSE (11/2004-09/2006)
Toyota Mark X GRX125 4GR-FSE (10/2006-10/2009)
Toyota Soarer GZ20 1G-E (01/1986-12/1986)
Toyota Soarer GZ20 1G-E (01/1987-01/1989)
Toyota Soarer GZ20 1G-FE (01/1986-12/1986)
Toyota Soarer GZ20 1G-FE (01/1987-04/1991)
Toyota Soarer GZ20 1G-GE (01/1986-12/1986)
Toyota Soarer GZ20 1G-GE (01/1987-04/1991)
Toyota Soarer GZ20 1G-GTE (01/1986-12/1986)
Toyota Soarer GZ20 1G-GTE (01/1987-04/1991)
Toyota Soarer MZ20 7M-GTE (01/1986-12/1986)
Toyota Soarer MZ20 7M-GTE (01/1987-04/1991)
Toyota Soarer MZ21 7M-GTE (01/1986-12/1986)
Toyota Soarer MZ21 7M-GTE (01/1987-04/1991)
Toyota Supra GA70 1G-GE (08/1990-04/1993)
Toyota Supra GA70 1G-GTE (05/1986-07/1990)
Toyota Supra GA70 1G-GTE (08/1990-04/1993)
Toyota Supra JZA70 1JZ-GTE (08/1990-04/1993)
Toyota Supra MA70 7M-GTE (02/1986-08/1988)
Toyota Supra MA70 7M-GTE (08/1988-08/1989)
Toyota Supra MA70 7M-GTE (08/1989-08/1990)
Toyota Verossa JZX110 1JZ-FSE (07/2001-11/2004)
Toyota Verossa JZX110 1JZ-GTE (07/2001-11/2004)
