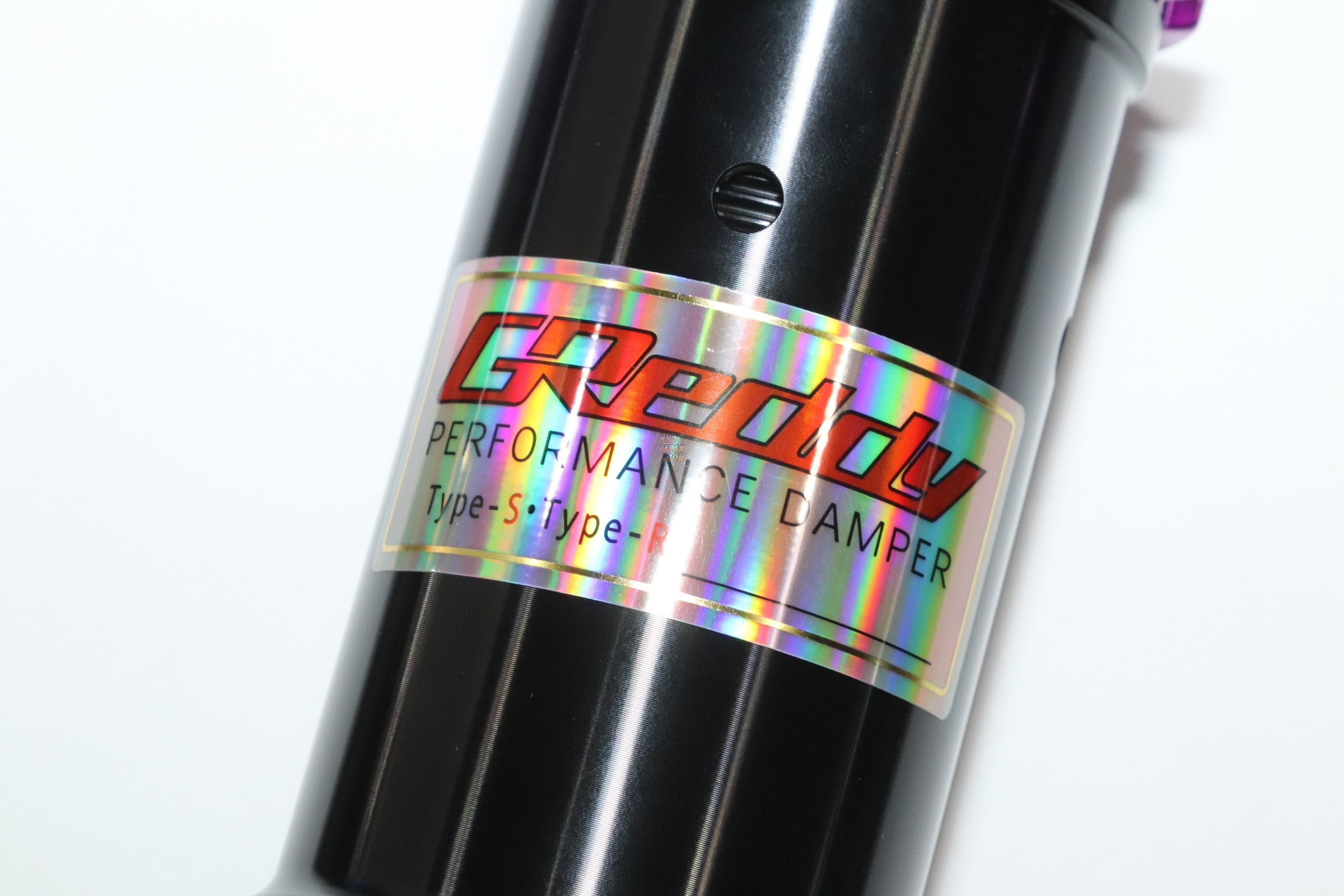

Trust Greddy Performance Damper Type-S Suspension - FD3S
TRUST GREDDY SKU: 110641 PN: 14042201 (MZ-PD-001)This series of suspension has been developed and produced as a full spec damper set for all around applications. High quality construction and materials with full tap adjustments with wide range adjustable ride height coupled with the highest level of damper adjustment allows for ultimate choice in dialing in the fine tuning of suspension specs.
From street to circuit applications these are designed to provide the optimum balance of handling, adjustability, comfort and weight. To overcome the the downfall on bumpy roads and normal driving associated with many other full spec kits this system implements a softer spring with a longer stroke to maximize traction and comfort whether cruising or racing.
Get this and all your JDM at RHDJapan!!
From street to circuit applications these are designed to provide the optimum balance of handling, adjustability, comfort and weight. To overcome the the downfall on bumpy roads and normal driving associated with many other full spec kits this system implements a softer spring with a longer stroke to maximize traction and comfort whether cruising or racing.
Get this and all your JDM at RHDJapan!!
Brand: Trust Greddy
Product: Performance Damper Type-S - FD3S
Part Number: 14042201 (MZ-PD-001)
SPECIFICATIONS:
Version: Type-S
Adjustability Steps: 32
Ride Height Adjustment Range (mm):
- Front: -63 ~ 0
- Rear: -56 ~ -0
Recommended Ride Height Setting (mm):
- Front: -6
- Rear: -22
Spring Rate (kg/mm):
- Front: 10
- Rear: 8
Spring Length (mm):
- Front: 200
- Rear: 200
Upper Mount Type
- Front: Strengthened Rubber
- Rear: Strengthened Rubber
Product: Performance Damper Type-S - FD3S
Part Number: 14042201 (MZ-PD-001)
SPECIFICATIONS:
Version: Type-S
Adjustability Steps: 32
Ride Height Adjustment Range (mm):
- Front: -63 ~ 0
- Rear: -56 ~ -0
Recommended Ride Height Setting (mm):
- Front: -6
- Rear: -22
Spring Rate (kg/mm):
- Front: 10
- Rear: 8
Spring Length (mm):
- Front: 200
- Rear: 200
Upper Mount Type
- Front: Strengthened Rubber
- Rear: Strengthened Rubber
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Mazda RX-7 FD3S Type I 13B-REW (12/1991-09/1994)
Mazda RX-7 FD3S Type II 13B-REW (09/1994-03/1995)
Mazda RX-7 FD3S Type III 13B-REW (09/1994-01/1996)
Mazda RX-7 FD3S Type IV 13B-REW (01/1996-12/1998)
Mazda RX-7 FD3S Type V 13B-REW (01/1999-09/2000)
Mazda RX-7 FD3S Type VI 13B-REW (10/2000-08/2002)
Mazda RX-7 FD3S Type I 13B-REW (12/1991-09/1994)
Mazda RX-7 FD3S Type II 13B-REW (09/1994-03/1995)
Mazda RX-7 FD3S Type III 13B-REW (09/1994-01/1996)
Mazda RX-7 FD3S Type IV 13B-REW (01/1996-12/1998)
Mazda RX-7 FD3S Type V 13B-REW (01/1999-09/2000)
Mazda RX-7 FD3S Type VI 13B-REW (10/2000-08/2002)
