Works Bell Short Boss Kit for Rapfix - Mazda 902S

Brand: Works Bell
Product: Short Boss Kit for Rapfix - Mazda 902S
Part Num: 902S

SPECIFICATIONS:
Material: Billet Aluminum
Length (mm): 40
Length in comparison to standard Boss KIt (mm): -12

COMPATIBILITY NOTES:
- Momo Steering Wheel Pitch
- Same Vehicle compatibility as standard Boss Kit 902
- AZ-3 EC5 without Airbag
- Bongo S Series without Airbag
- Capella GC/GD without Airbag
- Clef GE5P without Airbag
- Chronos GE8P without Airbag
- Cosmo HB/HC without Airbag
- Eunos 100 BG5~8 without Airbag
- Eunos 300 MA Series without Airbag
- Eunos 500 GEEP without Airbag
- Eunos 800 TA3~5 without Airbag before 5/96
- Eunos Cosmo JC Series without Airbag. not compatible with ACC, SSR and side Coupler type
- Familia BD/BF without Airbag
- Familia BG3~8 without Airbag
- Familia BHA without Airbag
- Festiva MiniWagon/Demio DA/D25 without Airbag
- Lantis CBA without Airbag
- Luce HB/HC without Airbag
- MX-6 GE without Airbag
- MS-6 GE without Airbag
- MS-9 HD Series without Airbag. Not compatible with ACC or Side Coupler type
- MPV LV Series without Airbag before 11/95
- Persona MAEP without Airbag
- Presso EC8S without Airbag
- Proceed UV/F66 without Airbag
- Proceed Marvie UV/UF without Airbag
- Revue DE3~5 without Airbag
- Roadster NA6C/NA8C without Airbag
- RX-7 SA22C Kouki without Airbag

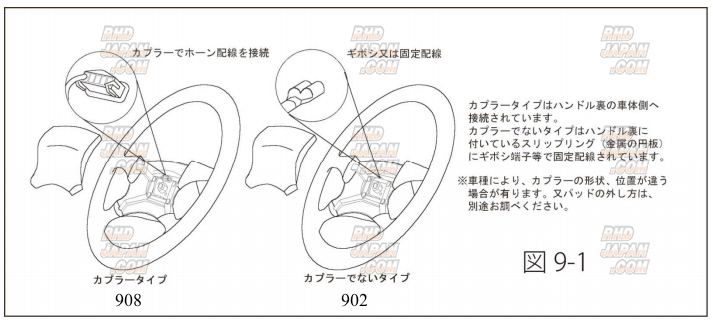

- RX-7 FD3S without Airbag and without coupler on the horn button wire.

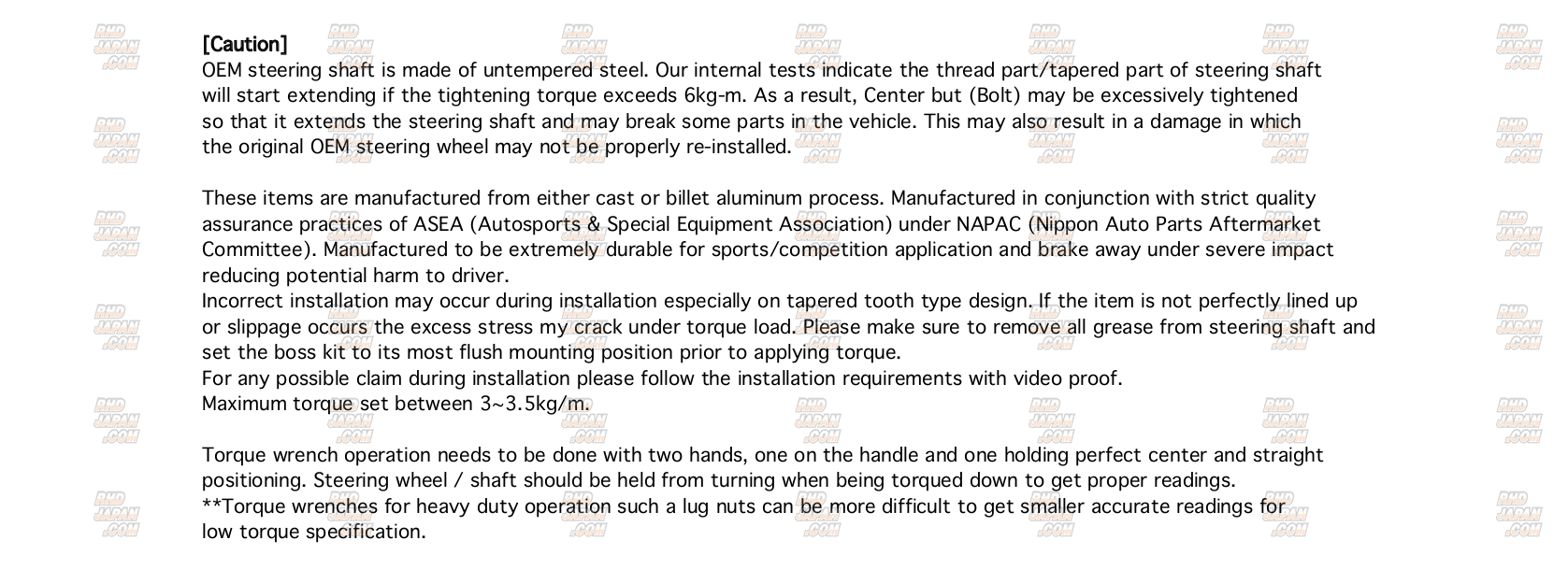

INSTALLATION NOTE:
These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.

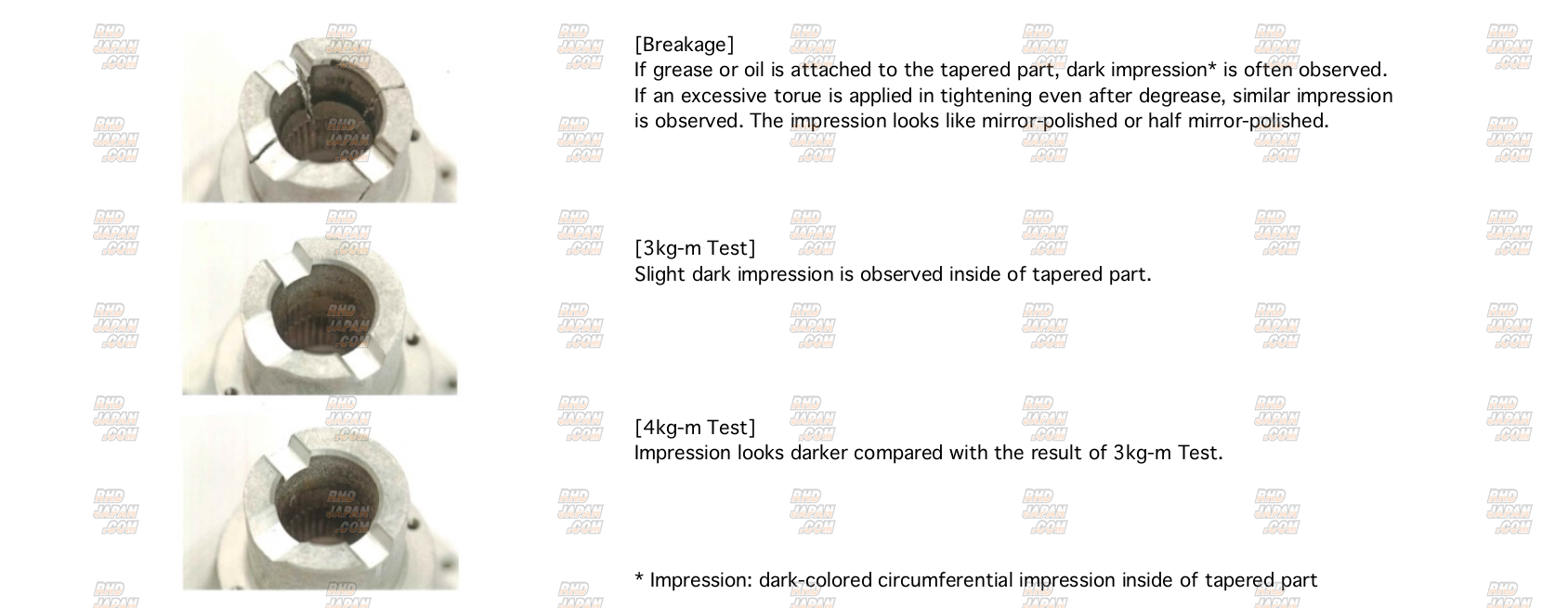

Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

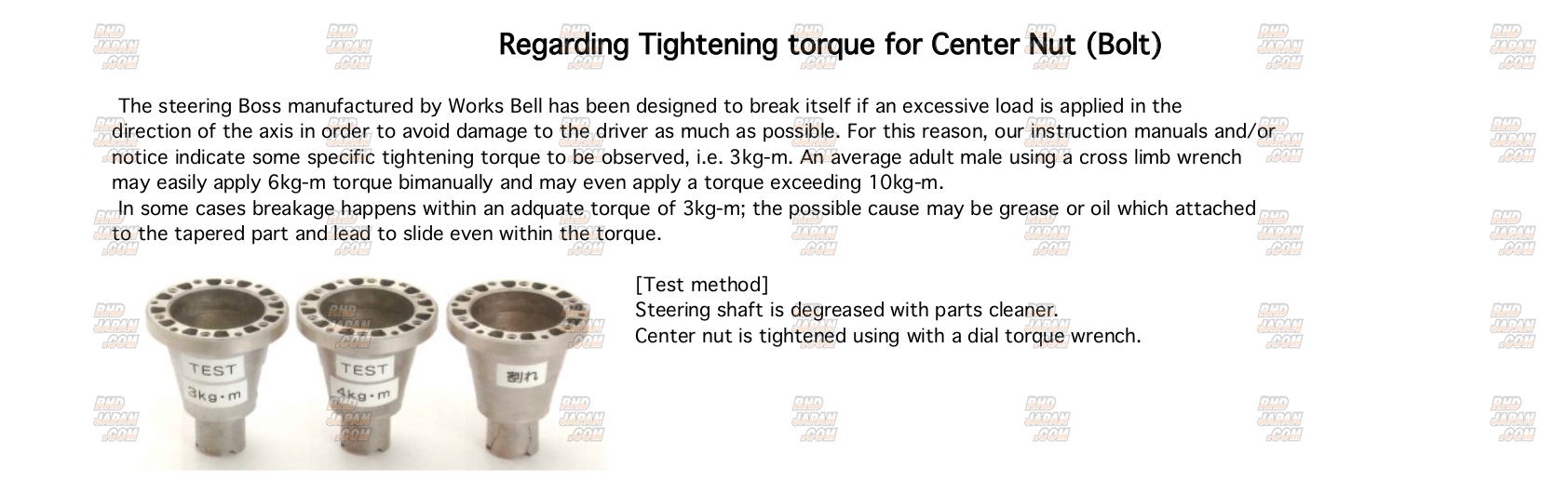

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
