This item is designed to adapt aftermarket quick release Rapfix system and sports steering wheel. Developed to be shorter than the standard boss kit/hub adapter to accommodate for the addition of the quick release system. Ideal for race applications with tight cockpit space, while the removal of steering wheel also acts as a great anti-theft system. The item can also be used directly with aftermarket steering wheel for those looking for improved wheel placement and driving position. Manufactured with superior quality materials, manufacturing process and know how for a premium quality product. Get this and all your JDM at RHDJapan!!
Brand: Works Bell
Product: Short Boss Kit for Rapfix - Honda NSX NA1 NA2
Part Num: 290S
SPECIFICATIONS:
Material: Billet Aluminum
Length (mm): 78
Length in comparison to standard Boss KIt (mm): -67
PRODUCT NOTES:
- All Hardware for Installation Included
COMPATIBILITY NOTES:
- Momo Steering Wheel Pitch
- Only for SRS Equipped Vehicles
INSTALLATION NOTE:

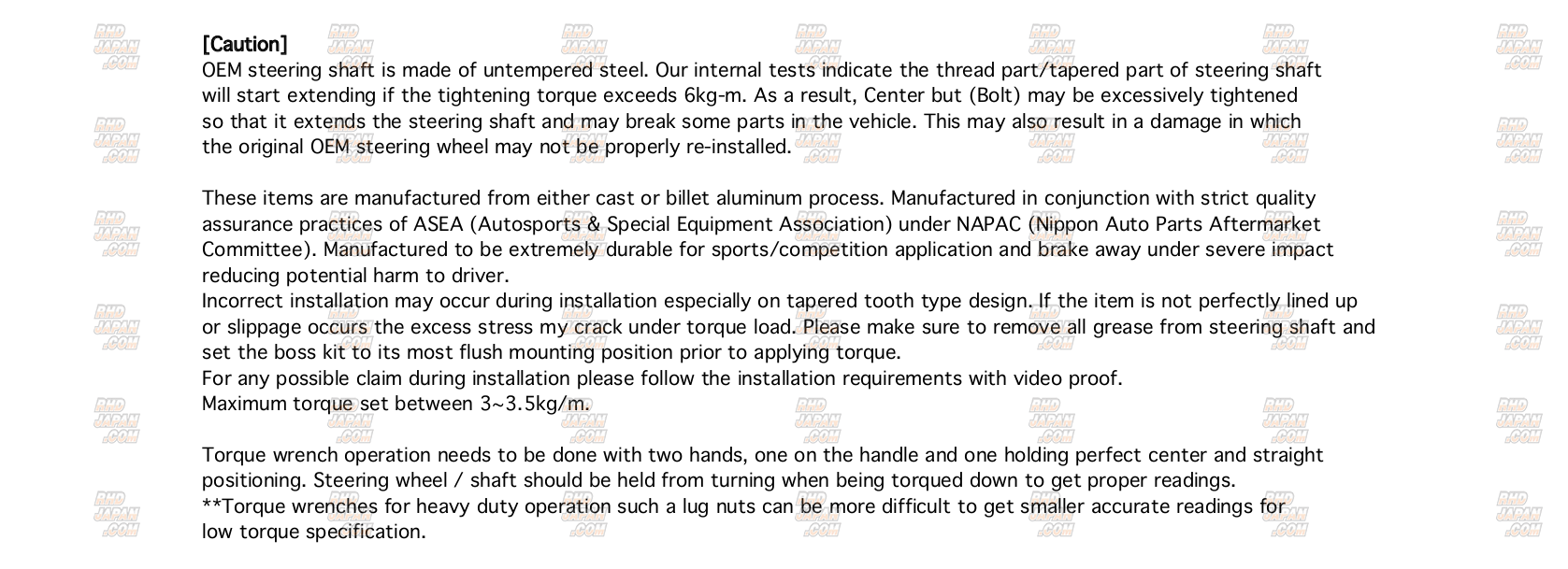

These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.

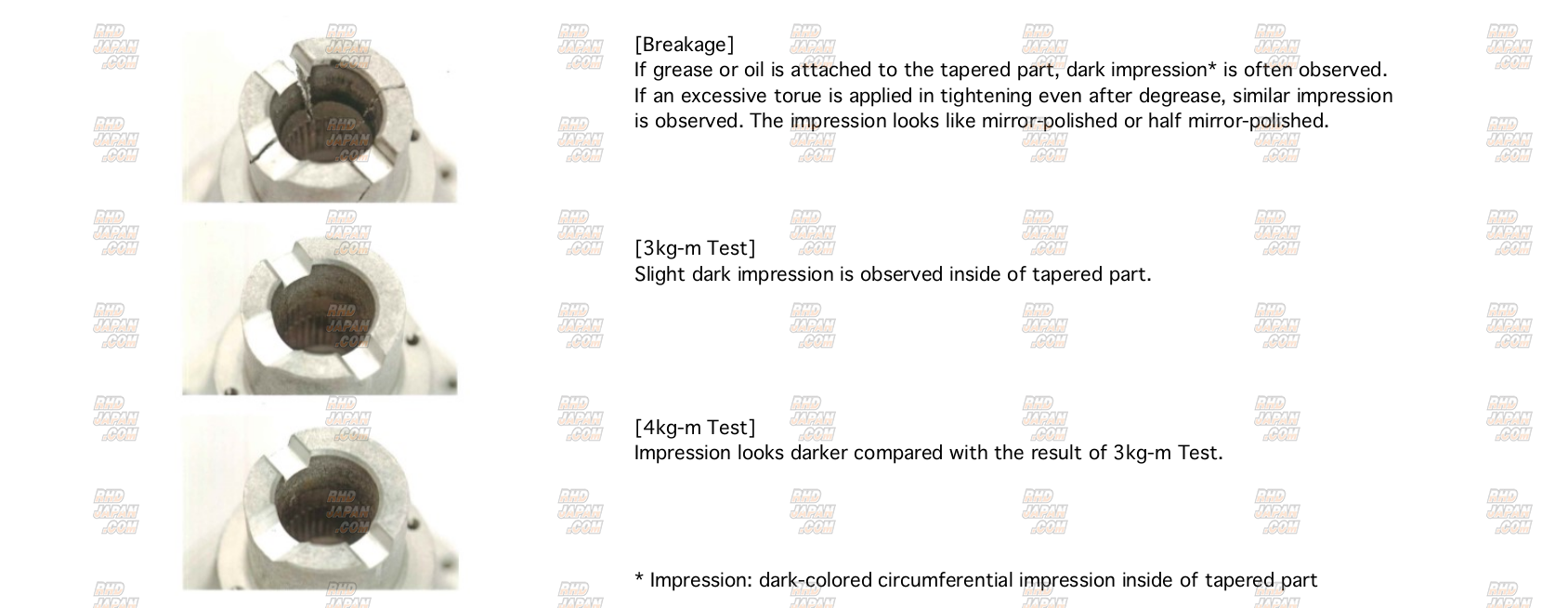

Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.

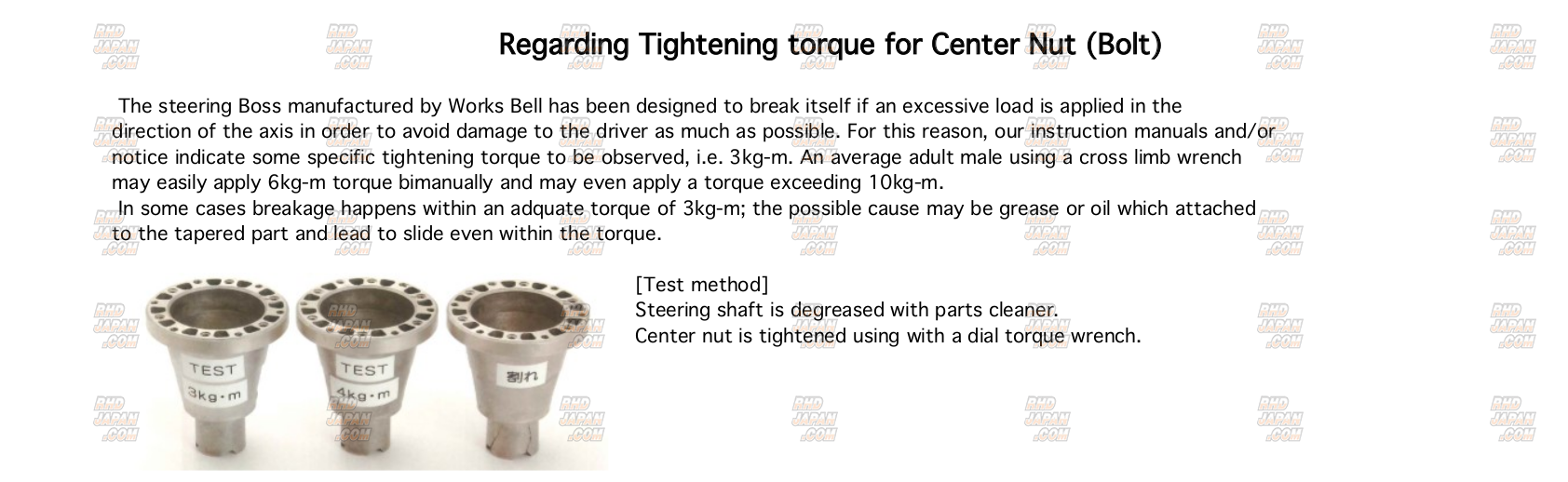

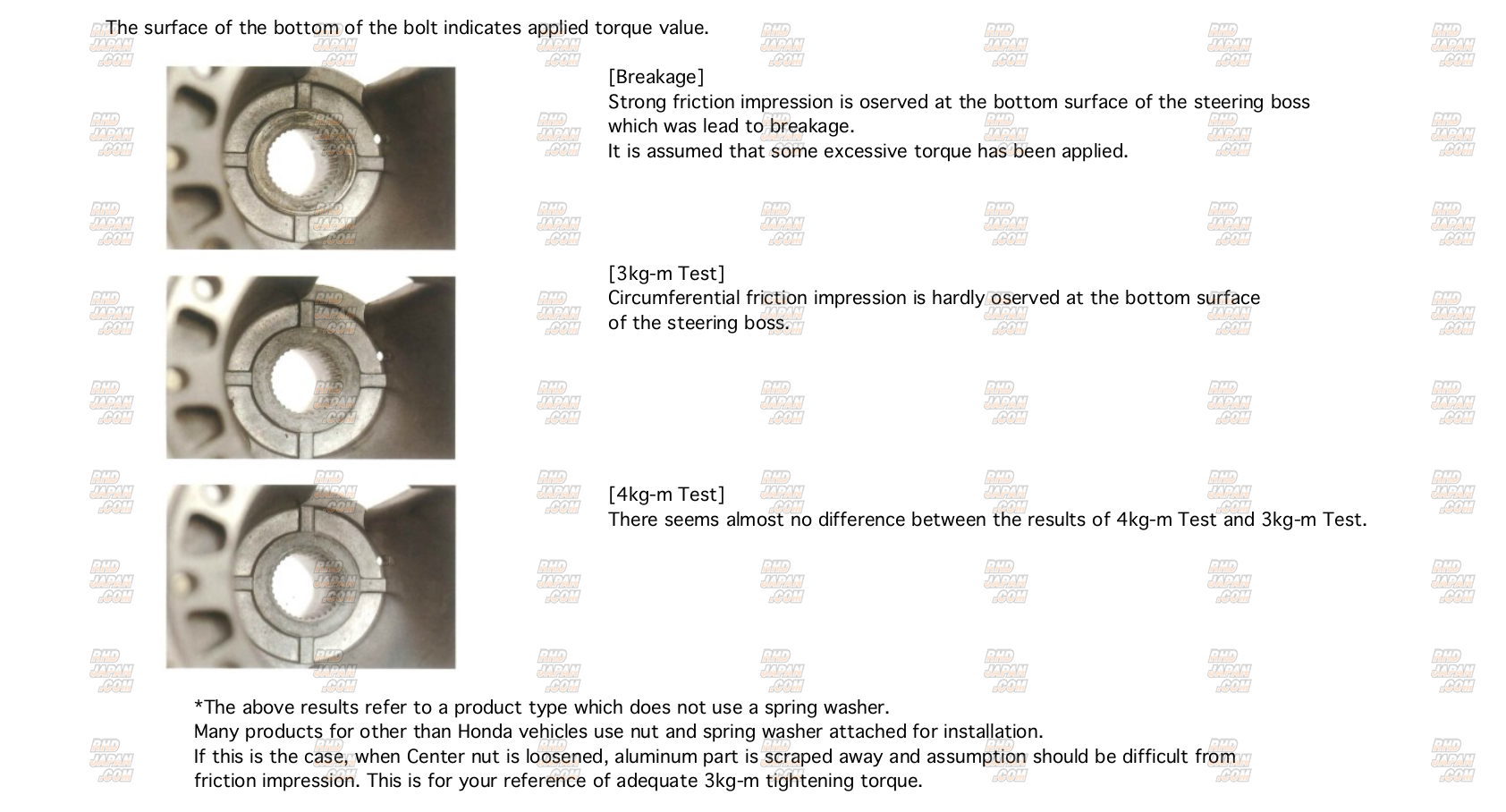

- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Product: Short Boss Kit for Rapfix - Honda NSX NA1 NA2
Part Num: 290S
SPECIFICATIONS:
Material: Billet Aluminum
Length (mm): 78
Length in comparison to standard Boss KIt (mm): -67
PRODUCT NOTES:
- All Hardware for Installation Included
COMPATIBILITY NOTES:
- Momo Steering Wheel Pitch
- Only for SRS Equipped Vehicles
INSTALLATION NOTE:
These items are manufactured from either cast or billet aluminum process. Manufactured in conjunction with strict quality assurance practices of ASEA (Autosports & Special Equipment Association) under NAPAC (Nippon Auto Parts Aftermarket Committee). Manufactured to be extremely durable for sports/competition application and brake away under severe impact reducing potential harm to driver.
Incorrect installation may occur during installation especially on tapered tooth type design. If the item is not perfectly lined up or slippage occurs the excess stress my crack under torque load. Please make sure to remove all grease from steering shaft and set the boss kit to its most flush mounting position prior to applying torque.
For any possible claim during installation please follow the installation requirements with video proof.
- Maximum torque set between 3~3.5kg/m.
*Torque wrench operation needs to be done with two hands, one on the handle and one holding perfect center and straight positioning.
**Steering wheel / shaft should be held from turning when being torqued down to get proper readings.
***Torque wrenches for heavy duty operation such a lug nuts can be more difficult to get smaller accurate readings for low torque specification.
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Honda NSX NA1 Type I C30A (08/1990-01/1997)
Honda NSX NA1 Type II C30A (02/1997-11/2001)
Honda NSX NA1 Type III C30A (12/2001-12/2005)
Honda NSX NA2 Type II C32B (02/1997-11/2001)
Honda NSX NA2 Type III C32B (12/2001-12/2005)
Honda NSX NA1 Type I C30A (08/1990-01/1997)
Honda NSX NA1 Type II C30A (02/1997-11/2001)
Honda NSX NA1 Type III C30A (12/2001-12/2005)
Honda NSX NA2 Type II C32B (02/1997-11/2001)
Honda NSX NA2 Type III C32B (12/2001-12/2005)
