Blitz Bolt-On Turbo System 4862GTR-750R - GT-R R35

994409 JPY

BLITZ SKU: 292195 PN: 10206_2Box

These items are designed as an upgrade for the factory turbochargers. The updated version for the previous 4862GTR-700R model pushing max power output to the 750ps mark. Get a major boost in performance in Power and Torque from stock to lightly modified setups with significantly more potential than any of the Standard OEM to NIsmo spec turbochargers. A high-spec turbocharger developed in conjunction with IHI capable of a wide range of diverse powerful settings. Get this and all your JDM at RHDJapan!!

Brand: Blitz
Product: Bolt-On Turbo System 4862GTR-750R - GT-R R35
Part Number: 10206_2Box

SPECIFICATIONS:
Series: 4862GTR-750R
Actuator Type: Reinforced & Adjustable
Turbo Specs:
Compressor Inlet (mm):
-Blitz: 48.3
-Standard OEM: 43.4
-NISMO/GT3: 46.5
-NISMO (MY20): 46.5
Compressor Wheel Outer Diameter (mm):
-Blitz: 62.0
-Standard OEM: 56.0
-NISMO/GT3: 60.0
-NISMO (MY20): 60.0
Compressor Wheel Trim:
-Blitz: 60.7%
-Standard OEM: 60.0%
-NISMO/GT3: 60.0%
-NISMO (MY20): 60.0%
Compressor Wheel Manufacture Process:
-Blitz: Lightweight Billet Aluminum
-Standard OEM: Die-Cast
-NISMO/GT3: Die-Cast
-NISMO (MY20): Die-Cast

Turbine Wheel Outlet Diameter (mm):
-Blitz: 46.7
-Standard OEM: 40.1
-NISMO/GT3: 48.0
-NISMO (MY20): 46.7
Turbine Wheel Inlet Diameter (mm):
-Blitz: 53.0
-Standard OEM: 53.0
-NISMO/GT3: 53.0
-NISMO (MY20): 53.0
Turbine Wheel Trim:
-Blitz: 77.6%
-Standard OEM: 57.2%
-NISMO/GT3: 82.0%
-NISMO (MY20): 77.6%
Blade Count:
-Blitz: 10
-Standard OEM: 11
-NISMO/GT3: 11
-NISMO (MY20): 10

PRODUCT NOTES:

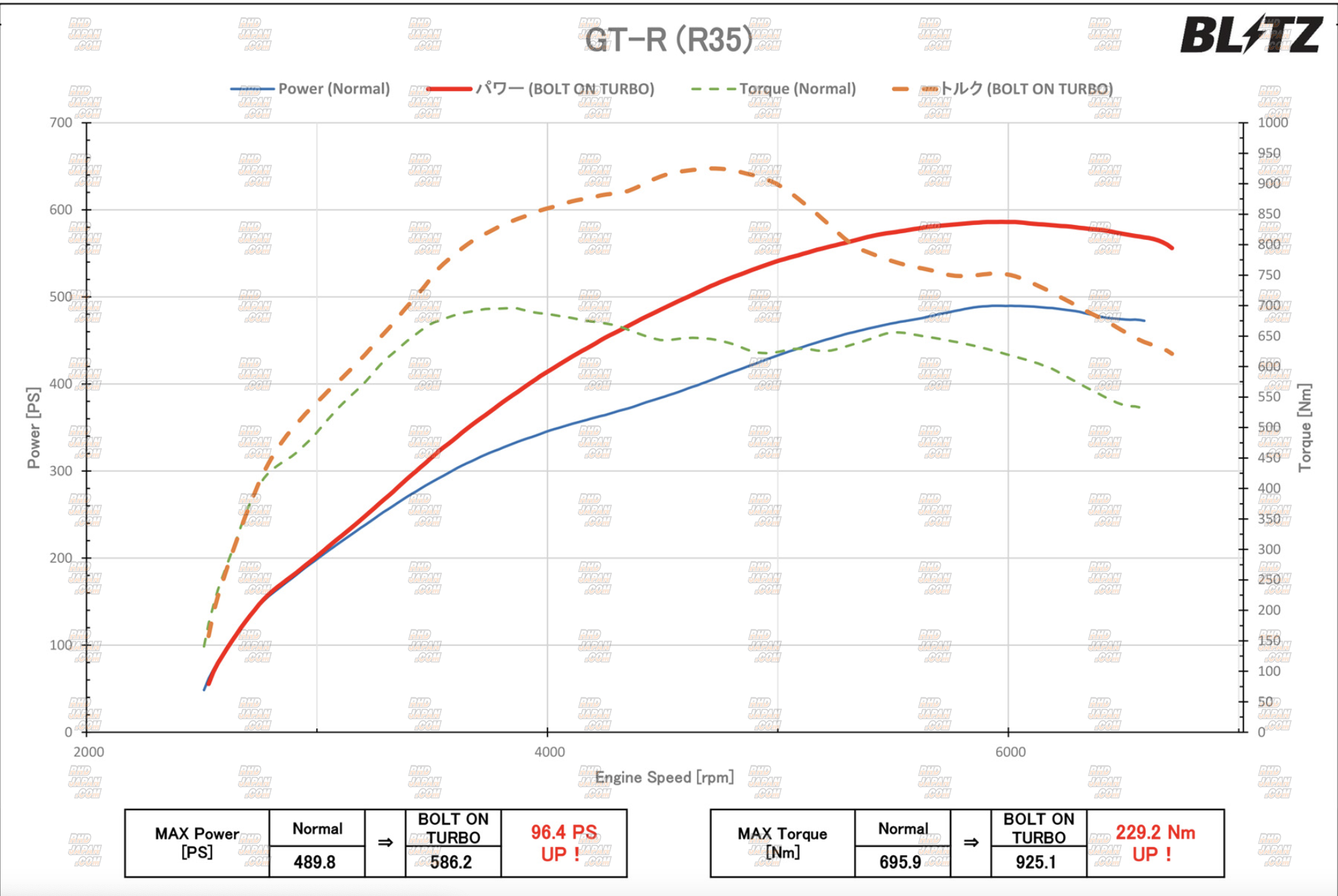

Power Graph Tuning Spec:
-MAX POWER 489.8PS → 586.2PS [96.4PS UP！]
-MAX TORQUE 695.9Nm → 925.1Nm [229.2Nm UP！]
-OEM Air Intake
-OEM Muffler
-700cc Fuel Injector
-295L/h×2 Fuel Pump
-Boost: 1.2×100kpa

Installation Manual PDF: http://www.blitz.co.jp/support/manual/turbo/10206_manual.pdf (Required OEM Parts included)
-ECU Settings recommended
-Fuel System needs to be upgraded according to power output.

COMPATIBILITY NOTES:
Must be used in conjunction with separate type Exhaust Manifold from 2019/08- MY20

Compatibility

Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.

Nissan GT-R R35 VR38DETT (11/2007-11/2010)
Nissan GT-R R35 VR38DETT (11/2010-06/2016)
Nissan GT-R R35 VR38DETT (07/2016-11/2017)
Nissan GT-R R35 VR38DETT (11/2017~)
