Blitz Damper ZZ-R SpecDSC Plus Coilover Suspension - BRZ ZC6 86 ZN6
187099
JPY
BLITZ
SKU: 254035
PN: 98467This kit includes the flagship ZZ-R Full Coilover Suspension Set and includes the newest version of the damper system controller DSC Plus. Take the highly acclaimed ZZ-R to the next level for the ultimate driving experience. Get full control over damper settings directly from the cockpit for perfect handling characteristics in any driving scenario. The ultimate tool in getting the most enjoyment out of the suspension from driving performance to riding comfort. Select from several different modes in easy to use Standard Mode or setup extremely refined settings in Advance Mode. This version also features world first Full Auto Mode which uses algorithm to continually refine damper settings in real time! The bipolar stepping motors are also more compact and faster than the previous model. Built in G-Sensor within Motor Drive Unit and Optional GPS Sensor allow for further advanced settings based off of G-Force and speed which can also display real time and peak G-force. Optional remote switch allows user to relocate the switch for easy access to quick changes in between modes. Get this and all your JDM at RHDJapan!!
Brand: Blitz
Product: Damper ZZ-R SpecDSC Plus Coilover Suspension - BRZ ZC6 86 ZN6
Part Num: 98467
SPECIFICATIONS:
Included:
- Coilover suspension and hardware

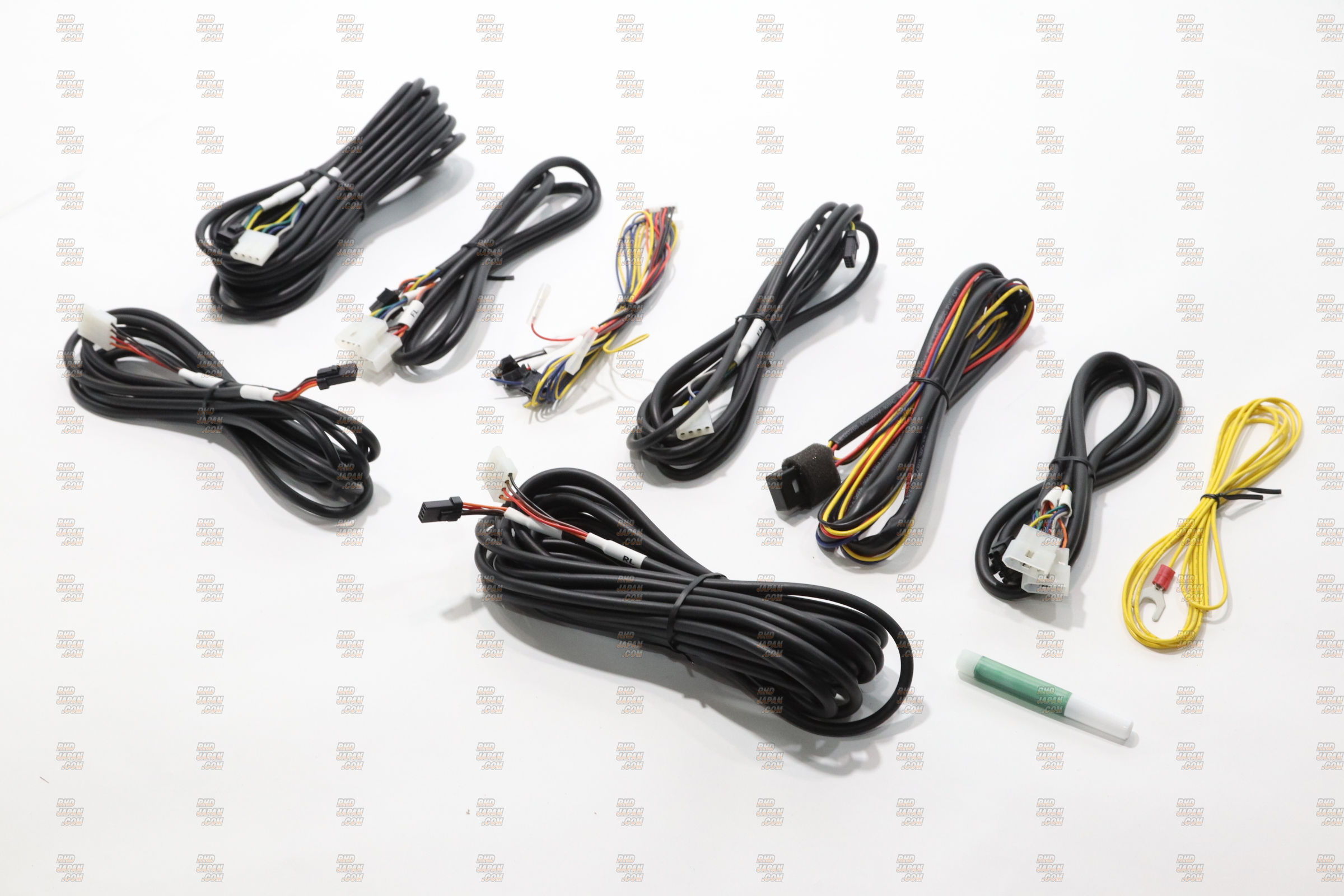

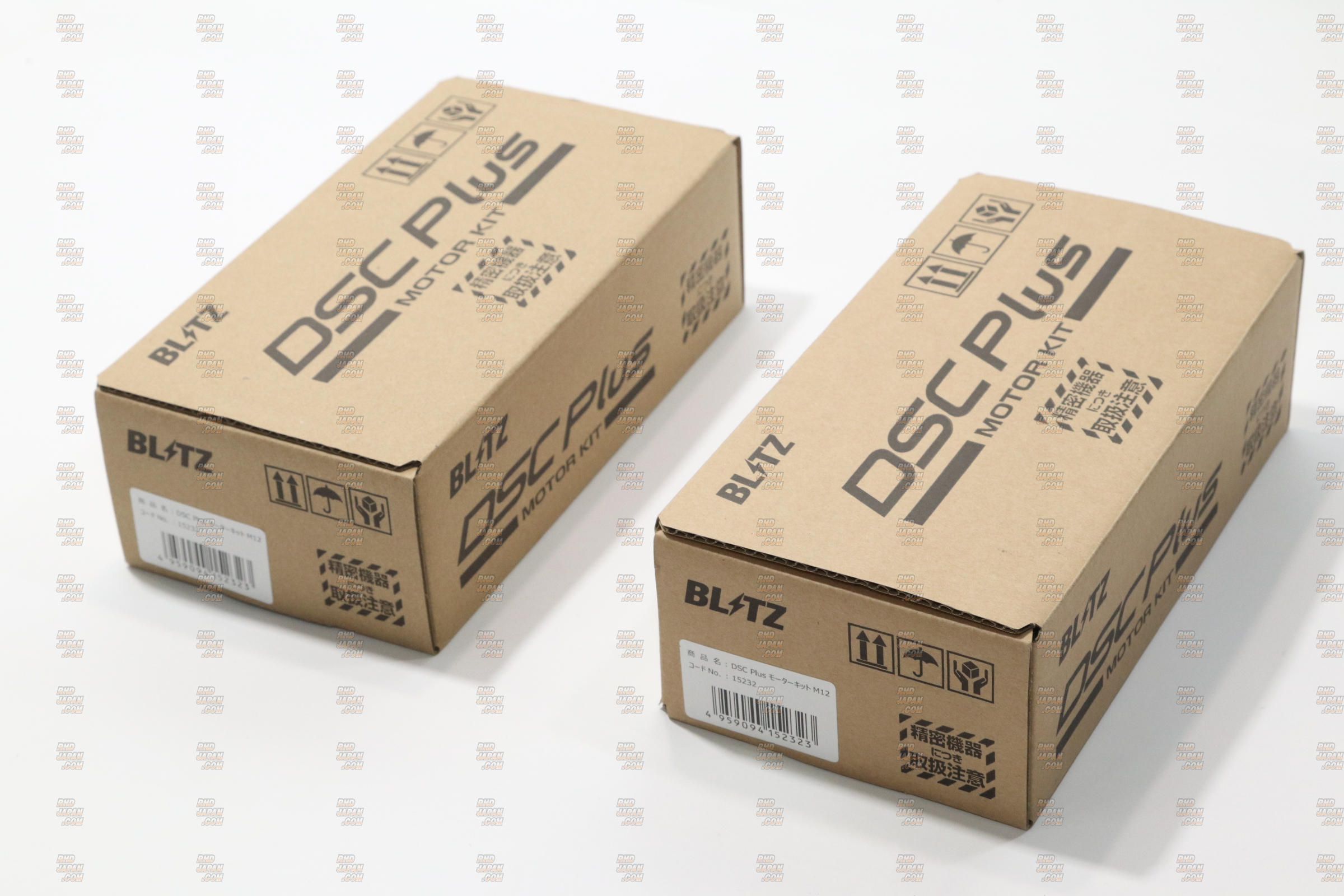

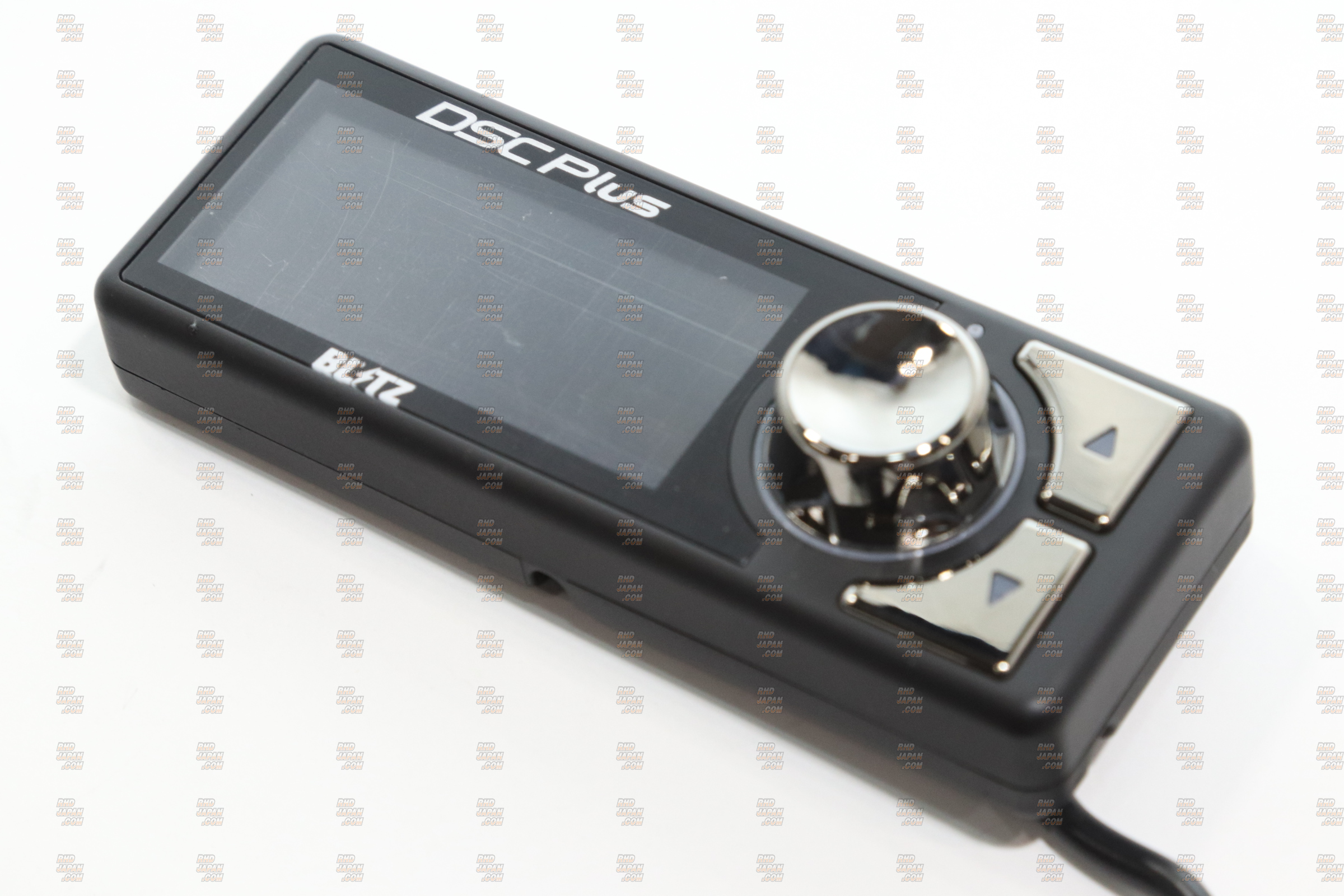

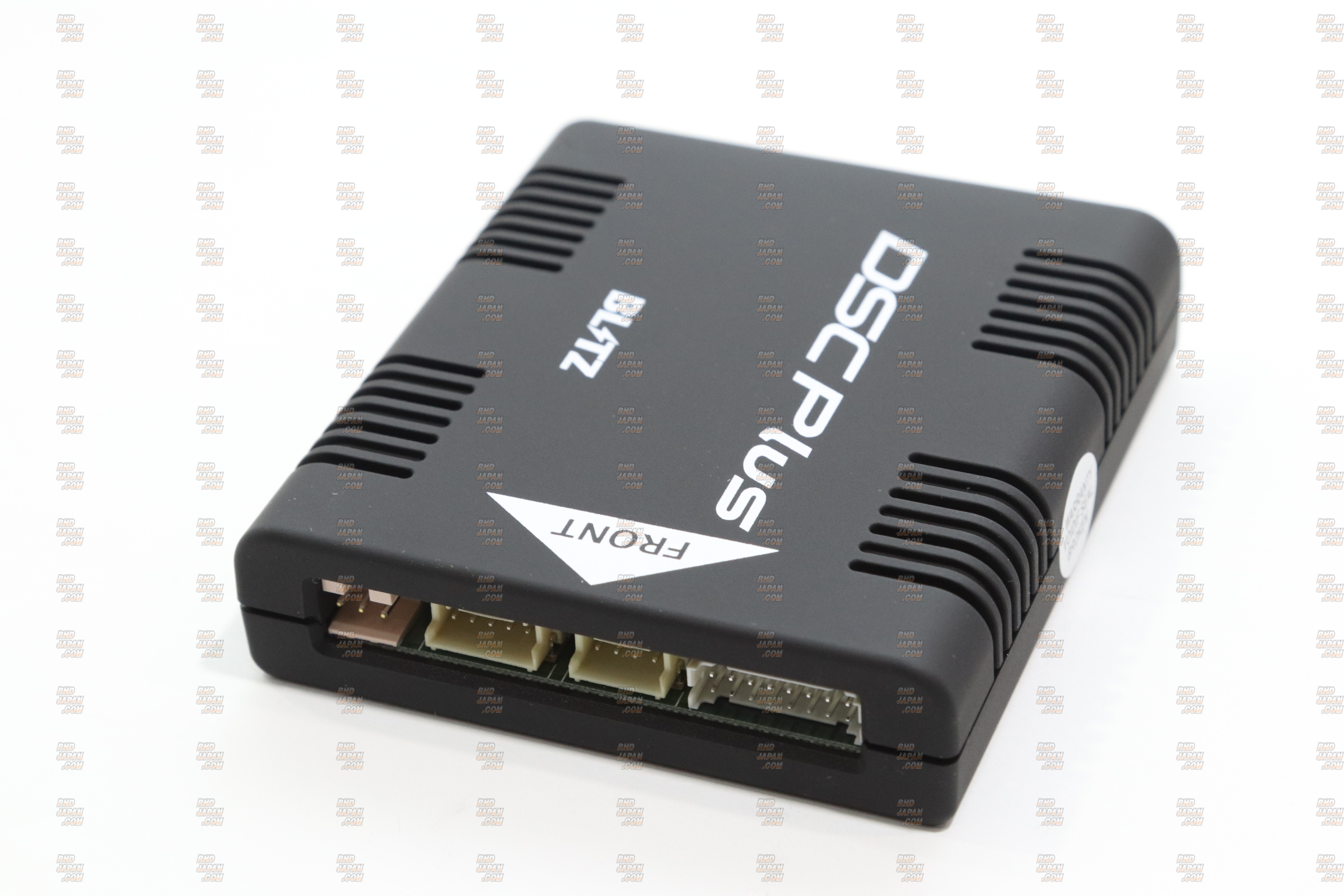

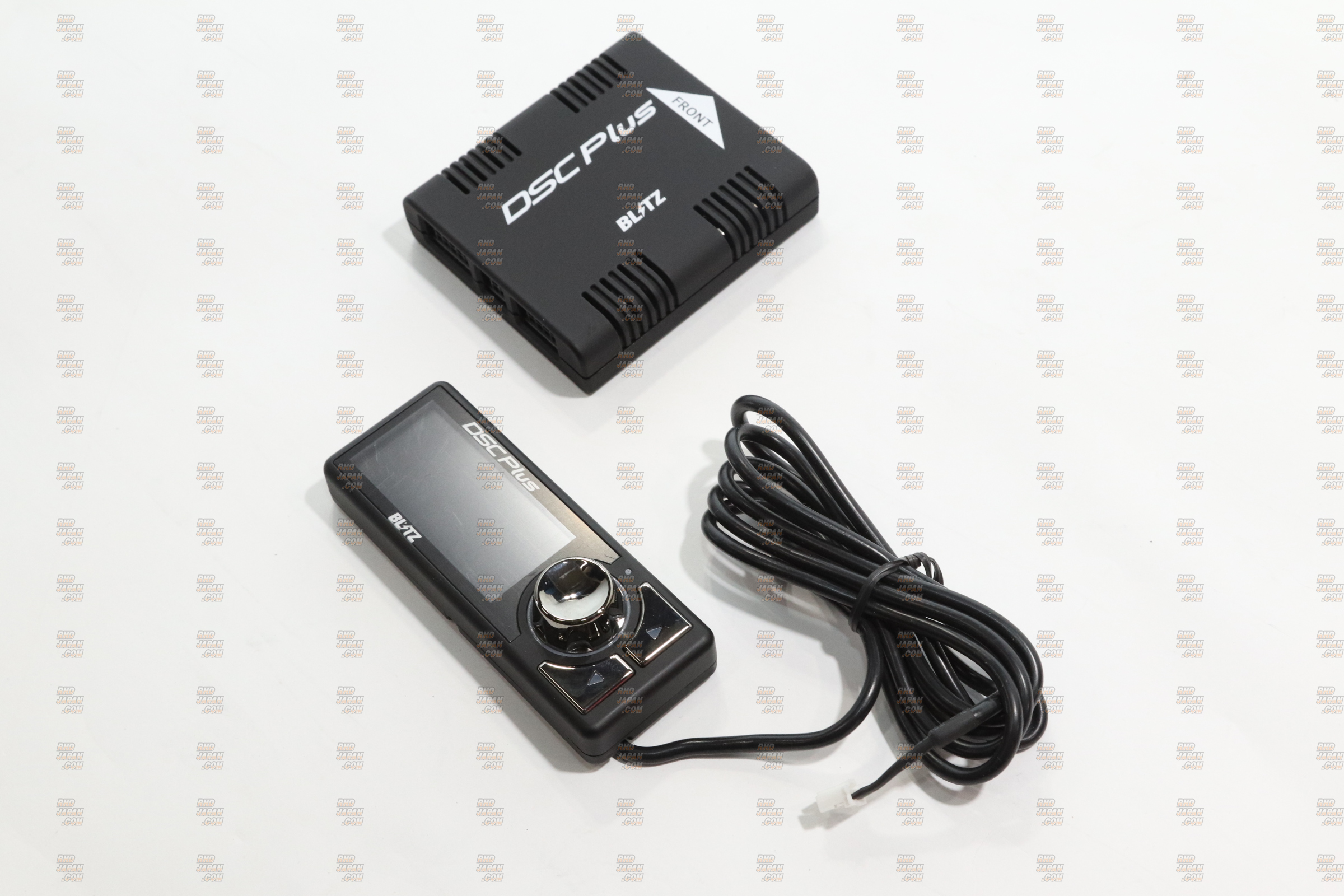

- SpecDSC Plus controller, motors and hardware
Series: ZZ-R SpecDSC Plus
Materials:
- Springs: Special high-tension Steel (SAE9245)
- Cylinder Case: High-strength Steel (STKM13C)
Upper Mount Configuration:
- Front: Adjustable Pillow Upper Mount
- Rear: Reinforced Rubber Upper Mount
Spring Spec.:
- Spring Rate (kgf.mm):
-- Front: 6.0
-- Rear: 4.0
- Free Length (mm):
-- Front: 150
-- Rear: 200
Height adjustment range (mm):
- Front: -55 ~ 0
- Rear: -60 ~ -10
Damper Adjustment Dial Extension:
- -
FEATURES:
- Single Cylinder Type
- 96 stage adjustment method
- Practical use for street circuit and wide range of events
- Designed with large diameter piston at 44mm (some vehicles)
- Forged aluminum upper mount
- Forged aluminum sheet for reduced weight and increased durability and strength
- Rigid bracket coated with special pain to achieve durability
- Aluminum bracket coated in black anodized paint to improve corrosion resistance
- Included height adjustment wrench
PRODUCT NOTES:
- Common for vehicle before/after MC
- Operating noise of shock absorbers may be heard easily because of pillow upper mount.
- BRZ ZC6 86 ZN6: Processing or dismantling of vehicle interior should be needed before installing rear motor.
- ZC6: Processing or dismantling of trunk side panel should be needed before installing rear motor.
COMPATIBILITY NOTES:
- BRZ ZC6 86 ZN6: Only for 86; 4/12〜
- BRZ ZC6 86 ZN6: Only for 86 GR; 12/17〜
- ZC6: Only for BRZ; 3/12〜
Product: Damper ZZ-R SpecDSC Plus Coilover Suspension - BRZ ZC6 86 ZN6
Part Num: 98467
SPECIFICATIONS:
Included:
- Coilover suspension and hardware
- SpecDSC Plus controller, motors and hardware
Series: ZZ-R SpecDSC Plus
Materials:
- Springs: Special high-tension Steel (SAE9245)
- Cylinder Case: High-strength Steel (STKM13C)
Upper Mount Configuration:
- Front: Adjustable Pillow Upper Mount
- Rear: Reinforced Rubber Upper Mount
Spring Spec.:
- Spring Rate (kgf.mm):
-- Front: 6.0
-- Rear: 4.0
- Free Length (mm):
-- Front: 150
-- Rear: 200
Height adjustment range (mm):
- Front: -55 ~ 0
- Rear: -60 ~ -10
Damper Adjustment Dial Extension:
- -
FEATURES:
- Single Cylinder Type
- 96 stage adjustment method
- Practical use for street circuit and wide range of events
- Designed with large diameter piston at 44mm (some vehicles)
- Forged aluminum upper mount
- Forged aluminum sheet for reduced weight and increased durability and strength
- Rigid bracket coated with special pain to achieve durability
- Aluminum bracket coated in black anodized paint to improve corrosion resistance
- Included height adjustment wrench
PRODUCT NOTES:
- Common for vehicle before/after MC
- Operating noise of shock absorbers may be heard easily because of pillow upper mount.
- BRZ ZC6 86 ZN6: Processing or dismantling of vehicle interior should be needed before installing rear motor.
- ZC6: Processing or dismantling of trunk side panel should be needed before installing rear motor.
COMPATIBILITY NOTES:
- BRZ ZC6 86 ZN6: Only for 86; 4/12〜
- BRZ ZC6 86 ZN6: Only for 86 GR; 12/17〜
- ZC6: Only for BRZ; 3/12〜
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)
Subaru BRZ ZC6 Applied A FA20 (04/2012-09/2013)
Subaru BRZ ZC6 Applied B FA20 (09/2013-06/2014)
Subaru BRZ ZC6 Applied C FA20 (07/2014-01/2015)
Subaru BRZ ZC6 Applied D FA20 (02/2015-05/2016)
Subaru BRZ ZC6 Applied E FA20 (06/2016-09/2017)
Subaru BRZ ZC6 Applied F FA20 (10/2017-03/2021)
Toyota 86 ZN6 FA20 (04/2012-08/2016)
Toyota 86 ZN6 FA20 (08/2016-03/2019)
Toyota 86 ZN6 FA20 (04/2019-10/2021)
