Blitz Damper ZZ-R SpecDSC Plus Coilover Suspension - Corolla NRE210 ZRE212 ZWE211 NRE210H NRE214H ZWE211H ZWE213H MZEA12W NRE210W ZRE212W ZWE211W ZWE214W

Brand: Blitz
Product: Damper ZZ-R SpecDSC Plus Coilover Suspension - Corolla NRE210 ZRE212 ZWE211 NRE210H NRE214H ZWE211H ZWE213H MZEA12W NRE210W ZRE212W ZWE211W ZWE214W
Part Num: 98512

SPECIFICATIONS:
Included:

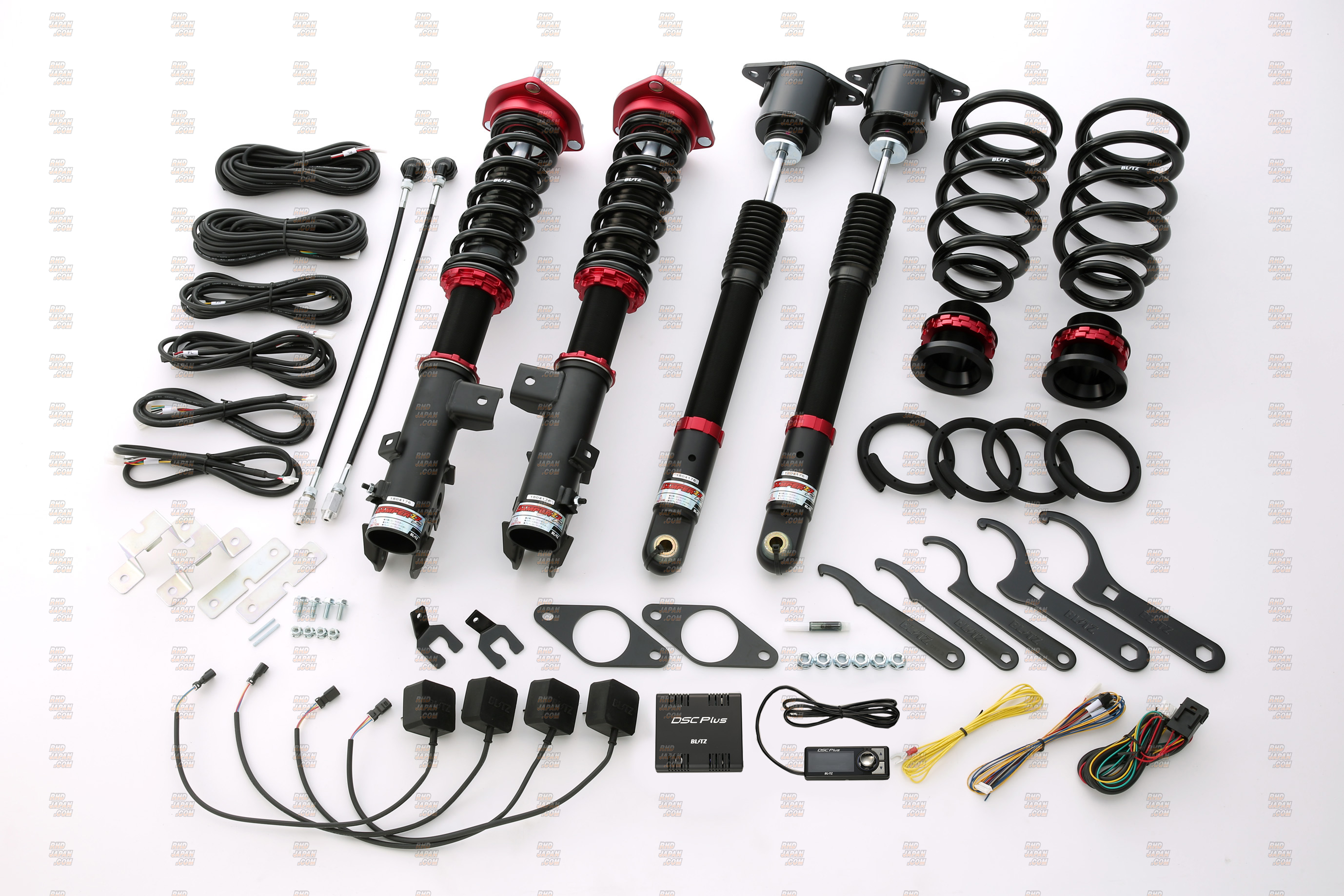

- Coilover suspension and hardware

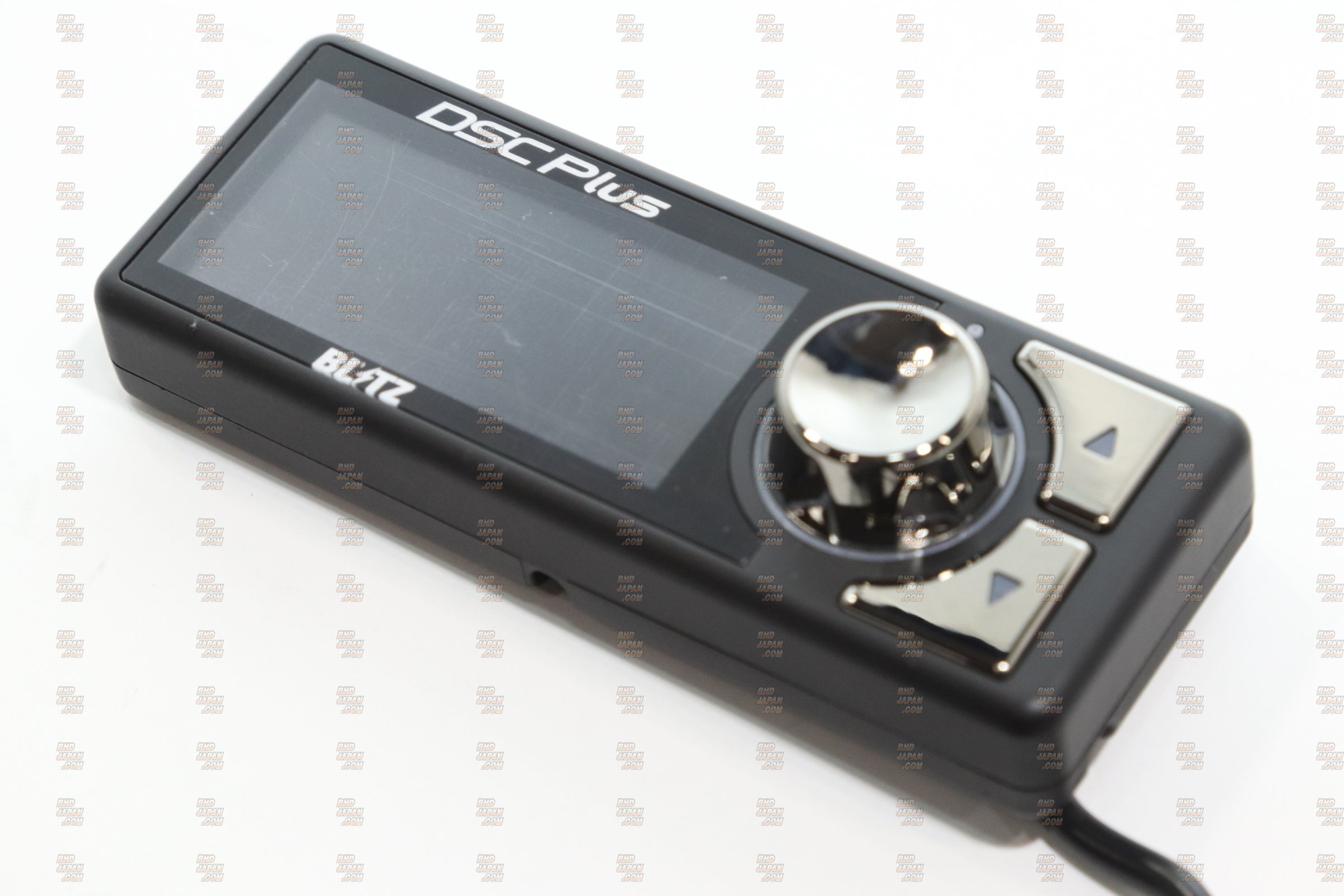

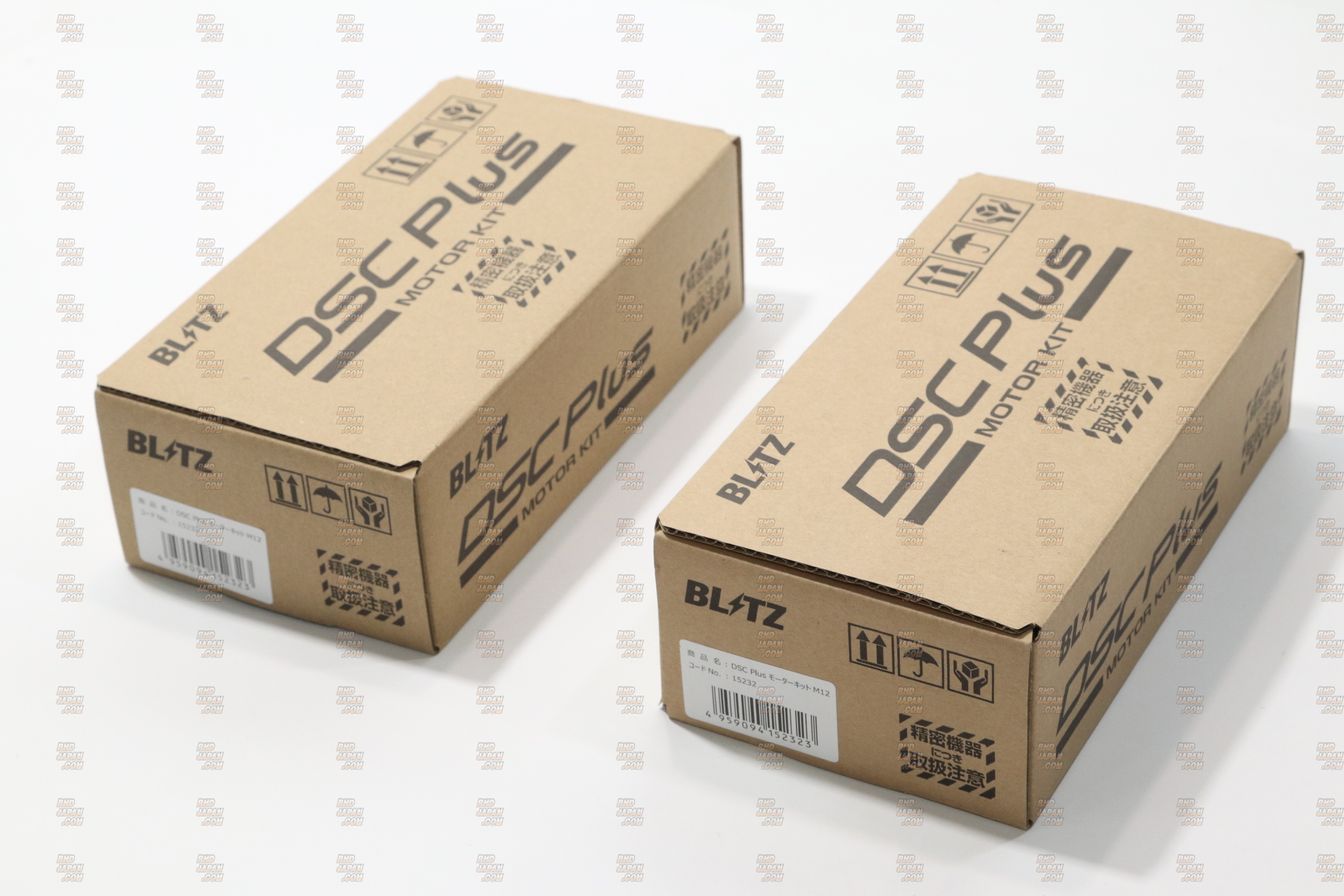

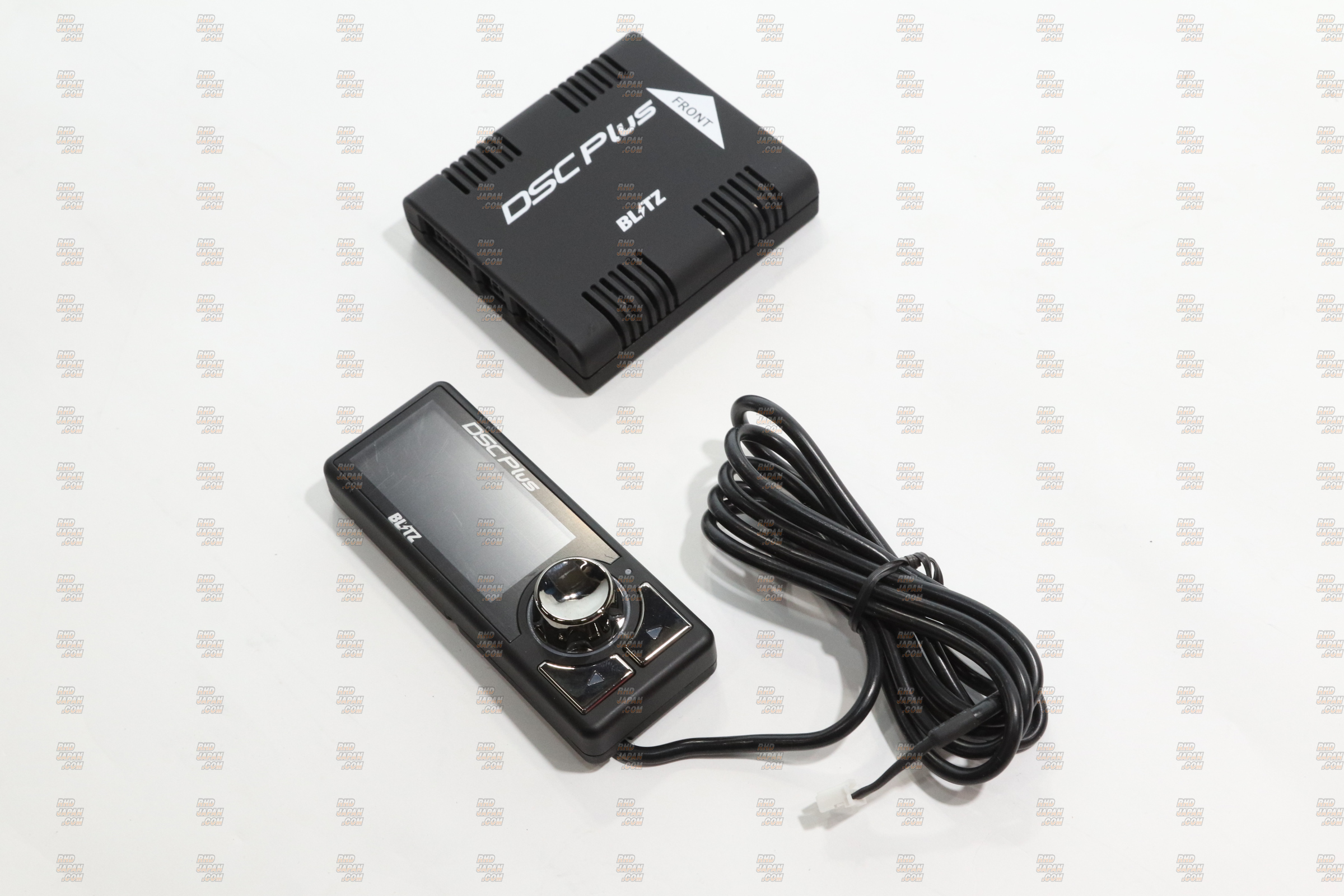

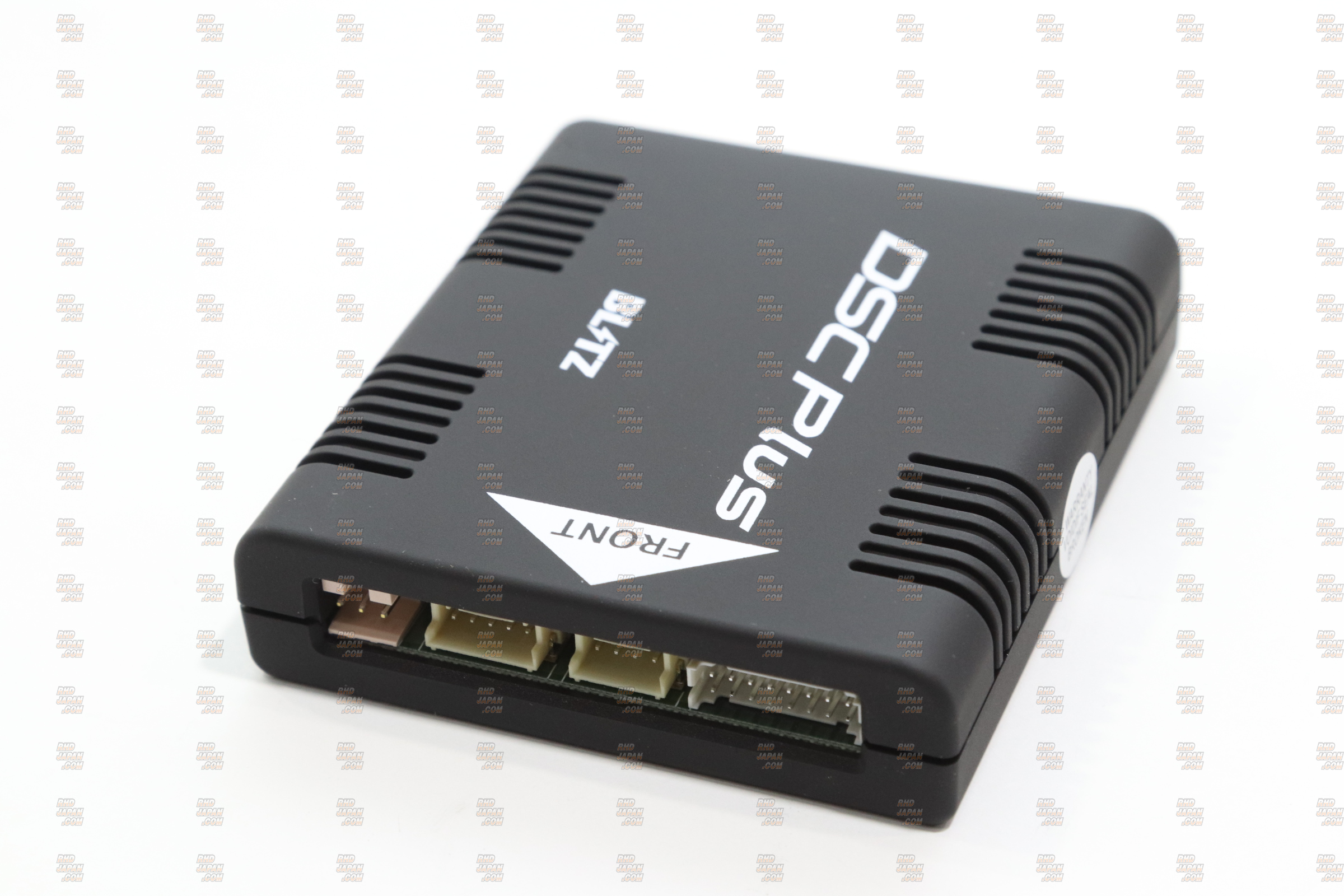

- SpecDSC Plus controller, motors and hardware
Series: ZZ-R SpecDSC Plus
Materials:
- Springs: Special high-tension Steel (SAE9245)
- Cylinder Case: High-strength Steel (STKM13C)
Upper Mount Configuration:
- Front: Strengthened Rubber
- Rear: Strengthened Rubber
Spring Spec.:
- Spring Rate (kgf.mm):
-- Front: 4.0
-- Rear: 4.0
- Free Length (mm):
-- Front: 220
-- Rear: 240
Height adjustment range (mm):
NRE210 ZWE213H:
- Front: -50 ~ 0
- Rear: -45 ~ 0
NRE210H ZWE211H:
- Front: -58 ~ 0
- Rear: -47 ~ 0
NRE214H:
- Front: -80 ~ 0
- Rear: -80 ~ -25
NRE210W:
- Front: -55 ~ 0
- Rear: -50 ~ 0
MZEA12W:
- Front: -45 ~ 0
- Rear: -40 ~ 0
ZWE214W:
- Front: -50 ~ 0
- Rear: -55 ~ 0
JAN Code: 4959094985129

COMPATIBILITY NOTES:
- ZWE213H: For vehicles 06/20~
- ZWE211 ZWE211W: For vehicles hybrid, 2WD.
- ZWE214W: For vehicles hybrid 4WD.
- NRE210 ZRE212 NRE210H ZWE211H ZWE213H NRE210W ZRE212W: For vehicles 2WD.
- NRE214H: For vehicles 4WD.

FEATURES:
- Single Cylinder Type
- 96 stage adjustment method
- Practical use for street circuit and wide range of events
- Designed with large diameter piston at 44mm (some vehicles)
- Forged aluminum upper mount
- Forged aluminum sheet for reduced weight and increased durability and strength
- Rigid bracket coated with special pain to achieve durability
- Aluminum bracket coated in black anodized paint to improve corrosion resistance
- Included height adjustment wrench
