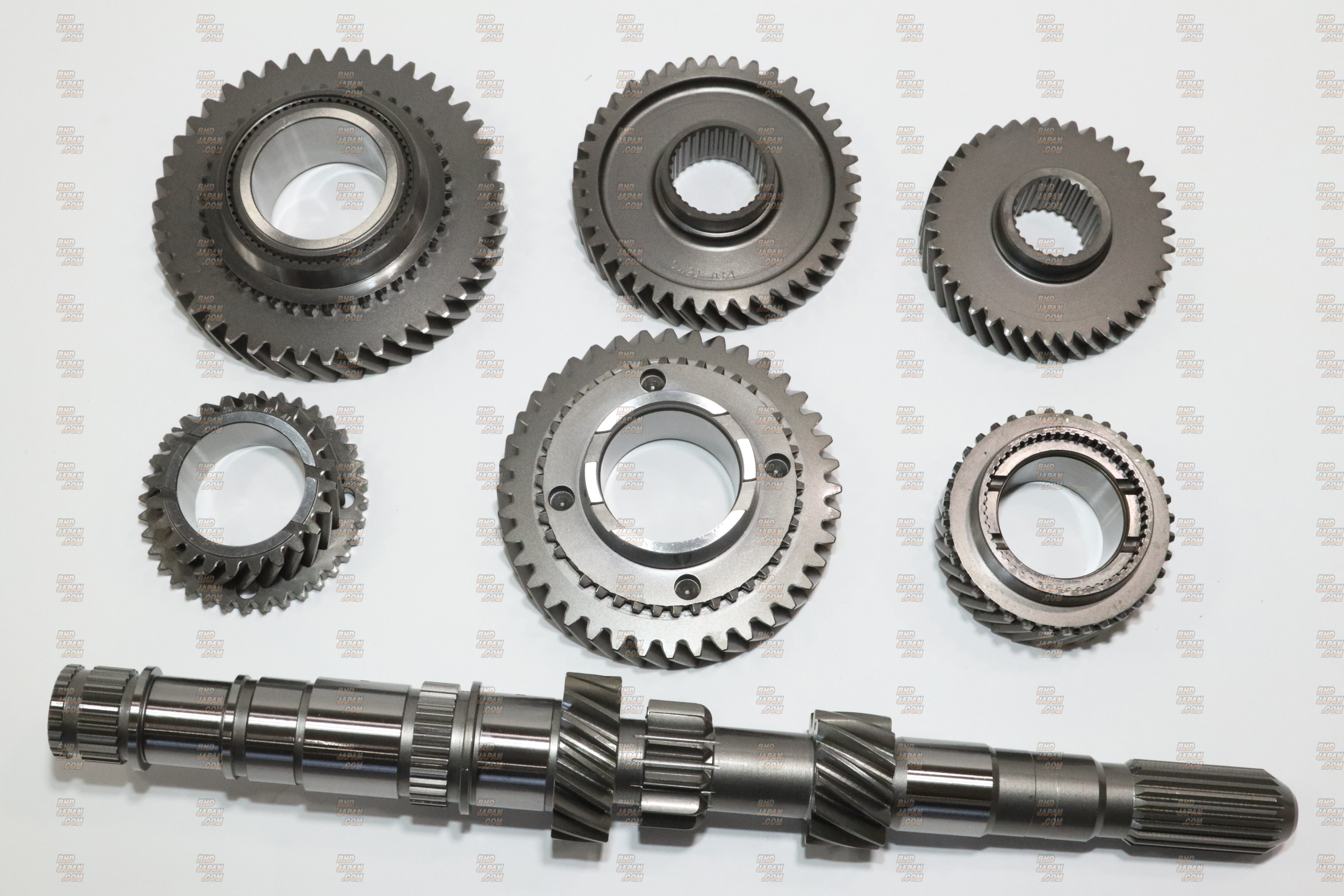

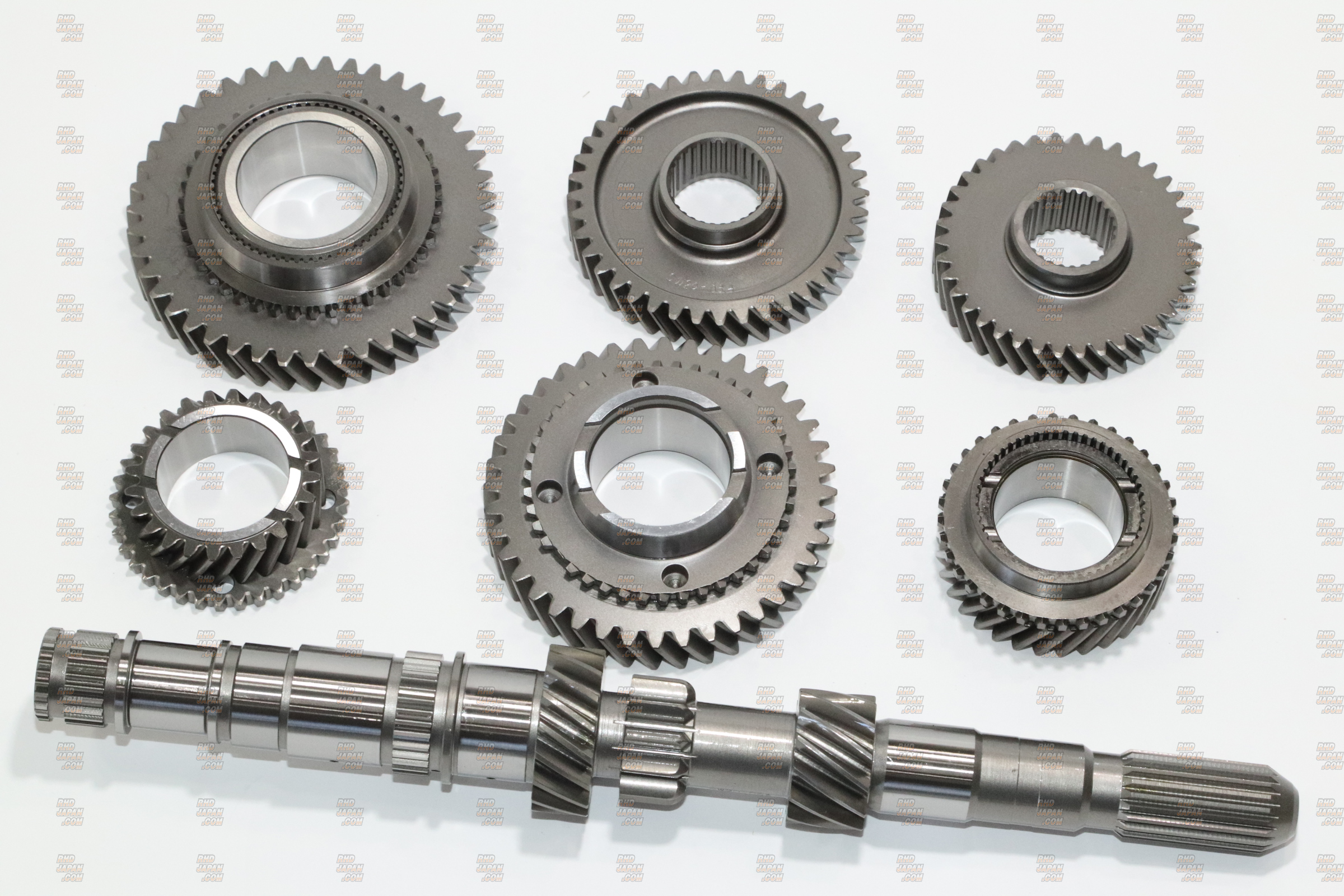

This kit is designed to replace the factory input shaft and select gears from within the transmission developed for those seeking improved drive train performance. From extensive testing and data collecting the gear ratios been selected to provide the most efficient combination of ratio's for sports application. Being made from the highest grade metal alloys they are of superior quality which will be much more durable through the punishment that comes with sports driving. Configuration can be used with factory final gear or further dialed in with any of the different final gear ratio setups. Get this and all your JDM at RHDJapan!!
Brand: Cusco
Product: Close Ratio Transmission Gear Kit - MR2 SW20 Turbo
Part Num: 137 028 A
SPECIFICATIONS:
Materials: SCr/SCM and SNCM (Metal Alloys)
Gear Ratio:
CUSCO:
- 1st: 3.308
- 2nd: 2.353
- 3rd: 1.667
- 4th: 1.187
OEM:
- 1st: 3.230
- 2nd: 1.913
- 3rd: 1.258
- 4th: 0.918
- 5th: 0.731
PRODUCT NOTES:
- Included: Strengthened Main Shaft
Product: Close Ratio Transmission Gear Kit - MR2 SW20 Turbo
Part Num: 137 028 A
SPECIFICATIONS:
Materials: SCr/SCM and SNCM (Metal Alloys)
Gear Ratio:
CUSCO:
- 1st: 3.308
- 2nd: 2.353
- 3rd: 1.667
- 4th: 1.187
OEM:
- 1st: 3.230
- 2nd: 1.913
- 3rd: 1.258
- 4th: 0.918
- 5th: 0.731
PRODUCT NOTES:
- Included: Strengthened Main Shaft
Compatibility is from maker for JDM cars only. We don't guarantee fitment. Always do your own research before purchase. After-sale support does not include installation support.
Toyota MR-2 SW20 Type I 3S-GE (10/1989-11/1991)
Toyota MR-2 SW20 Type I 3S-GTE (10/1989-11/1991)
Toyota MR-2 SW20 Type II 3S-GE (11/1991-10/1993)
Toyota MR-2 SW20 Type II 3S-GTE (11/1991-10/1993)
Toyota MR-2 SW20 Type III 3S-GE (10/1993-06/1996)
Toyota MR-2 SW20 Type III 3S-GTE (10/1993-06/1996)
Toyota MR-2 SW20 Type IV 3S-GE (06/1996-12/1997)
Toyota MR-2 SW20 Type IV 3S-GTE (06/1996-12/1997)
Toyota MR-2 SW20 Type V 3S-GE (12/1997-10/1999)
Toyota MR-2 SW20 Type V 3S-GTE (12/1997-10/1999)
Toyota MR-2 SW20 Type I 3S-GE (10/1989-11/1991)
Toyota MR-2 SW20 Type I 3S-GTE (10/1989-11/1991)
Toyota MR-2 SW20 Type II 3S-GE (11/1991-10/1993)
Toyota MR-2 SW20 Type II 3S-GTE (11/1991-10/1993)
Toyota MR-2 SW20 Type III 3S-GE (10/1993-06/1996)
Toyota MR-2 SW20 Type III 3S-GTE (10/1993-06/1996)
Toyota MR-2 SW20 Type IV 3S-GE (06/1996-12/1997)
Toyota MR-2 SW20 Type IV 3S-GTE (06/1996-12/1997)
Toyota MR-2 SW20 Type V 3S-GE (12/1997-10/1999)
Toyota MR-2 SW20 Type V 3S-GTE (12/1997-10/1999)
